ATEN UH3240 interface hub USB Type-C Silver
ATEN UH3240 interface hub USB Type-C Silver
SKU:UH3240
14 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

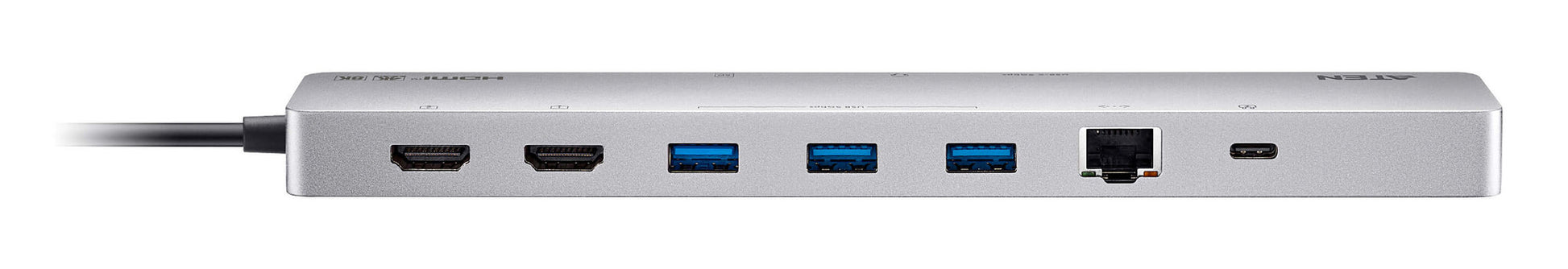

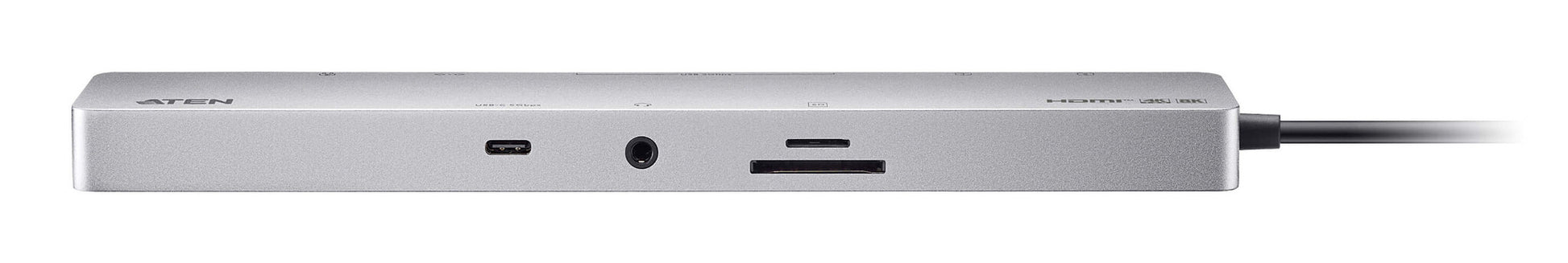

- A multiport dock with 11 essential ports – 2x HDMI, 2x USB-C (1 for power delivery & 1 for data transmission), 3x USB Type-A, 1x SD, 1x Micro SD,1x Ethernet, and 1x audio jack
- Supports up to 8K1 7680 x 4320, 4K 3840 x 2160 @ 120 Hz for single2 video output or 4K for dual video outputs3,4
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter5 – supports PD profile specifications of 5V, 9V, 12V, 15V, and 20V
- USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
- Supports DP 1.4 Alt mode
- Plug-and-play and works with all major operating systems – Windows, macOS X, iOS, iPadOS, and Android
- Compatible with Thunderbolt™ technology (USB-C) and Apple M1 / M2 / M3 chip
- Compact enclosure for space-constrained workspaces
- Drives dual-monitor workstation performance for graphically intense applications such as photo editing and video editing
Transform your laptop into the ultimate workstation with unparalleled productivity.

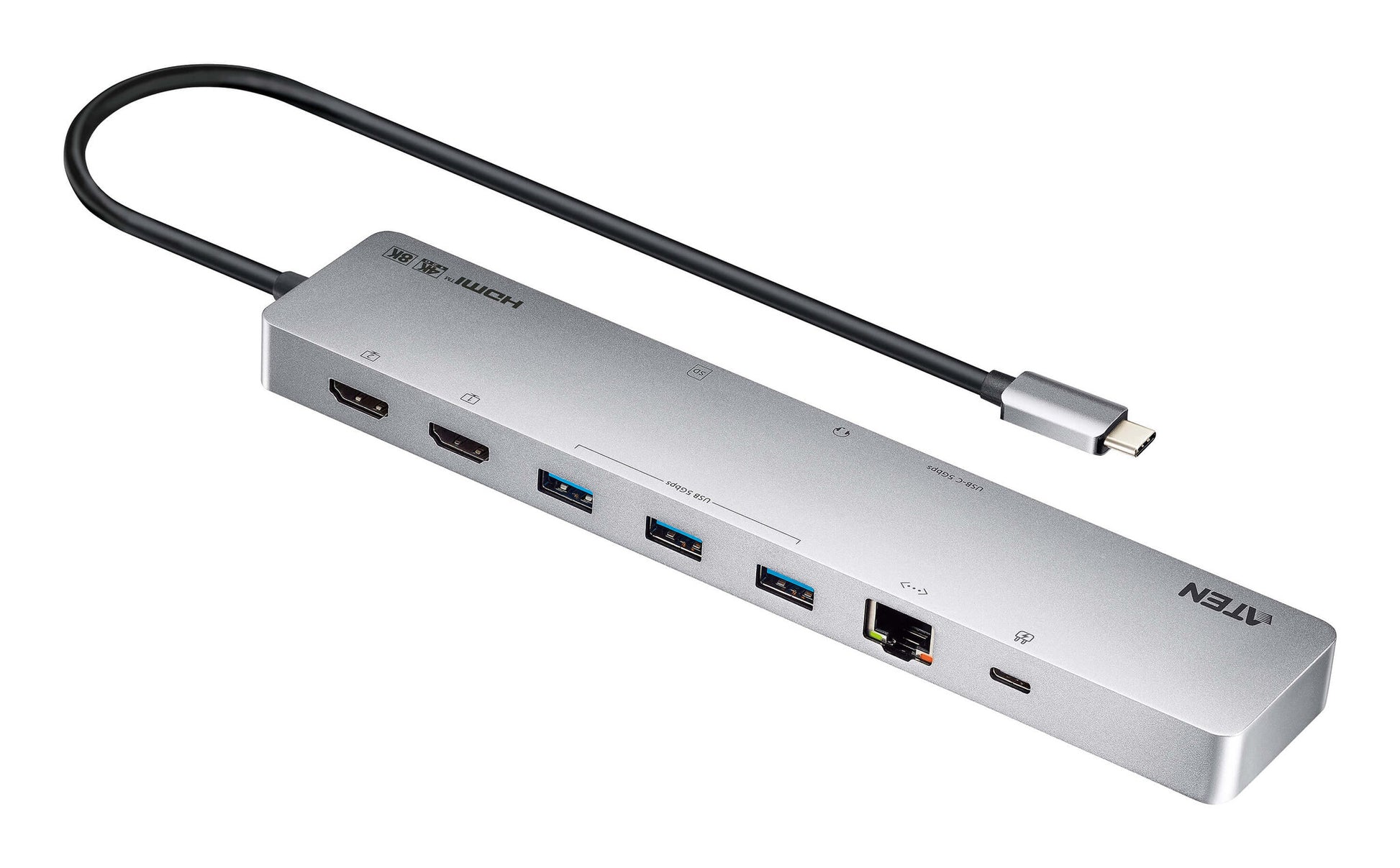

The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.
Dual 4K Display
Expand your professional versatility
Enjoy Impeccable Visual Quality
Optimize your screen resolution to befit the task at hand
Vivid & Sharp 8K Display
Enthralling visual indulgence of entertainment apex
100W Power Delivery with PD 3.0
Power on your devices for your multitasking needs
| Ports & interfaces | |
|---|---|
| Ports quantity | 11 |
| Host interface | USB Type-C |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader slot | 2 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Features | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Housing material | Aluminium |
| Product colour | Silver |
| USB Power Delivery up to | 100 W |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery | Yes |
| Cable length | 0.4 m |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Power | |
|---|---|
| Power supply type | DC |
| Power consumption (typical) | 18 W |
| Input voltage | 5 V |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
| Weight & dimensions | |
|---|---|
| Width | 43 mm |
| Depth | 220 mm |
| Height | 16 mm |
| Weight | 180 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
