Aten

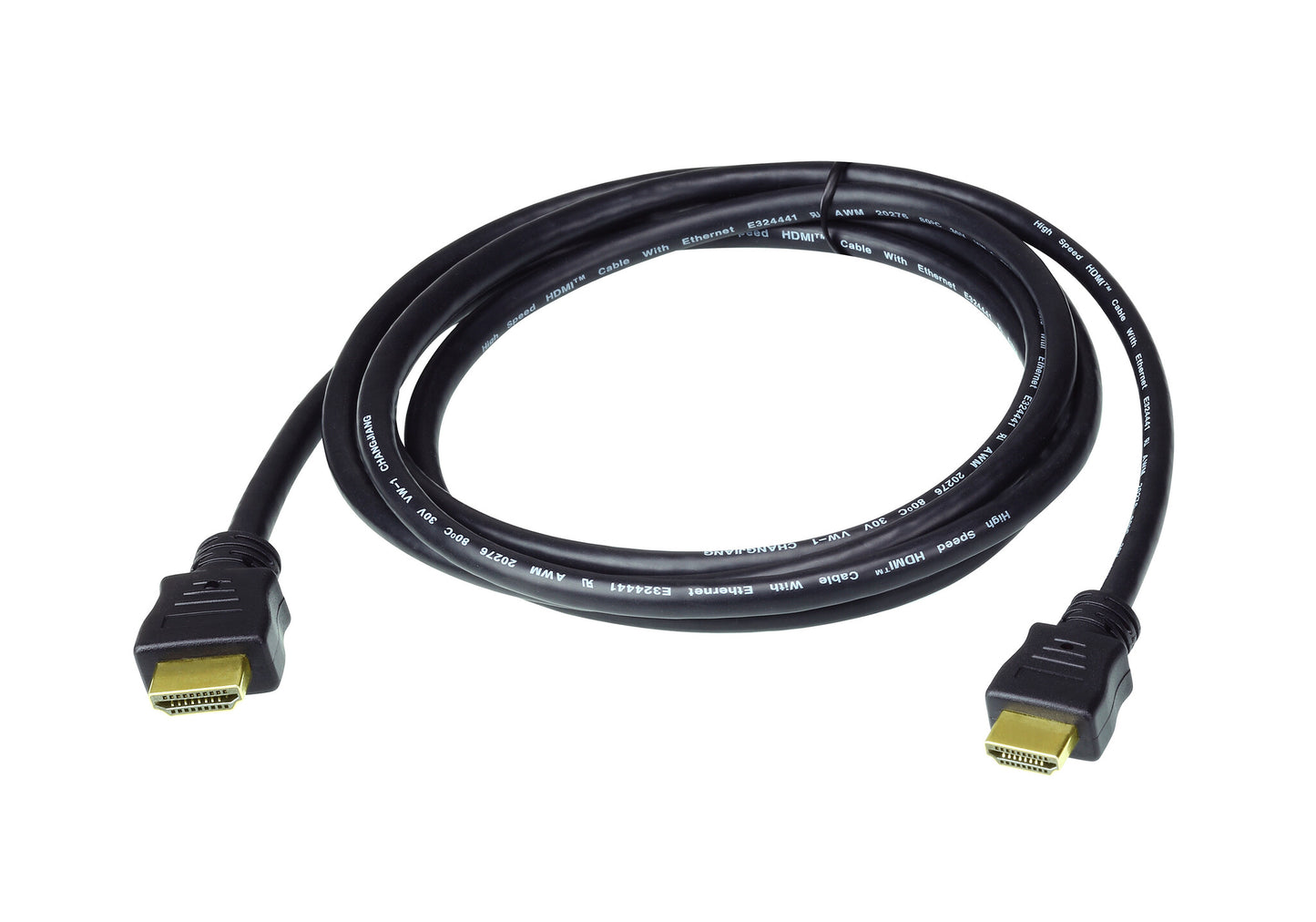

ATEN High Speed HDMI Cable with Ethernet True 4K ( 4096X2160 @ 60Hz); 1 m HDMI Cable with Ethernet
ATEN High Speed HDMI Cable with Ethernet True 4K ( 4096X2160 @ 60Hz); 1 m HDMI Cable with Ethernet
SKU:2L-7D01H
27 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Superior video quality:
- • True 4K (4096 x 2160 @60Hz; 3840 x 2160 @ 60Hz 4:4:4)
- HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Gold-plated connectors for reliable transmissions
- Available in lengths from 1 to 5 m
- RoHS compliant
- Bend Radius 90°**
- Note:
- * Feature only available if linked devices are HDMI Ethernet Channel enabled
- ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 5 meters with resolutions up to True 4K (4096 x 2160 @60Hz 4:4:4).
| Features | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cable shielding | Aluminum mylar foil |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable material | Copper |
| Connector contacts plating | Gold |
| AWG wire size | 30 |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| HDCP | Yes |
| HDMI Ethernet channel | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| 3D | Yes |
| Product colour | Black |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 1 m |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 80 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 80 g |
| Weight | 80 g |
| Cable diameter | 6 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case gross weight | 10.5 kg |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case width | 330 mm |
| Master (outer) case net weight | 9.6 kg |
| Harmonized System (HS) code | 84733080 |
