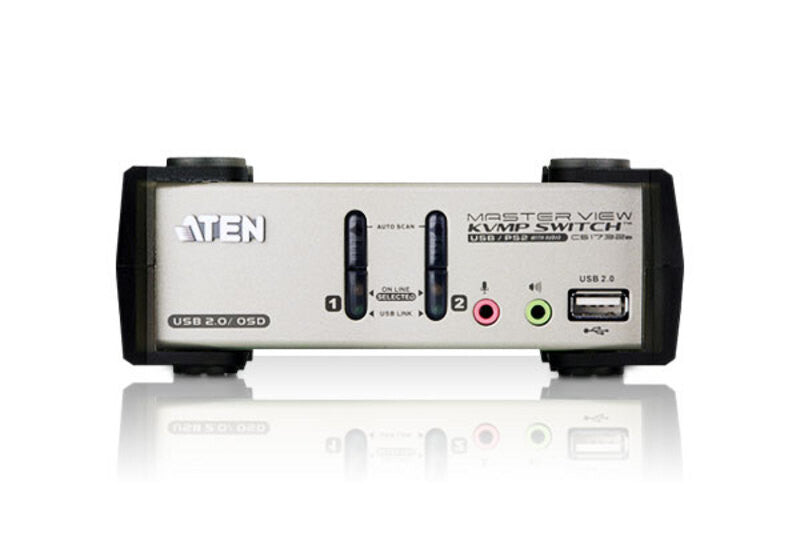

ATEN CS1732B-AT-E KVM switch Black, Metallic
ATEN CS1732B-AT-E KVM switch Black, Metallic
Regular price
£135.36 GBP
Regular price
Sale price
£135.36 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:CS1732B-AT-E
Low stock: 1 left
- Superior video quality; 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Supports computers with PS/2 or USB keyboard and mouse configurations
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
2-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Number of microphone inputs | 4 |
| Headphone outputs | 4 |
| Audio connections | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB hub | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic |
| Video port type | VGA |
| Mouse port type | USB, PS/2 |
| Keyboard port type | USB, PS/2 |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| DDC2B support | Yes |
| Scan interval | 1,255 s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| HD type | QXGA |
| Design | |
|---|---|
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Cable length | 1.2 m |
| Housing material | Metal |
| Product colour | Black, Metallic |
| Display | |
|---|---|
| On Screen Display (OSD) | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 2.5 W |
| Input voltage | 5.3 V |
| Power source | DC |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.15 kg |
| Height | 55.5 mm |
| Depth | 88 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package weight | 1.34 kg |
| Package height | 173 mm |
| Package depth | 283 mm |
| Package width | 62 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Cables included | KVM |
