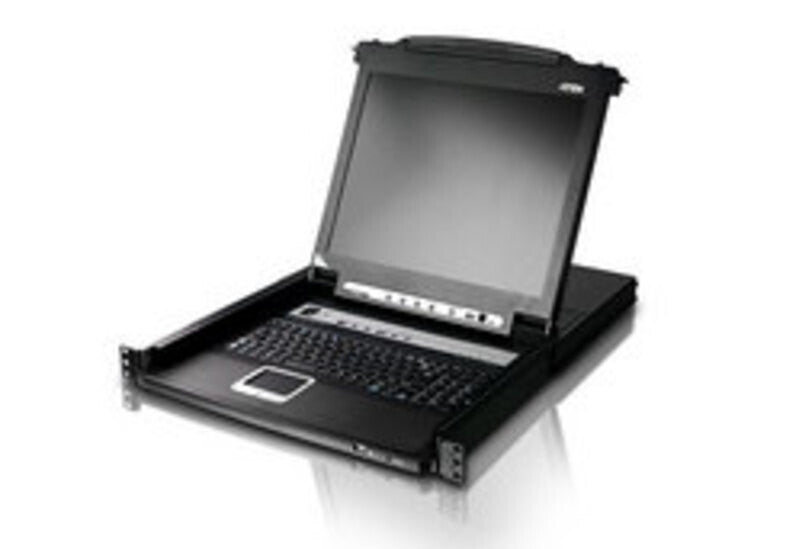

8-Port 19" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port

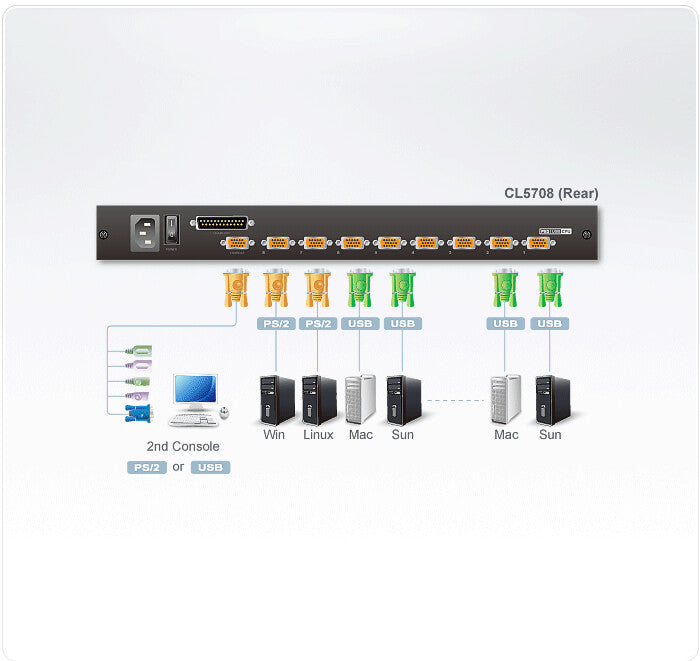

Features - Integrated KVM console with 17" LCD monitor in a Slideaway™ housing - Available with or without Fingerprint Identification Reader** - Space saving technology - up to two consoles (one bus) control up to 8 computers - Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A) - Dual Interface - supports computers and console with PS/2 or USB keyboards and mice - LCD module USB port allows each computer to access USB peripherals* - LCD module rotates up to 115 degrees for a more comfortable viewing angle - Multiplatform support – Windows, Linux, Mac, and Sun - Supports multimedia USB keyboards for PC, Mac and Sun - Auto PS/2 and USB interface detection - Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere - Supports external USB mouse - Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz - No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus - Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position - Port names automatically reconfigured when station sequence is changed - Two level password security - only authorized users can view and control computers - Supports one administrator and four user accounts with separate profiles - Auto Scan mode enables continuous monitoring of user-selected computers - Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation - Hot pluggable - add or remove computers without having to power down the switch - Beeper on/off via hotkey and OSD - Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Package Contents - 1x CL5708 LCD KVM Switch with standard Rack Mount Kit - 2x Custom KVM Cable Sets - 1x 5-in-1 USB / PS/2 Console Cable - 1x Firmware Upgrade Cable - 1x Power Cord (AC Power Models) - 1x User Instructions
Ports & interfaces
Number of computers controlled
8
Keyboard port type
No
Mouse port type
USB
USB 2.0 ports quantity
2
Console port
RS-232
DC-in jack
Yes
Performance
Maximum resolution
1280 x 1024 pixels
Design
Rack capacity
1U
Rack mounting
Yes
Product colour
Black
Housing material
Metal, Plastic
LED indicators
Yes
Certification
CN ZL 200610081929.7 (19), CN ZL 200710181531.5, TW I339467, TW I340311 (19), US 6564275, US 7505255 (19), US 7585176
