Aten

ATEN CL5708M rack console 43.2 cm (17") Black 1U

ATEN CL5708M rack console 43.2 cm (17") Black 1U

£1,168.61 GBP
£1,168.61 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CL5708M-ATA-FG

Low stock: 8 left

  • 43.2 cm (17")
  • Rack mounting 1U
  • On Screen Display (OSD)
  • Mouse port type: USB
  • Keyboard layout: AZERTY
  • Black

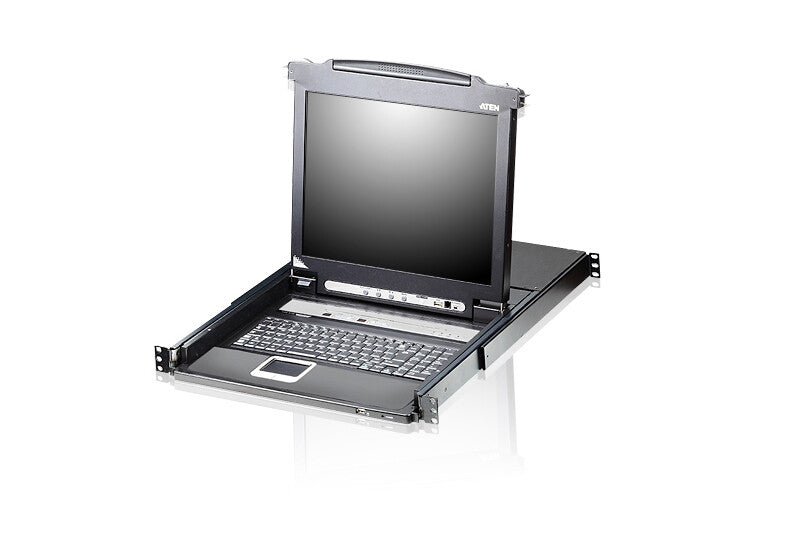

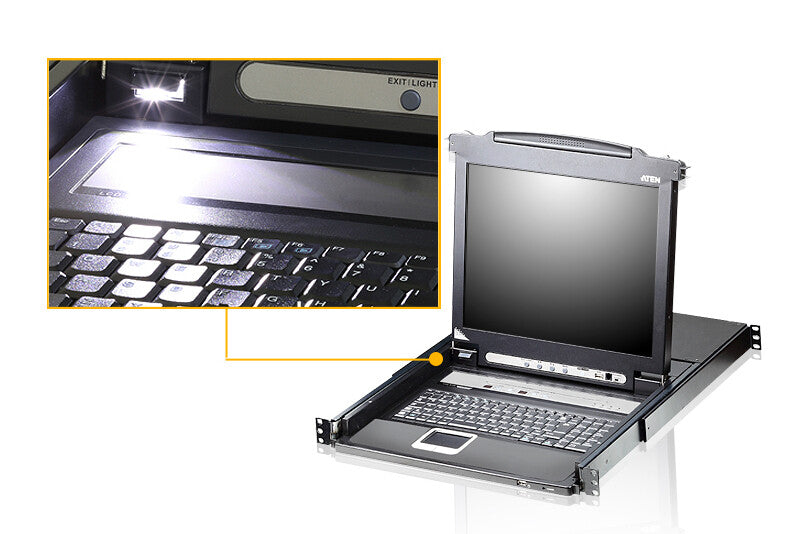

17" LED-backlit LCD KVM Switch

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Display
Display diagonal 43.2 cm (17")
Display LCD
On Screen Display (OSD) Yes
Technical details
LED indicators Yes
Number of computers controlled 8
Maximum resolution 1280 x 1024 pixels
Operating relative humidity (H-H) 0 - 80%
Rack mounting Yes
Product colour Black
Rack capacity 1U
Ports & interfaces
Mouse port type USB
Keyboard
Keyboard layout AZERTY
Keyboard language French
System requirements
Windows operating systems supported Yes
Mac operating systems supported Yes
Linux operating systems supported Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Power
Power consumption (typical) 16 W
Input current 1 A
Weight & dimensions
Width 642.7 mm
Height 44 mm
Depth 480 mm
Weight 13.5 kg
Packaging content
Manual Yes
