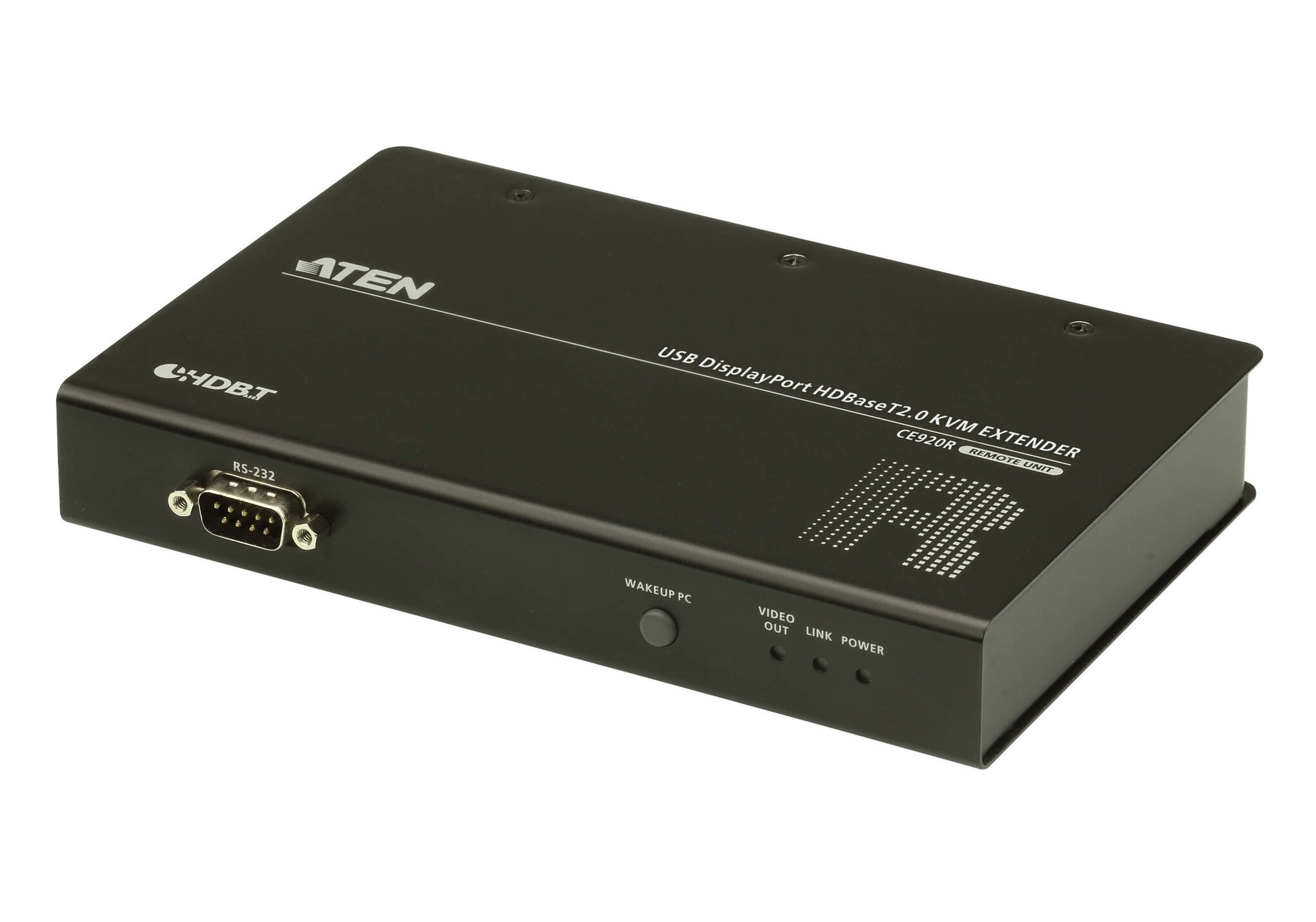

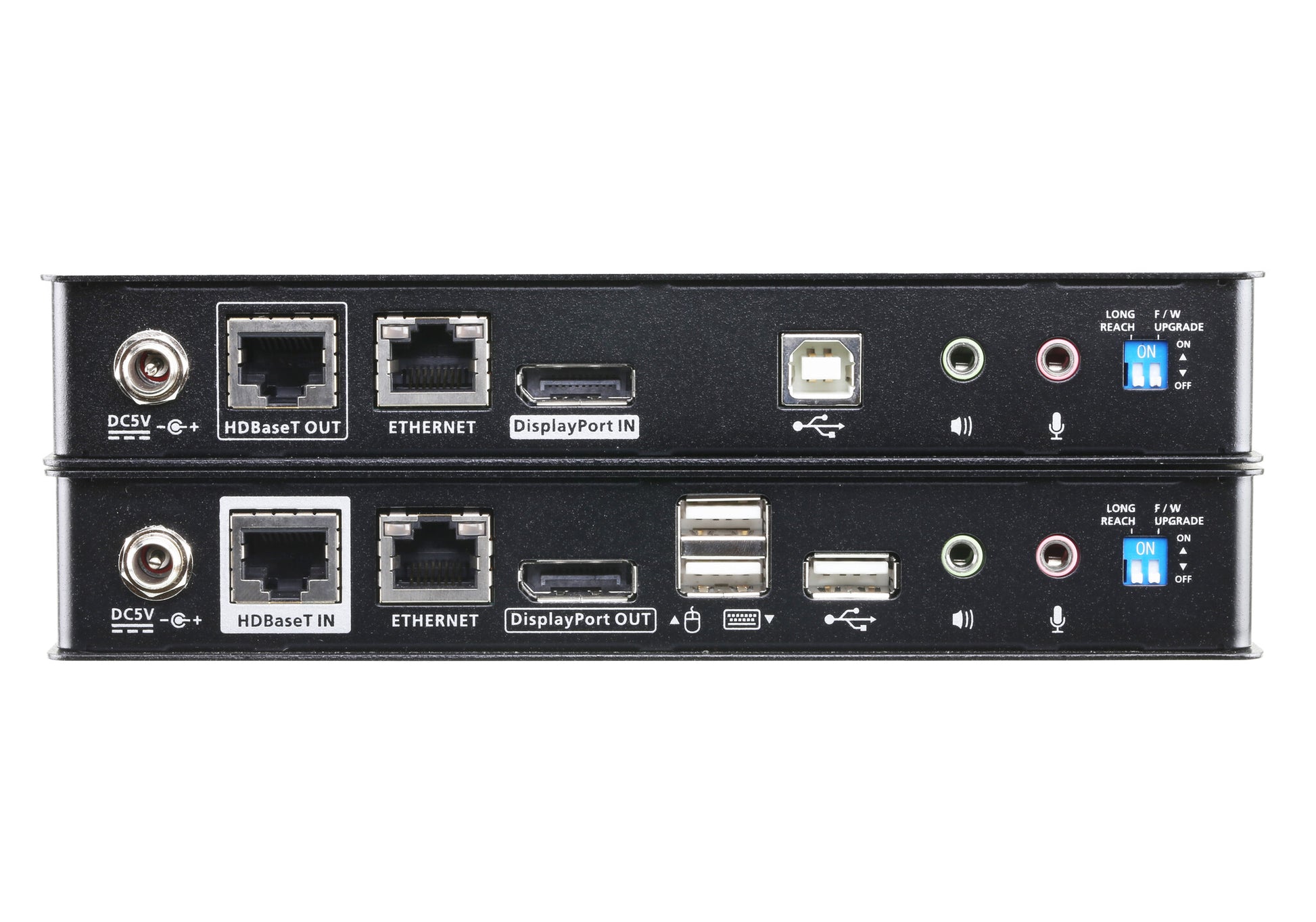

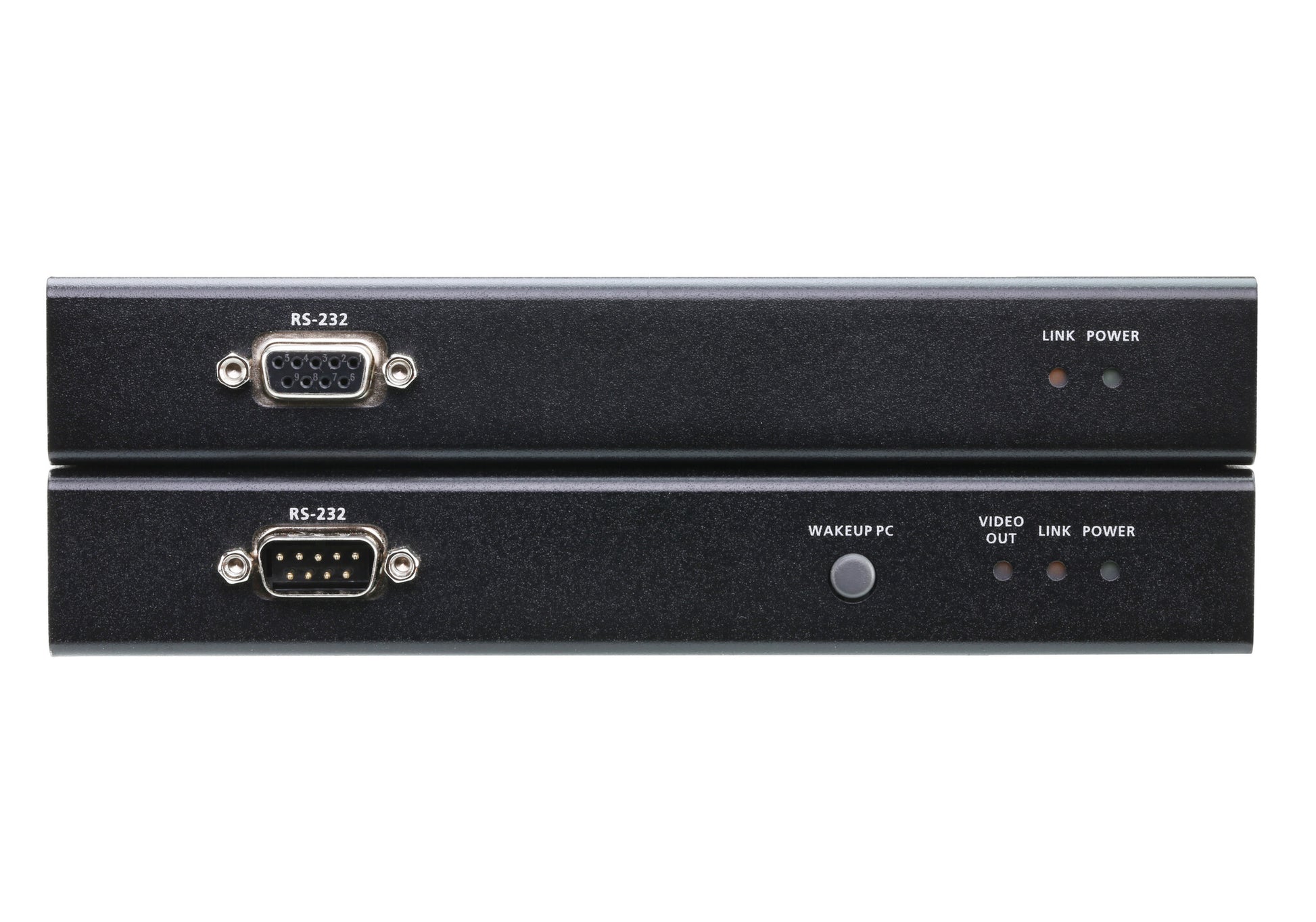

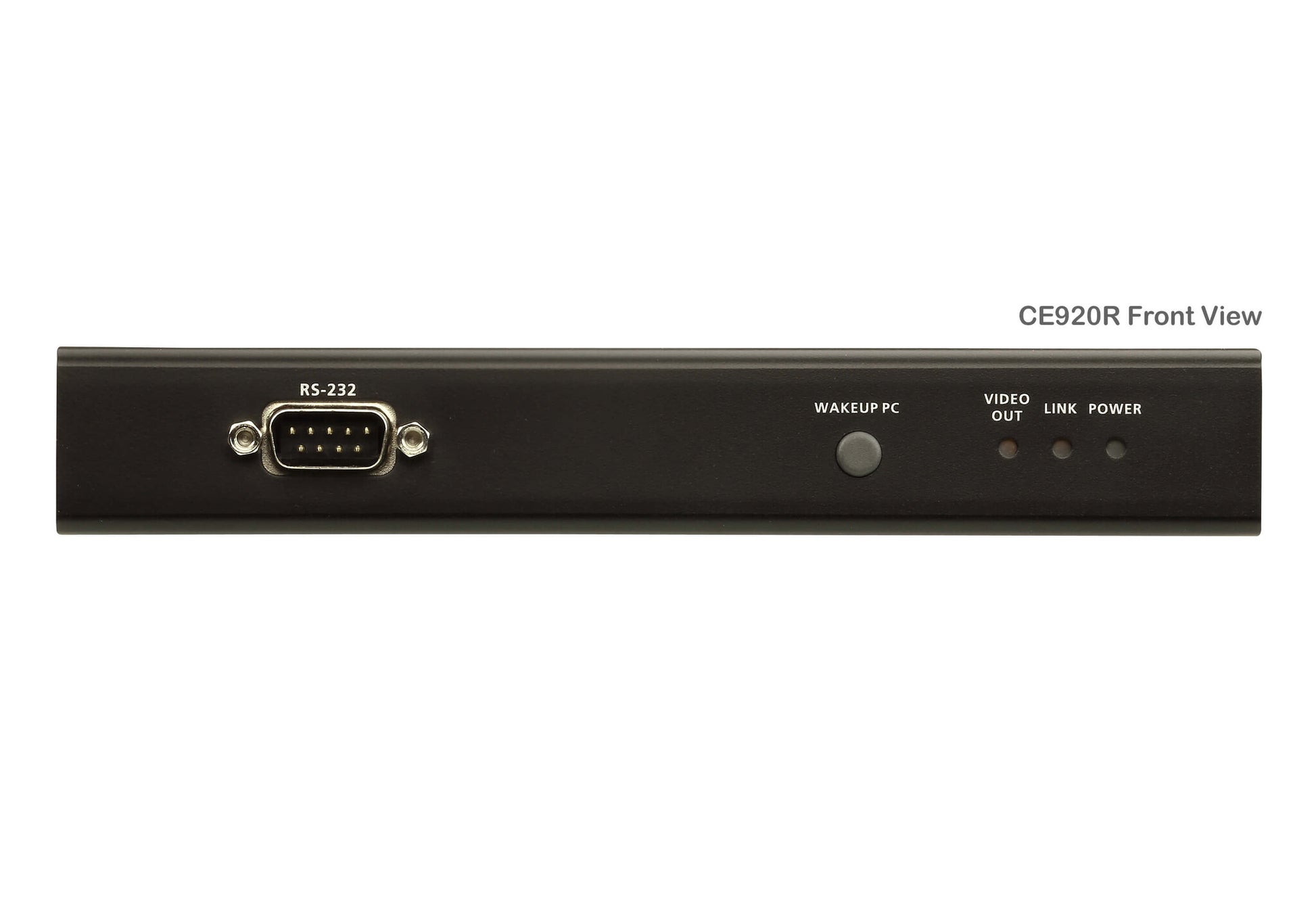

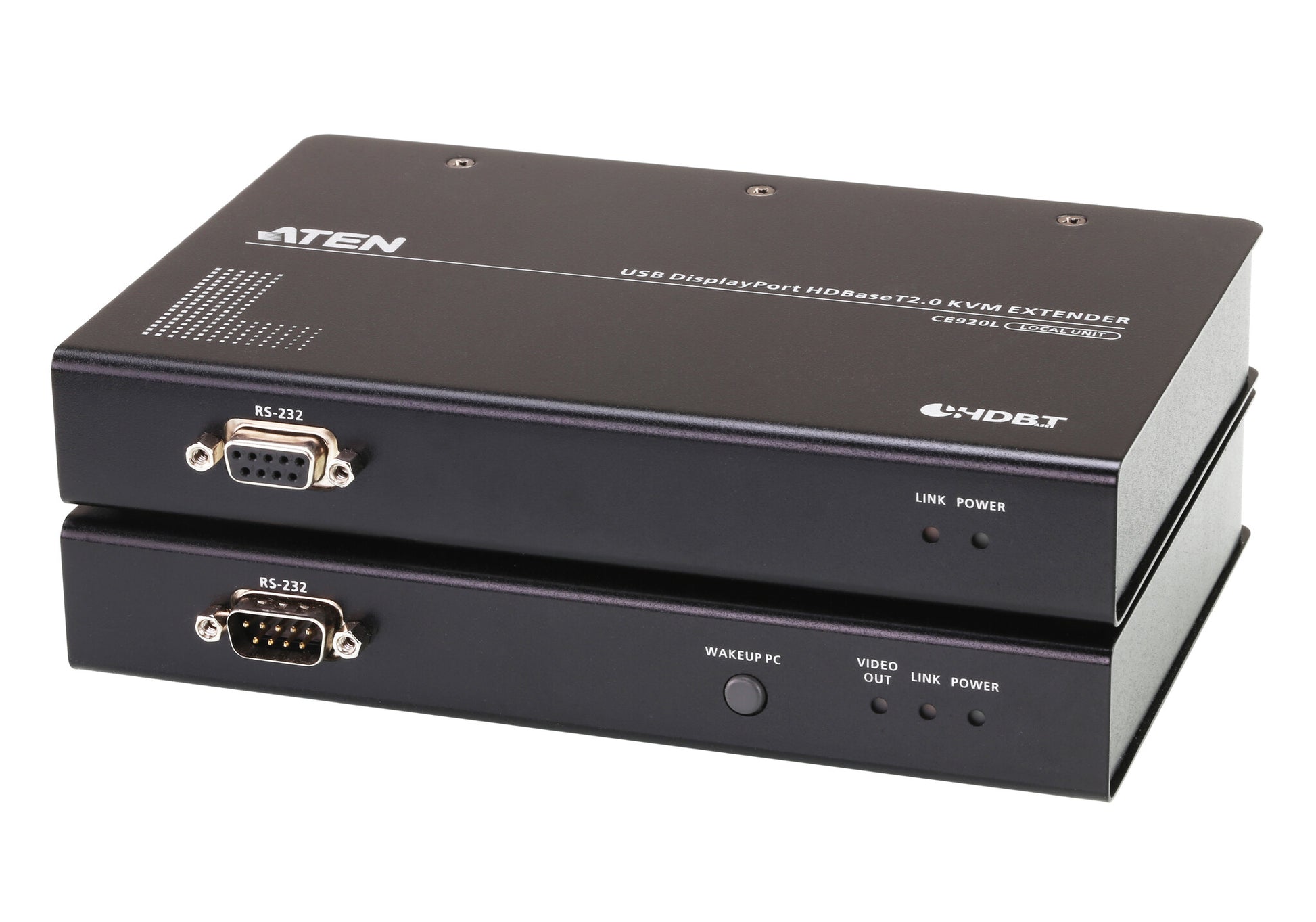

ATEN CE920 KVM extender Transmitter & receiver
ATEN CE920 KVM extender Transmitter & receiver
SKU:CE920
Low stock: 2 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Supports HDBaseT™ 2.0 technology
- - Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- - Status detection and LED indication for HDBaseT™ signal transmission on remote unit
- EDID Buffer for smooth power-up and the highest quality display
- Long distance with superior video quality
- - HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
- - HDBaseT™ Long-Reach mode up to 1080P @ 150m
- Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
- USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
- HDCP Compatible
- Supports individual 2-channel stereo audio for high-quality audio applications
- Supports PC wakeup function via single pushbutton through RS-232 channel2
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Note: The CE920-AT supports Ethernet function and the CE920-ATA does not.
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| USB 2.0 ports quantity | 4 |
| USB data transfer rates | 480 Mbit/s |
| LED indicators | Yes |
| Certification | RoHS |
| Transmitter | |
|---|---|
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
|---|---|
| Receiver local video port type | DisplayPort |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Power | |
|---|---|
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 3.99 W |
| Power consumption (receiver) (max) | 6.74 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | DisplayPort |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
