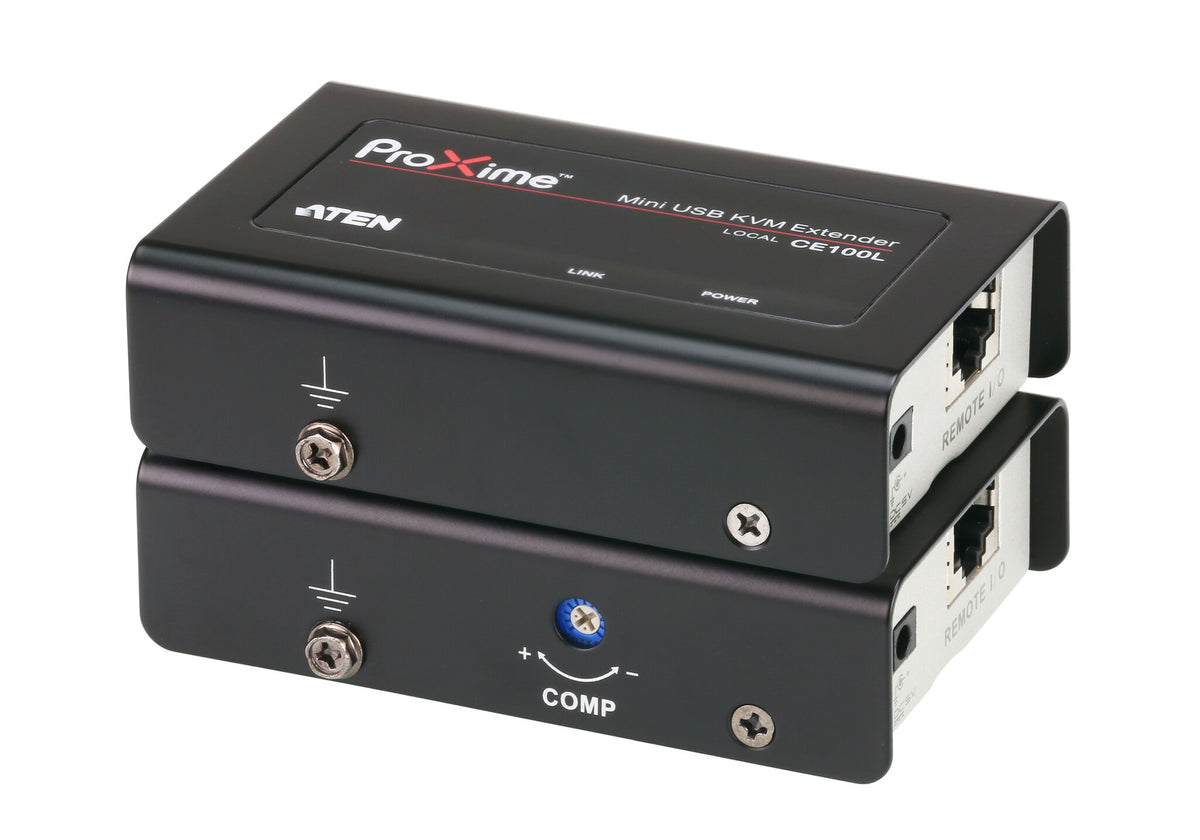

ATEN CE100 console extender

ATEN CE100 console extender

CE100

£174.06 GBP£145.05 GBP
£0.00 GBP £174.06 GBP£145.05 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

167 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

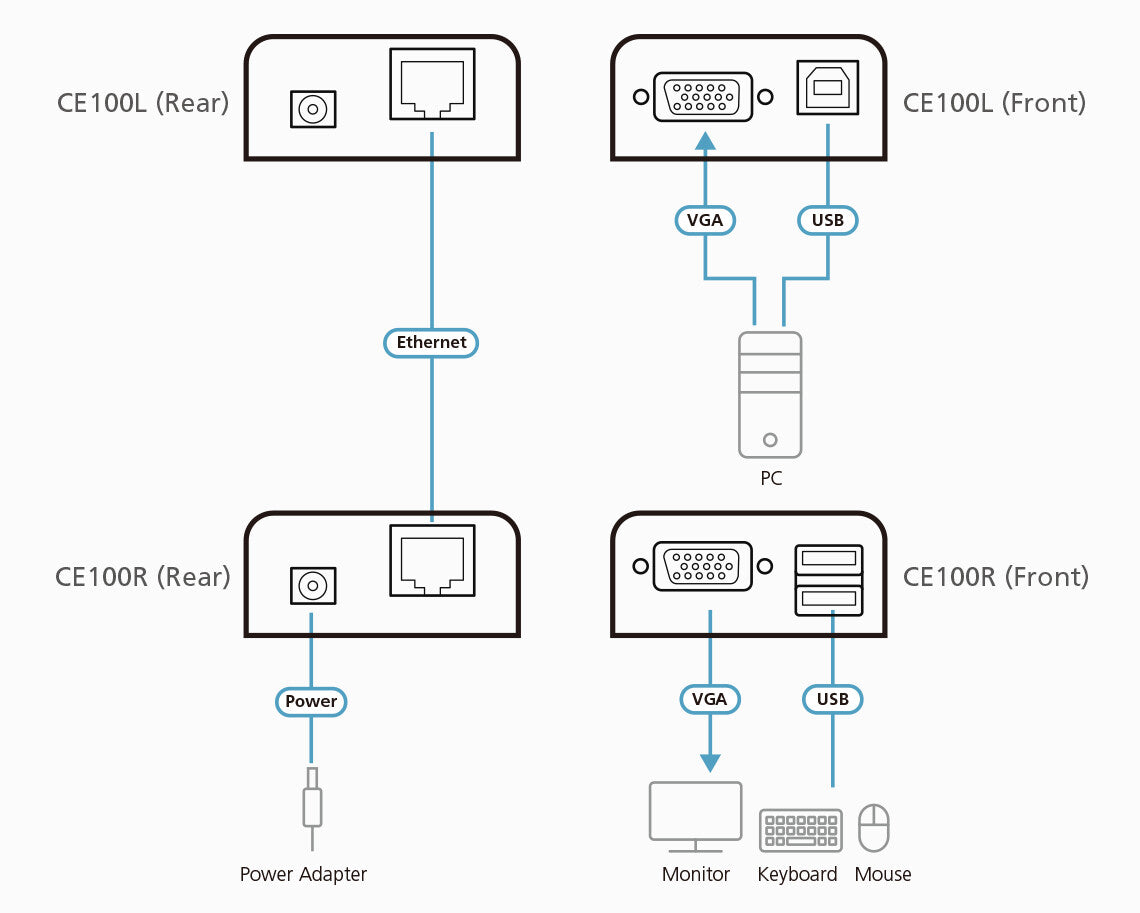

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality – up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance
  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable
USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

Technical details
Maximum transfer distance 100 m
Product colour Black
Ports & interfaces
VGA (D-Sub) ports quantity 2
USB 2.0 ports quantity 3
Microphone in No
Packaging content
Mounting kit Yes
Quick start guide Yes
Cables included USB, VGA
Logistics data
Harmonized System (HS) code 84733020
