Aten

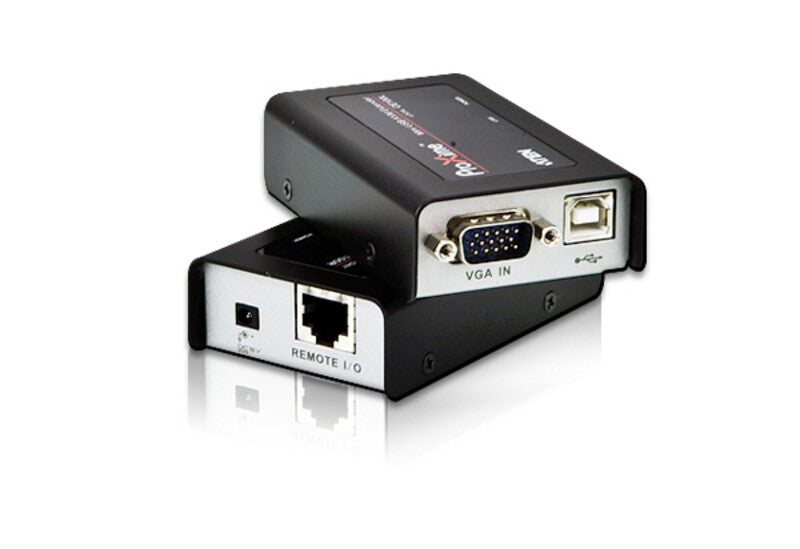

ATEN CE100-AT-E KVM extender Transmitter & receiver
ATEN CE100-AT-E KVM extender Transmitter & receiver
Regular price
£171.72 GBP
Regular price
Sale price
£171.72 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:CE100-AT-E
Low stock: 8 left
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
MINI USB VGA KVM Extender (100m)
The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

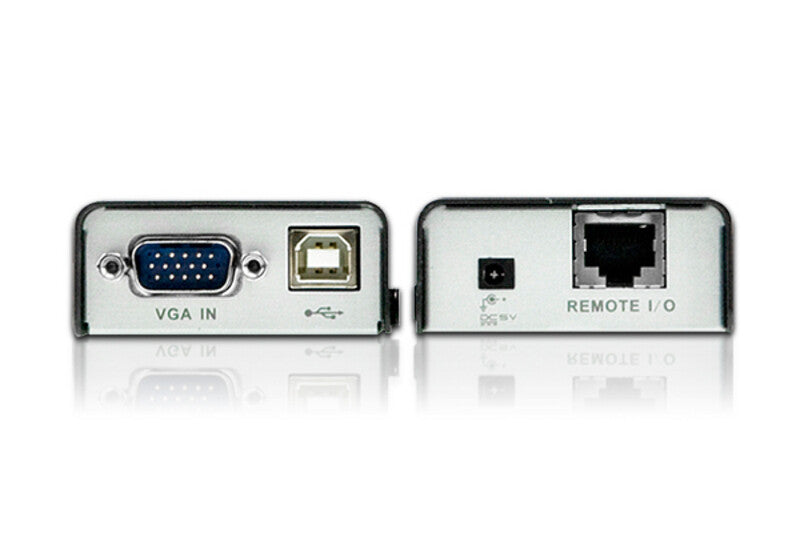

1x CE100L Mini USB KVM Extender (Local Unit)

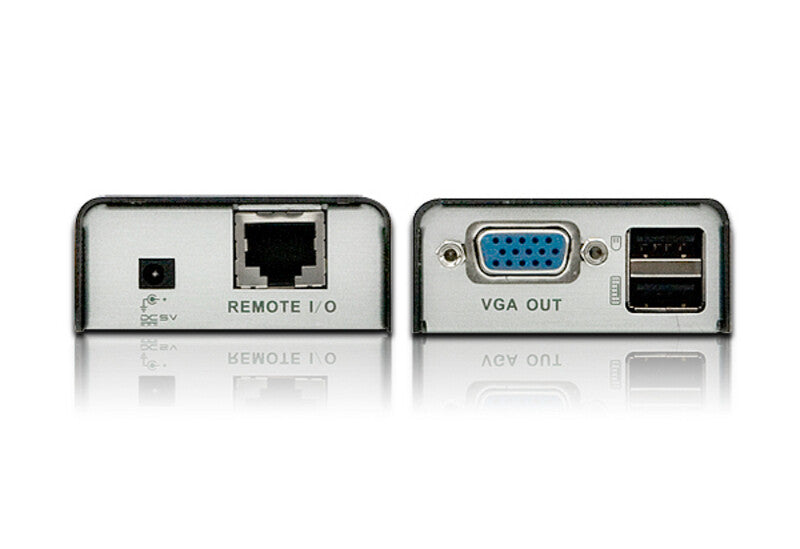

1x CE100R Mini USB KVM Extender (Remote Unit)
1x LIN5-21X1-X27G USB/VGA Cable (1.8m)
1x 0AD6-1705-10EG Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Material | Metal |
| USB 2.0 ports quantity | 3 |
| LED indicators | Link, Power |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Transmitter width | 5.74 cm |
| Transmitter depth | 9.1 cm |
| Transmitter height | 2.4 cm |
| Transmitter weight | 170 g |
| Receiver width | 5.74 cm |
| Receiver depth | 9.1 cm |
| Receiver height | 2.4 cm |
| Receiver weight | 170 g |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 2 |
| Packaging content | |
|---|---|
| Cables included | USB, VGA |
| Technical details | |
|---|---|
| Weight | 603 g |
| Packaging data | |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 745 g |
