Aten

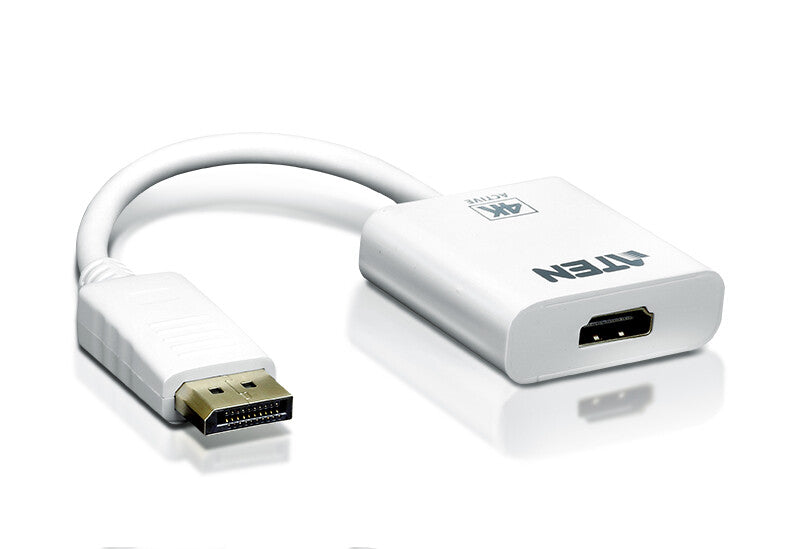

ATEN 4K Active DisplayPort to HDMI converter, 3D, up 3840 by 2160 @30Hz
ATEN 4K Active DisplayPort to HDMI converter, 3D, up 3840 by 2160 @30Hz
SKU:VC986-AT
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported

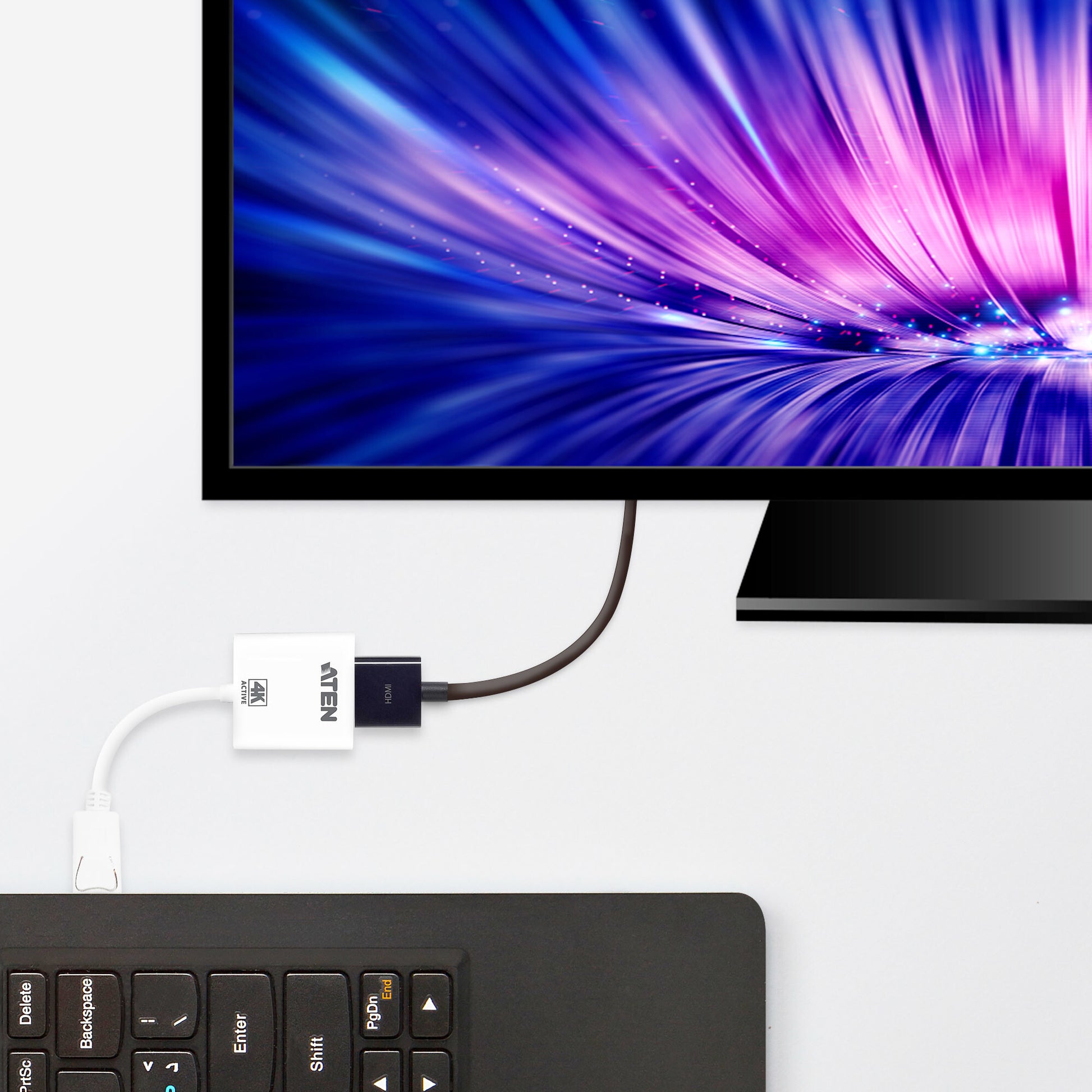

Plug-n-Play
No installation software or drivers required. The VC986 is the perfect solution for connecting DisplayPort inputs to HDMI output displays. The built-in chip ensures high quality signal conversion, smooth output, and compatibility with DP++.
Supports 4K
Supports resolutions up to 4K, making it highly compatible across devices.

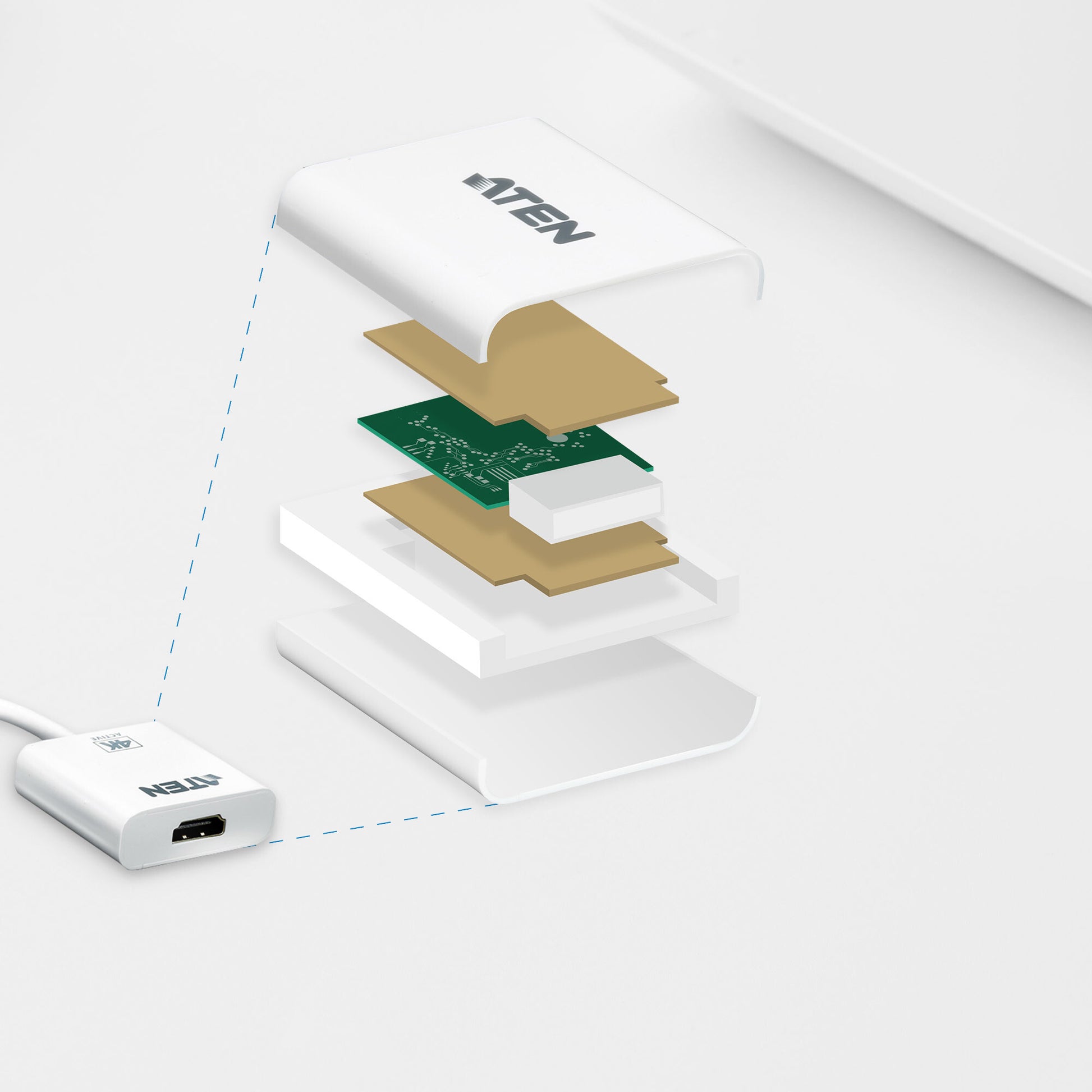

Superior Signal Quality
The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.
AMD Eyefinity Compatible
Compatible with AMD Eyefinity graphics cards for multiple display applications.
Package Contents
1x VC986 4K DisplayPort to HDMI Active Adapter
| Features | |
|---|---|
| Jacket material | Plastic |
| Product colour | White |
| Bandwidth | 297 MHz |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.1a |
| HDCP version | 1.3 |
| HDCP | Yes |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | HDMI |
| Connector 1 | DisplayPort |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 15 mm |
| Depth | 180 mm |
| Width | 45 mm |
| Weight | 100 g |
| Packaging data | |
|---|---|
| Package weight | 100 g |
| Package height | 212 mm |
| Package depth | 120 mm |
| Package width | 19 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case gross weight | 4.58 kg |
| Master (outer) case height | 230 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case width | 270 mm |
| Master (outer) case net weight | 4 kg |
| Harmonized System (HS) code | 84733080 |
