Aten

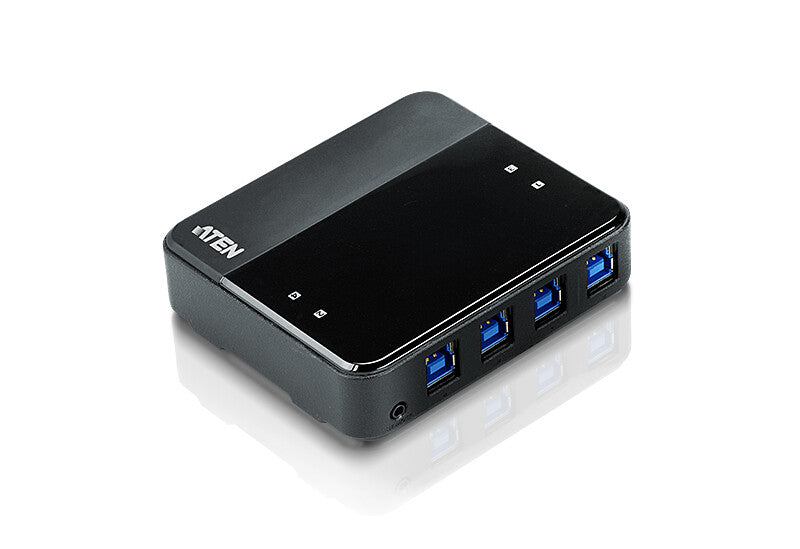

ATEN 4-port USB 3.0 Peripheral Sharing Device
ATEN 4-port USB 3.0 Peripheral Sharing Device
Regular price
£73.01 GBP
Regular price
Sale price
£73.01 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:US434-AT
Low stock: 1 left
- Enables 4 computers to share 4 USB 3.2 Gen1 devices
- Simple port selection via remote port selector for convenient switch placement
- USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
- LEDs indicates which computer is active
- Over-current protection
- Multiplatform support – Windows, Linux and Mac
- Bus-powered
- Micro USB power jack for additional power supply
- Hot pluggable, no driver or software required
4-port USB 3.0 Peripheral Sharing Device
ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| DC-in jack | Yes |
| Performance | |
|---|---|
| Maximum data transfer rate | 5 Gbit/s |
| Remote control function | Yes |
| LED indicators | Yes |
| Power connector | Micro-USB Type-B |
| Product colour | Black |
| Housing material | Plastic |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 36.6 mm |
| Depth | 93.7 mm |
| Height | 26.8 mm |
| Weight | 439 g |
| Package weight | 576 g |
| Package height | 195 mm |
| Package width | 70 mm |
| Package depth | 163 mm |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 4.39 kg |
| Master (outer) case height | 182 mm |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case gross weight | 6.46 kg |
| Products per master (outer) case | 10 pc(s) |
