ATEN 3-Port True 4K HDMI Switch

ATEN 3-Port True 4K HDMI Switch

£55.24 GBP
£55.24 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

VS381B

Low stock: 4 left

  • Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
  • Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
  • HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG); HDCP 2.2 compliant
  • Auto switching mode for auto port selection

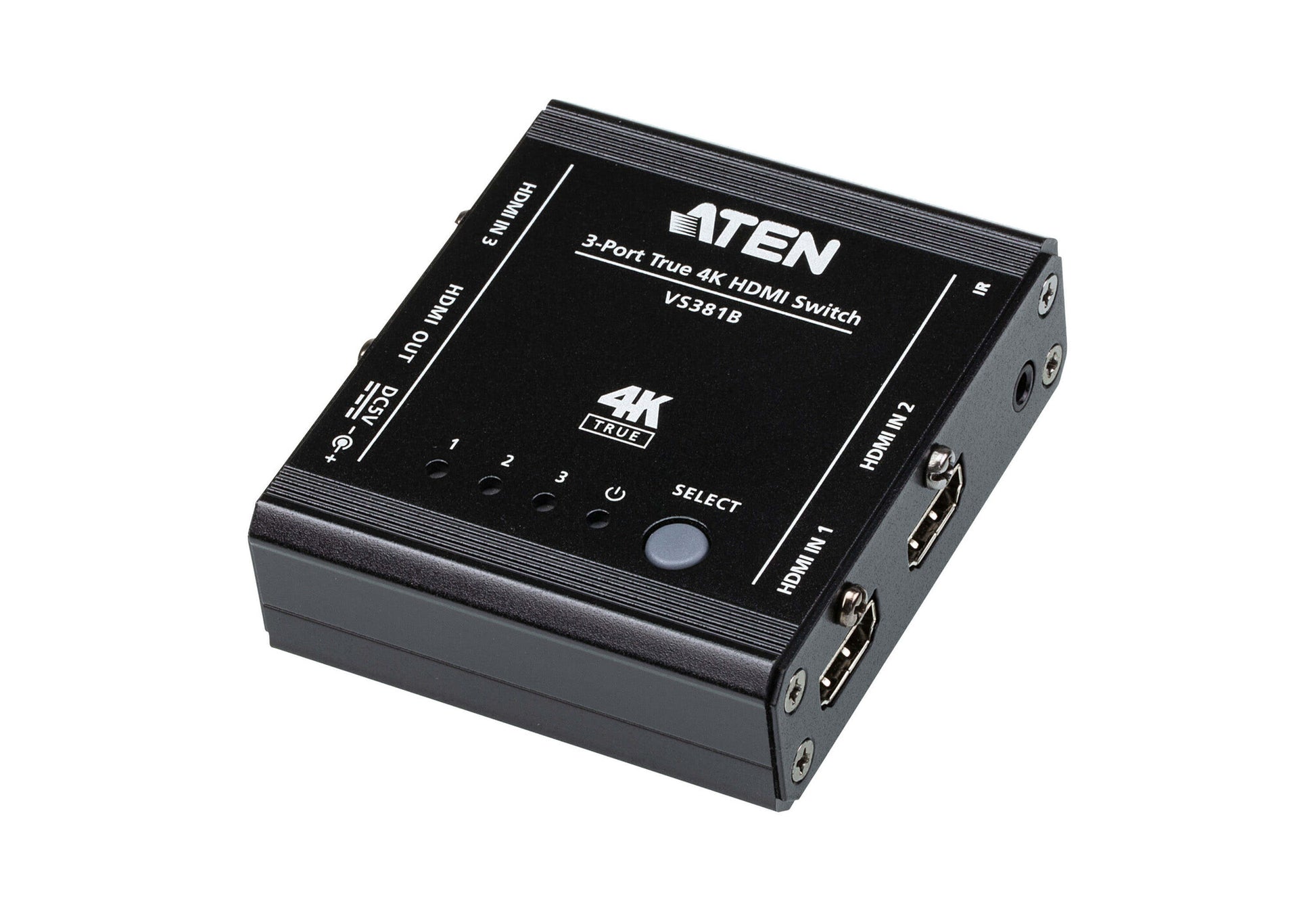

3-Port True 4K HDMI Switch

The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.

Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

Package Contents

- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions

Ports & interfaces
DC-in jack Yes
3.5 mm (1/8-inch) in Yes
Number of HDMI outputs 1
HDMI in 3
HDMI ports quantity 4
Video port type HDMI
Features
Dolby technologies Dolby Vision
Maximum operating distance 5 m
Plug and Play Yes
HDCP Yes
Bandwidth 600 MHz
Maximum resolution 4096 x 2160 pixels
HD type 4K Ultra HD
HDCP version 2.2
3D Yes
External power adapter Yes
Maximum refresh rate 60 Hz
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Input impedance 100 Ω
Product colour Black
Material Metal
Power
Power consumption (typical) 1.46 W
Weight & dimensions
Weight 150 g
Height 25.5 mm
Depth 79 mm
Width 71.6 mm
Packaging content
AC adapter included Yes
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Logistics data
Harmonized System (HS) code 85176990
