ATEN 2-Port USB VGA KVM Switch

ATEN 2-Port USB VGA KVM Switch

£27.65 GBP
£27.65 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CS22U-AT

44 in stock

  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer Selection via a Remote Port Selector
  • Multiplatform support - Windows, Mac, Linux and Sun
  • Bus-powered design
2-Port USB VGA KVM Switch

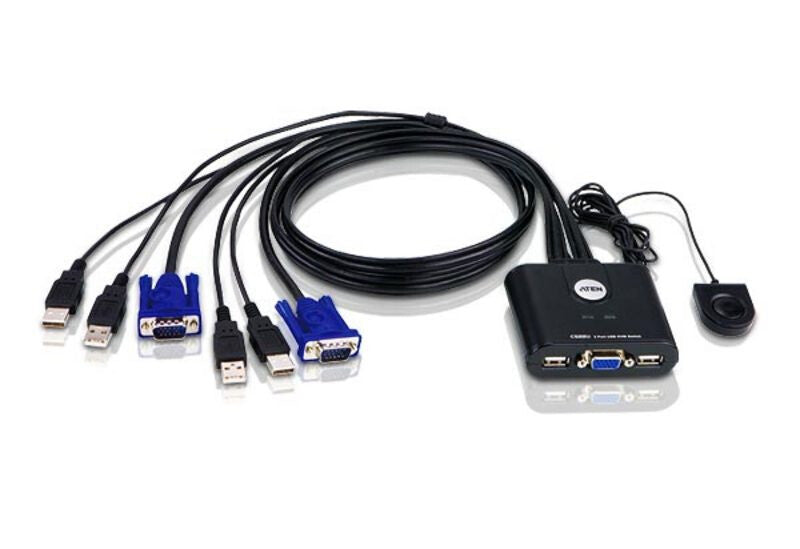

The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers- a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
1x User Instructions

Ports & interfaces
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type VGA
VGA (D-Sub) ports quantity 2
Console ports USB A, VGA (D-Sub)
USB hub Yes
USB 2.0 Type-A hub ports quantity 2
USB connector type USB Type-A
Performance
HD type QXGA
Maximum resolution 2048 x 1536 pixels
DDC2B support Yes
Design
Rack mounting No
Product colour Black
Housing material Plastic
LED indicators Yes
Display
Built-in display No
Power
Power source DC
Input voltage 5 V
Power consumption (typical) 0.14 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 82.4 mm
Depth 70.1 mm
Height 24.6 mm
Weight 302 g
Packaging data
Package width 55 mm
Package depth 155 mm
Package height 223 mm
Package weight 400 g
Packaging content
Quick installation guide Yes
Logistics data
Harmonized System (HS) code 85176200
Master (outer) case net weight 6.04 kg
Master (outer) case width 328 mm
Master (outer) case length 389 mm
Master (outer) case height 330 mm
Master (outer) case gross weight 8.48 kg
Products per master (outer) case 20 pc(s)
