ATEN 2-Port USB HDMI KVM Switch with Audio
ATEN 2-Port USB HDMI KVM Switch with Audio
Regular price
£72.80 GBP
Regular price
Sale price
£72.80 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:CS692-AT
Low stock: 9 left
- Superior video quality - up to 1920 x 1200 and 1080p
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
2-Port USB HDMI KVM Switch with Audio

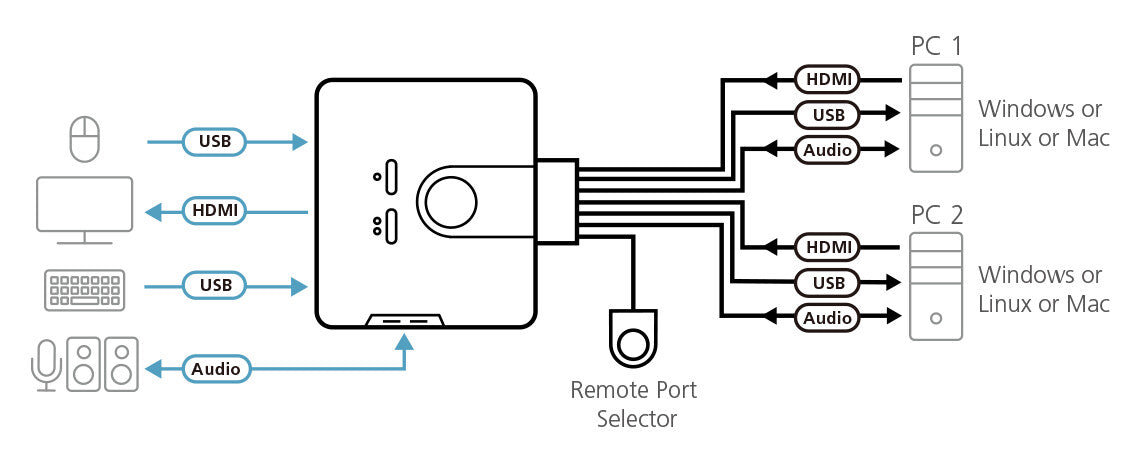

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.

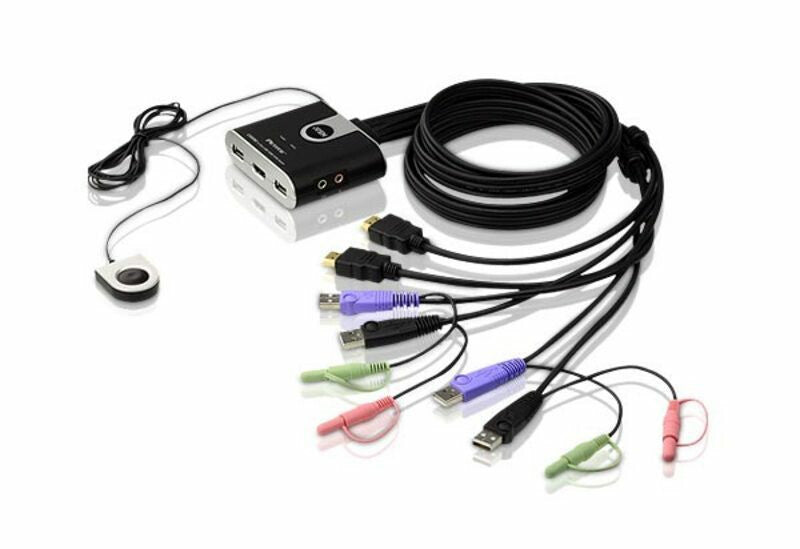

1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Performance | |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| Design | |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 82.4 mm |
| Depth | 66.5 mm |
| Height | 25.2 mm |
| Weight | 409 g |
| Packaging data | |
|---|---|
| Package width | 70 mm |
| Package depth | 163 mm |
| Package height | 235 mm |
| Package weight | 550 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 4.09 kg |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 182 mm |
| Master (outer) case gross weight | 6.13 kg |
| Products per master (outer) case | 10 pc(s) |
