One KVM console controls two computers with USB and HDMI interface
Superior video quality & up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz
Computer selection via Remote Port Selector
HDMI compliant; HDCP 1.4 compliant
Multiplatform support – Windows, Mac, and Linux

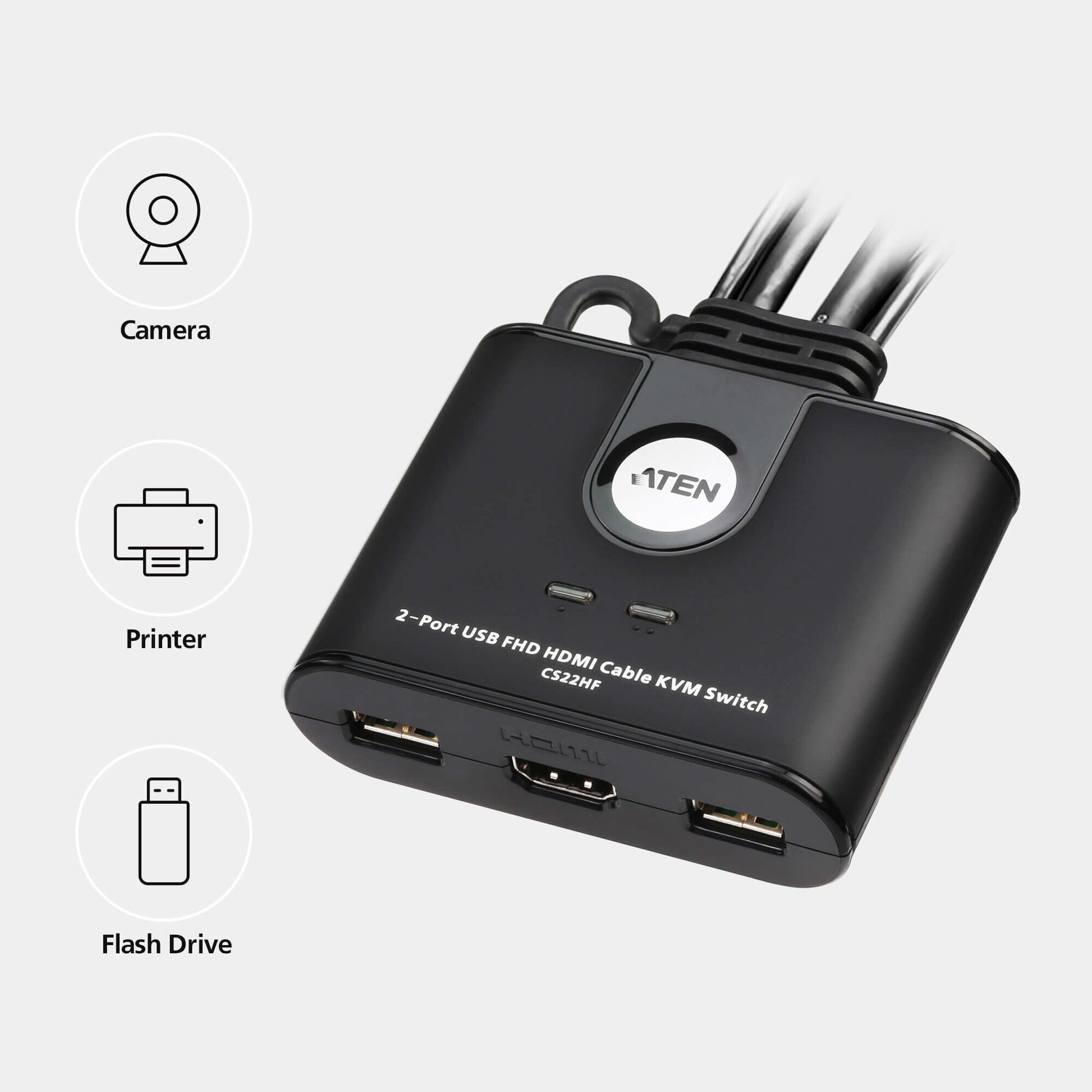

The console USB ports can be used for USB peripheral sharing
Supports USB hot-plugging
Bus-powered
2-Port USB FHD HDMI Cable KVM Switch

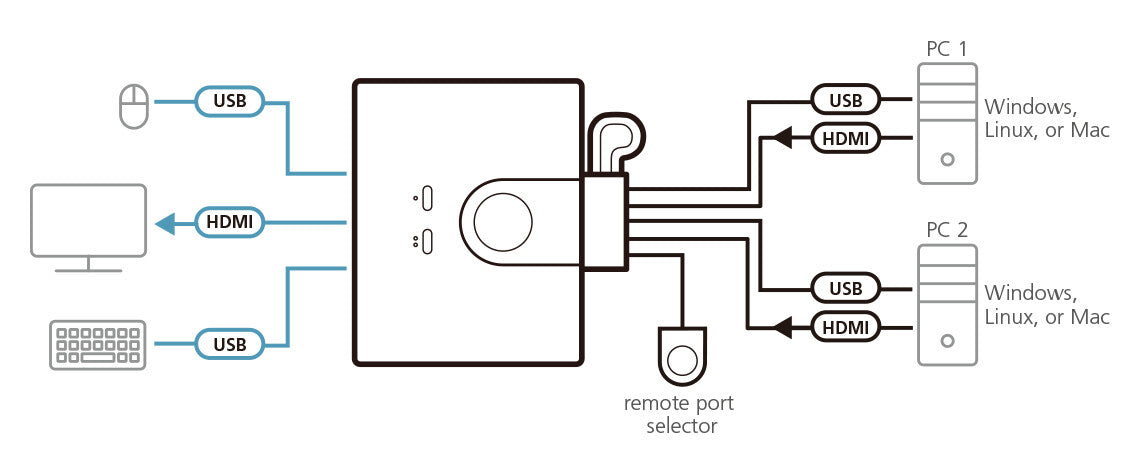

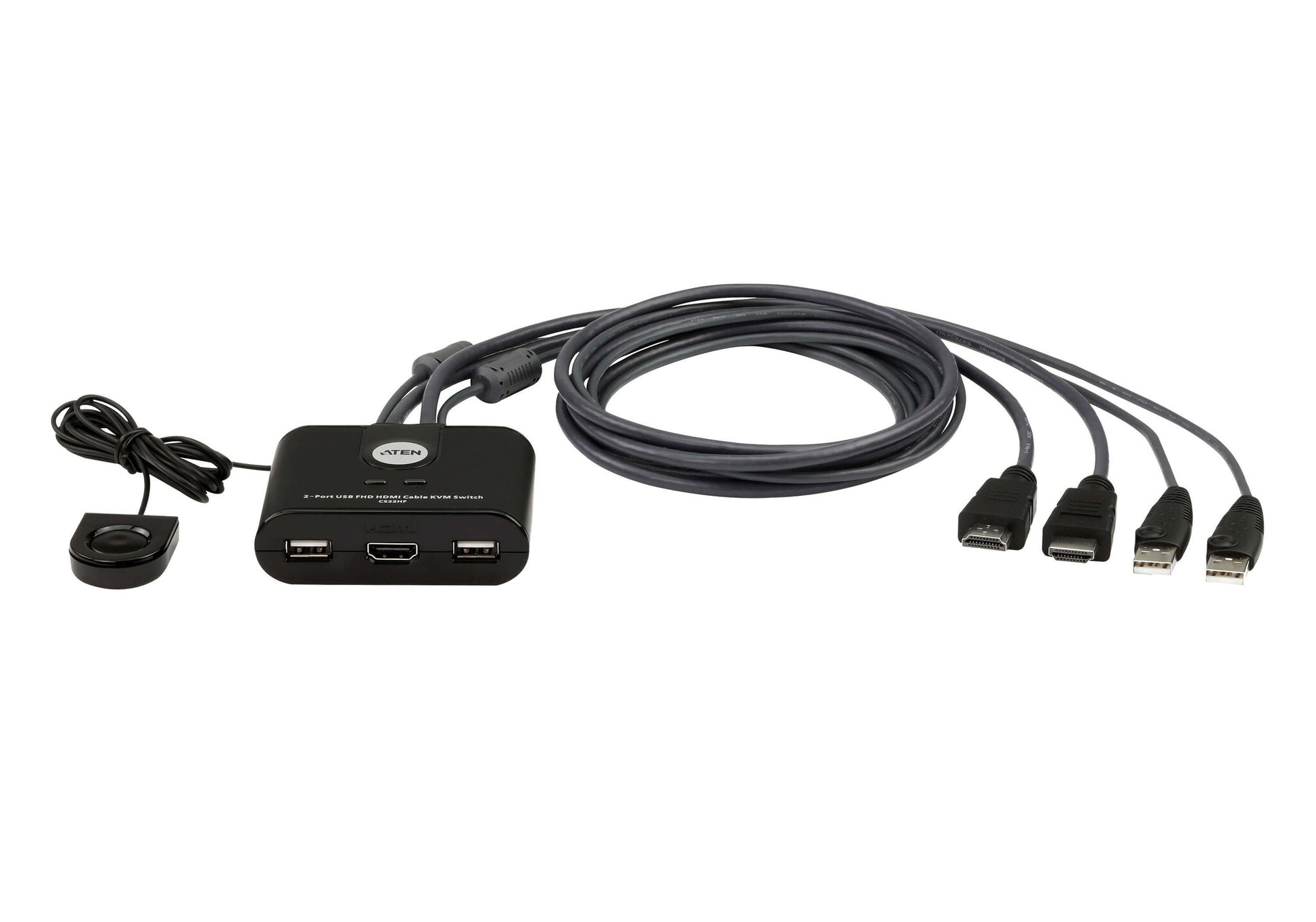

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
HDMI ports quantity
1
Console ports
HDMI, USB A
USB connector type
USB Type-A
DC-in jack
Yes
Performance
HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Video bandwidth
60 Hz
HDCP
Yes
Design
Rack mounting
No
Product colour
Black
Housing material
Plastic
Cable length
1.2 m
Remote switch cable length
1.8 m
LED indicators
Yes
Display
Built-in display
No
Power
Input voltage
5 V
Power consumption (typical)
1.518 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
66.5 mm
Depth
82.4 mm
Height
25.2 mm
Weight
260 g
Packaging data
Package width
55 mm
Package depth
155 mm
Package height
223 mm
Package volume
1982.18 cm³
Package weight
360 g
Package type
Box
Packaging content
Packaging content
1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch1x user instructions
