ATEN 2-Port USB DisPlayPort Cable KVM Switch

ATEN 2-Port USB DisPlayPort Cable KVM Switch

£74.77 GBP
£74.77 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CS22DP-AT

Low stock: 1 left

  • One KVM console controls two USB DisplayPort computers
  • Superior video quality – up to 4096 x 2160 @ 30Hz
  • Multiplatform support – Windows, Mac, and Linux
  • Bus-powered design
2-Port USB DisPlayPort Cable KVM Switch

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.

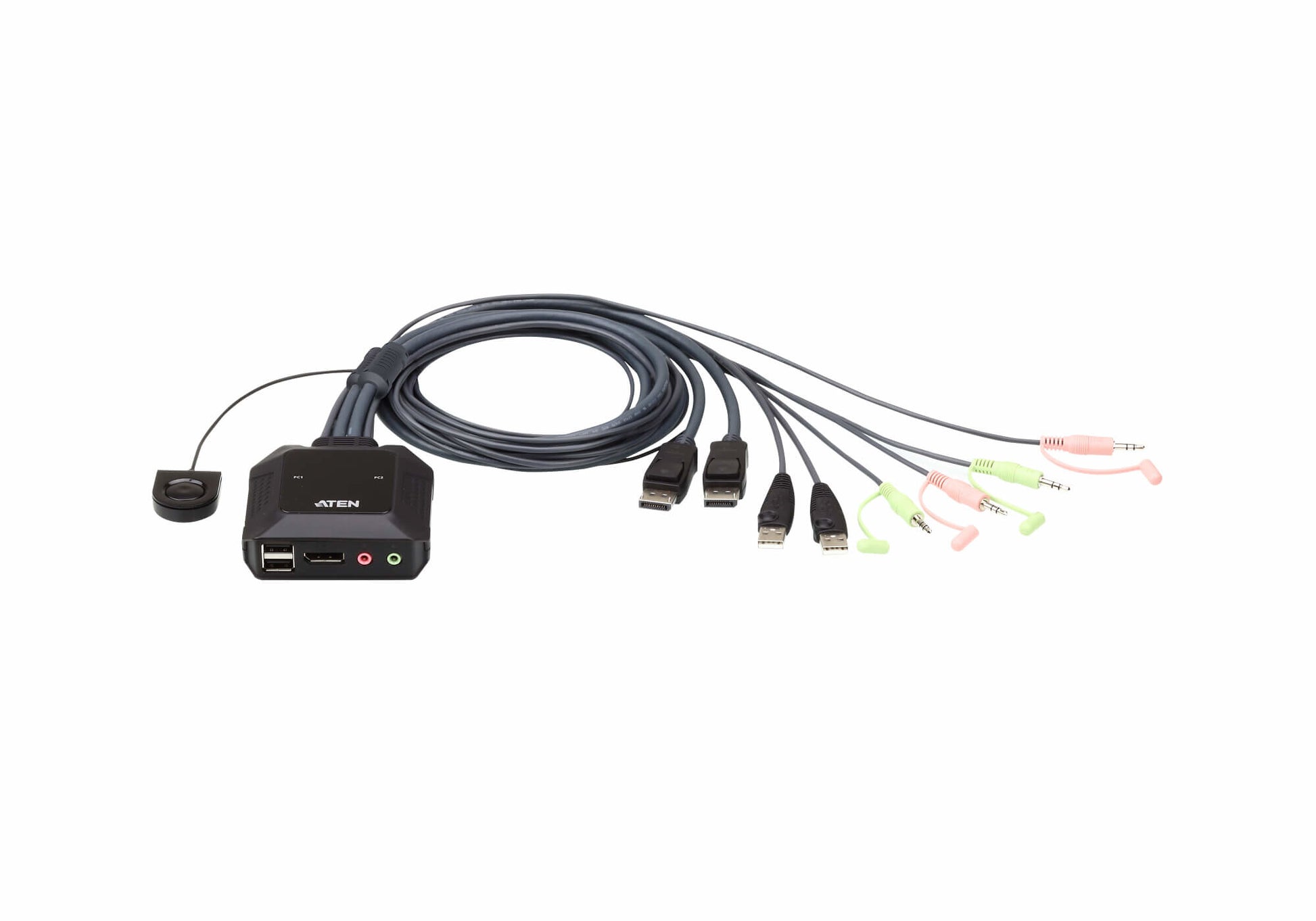

1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions

Ports & interfaces
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
DisplayPorts quantity 1
DisplayPort version 1.1
Console USB ports quantity 2

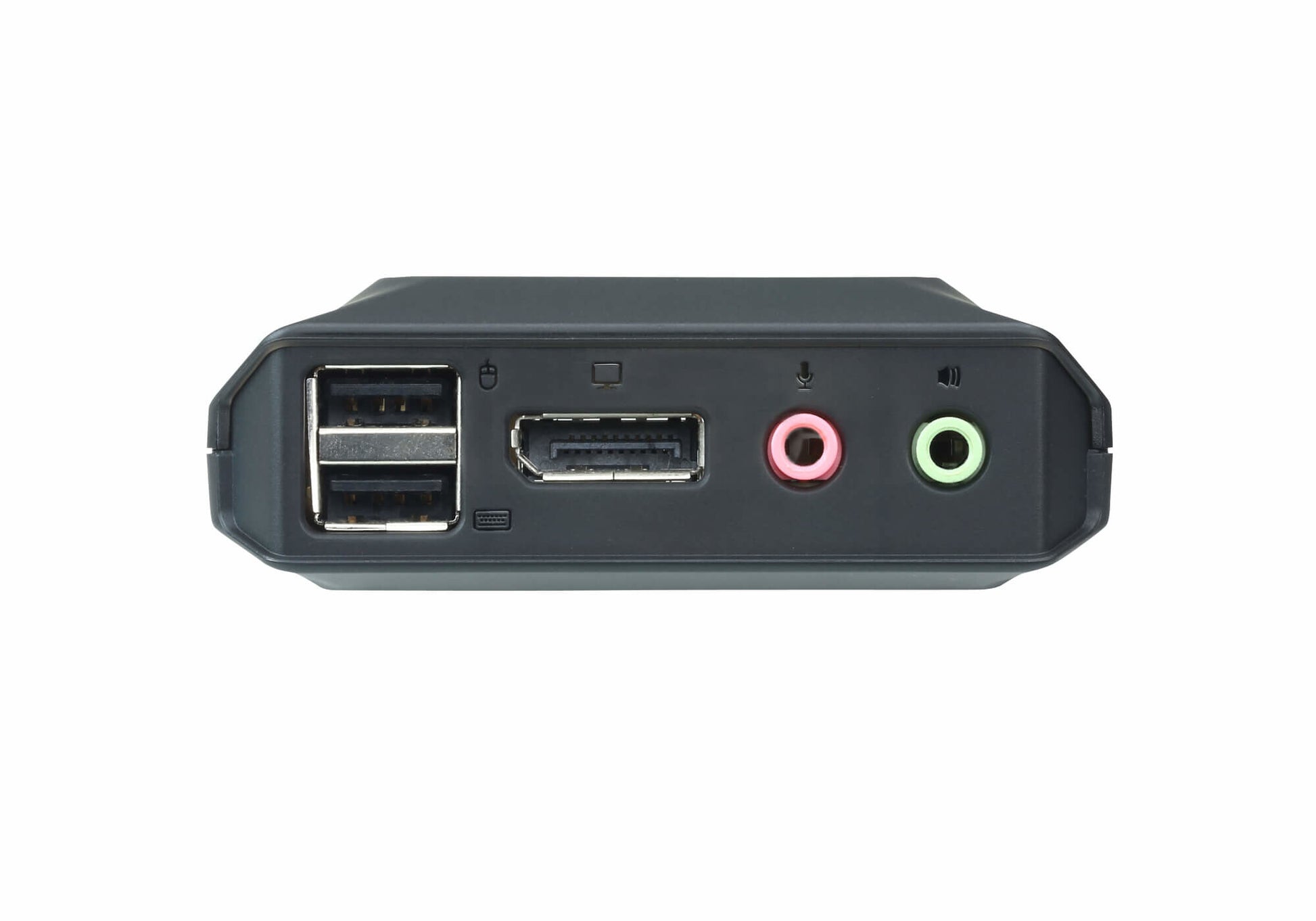

Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB 2.0 ports quantity 2
USB connector type Micro-USB B, USB Type-A
Audio connections Yes
Headphone outputs 1
Number of microphone inputs 1
Network
Ethernet LAN No
Performance
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Video bandwidth 30 Hz
HDCP Yes
Hot-Plug support Yes
Design
Rack mounting No
Product colour Black
Housing material Plastic
Wired remote switch Yes
Cable length 1.2 m
Remote switch cable length 1.8 m
LED indicators Yes
Display
Built-in display No
Power
Power source DC
Input voltage 5 V
USB powered Yes
Power consumption (typical) 1.38 W
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Sustainability
Compliance certificates RoHS
Sustainability certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 84.2 mm
Depth 83.4 mm
Height 30.4 mm
Weight 360 g
Packaging data
Package width 55 mm
Package depth 155 mm
Package height 225 mm
Package weight 435 g
Packaging content
Manual Yes
Logistics data
Harmonized System (HS) code 85176200
Master (outer) case net weight 7.2 kg
Master (outer) case width 328 mm
Master (outer) case length 389 mm
Master (outer) case height 330 mm
Master (outer) case gross weight 9.33 kg
Products per master (outer) case 20 pc(s)
