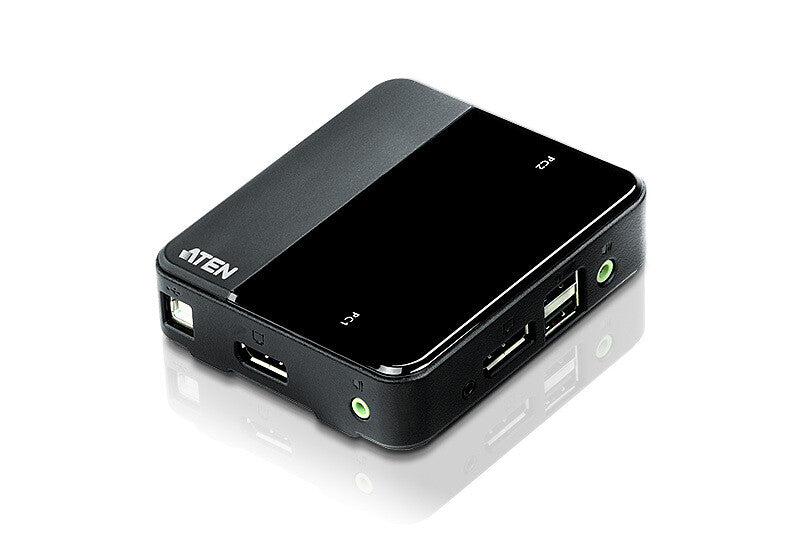

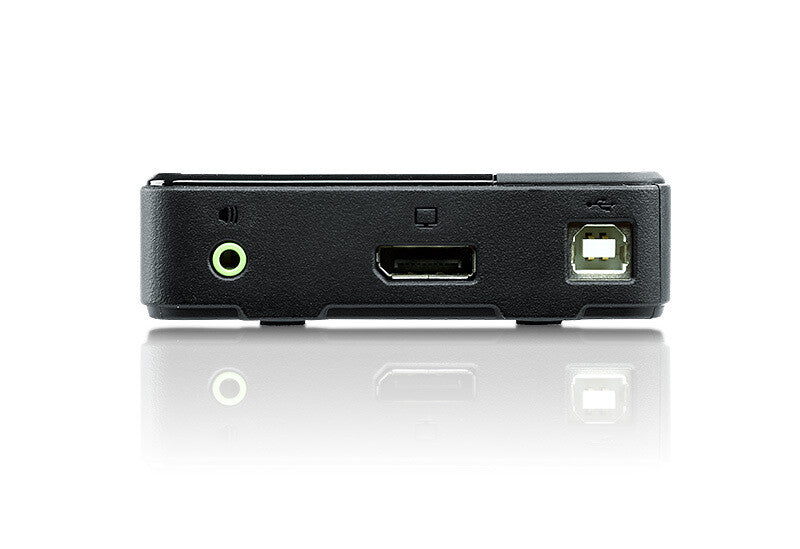

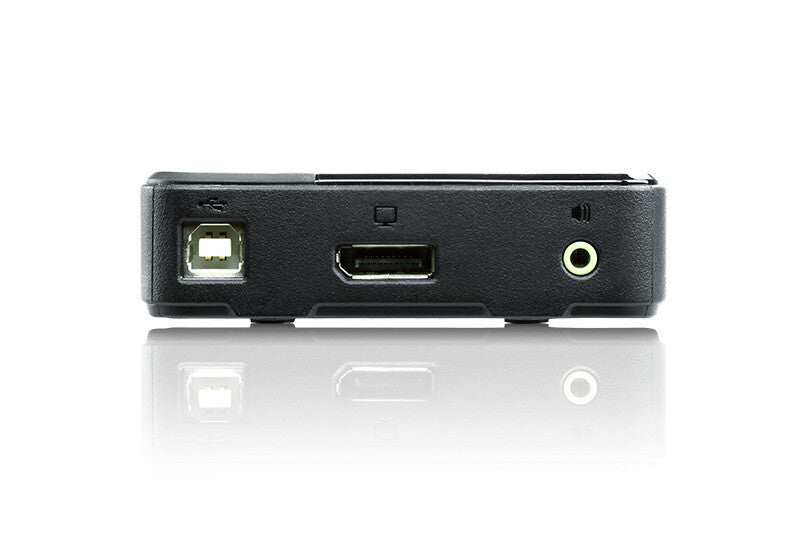

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
Regular price
£146.18 GBP
Regular price
Sale price
£146.18 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:CS782DP-AT
Low stock: 8 left
- Superior video quality – 4K UHD (3840 × 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- Computer selection via remote port selector, hotkeys, and USB mouse; bus-powered design
- Supports MST (Multi-Stream Transport)2, enabling multiple monitors to be used via a single DisplayPort connector
- Multiplatform support – Windows, Mac, Sun, and Linux
2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions
| Ports & interfaces | |
|---|---|
| Number of microphone inputs | 1 |
| Headphone outputs | 1 |
| Audio connections | Yes |
| USB connector type | USB Type-A, USB Type-B |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| USB 2.0 Type-B ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Video port type | DisplayPort |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Scan interval | 3,5,10,20 s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Hot keys | Yes |
| LED indicators | Yes |
| Housing material | Plastic |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 2.18 W |
| Input voltage | 5 V |
| Power source | DC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 543 g |
| Height | 26.8 mm |
| Depth | 93.7 mm |
| Width | 93 mm |
| Packaging data | |
|---|---|
| Package weight | 687 g |
| Package height | 175 mm |
| Package depth | 239 mm |
| Package width | 59 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 7.71 kg |
| Master (outer) case height | 196 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case width | 328 mm |
| Master (outer) case net weight | 5.43 kg |
| Harmonized System (HS) code | 85176200 |
