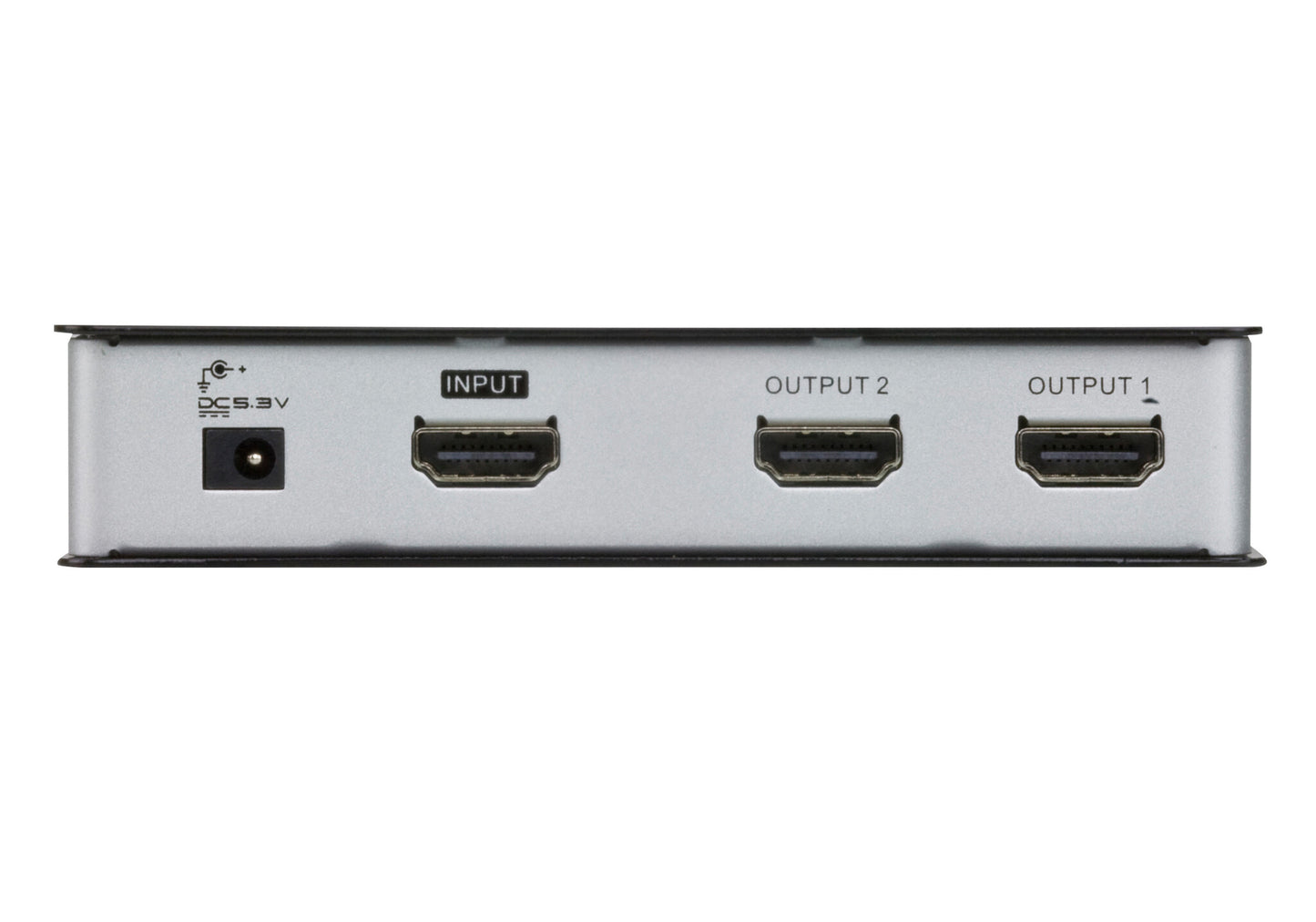

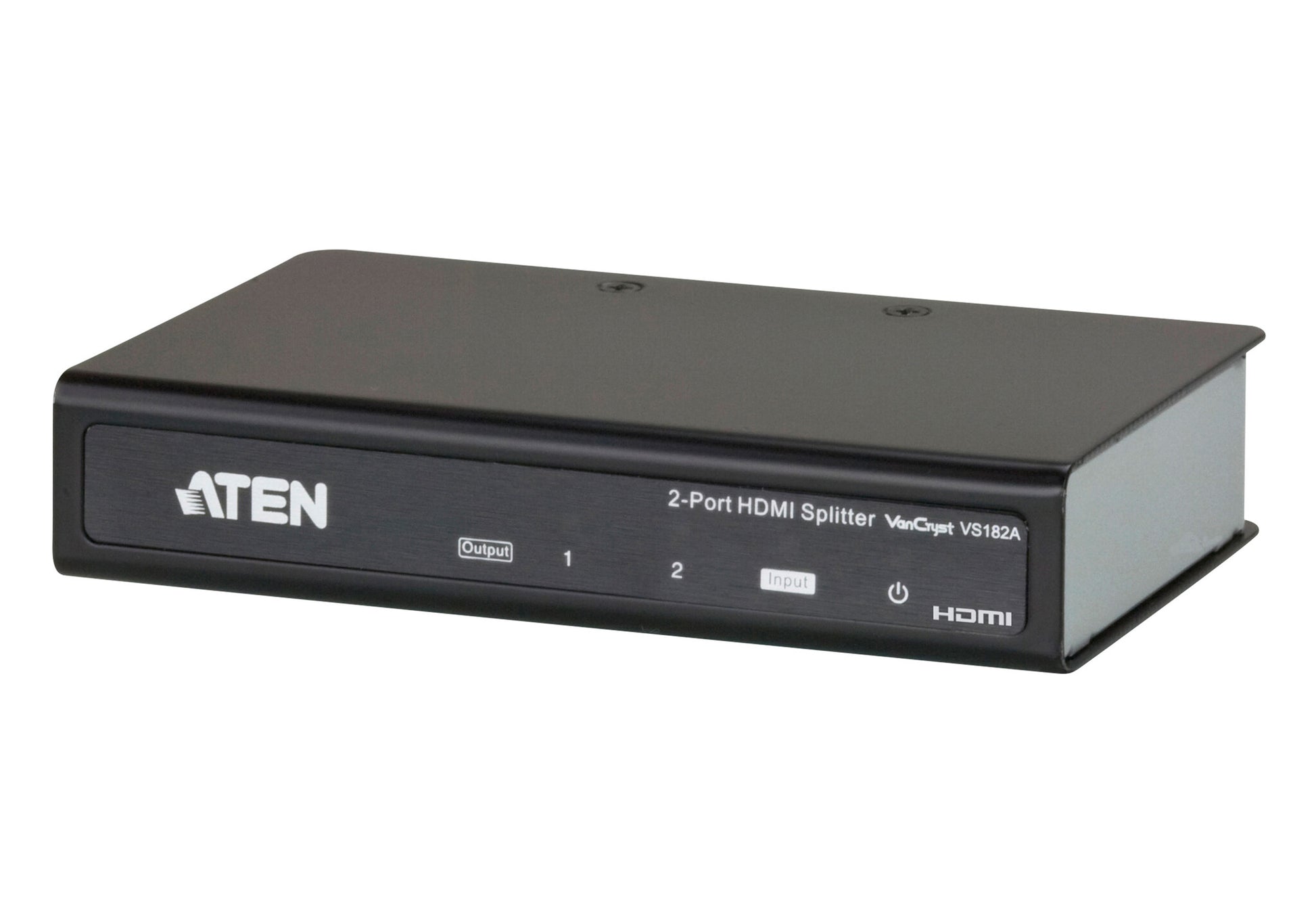

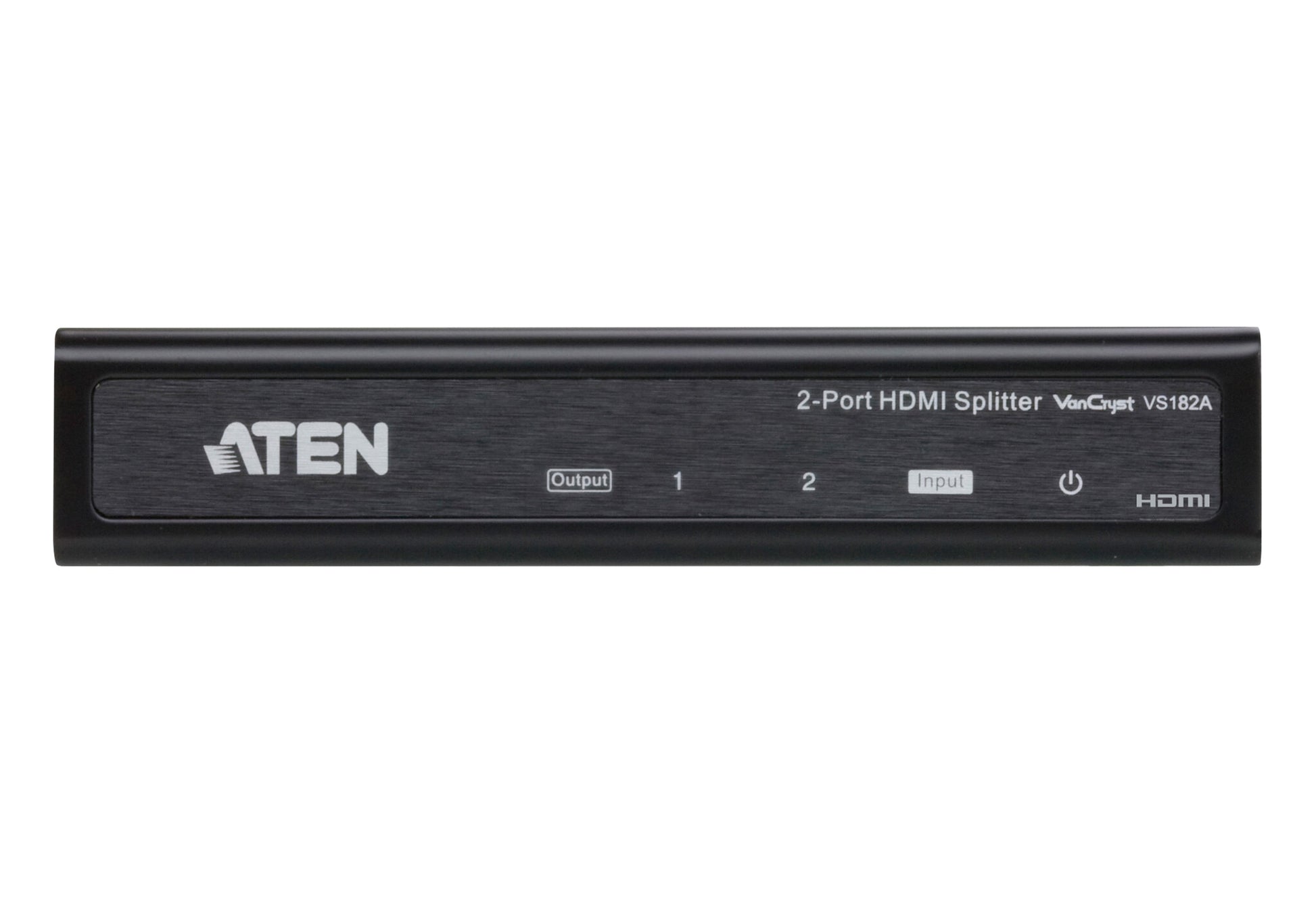

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
Regular price
£55.92 GBP
Regular price
Sale price
£55.92 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VS182A
Low stock: 4 left
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required
10.2 Gb/s, 340 MHz, 2x HDMI, HDCP, 125x80x25 mm
The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Video out | 2x HDMI |
| Video in | 1 x HDMI Type A Female (Black) |
| Video port type | HDMI |
| Video ports quantity | 3 |
| Features | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Plug and Play | Yes |
| Supported video modes | 2160i, 2160p |
| LED indicators | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HDCP | Yes |
| HDCP version | 1.4 |
| Bandwidth | 340 MHz |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 15 m |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Housing material | Metal |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (typical) | 3.12 W |
| AC input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 504 g |
| Height | 25 mm |
| Depth | 125 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package weight | 642 g |
| Package height | 160 mm |
| Package depth | 239 mm |
| Package width | 59 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| User guide | Yes |
| AC adapter included | Yes |
| Cables included | HDMI |
| Manual | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
