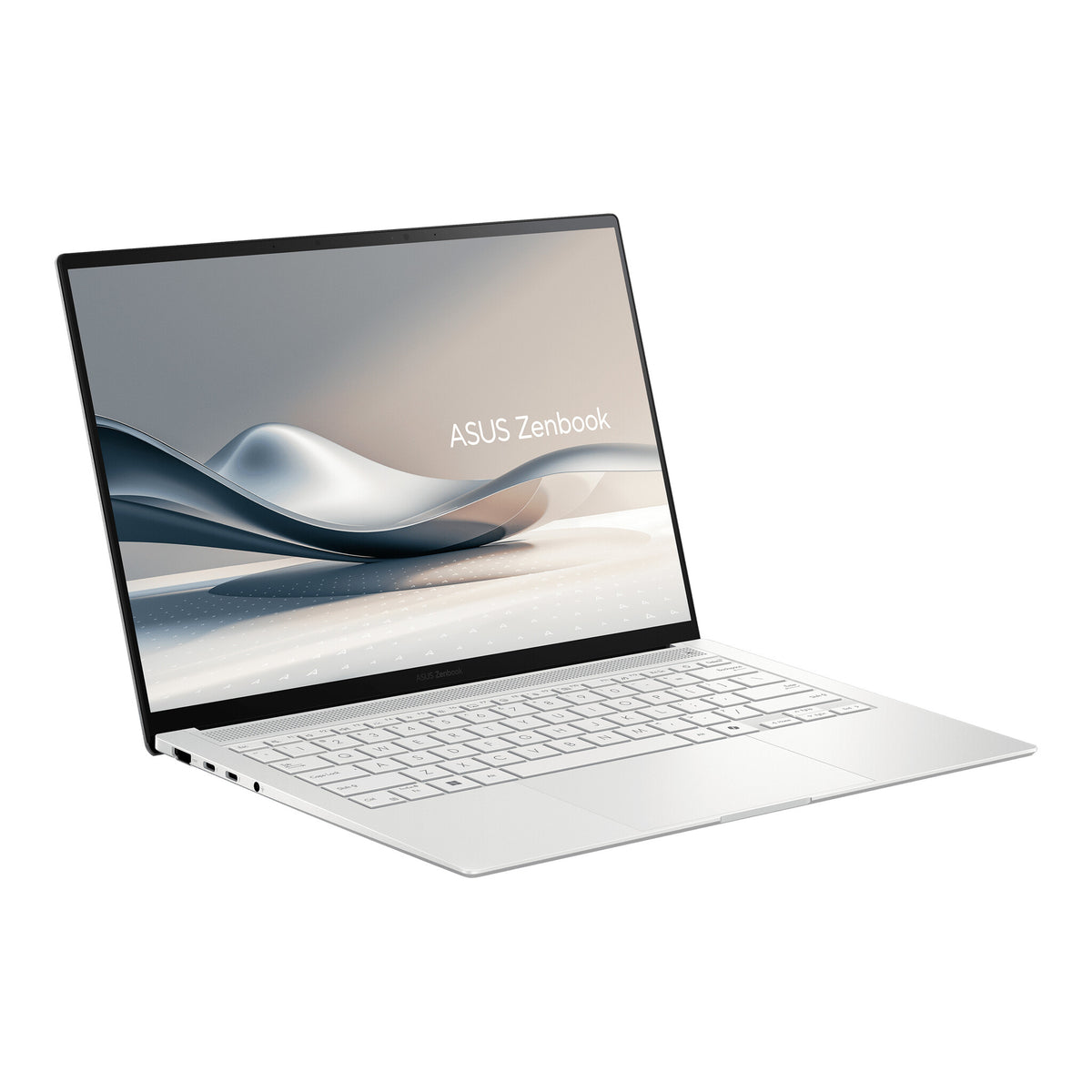

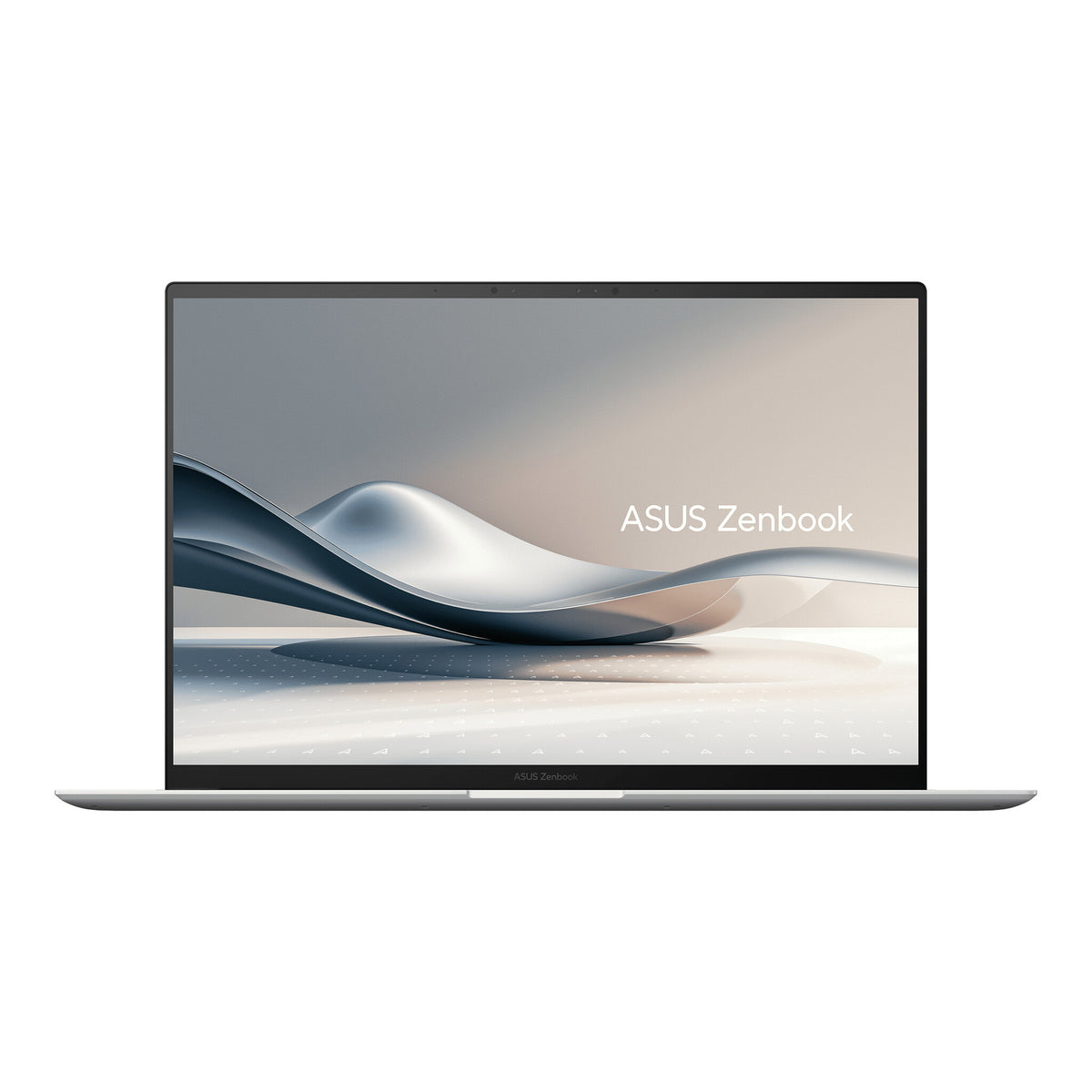

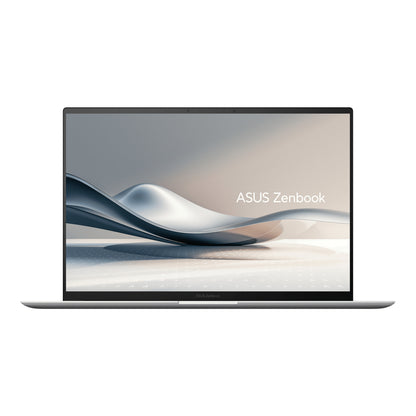

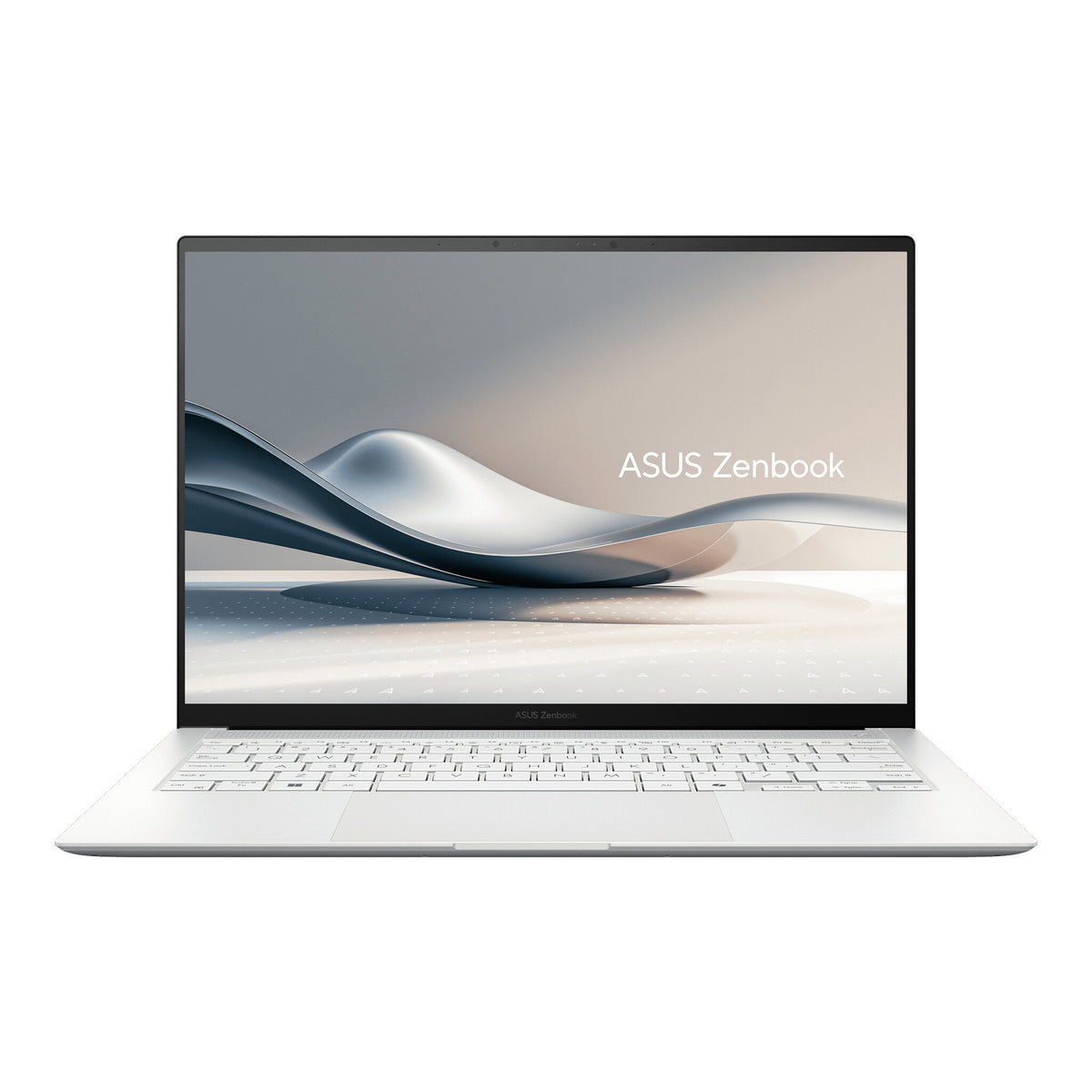

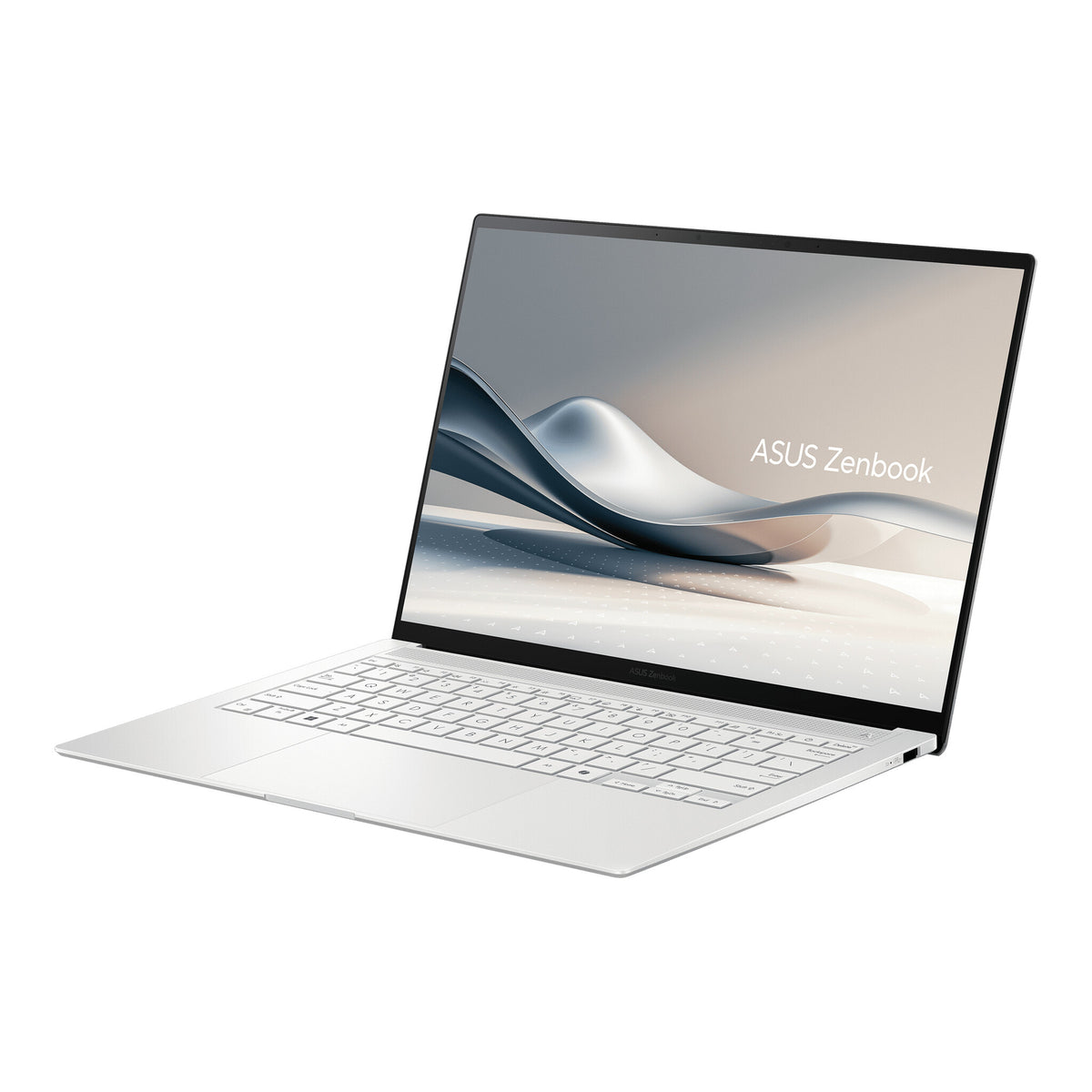

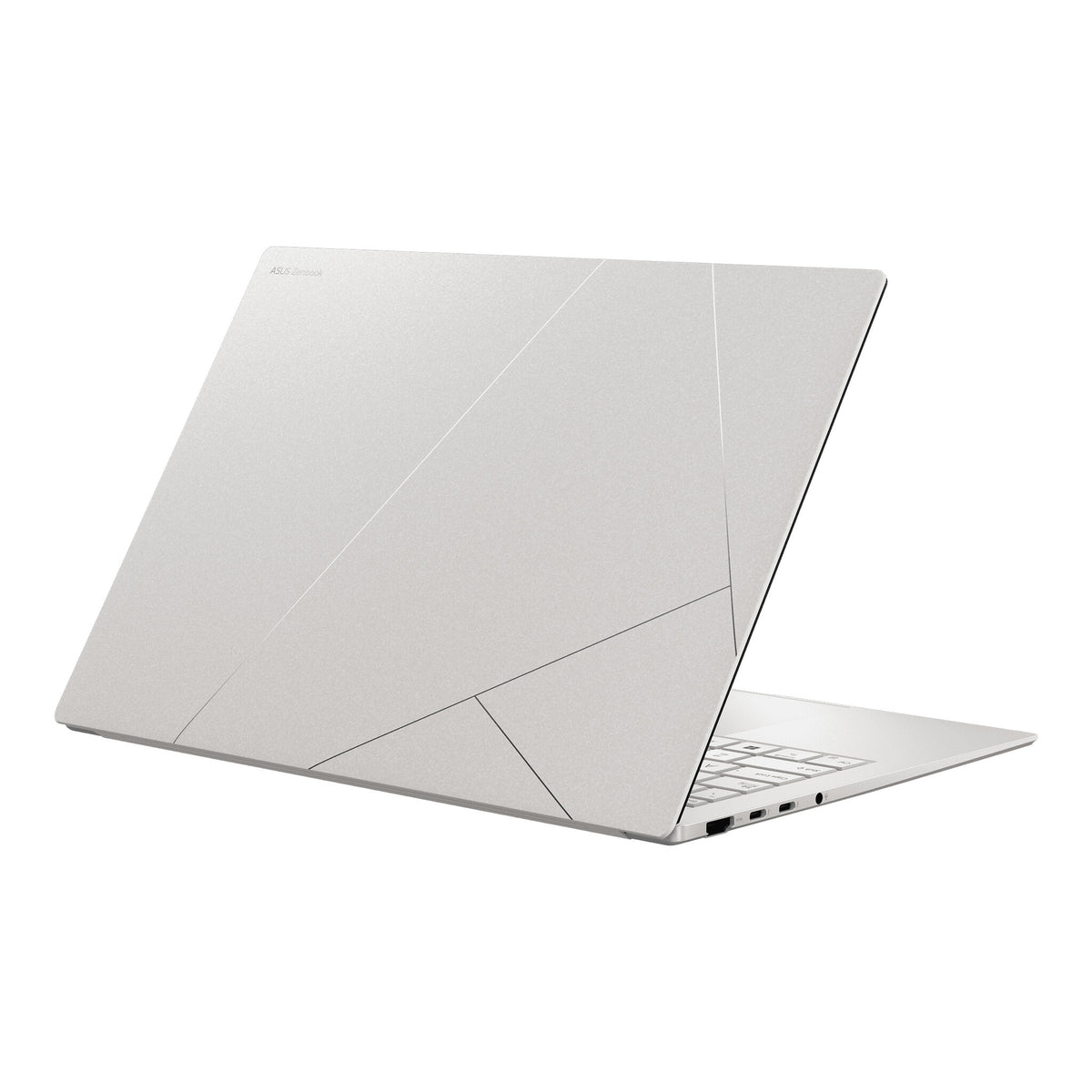

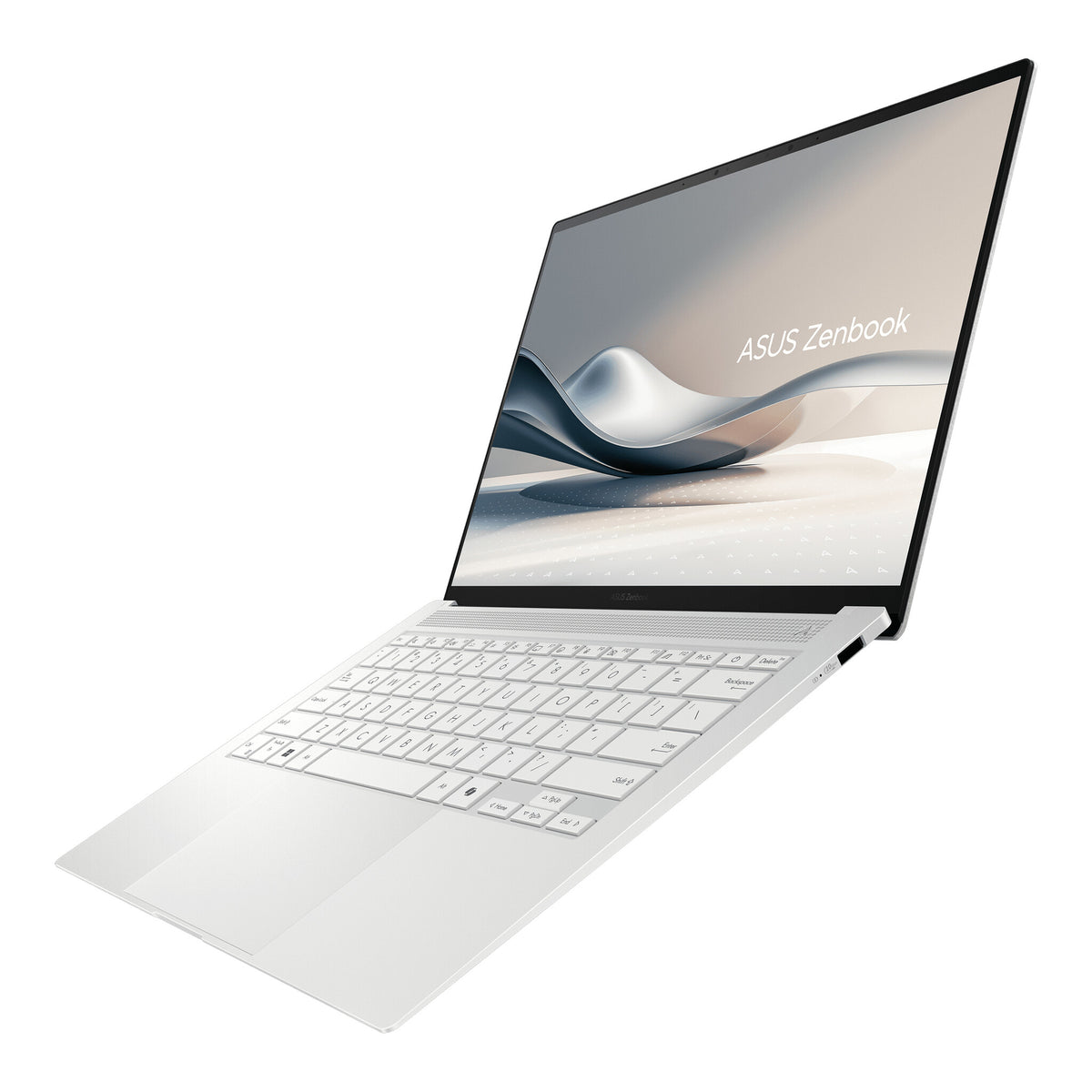

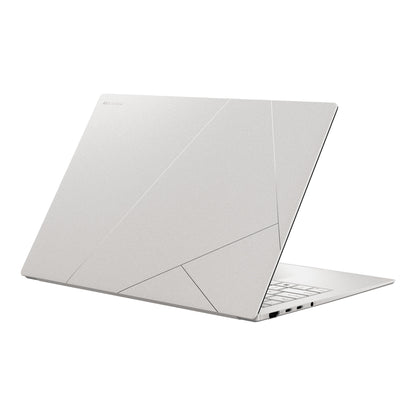

ASUS Zenbook S14 UX5406SA-PZ169W Copilot+ PC Intel Core Ultra 7 258V Laptop 35.6 cm (14") Touchscreen 3K 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home White
Intel Core Ultra 7 258V (12MB Cache), 32GB LPDDR5x-SDRAM, 1000GB SSD, 35.6 cm (14") 3K 2880 x 1800 OLED Touch, Intel Arc Graphics 140V, WLAN, Webcam, Windows 11 Home 64-bit

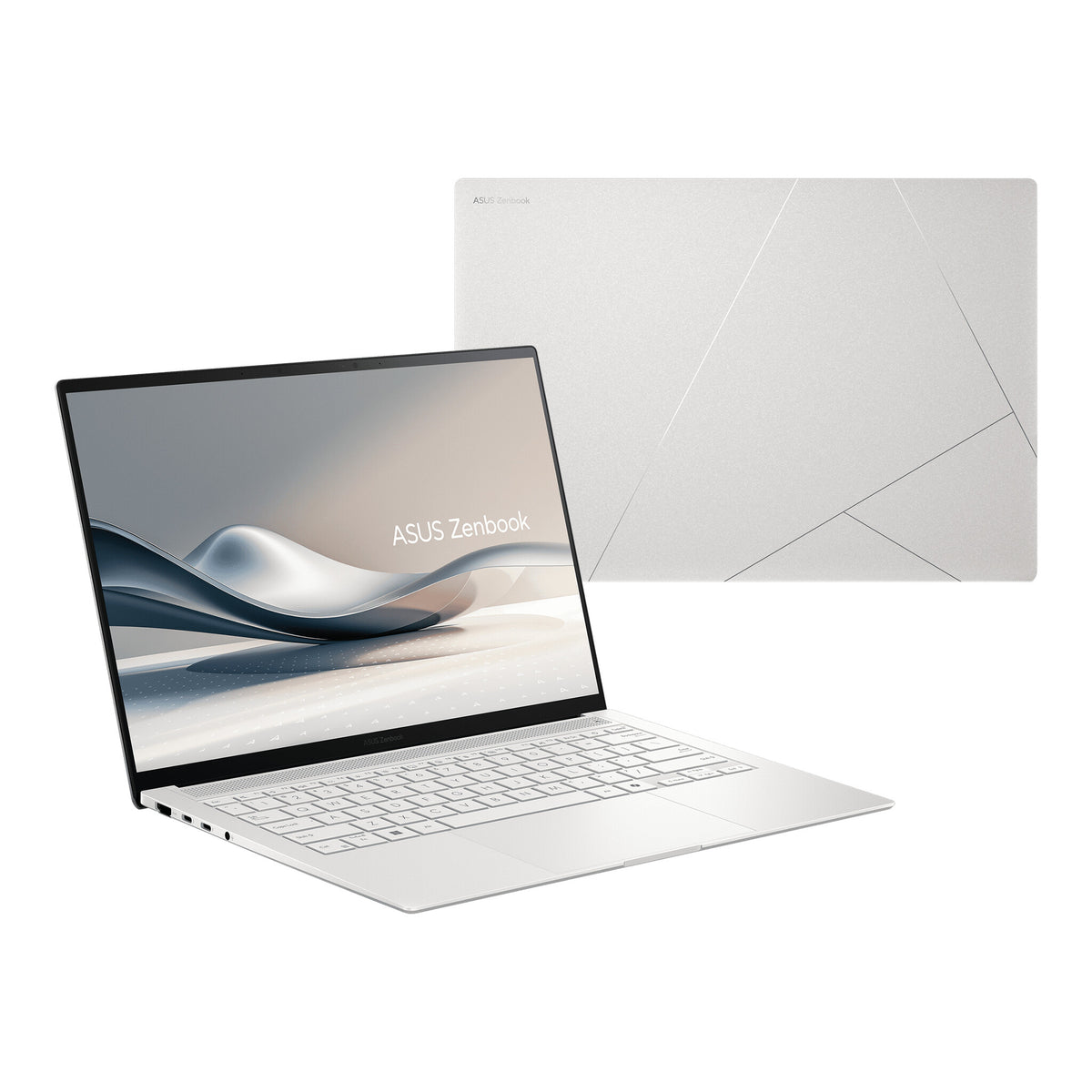

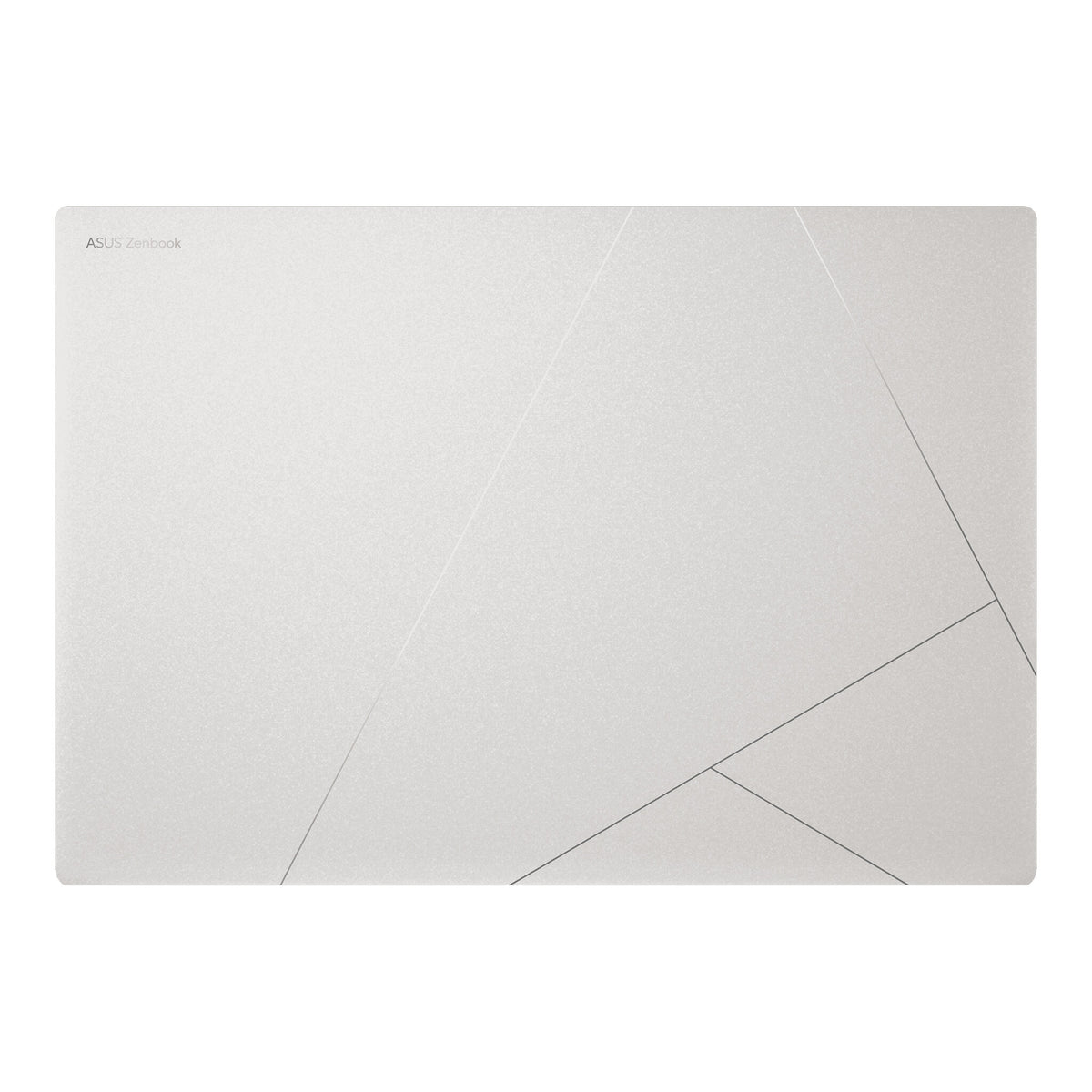

New Zen with superior AI Experience the world-changing power of AI with Zenbook S 14, a new-era ASUS Copilot+ PC that combines an exceptional 1.1 cm-slim1 design with cutting-edge technology. Its all-metal body — with a unique Ceraluminum™ high-tech ceramic lid and nature-inspired colors — houses next-level AI capabilities, driven by up to the latest Intel® Core™ Ultra 9 processor (Series 2) with ambient cooling minimize noise. Immerse yourself in a visual feast with the stunning 3K ASUS Lumina OLED2 display, complemented by rich and powerful sound from the four-speaker audio system. Zenbook S 14 brings you elegance, power, and innovation in a slim and sophisticated package.
Design
Product type
Laptop
Product colour
White
Colour name
Scandinavian White
Form factor
Clamshell
Housing material
Aluminium
Market positioning
Home
Introduction year
2024
Country of origin
China
Display
Display diagonal
35.6 cm (14")
Display resolution
2880 x 1800 pixels
Touchscreen
Yes
HD type
3K
Panel type
OLED
Native aspect ratio
16:10
Display surface
Gloss
Maximum display brightness (HDR)
500 cd/m²
Display brightness
400 cd/m²
Colour gamut
100%
RGB colour space
DCI-P3
Display response rise/fall
0.2 ms
Maximum refresh rate
120 Hz
Display number of colours
1.073 billion colours
Contrast ratio (typical)
1000000:1
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
HDR True Black 500
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor generation
Intel Core Ultra (Series 2)
Processor model
258V
Processor cores
8
Processor threads
8
Processor boost frequency
4.8 GHz
Performance cores
4
Low Power Efficient-cores
4
Performance-core Max Turbo Frequency
4.8 GHz
Low Power Efficient-core Max Turbo Frequency
3.7 GHz
Performance-core base frequency
2.2 GHz
Low Power Efficient-core Base Frequency
2200 MHz
Processor cache
12 MB
Processor cache type
Smart Cache
Maximum turbo power
37 W
Processor base power
17 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
115 TOPs
NPU performance up to
47 TOPs
Memory
Internal memory
32 GB
Internal memory type
LPDDR5x-SDRAM
Memory form factor
On-board
Maximum internal memory
32 GB
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express 4.0
SSD form factor
M.2
Optical drive type
No
Graphics
On-board graphics card
Yes
Discrete graphics card
No
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics 140V
Audio
Audio system
Smart Amp
Speakers manufacturer
Harman Kardon
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera HD type
Full HD
Front camera resolution
1920 x 1080 pixels
Infrared (IR) camera
Yes
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Antenna type
2x2
Ethernet LAN
No
Bluetooth
Yes
Bluetooth version
5.4
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
Performance
Repairability index
9.4

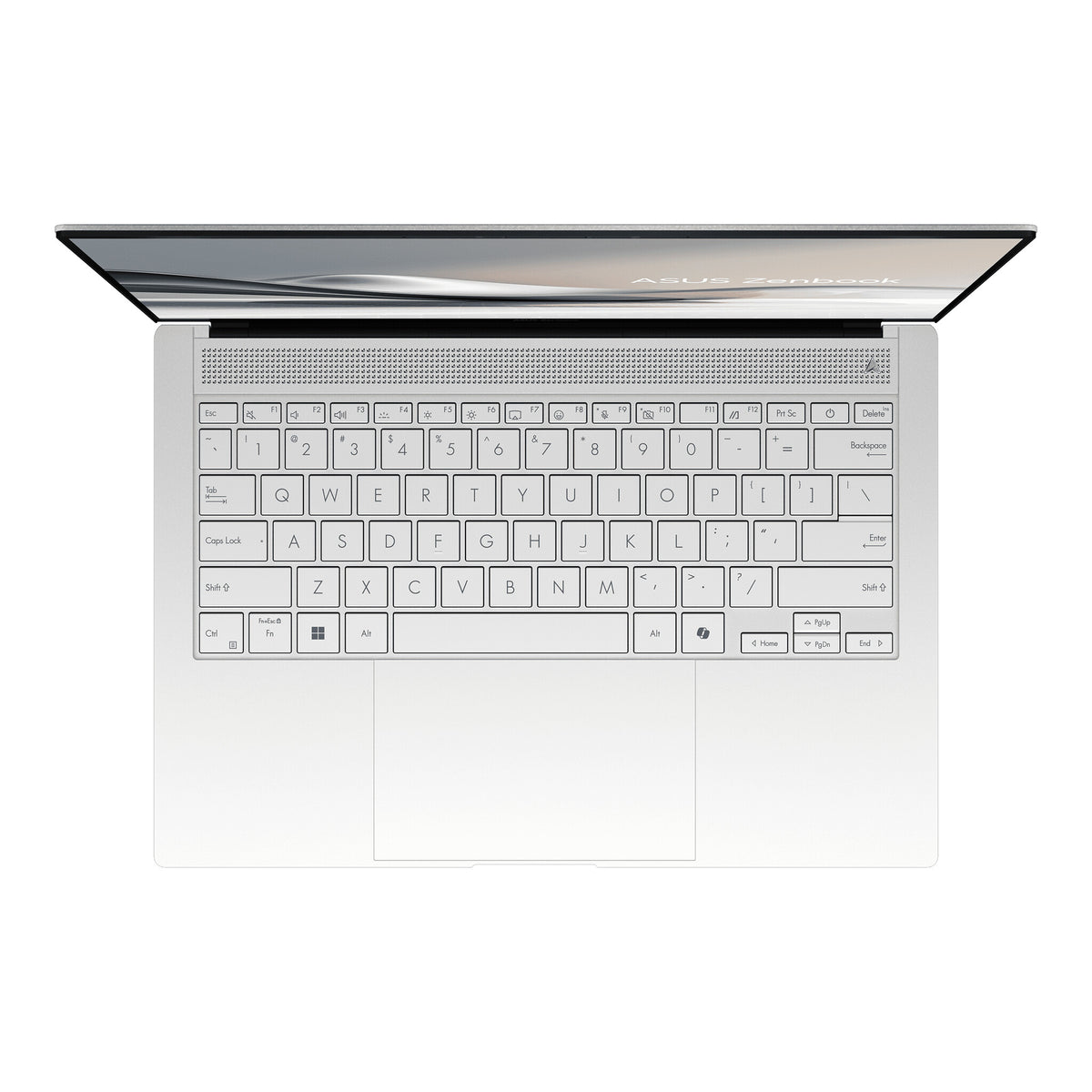

Keyboard
Pointing device
Touchpad
Keyboard backlit
Yes
Numeric keypad
No
Copilot key
Yes
Software
Operating system installed
Windows 11 Home
Operating system architecture
64-bit
Trial software
1-month trial for new Microsoft 365 customers. Credit card required, One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025.
Microsoft Copilot
Yes
Copilot+ PC
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
4
Battery capacity
72 Wh
Power
AC adapter power
65 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
3.25 A
AC adapter output voltage
20 V
USB Type-C charging port
Yes
Security
Face recognition
Yes
Windows Hello
Yes
Trusted Platform Module (TPM)
Yes
Password protection
Yes
Certificates
Compliance certificates
REACH
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Weight
1.2 kg
Width
310.3 mm
Depth
214.7 mm
Height (front)
1.19 cm
Height (rear)
1.29 cm
Packaging data
Package width
410 mm
Package depth
75 mm
Package height
284 mm
Package weight
3.67 kg
general_information_attribute_container_name
Product series
S14
attribute_product_family_name
Zenbook
Logistics data
Commodity Classification Automated Tracking System (CCATS)
