ASUS

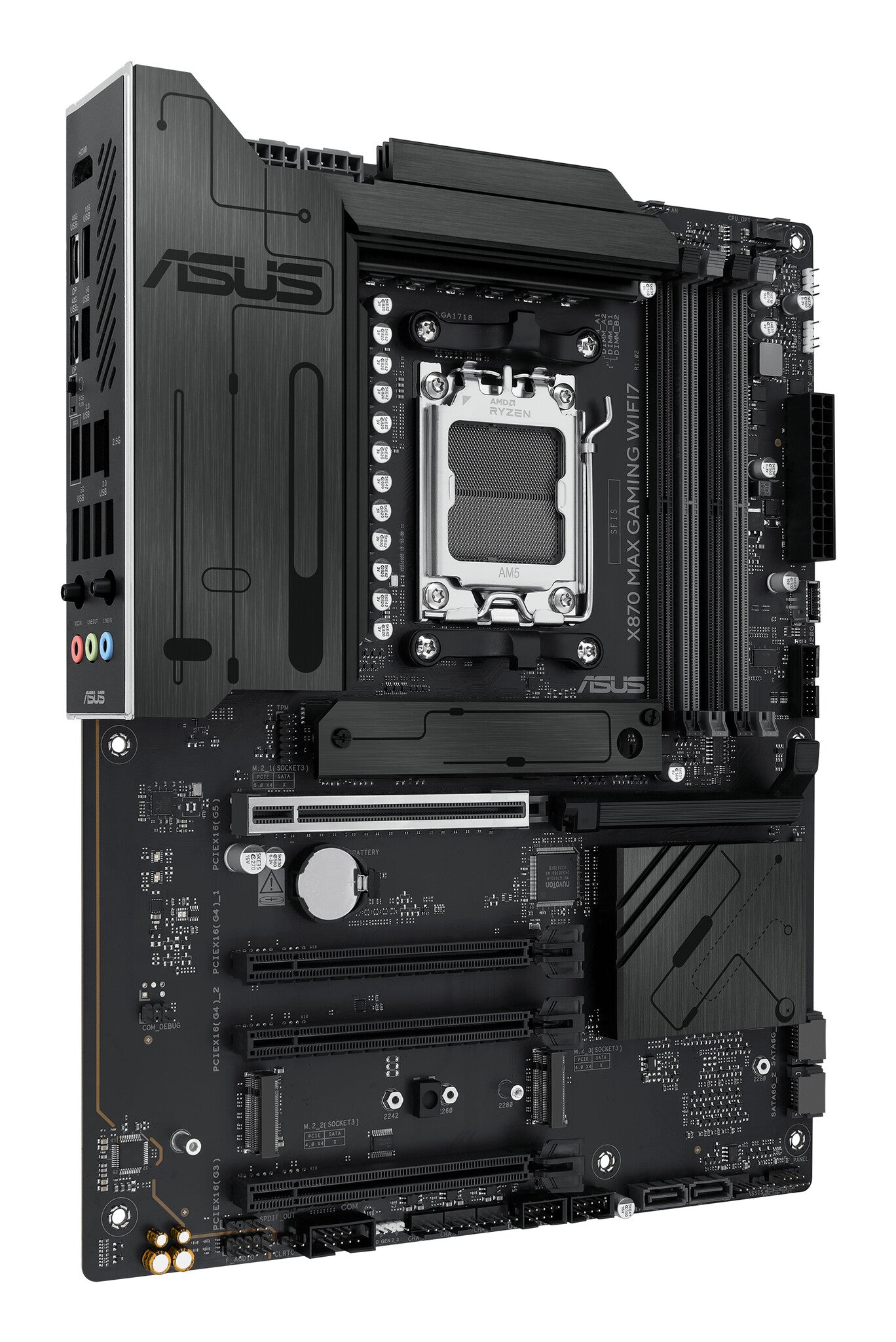

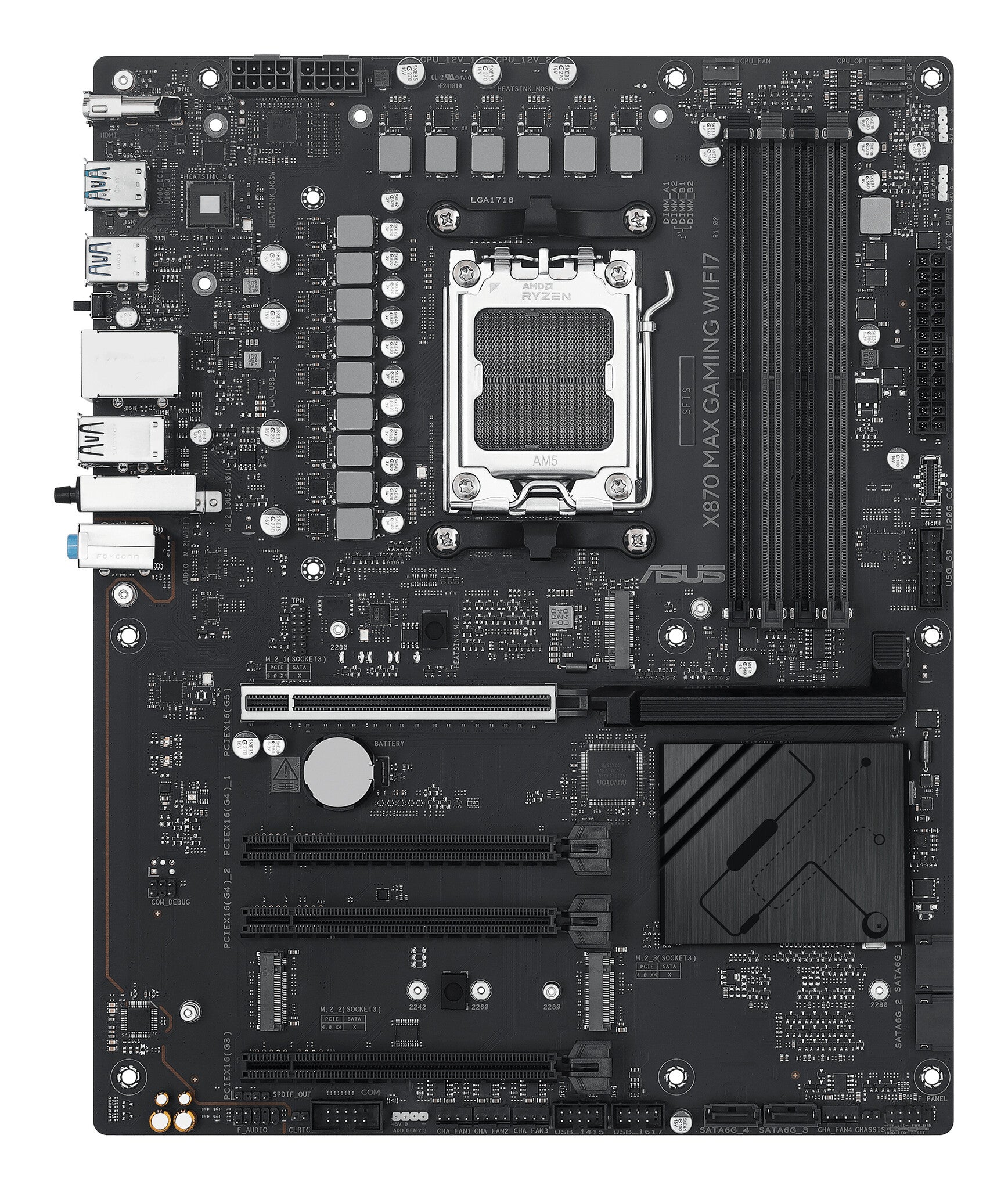

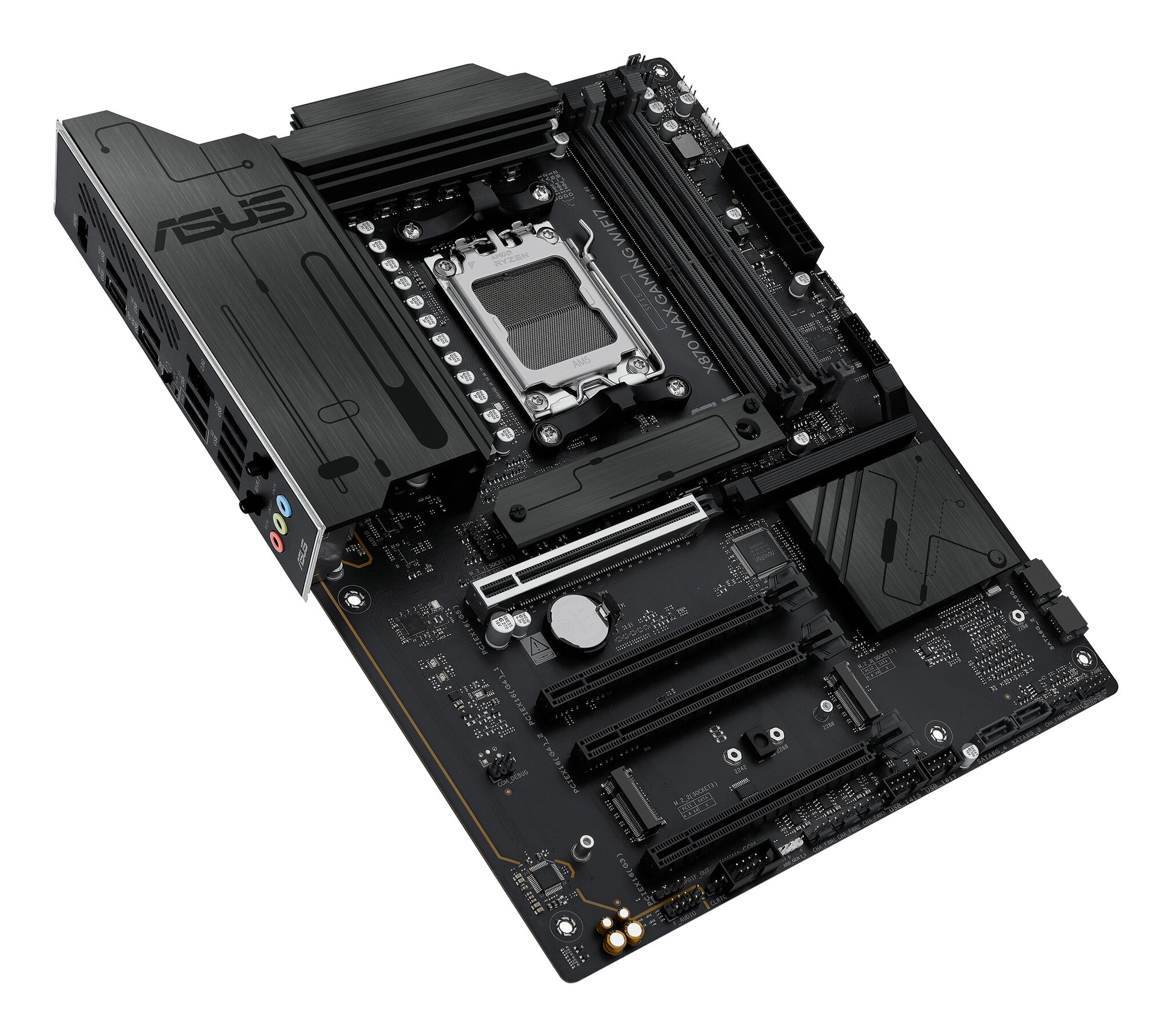

ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX

ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX

£293.40 GBP
£293.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1LY0-M0EAY0

15 in stock

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
AMD X870, AM5, 4 x DIMM slots, max. 256GB DDR5, Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), 256 Mb Flash ROM, UEFI AMI BIOS, ATX

X870 MAX GAMING WIFI7
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speed (max) 8000 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 7
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
S/PDIF out connector Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 4
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
12V power connector Yes
Number of COM connectors 1

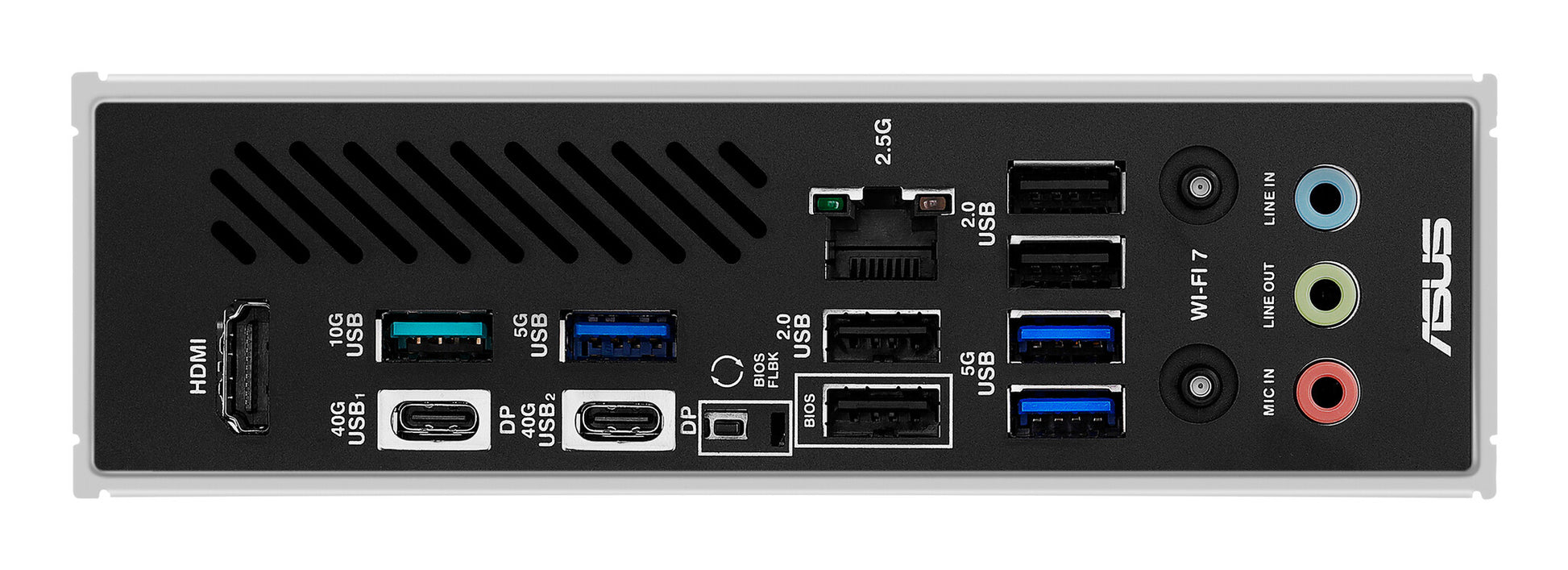

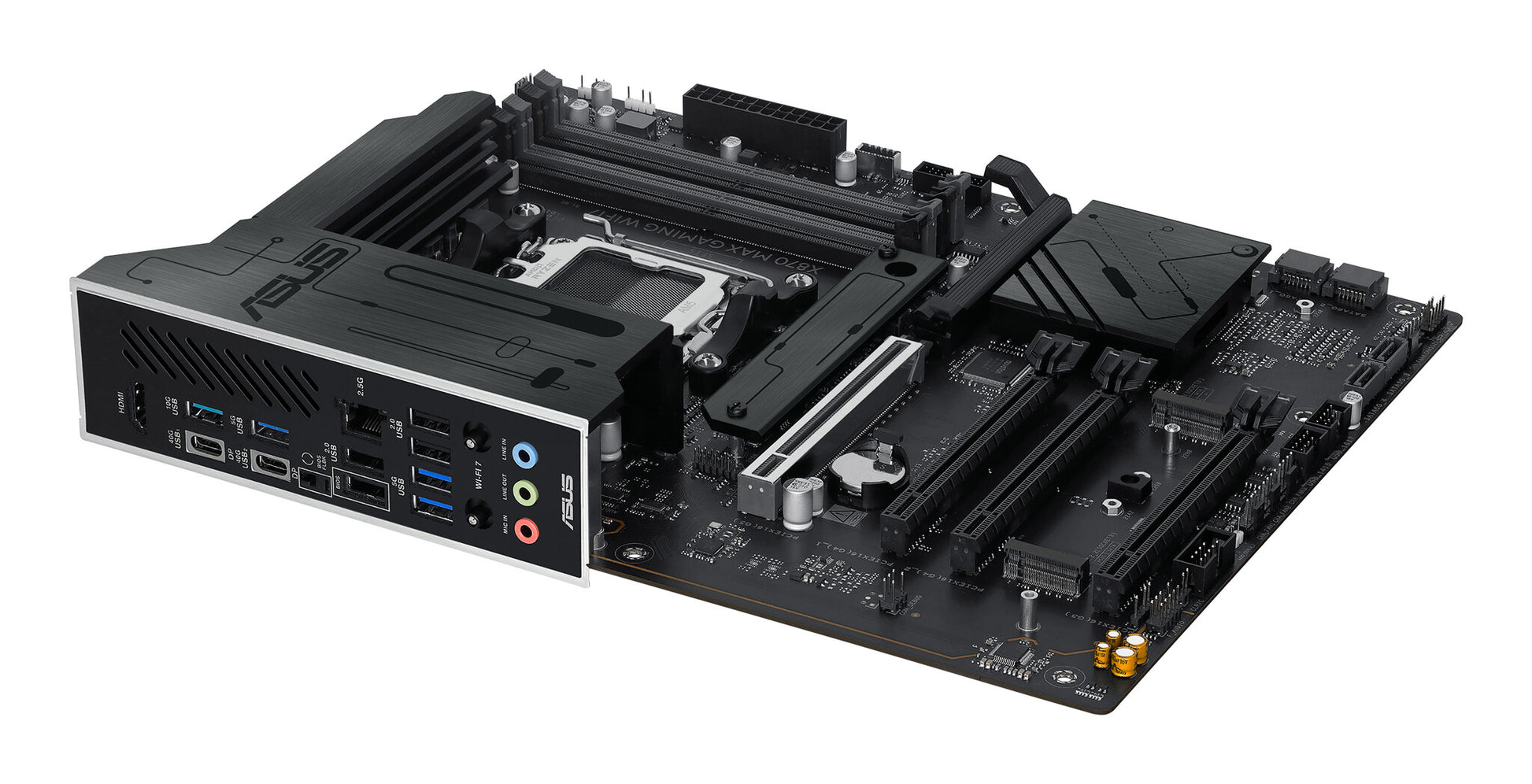

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB4 Gen 3x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Line-in Yes
Microphone in Yes
WiFi-AP antenna jack 2
USB connector type USB Type-A, USB Type-C
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870
Audio output channels 7.1 channels
Product colour Multicolour
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
Number of M.2 (M) slots 3
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 353 mm
Package depth 273 mm
Package height 68 mm
Package weight 1.95 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 48 mm

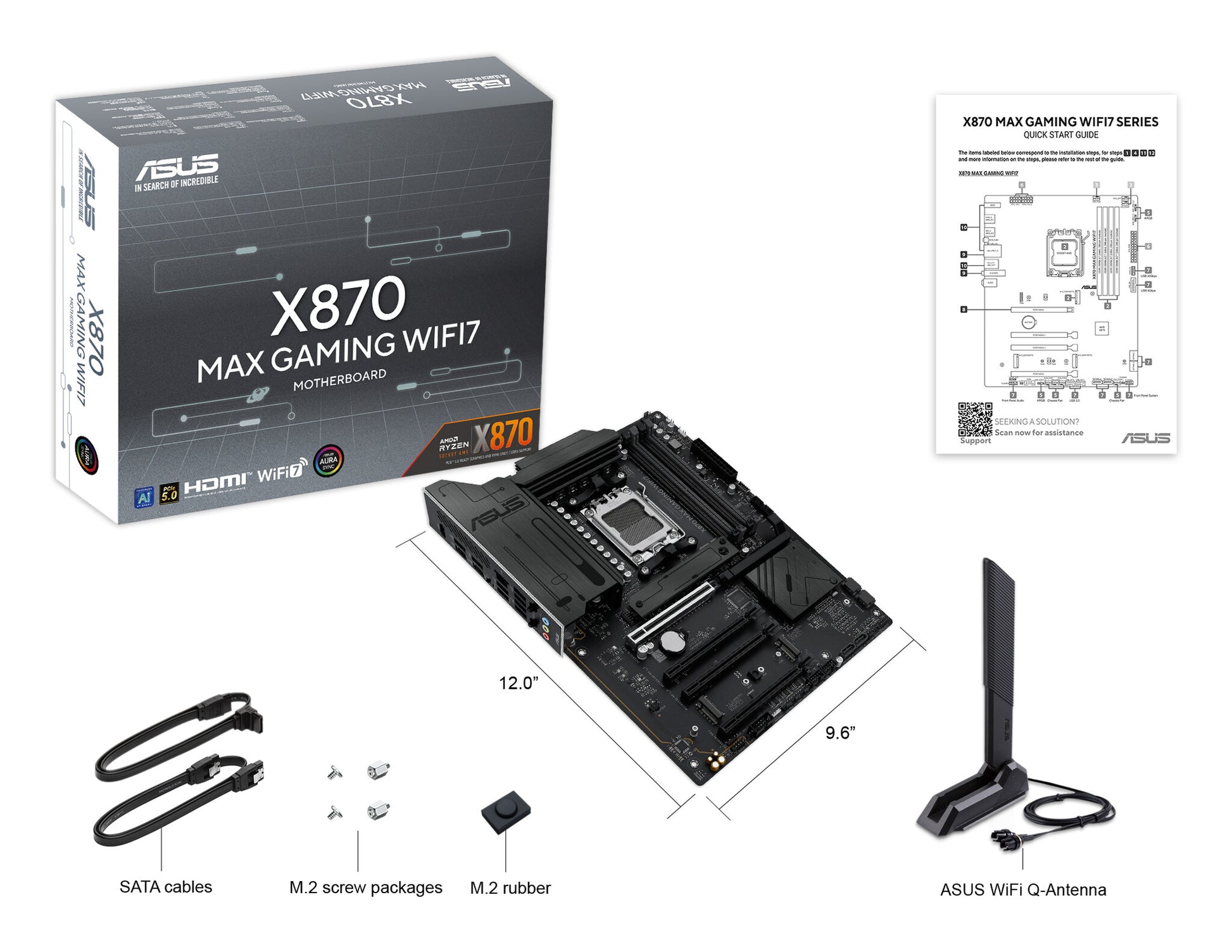

Packaging content

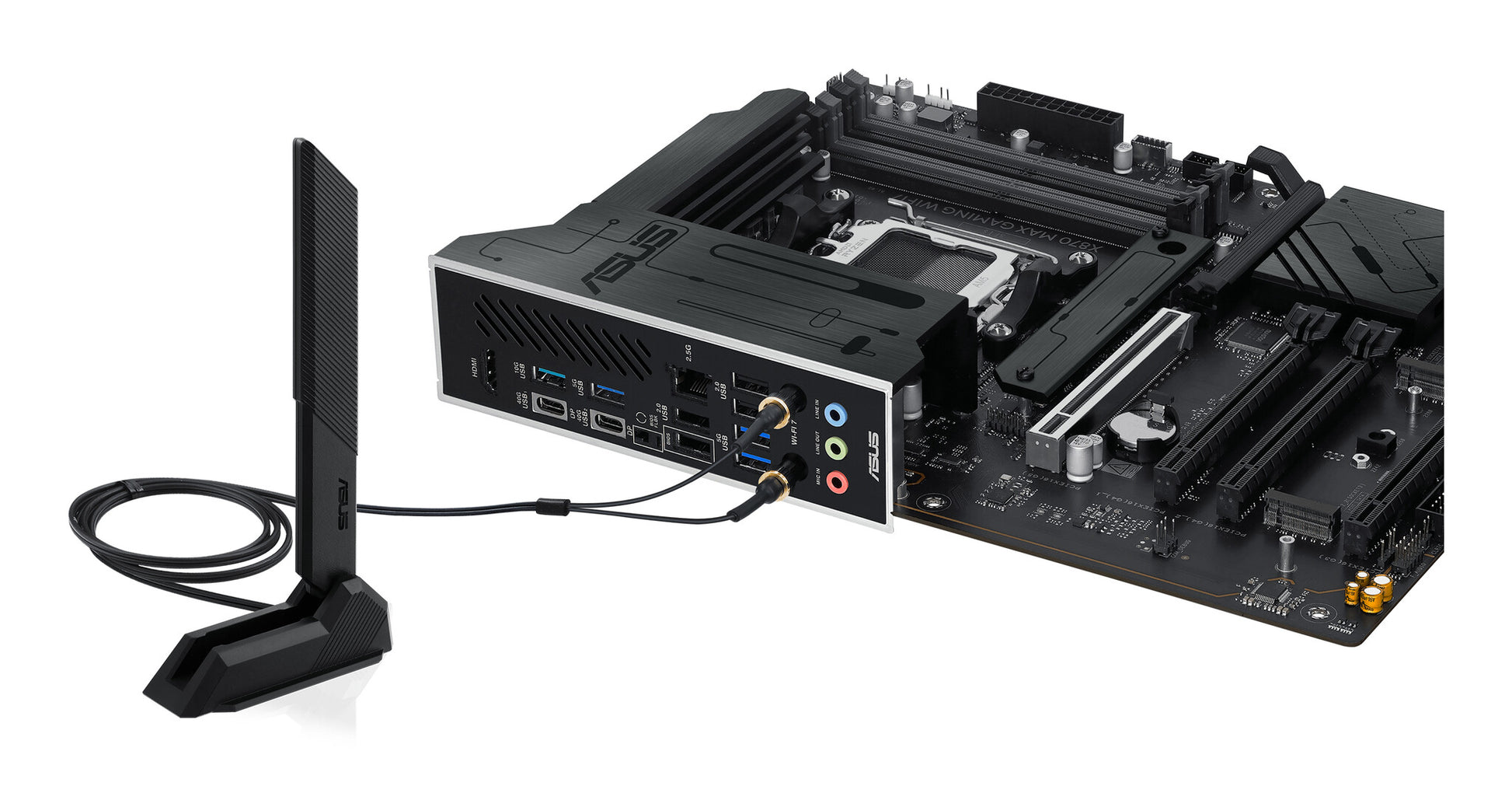

Antenna included Yes
Other features
Weight 1.36 kg
