ASUS

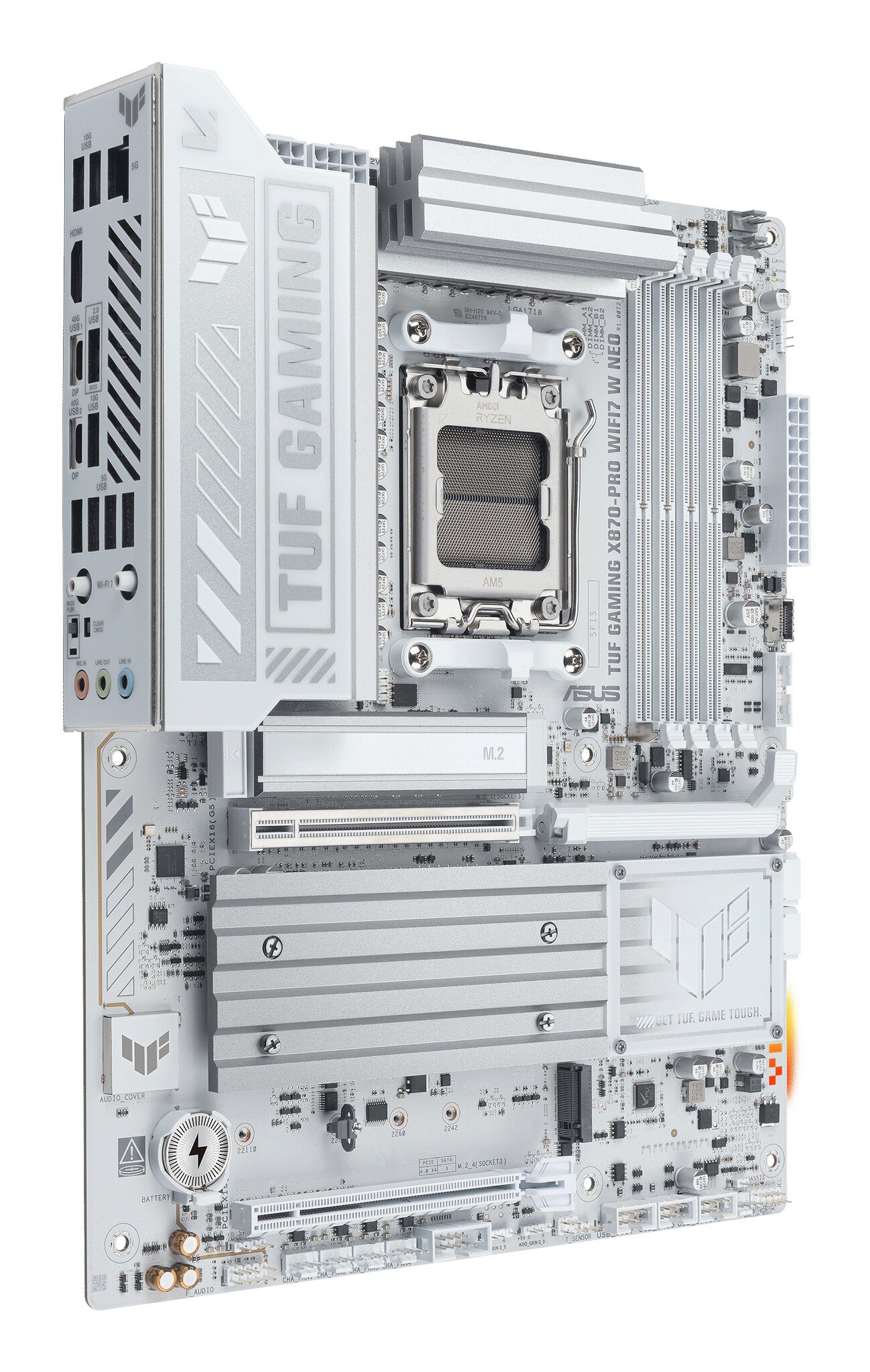

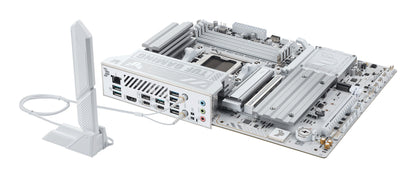

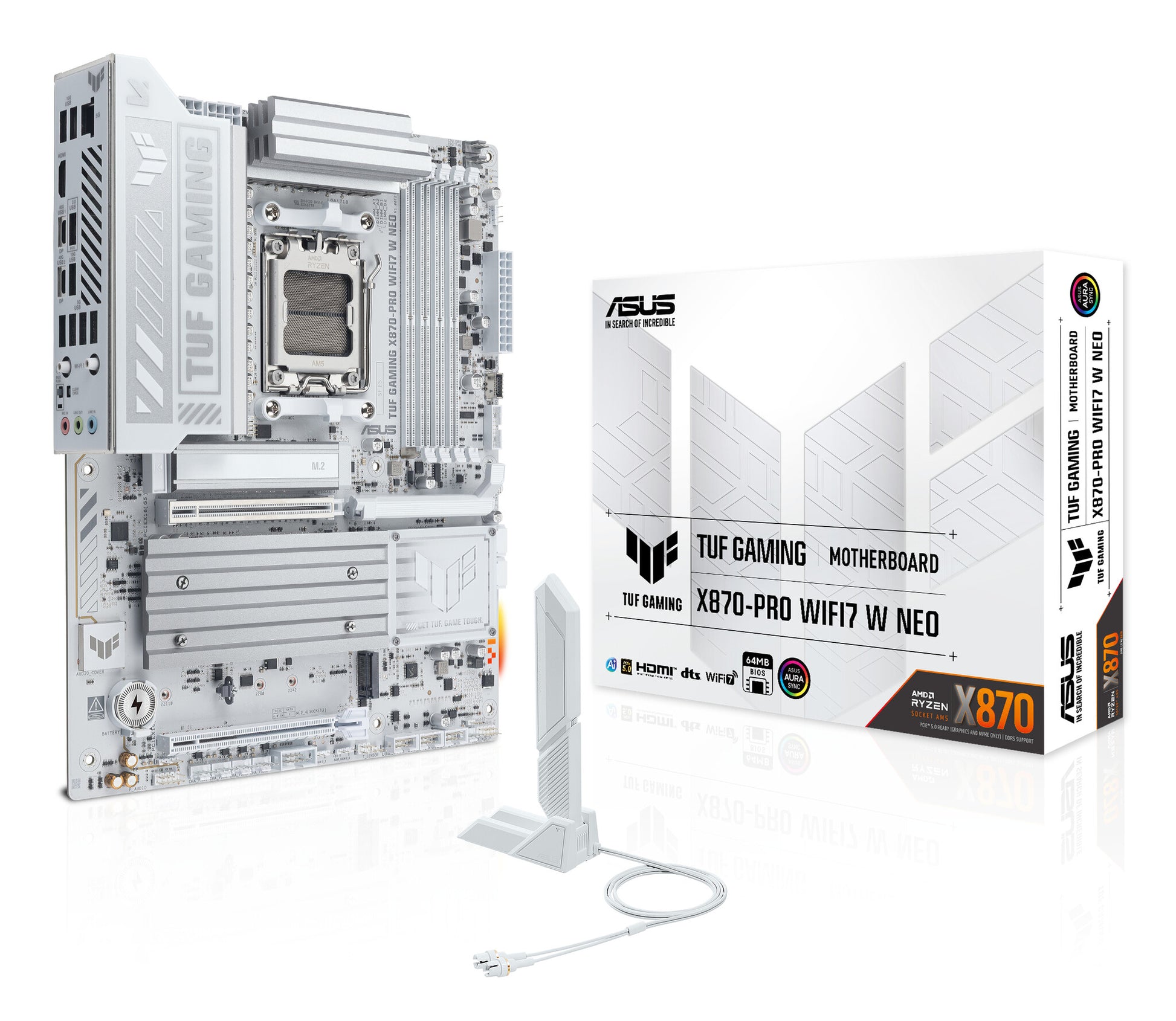

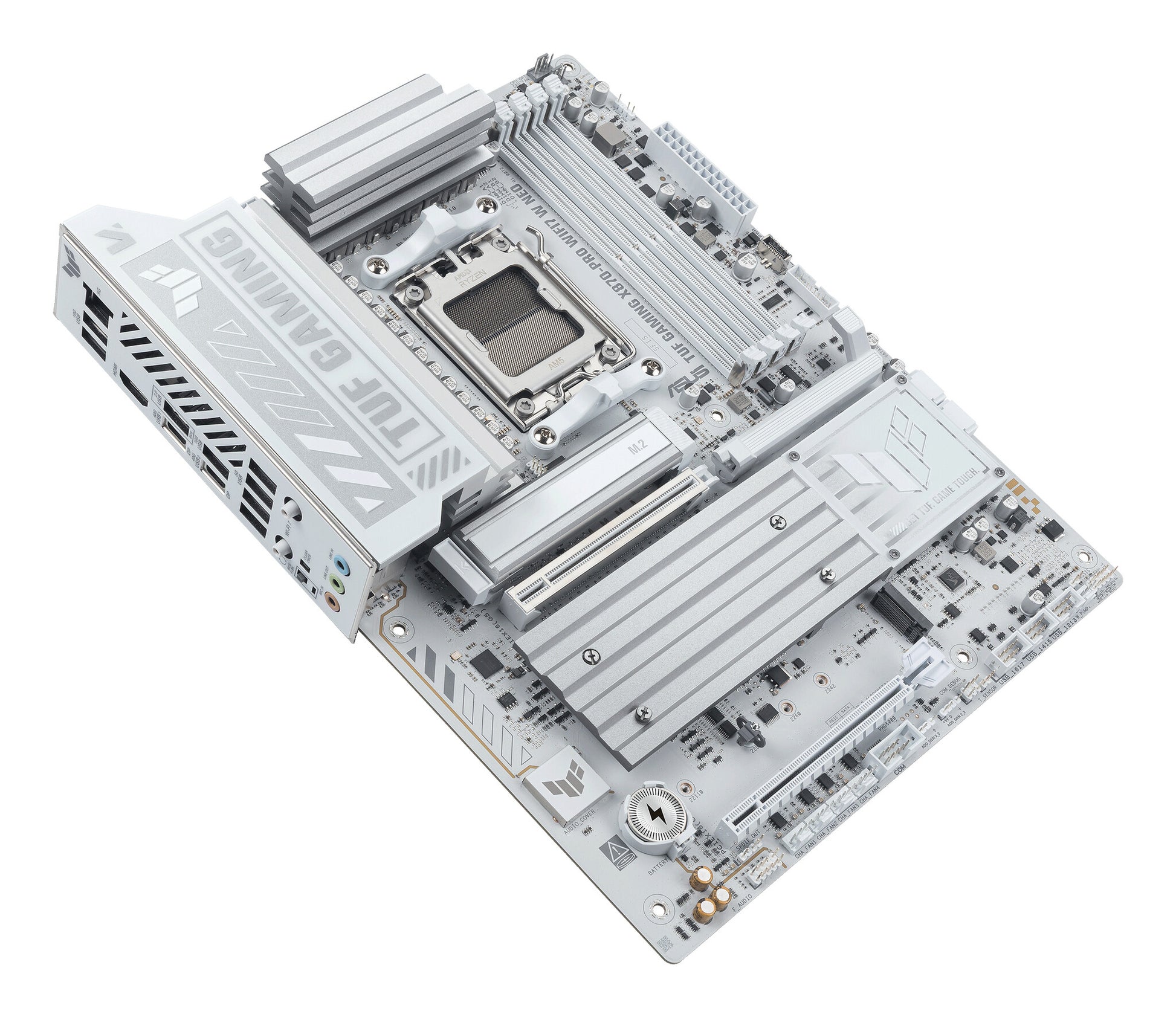

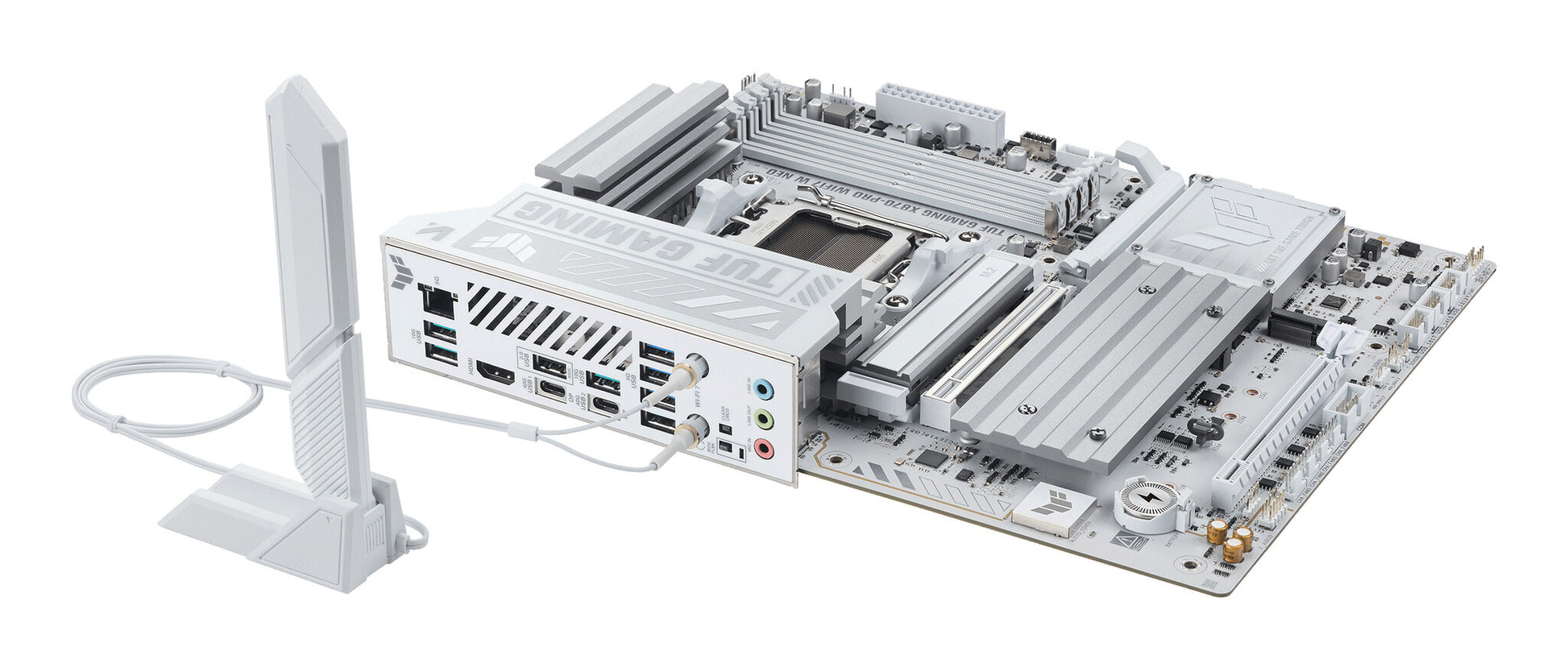

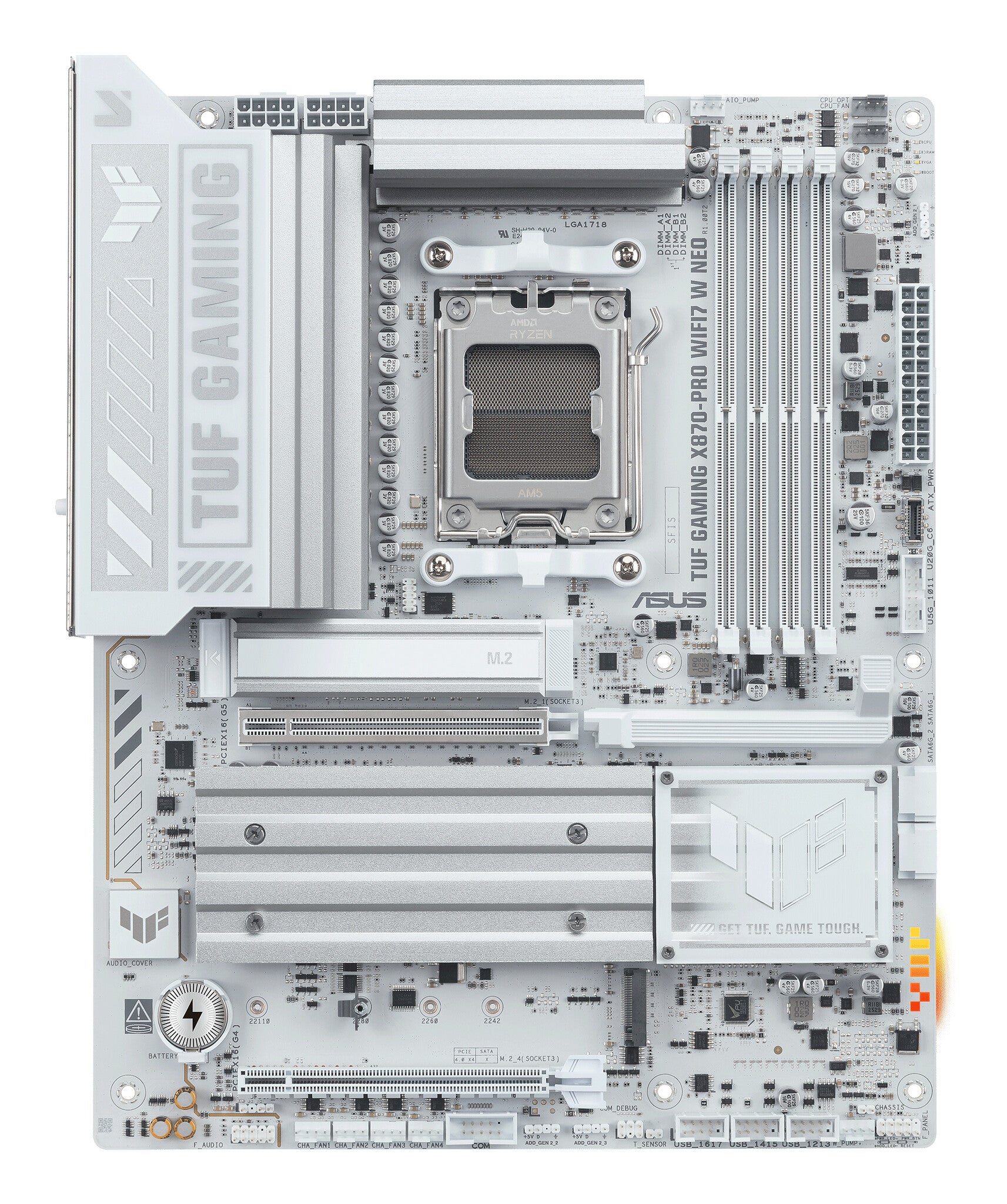

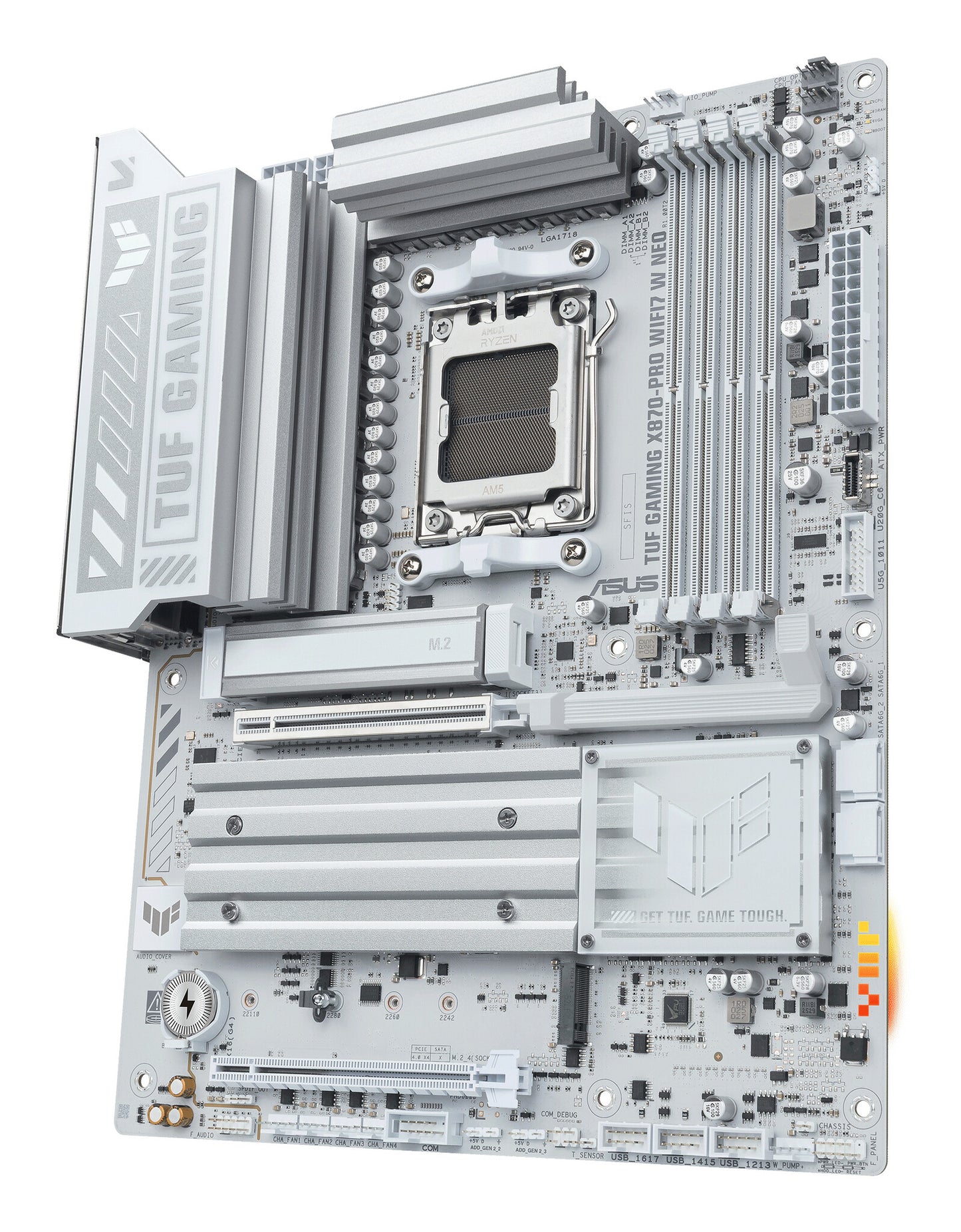

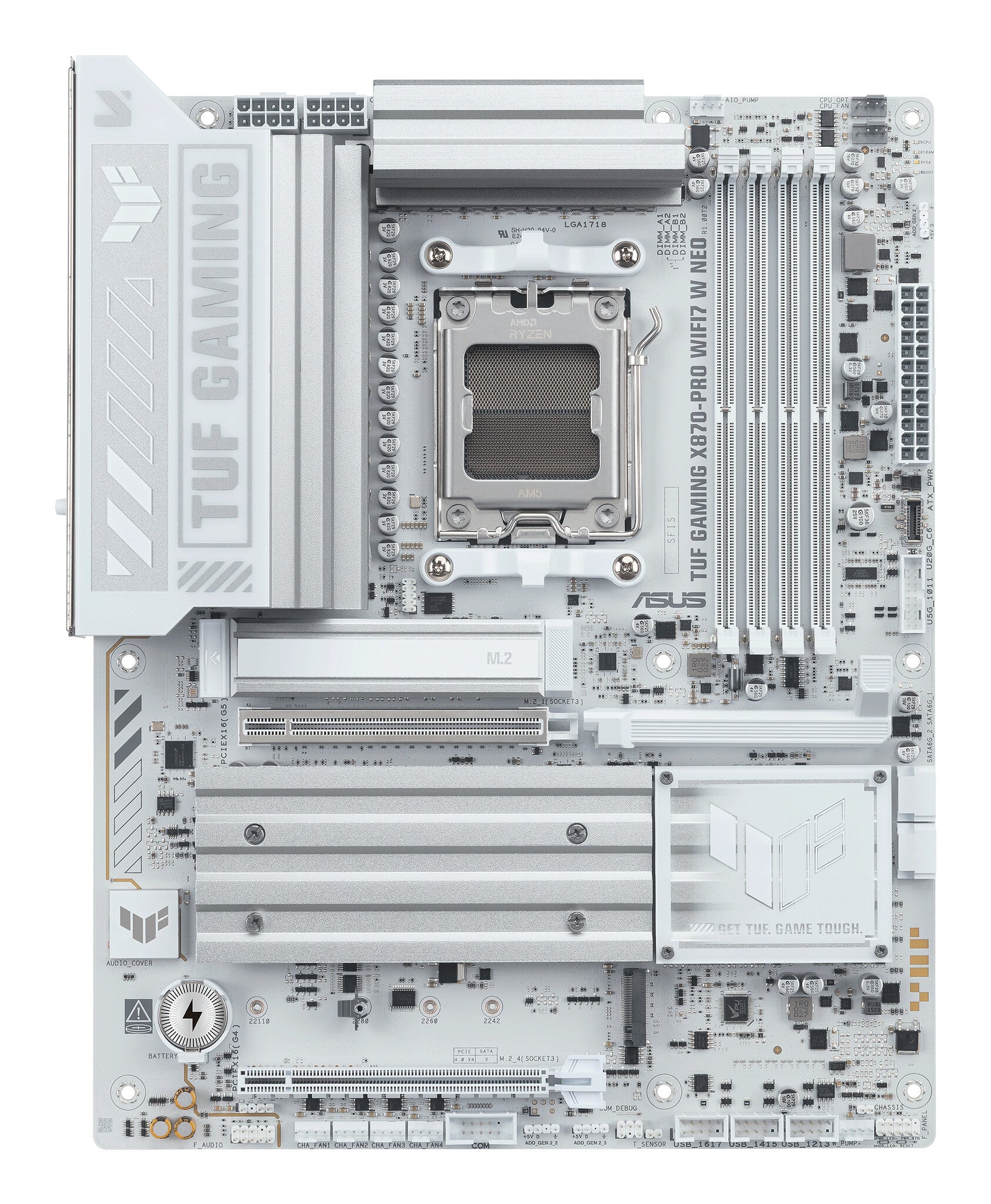

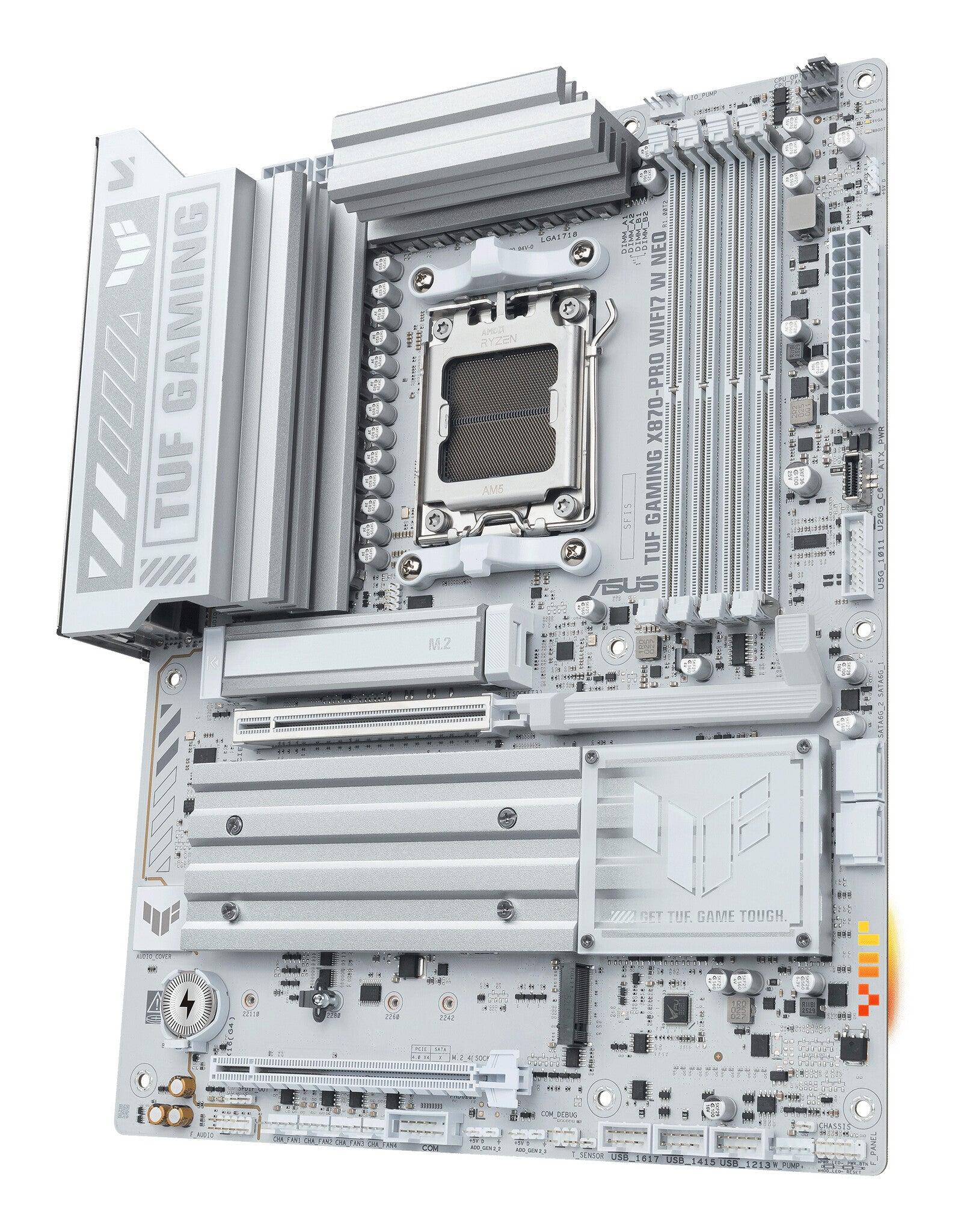

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD X870 Socket AM5 ATX

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD X870 Socket AM5 ATX

£278.40 GBP
£278.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1NY0-M0EAY0

Low stock: 7 left

  • AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
  • PC ATX AMD X870 Realtek ALC1220P 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 512 Mbit Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
AMD X870, 4 x DIMM slots, max. 256GB, DDR5, Realtek 5Gb Ethernet, 64MB (512Mb) Flash ROM, UEFI AMI BIOS, ATX

TUF GAMING X870-PRO WIFI7 W NEO
ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speed (max) 9600 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 6
Number of HDDs supported 2
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 2
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 4
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
Number of water pump connectors 1
12V power connector Yes
Number of COM connectors 1

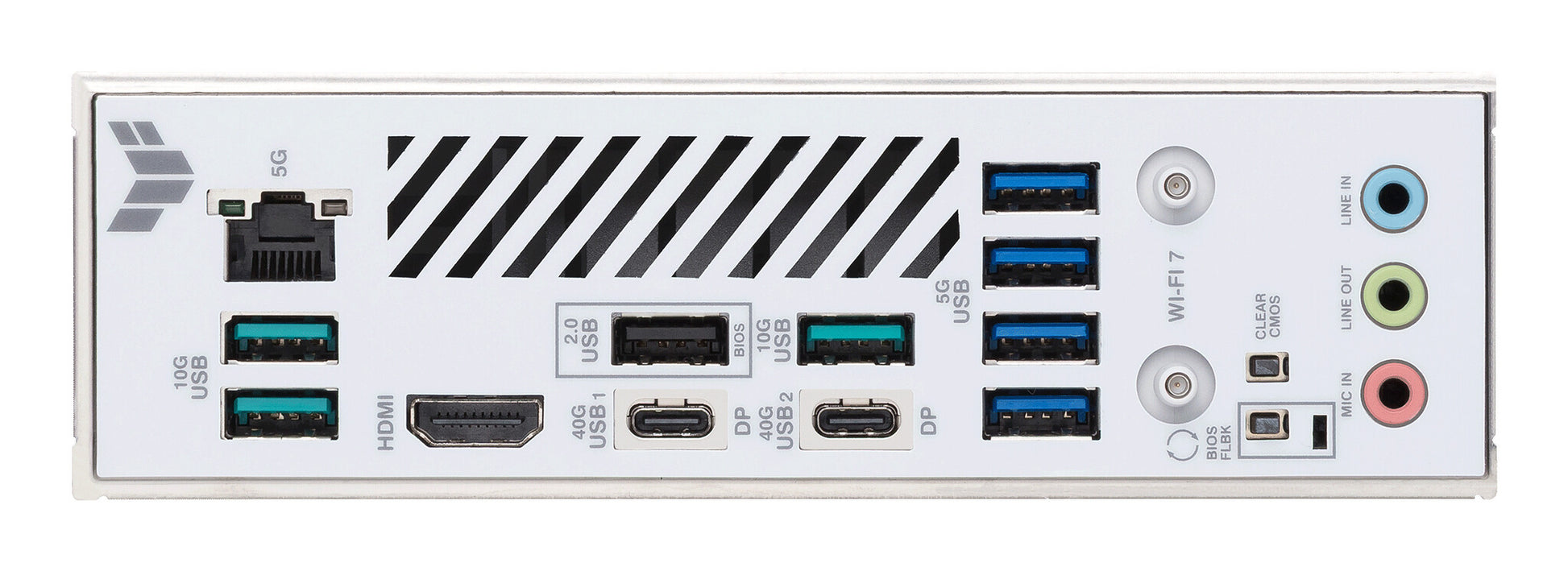

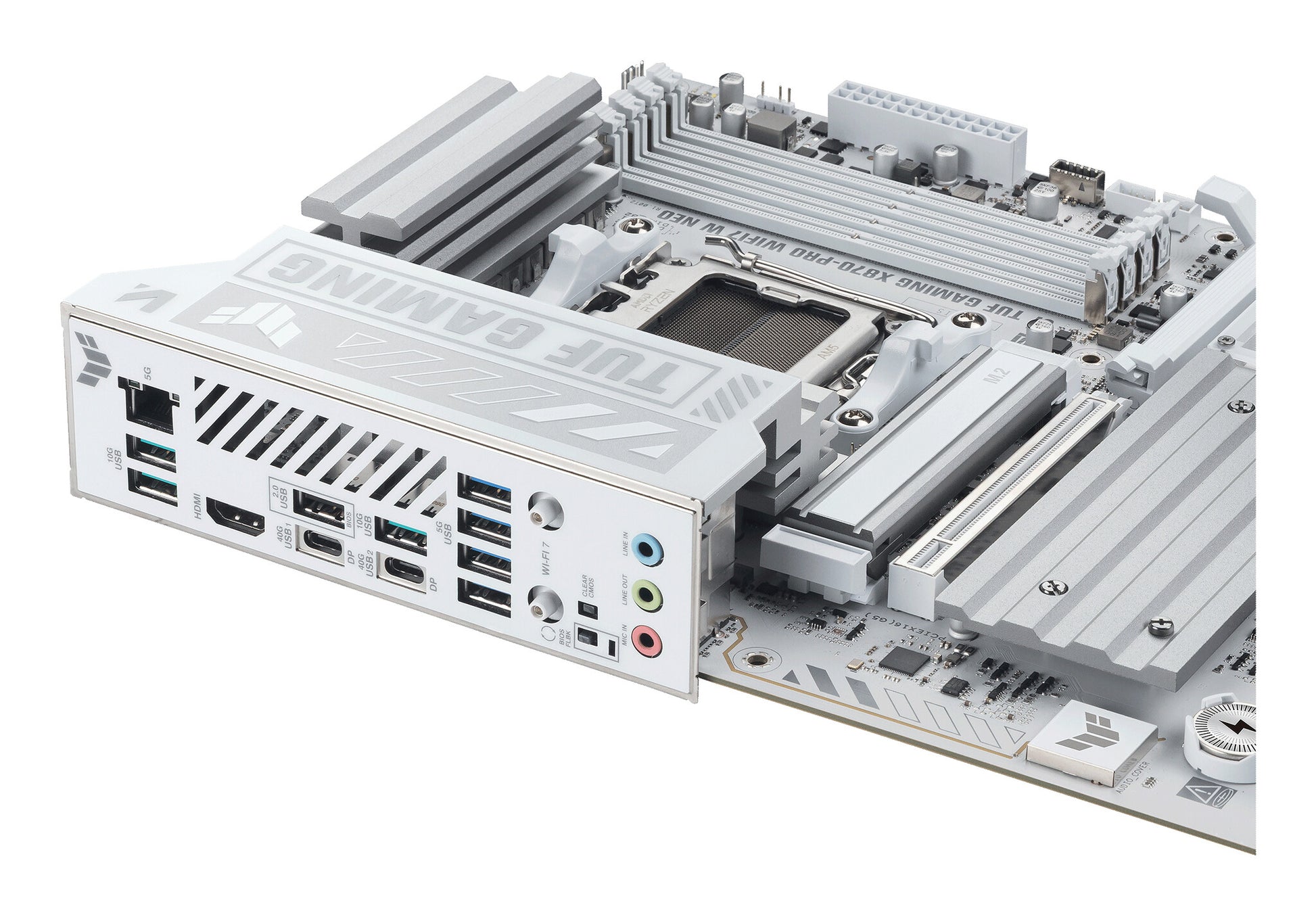

Rear panel I/O ports
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB4 Gen 3x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
WLAN controller model Realtek RTL8922AE
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870
Audio chip Realtek ALC1220P
Audio output channels 7.1 channels
Product colour White
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
1st M.2 largest key size 2280
BIOS
BIOS type UEFI AMI
BIOS memory size 512 Mbit
Clear CMOS button Yes
Packaging data
Package width 353 mm
Package depth 273 mm
Package height 68 mm
Package weight 2.14 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 50 mm
Other features
Weight 1.56 kg
