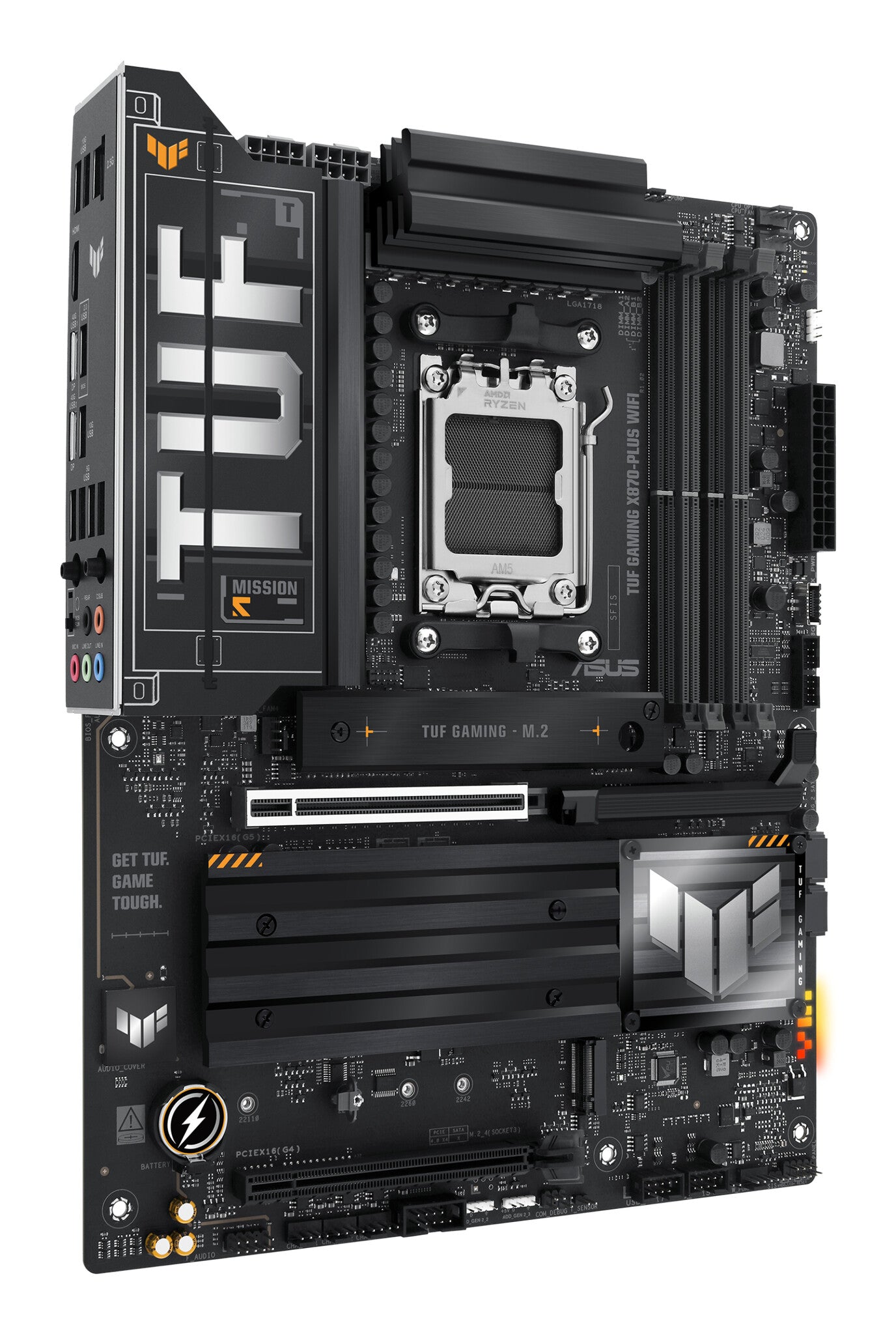

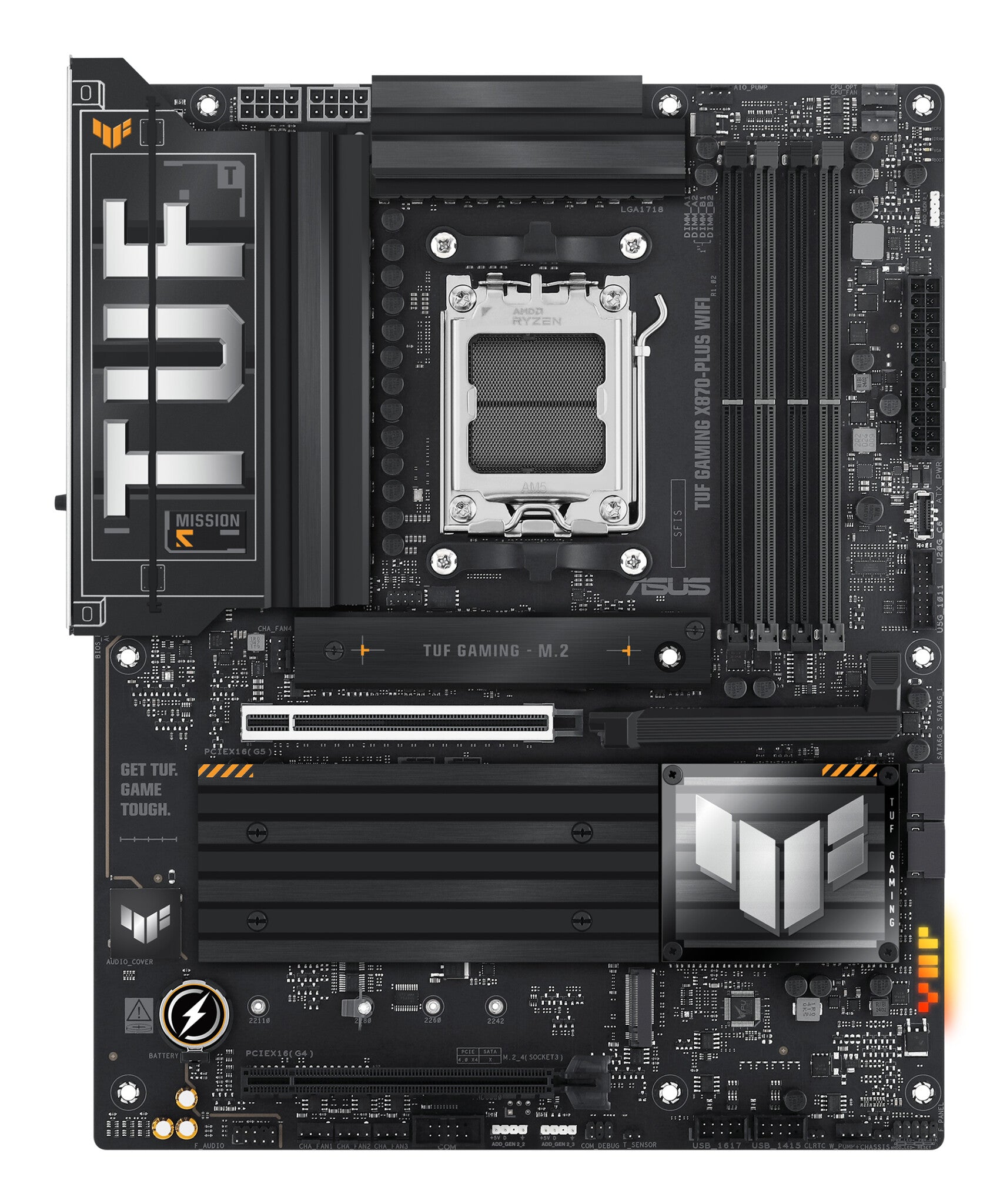

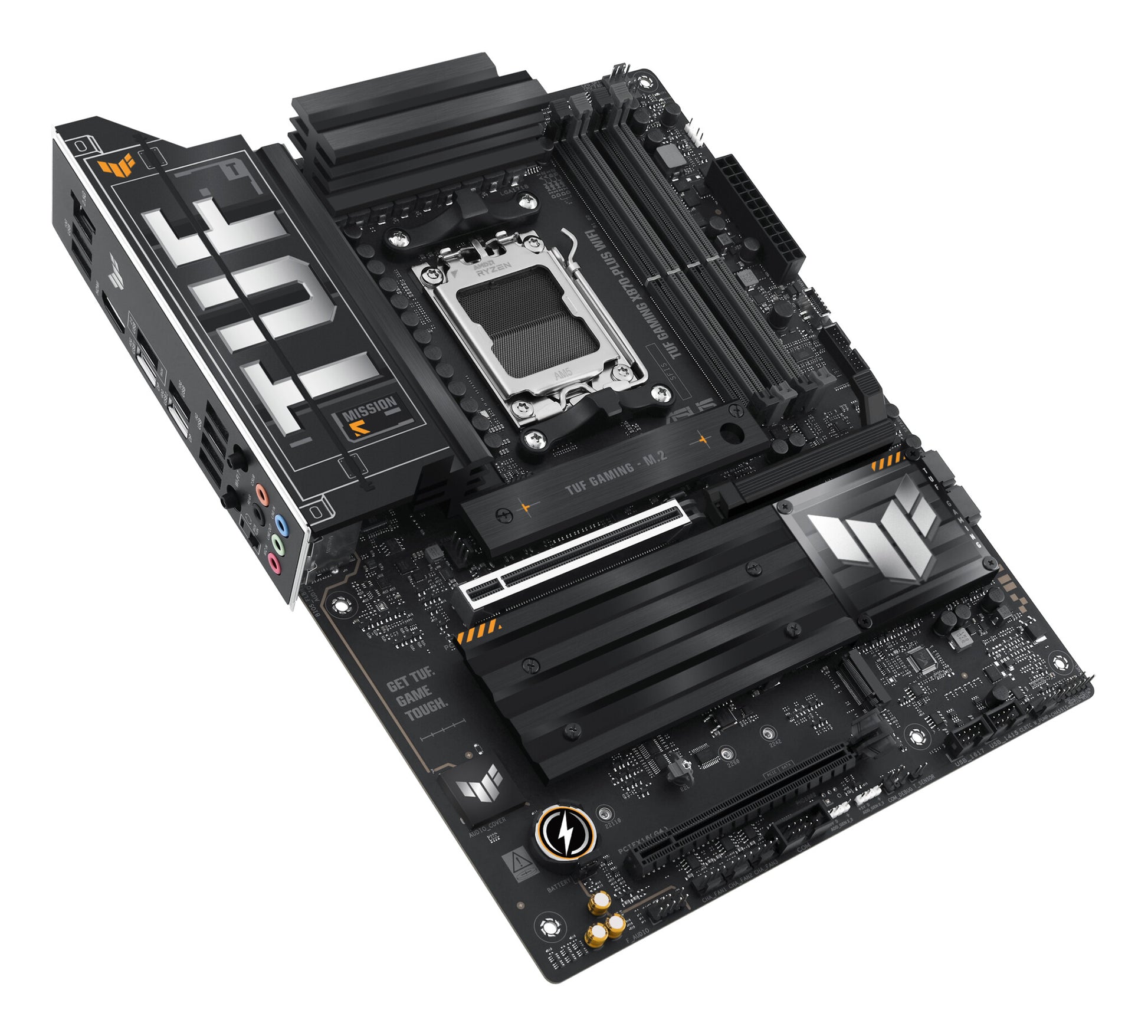

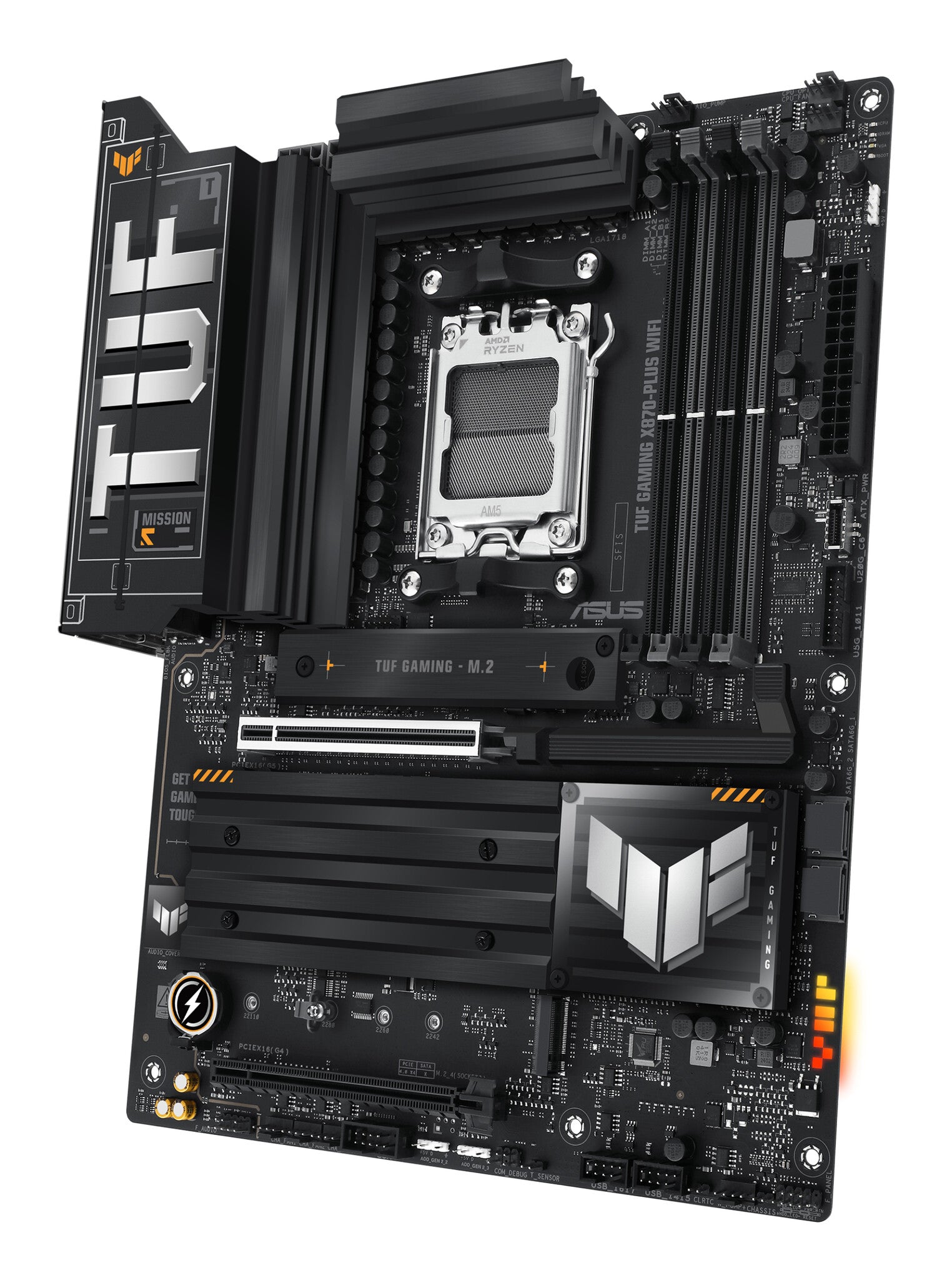

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

Name: ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX
Brand: ASUS
SKU: 90MB1IU0-M0EAY0
Price: 361.2 GBP
Availability: InStock

£361.20 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

SKU:90MB1IU0-M0EAY0

84 in stock

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD X870 Realtek ALC1220P 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit

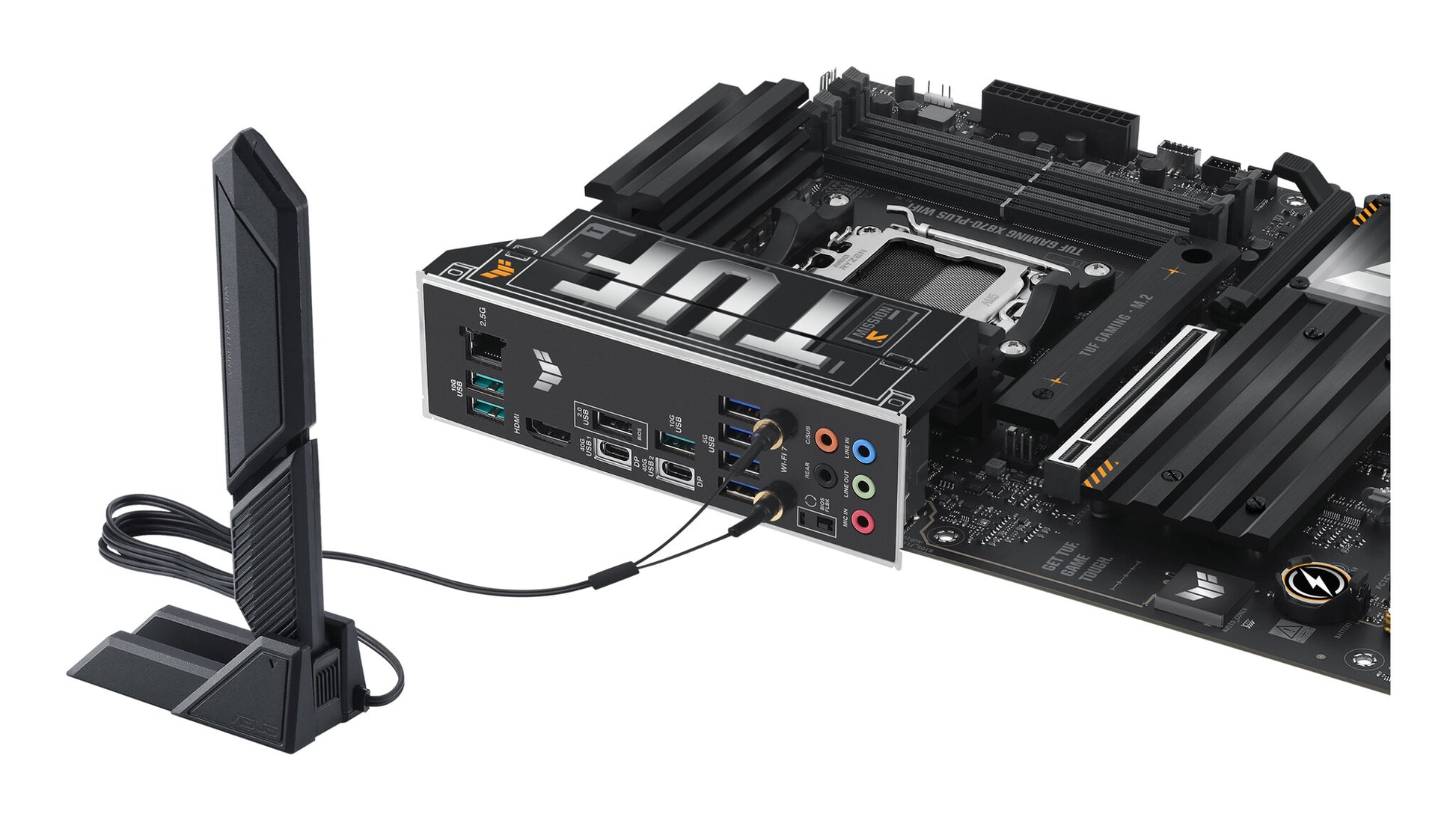

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

AMD AM5, AMD X870, 4 x DIMM slots, max. 192GB, DDR5, 1 x Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), 256 Mb Flash ROM, UEFI AMI BIOS, ATX

TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Processor manufacturer	AMD

Memory
Unbuffered memory	Yes
Maximum internal memory	192 GB
Supported memory clock speed (max)	8000 MHz
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM

Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of HDDs supported	2
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD

Graphics
On-board graphics card	No
Parallel processing technology support	Not supported

Internal I/O
Number of COM connectors	1
12V power connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	4
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
Number of SATA III connectors	2
USB 3.2 Gen 2x2 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2

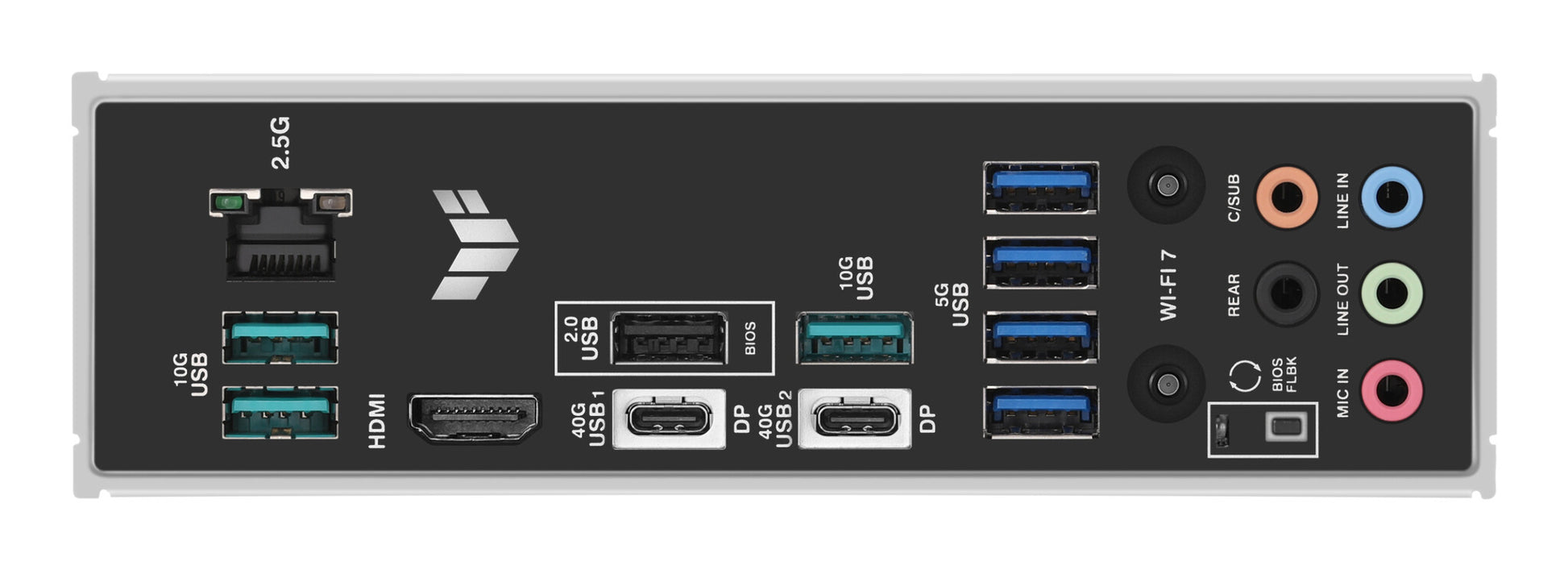

Rear panel I/O ports
USB connector type	USB Type-A, USB Type-C
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB4 Gen 3x2 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	1

Network
Bluetooth version	5.4
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 11
Product colour	Black
Audio output channels	7.1 channels
Audio chip	Realtek ALC1220P
Motherboard chipset	AMD X870
Motherboard chipset family	AMD
Motherboard form factor	ATX
Component for	PC
