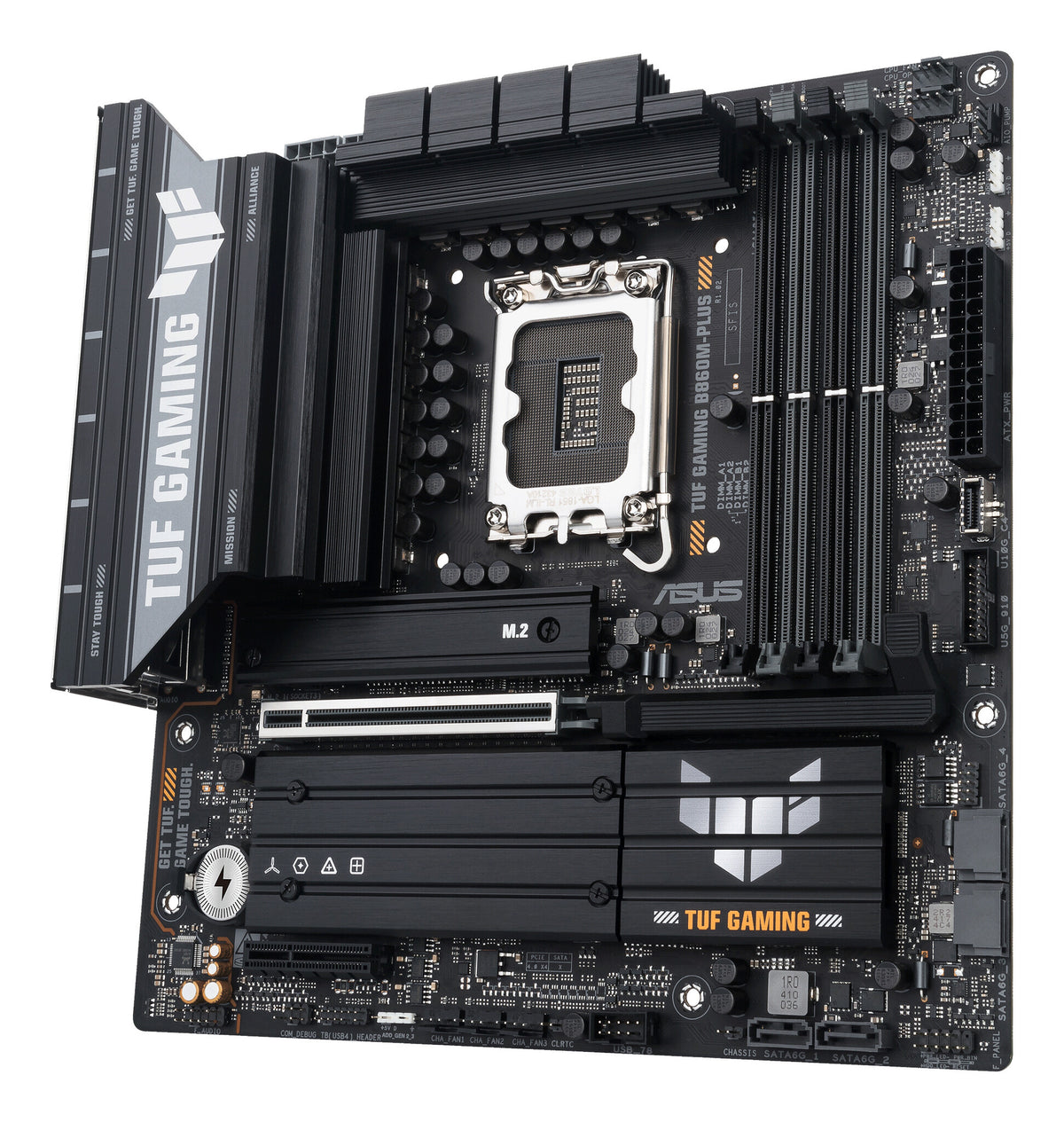

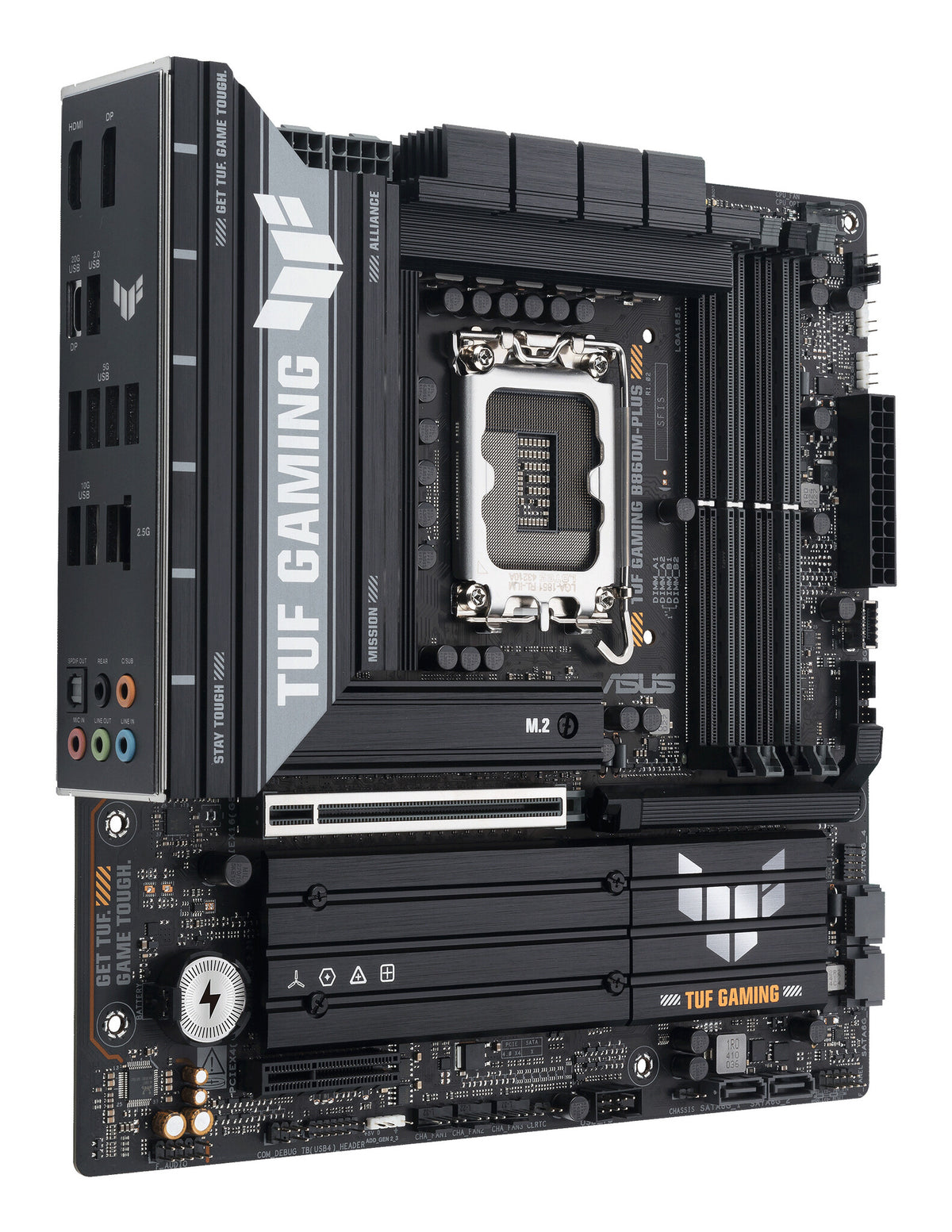

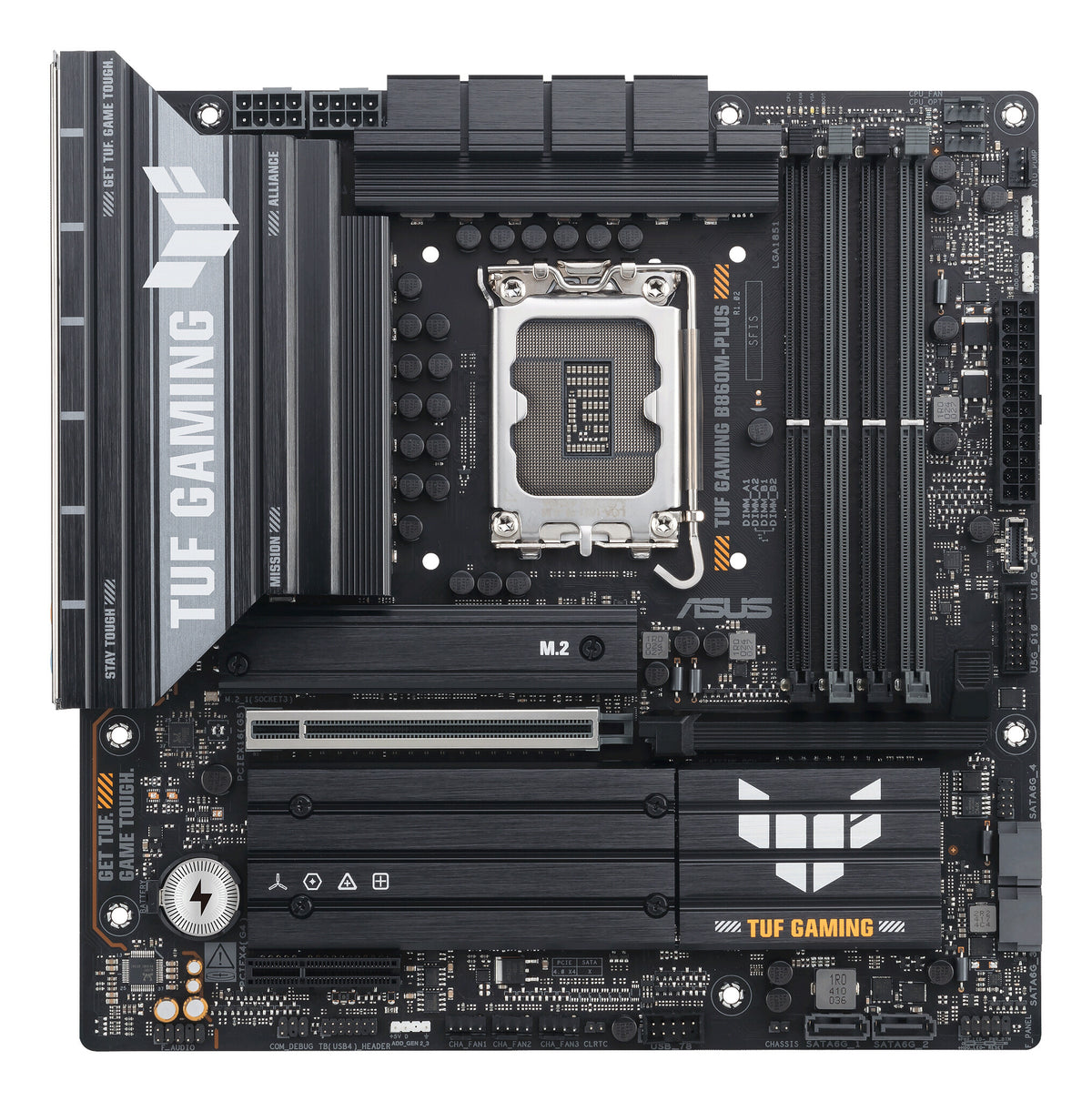

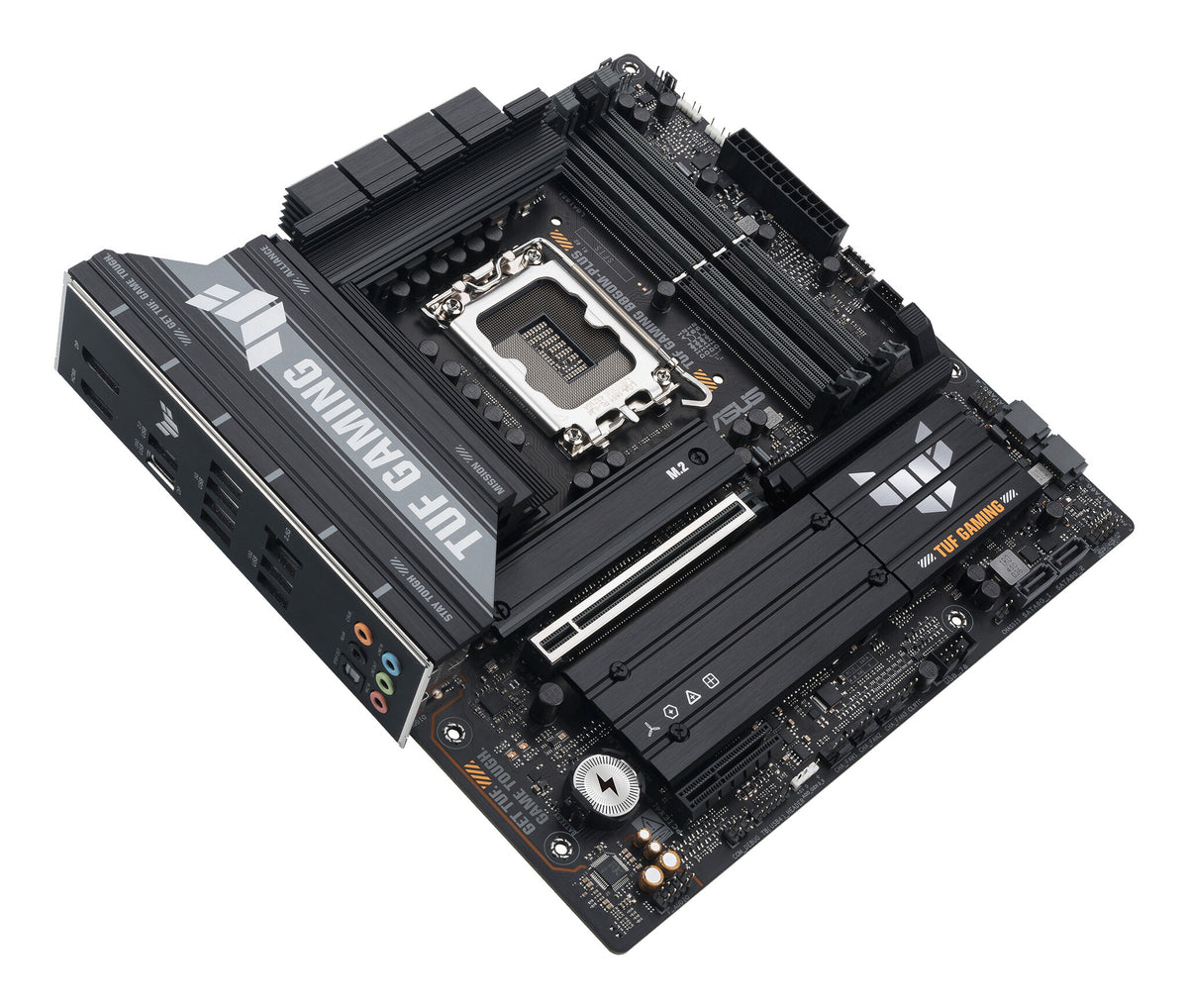

ASUS TUF GAMING B860M-PLUS Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS TUF GAMING B860M-PLUS Intel B860 LGA 1851 (Socket V1) micro ATX

£212.93 GBP
£212.93 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1JW0-M0EAY0

Low stock: 10 left

  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet
Intel B860 Chipset, 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

TUF GAMING
B860M-PLUS
ASUS TUF GAMING B860M-PLUS takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 7
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 3
Chassis intrusion connector Yes
Thunderbolt headers 1
12V power connector Yes

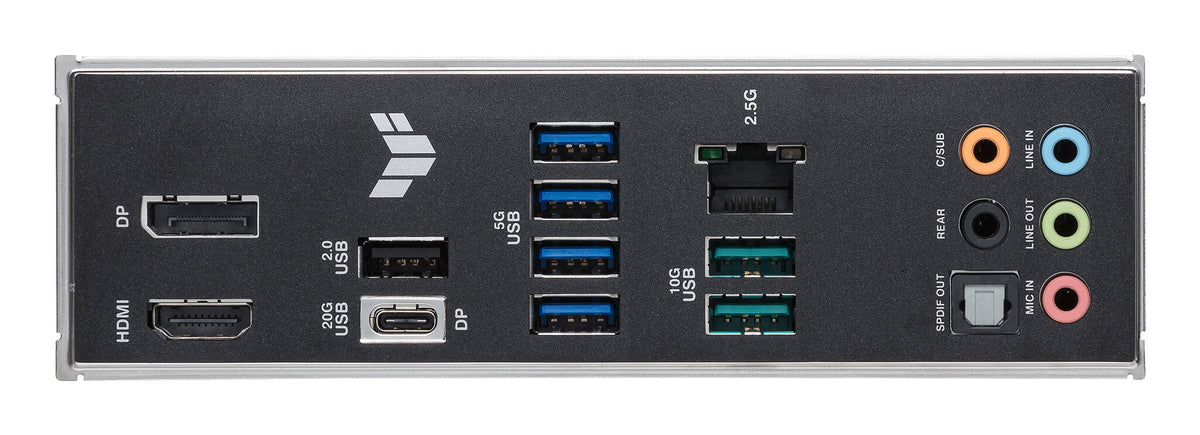

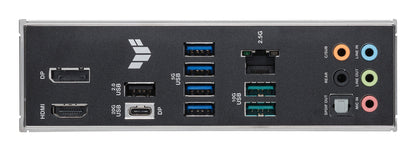

Rear panel I/O ports
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
S/PDIF out port Yes
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi No
Top Wi-Fi standard Not available
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B860
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64, Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
3rd M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 275 mm
Package depth 275 mm
Package height 67.5 mm
Package weight 1.65 kg
Weight & dimensions
Width 244 mm
Depth 244 mm
Packaging content
Screws included Yes
Cables included SATA
