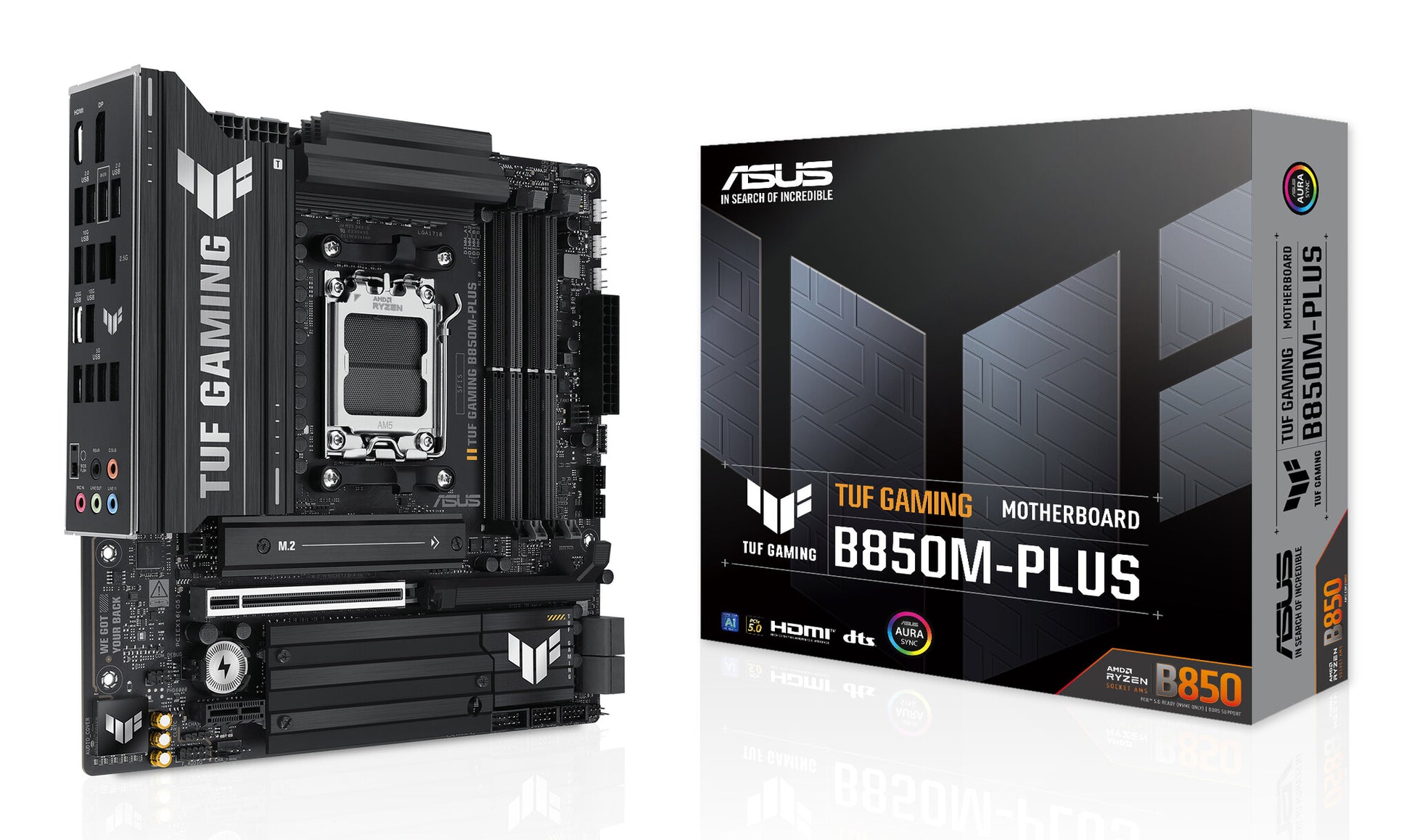

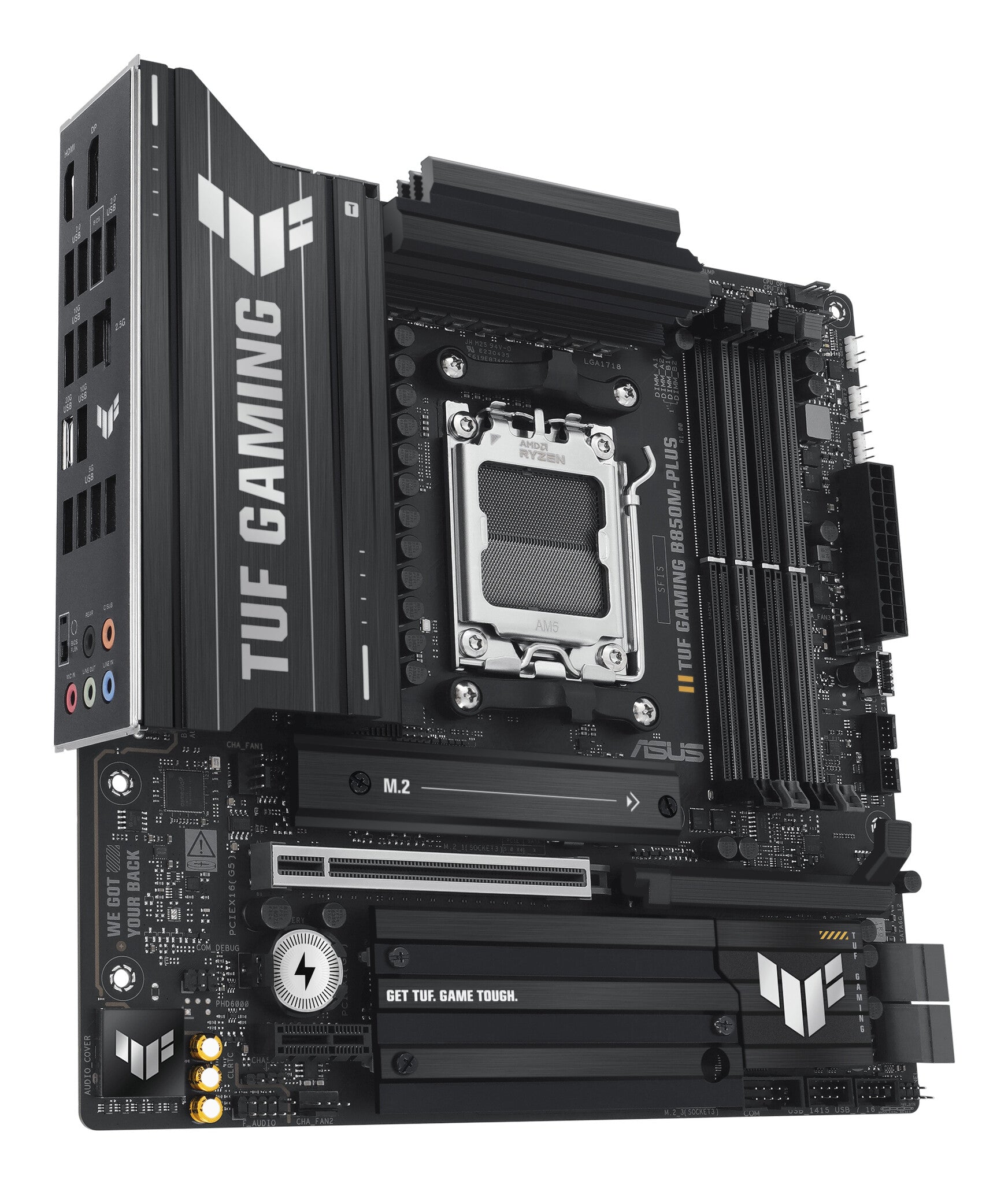

ASUS TUF GAMING B850M-PLUS AMD B850 Socket AM5 micro ATX

ASUS TUF GAMING B850M-PLUS AMD B850 Socket AM5 micro ATX

£203.52 GBP
£203.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1IX0-M0EAY0

Low stock: 3 left

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC micro ATX AMD B850 Realtek ALC1220P 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet
AMD B850 Chipset, 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM

TUF GAMING
B850M-PLUS
ASUS TUF GAMING B850M-PLUS takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Processor
Supported processor sockets Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Unbuffered memory Yes
Maximum internal memory 192 GB
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 4
Number of storage drives supported 7
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
Parallel processing technology support Not supported
Internal I/O
Number of COM connectors 1
12V power connector Yes
Chassis intrusion connector Yes
Number of chassis fan connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
S/PDIF out connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2

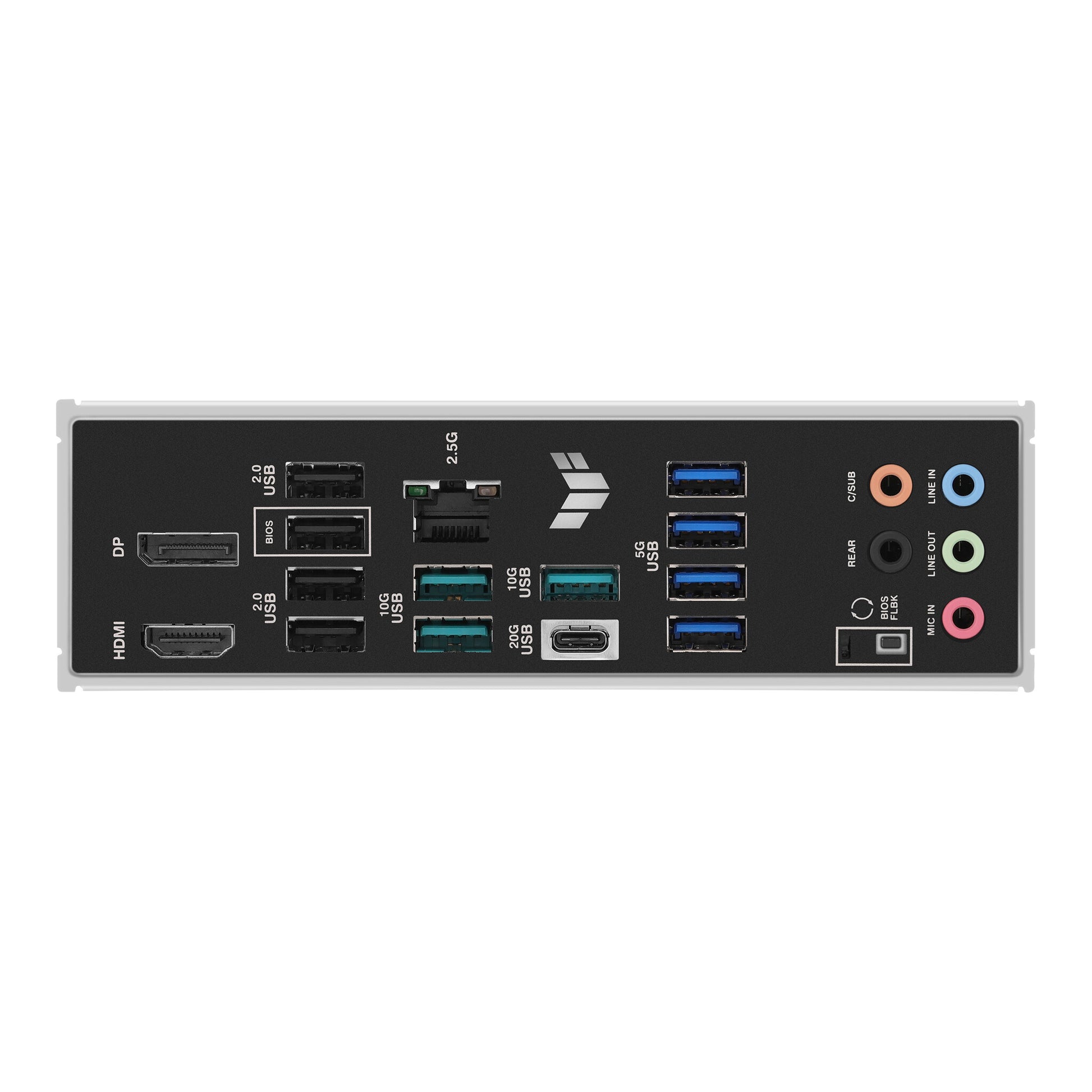

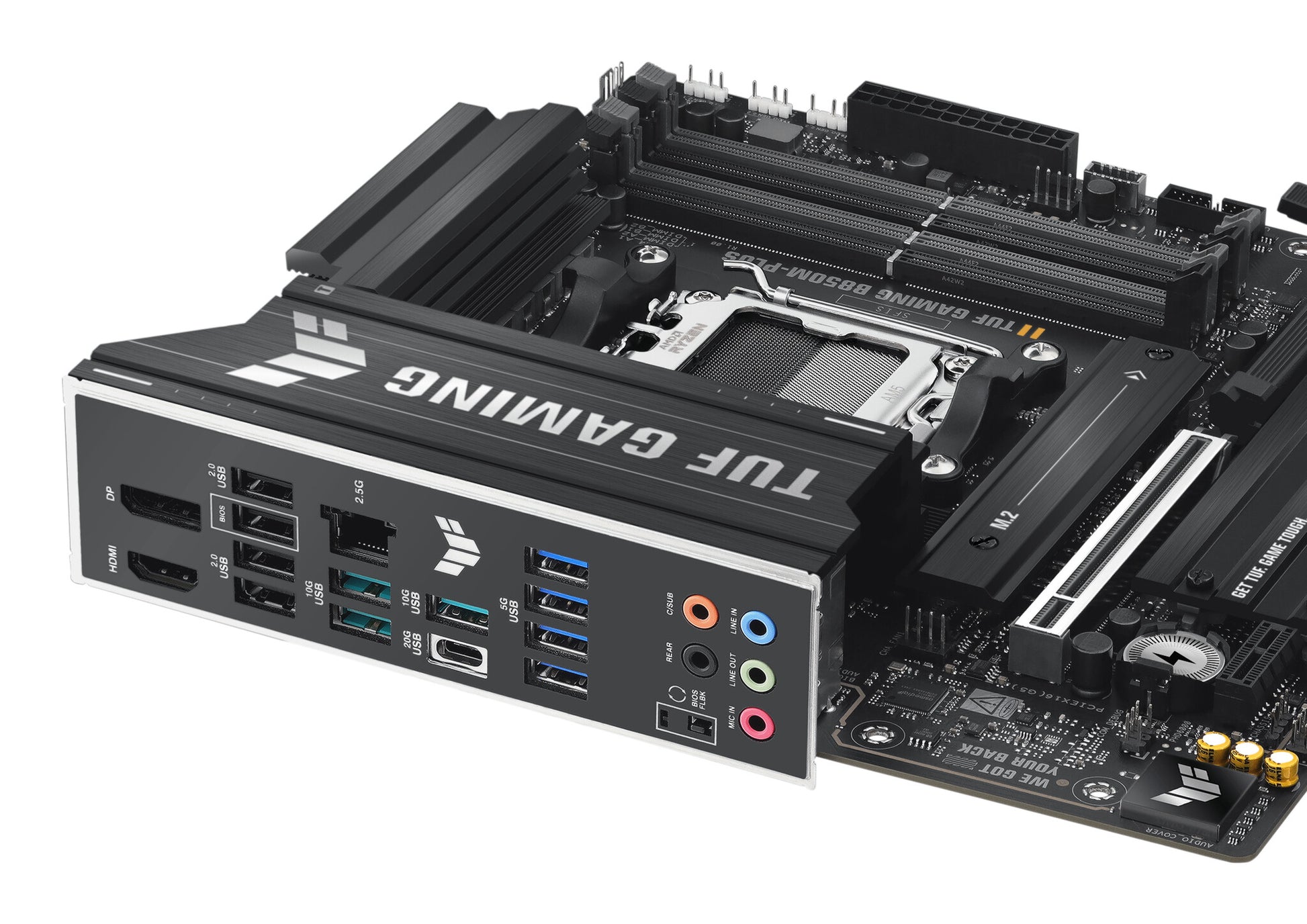

Rear panel I/O ports
WiFi-AP antenna jack 1
DisplayPorts quantity 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 4
Network
Wi-Fi No
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11
Audio output channels 7.1 channels
Audio chip Realtek ALC1220P
Motherboard chipset AMD B850
Motherboard chipset family AMD
Motherboard form factor micro ATX
Component for PC
Expansion slots
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
Number of M.2 (M) slots 3
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 4.x) slots 1
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Packaging data
Package weight 1.65 kg
Package height 67.5 mm
Package depth 275 mm
Package width 275 mm
Weight & dimensions
Depth 244 mm
Width 244 mm

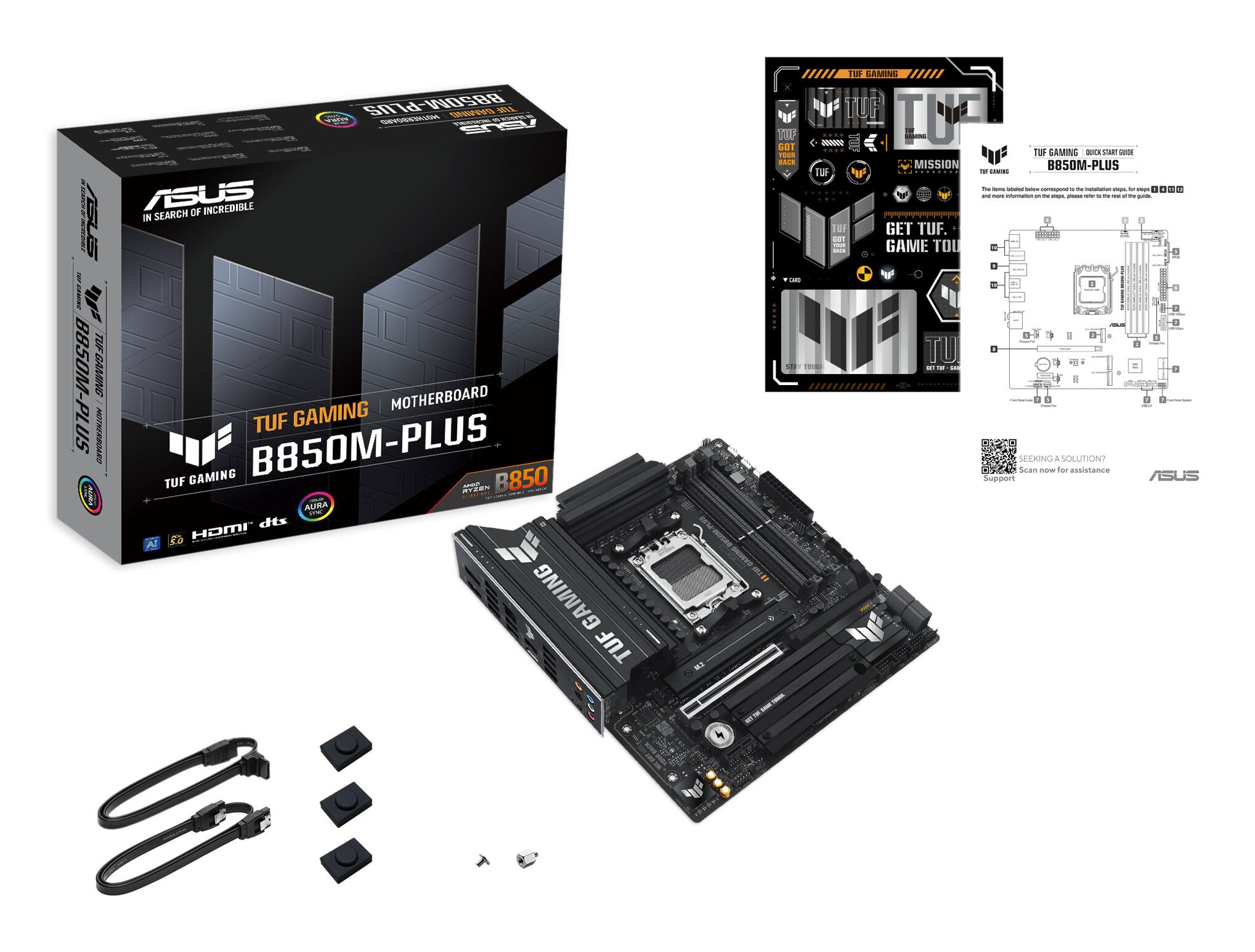

Packaging content
Cables included SATA
Screws included Yes
Other features
Weight 1.19 kg
