SKU: 90MB1PI0-M0EAY0
Low stock: 5 left
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC mini ITX AMD B850 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 4
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth

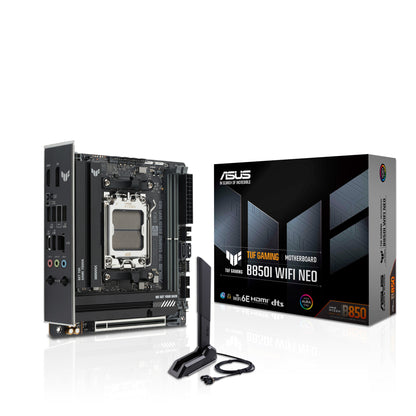

TUF GAMING B850I WIFI NEO AMD B850 Mini-ITX motherboard (8+2+1 80-A DrMOS power stages, DDR5, PCIe 5.0 capable, two M.2 slots, Wi-Fi 6E, Realtek 2.5 Gb Ethernet, HDMI, DisplayPort, up to 20 Gbps Type-C rear & USB 10 Gbps Type-C front, Clear CMOS button, BIOS FlashBack, 32 MB BIOS, Aura Sync)
ASUS TUF GAMING B850I WIFI NEO brings TUF GAMING performance to the Mini-ITX form factor for the first time. Designed for the latest AMD Ryzen™ processors, it features a premium 10-layer server-grade circuit board with 2-ounce low-loss copper power planes for enhanced signal integrity and stable power delivery. Built with military-grade components, durable architectures, and a balanced power solution, this compact motherboard delivers the rock-solid reliability, speed and connectivity that gaming and advanced AI PC applications demand.
Processor
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speed (max)
9600 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported
4
Number of HDDs supported
2
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
Maximum resolution
7680 x 4320 pixels
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
2
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
Number of water pump connectors
1
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
2
Rear panel I/O ports
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Line-in
Yes
Headphone outputs
1
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth
Yes
Features
Component for
PC
Motherboard form factor
mini ITX
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Audio output channels
7.1 channels
Product colour
Black
Power source type
ATX
Cooling type
Passive
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
BIOS flashback button
Yes
Packaging data
Package width
219 mm
Package depth
277 mm
Package height
107 mm
Package weight
1.32 kg
Weight & dimensions
Width
170 mm
Depth
170 mm
Height
44 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Cables included
SATA
Other features
Weight
720 g
Quick installation guide
Yes
