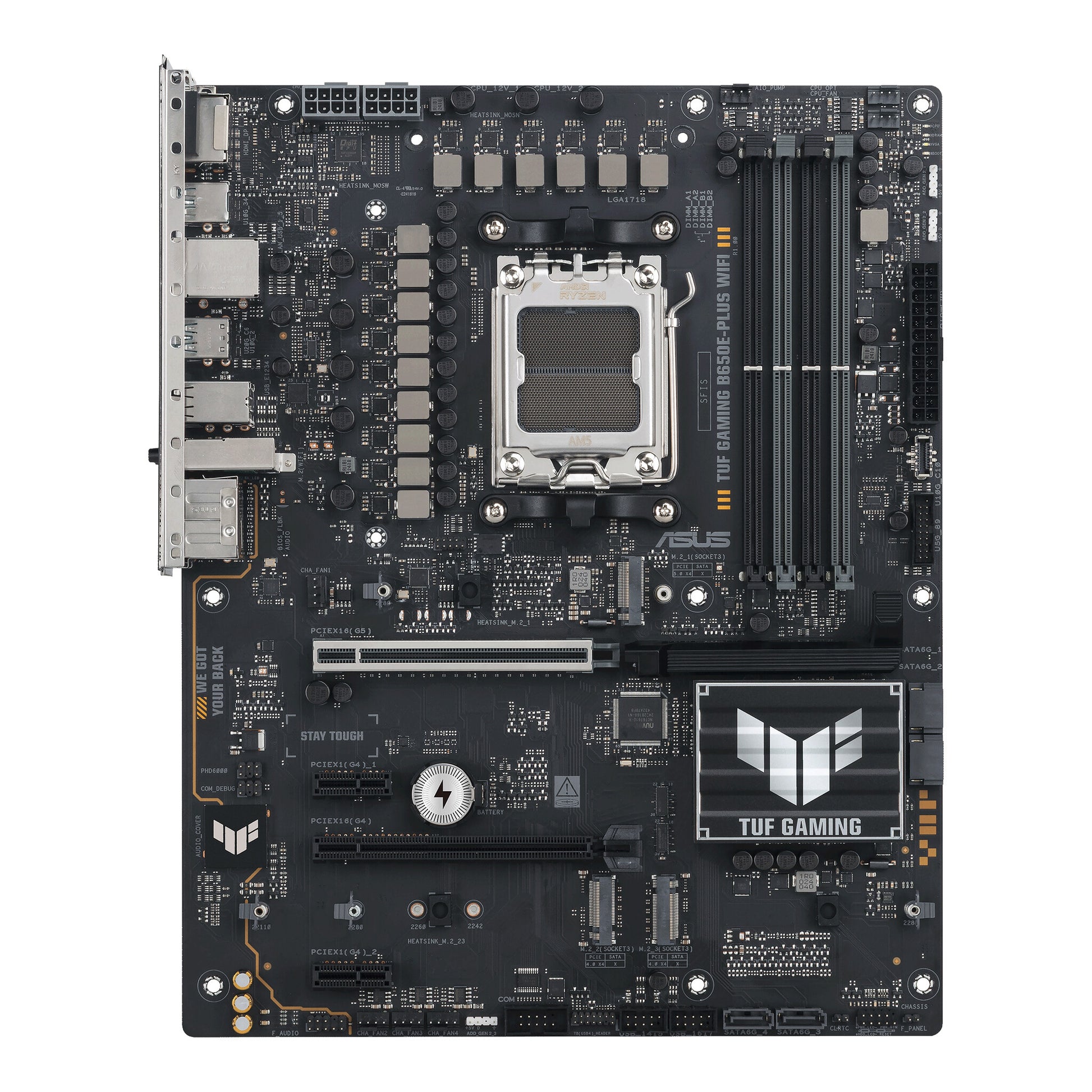

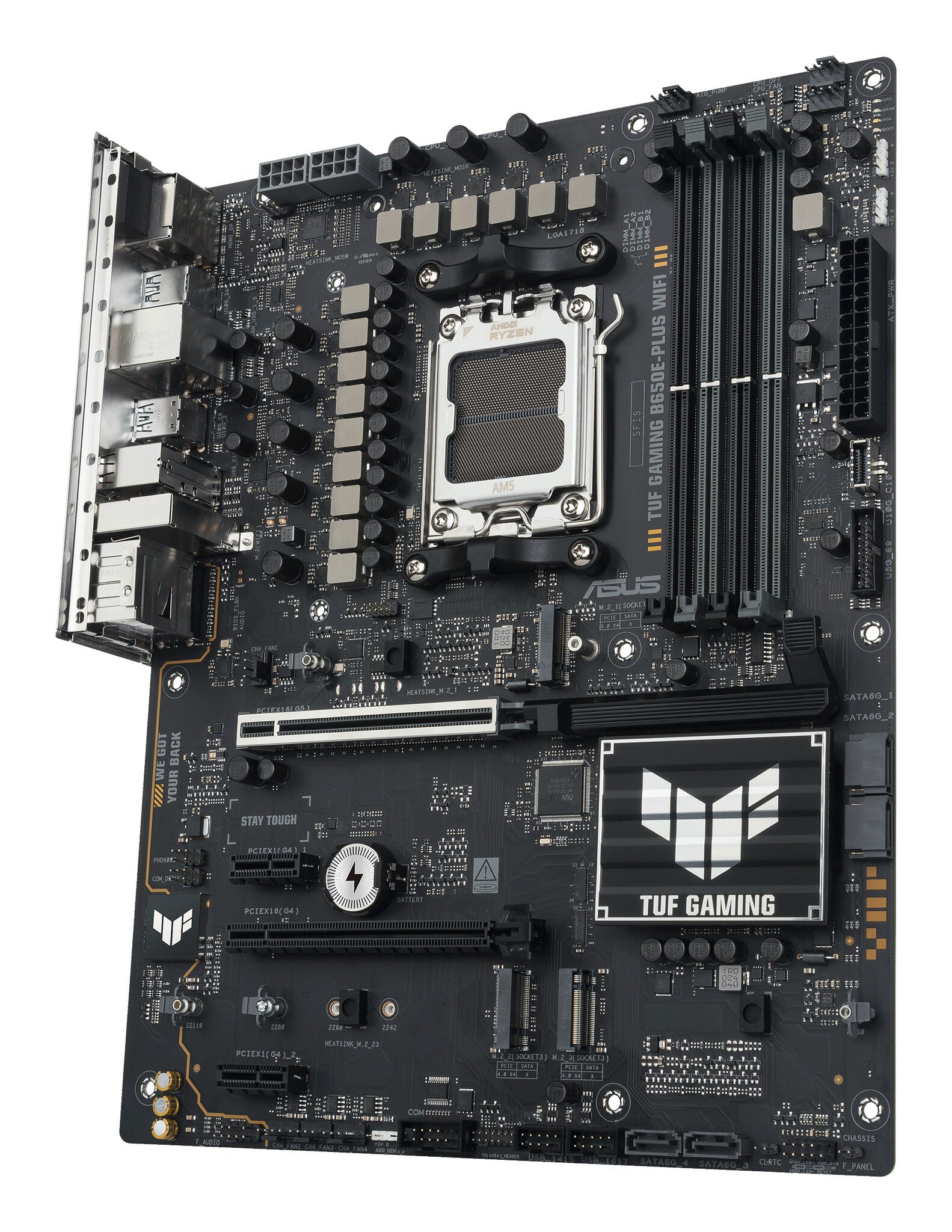

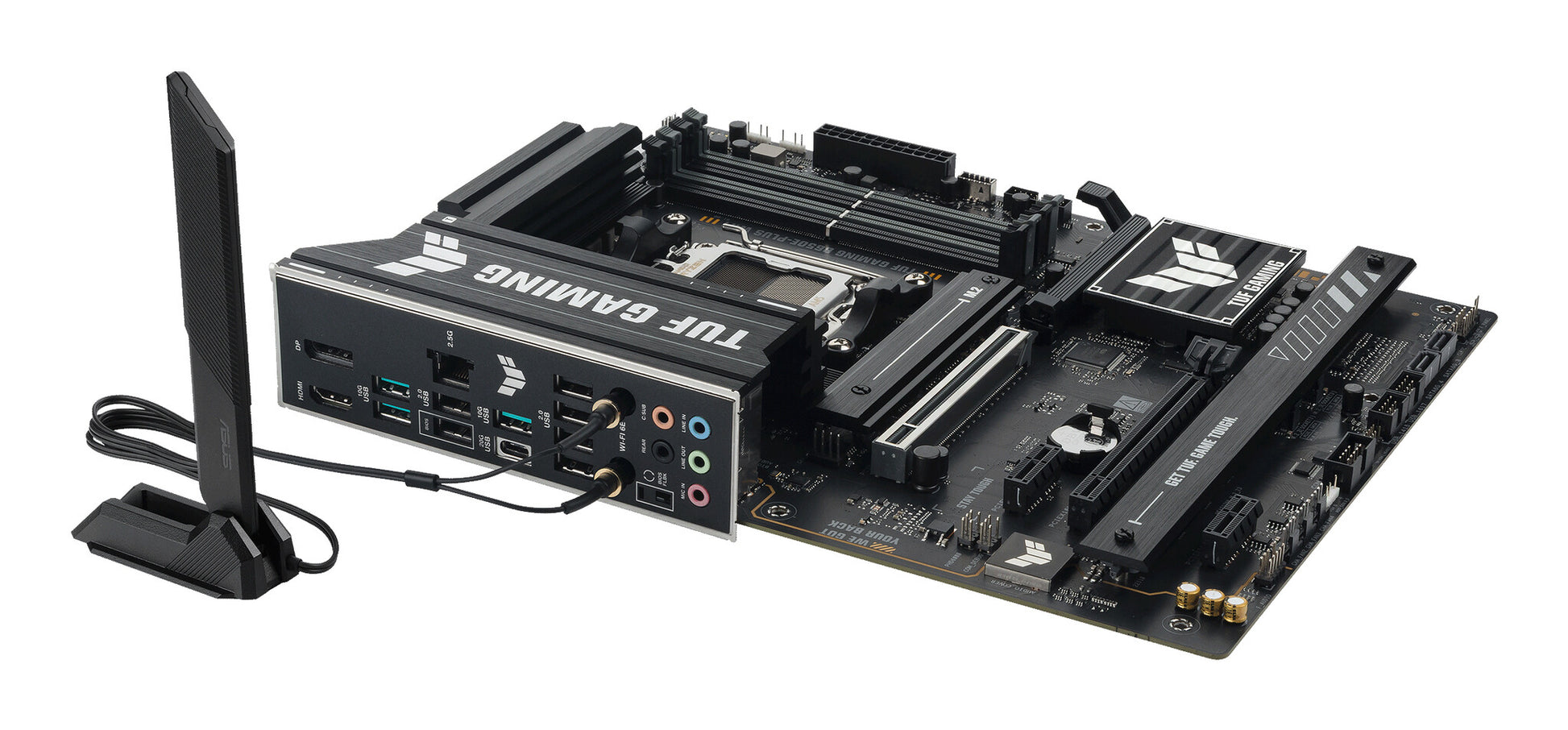

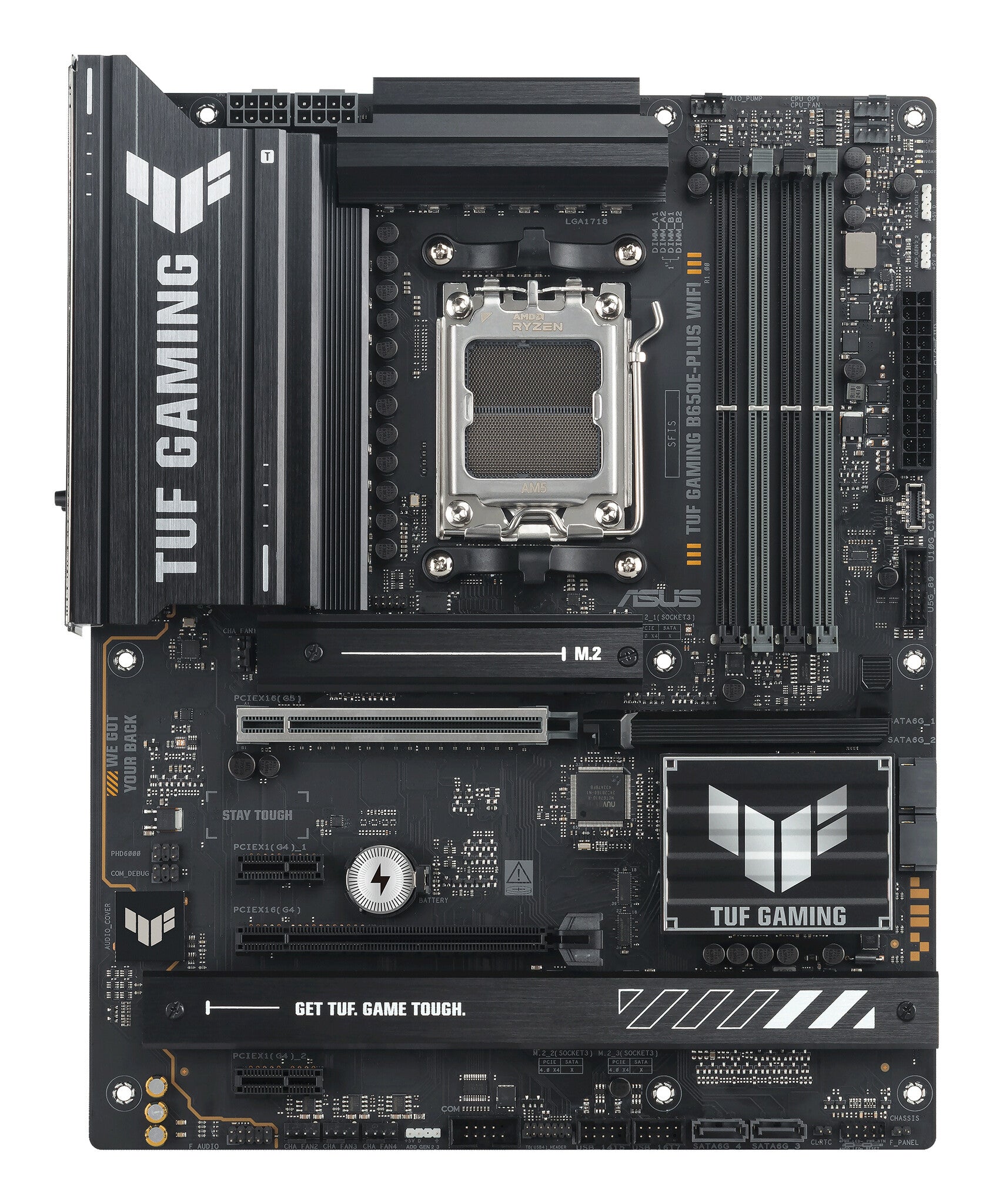

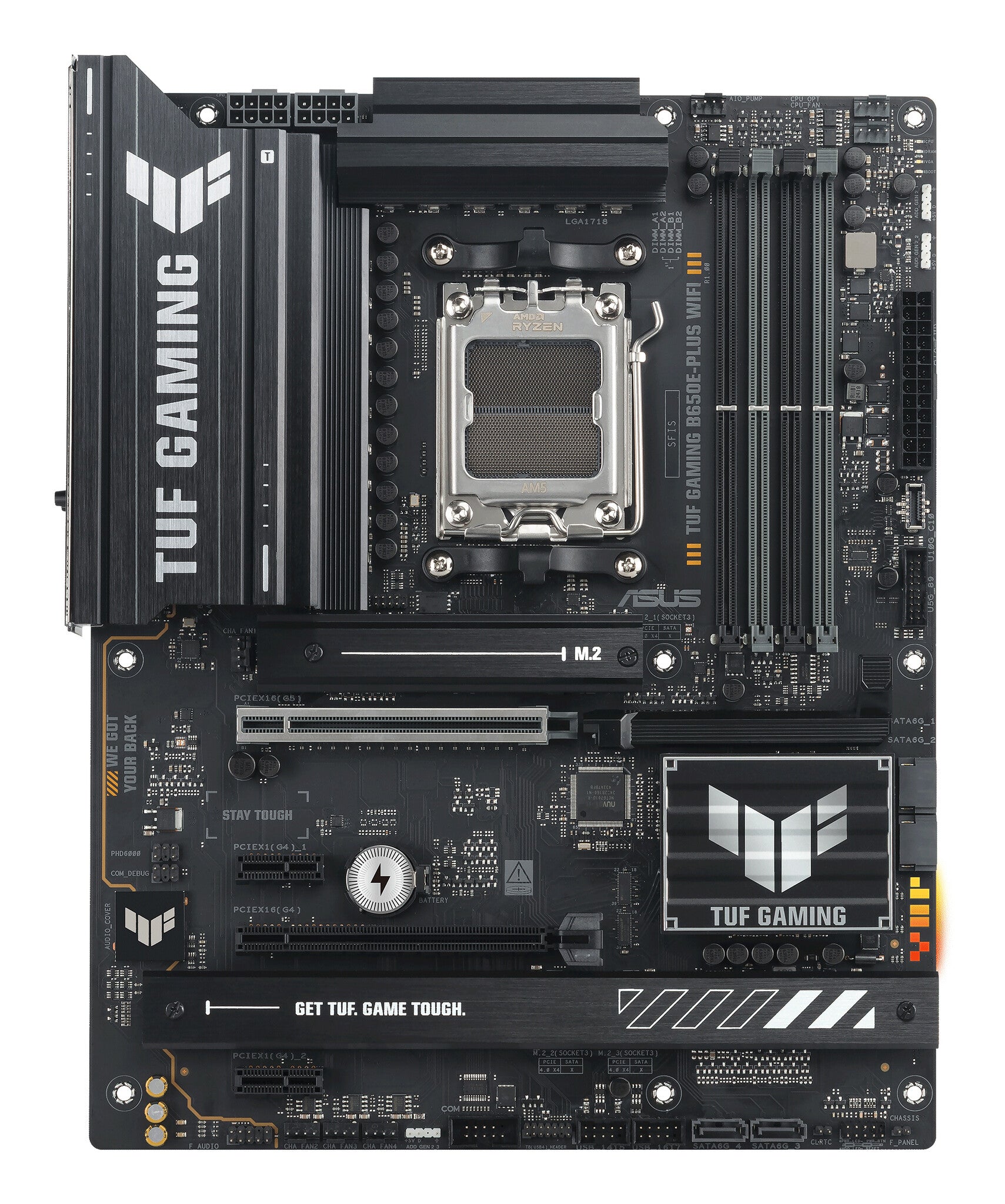

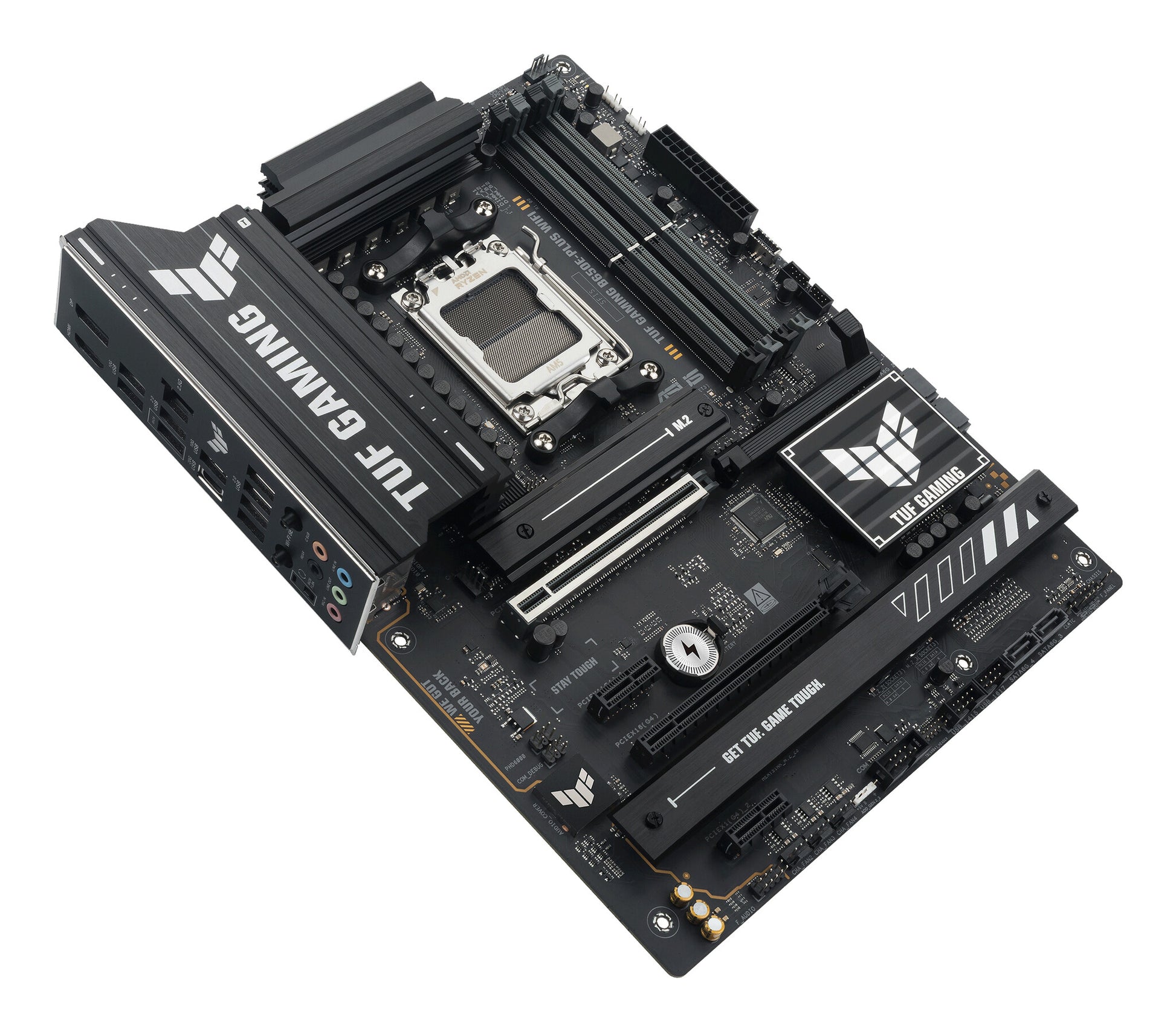

ASUS TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX

Name: ASUS TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX
Brand: ASUS
SKU: 90MB1M20-M0EAY0
Price: 147.71 GBP
Availability: InStock

£147.71 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

SKU:90MB1M20-M0EAY0

526 in stock

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD B650 Realtek ALC1220P 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3

TUF GAMING B650E-PLUS WIFI AMD AM5 (Ryzen 9000, ATX, PCIe 5.0, DDR5, WIFI 6E, PCIe Q-Release, BIOS Flashback, Aura Sync)

TUF GAMING B650E-PLUS WIFI

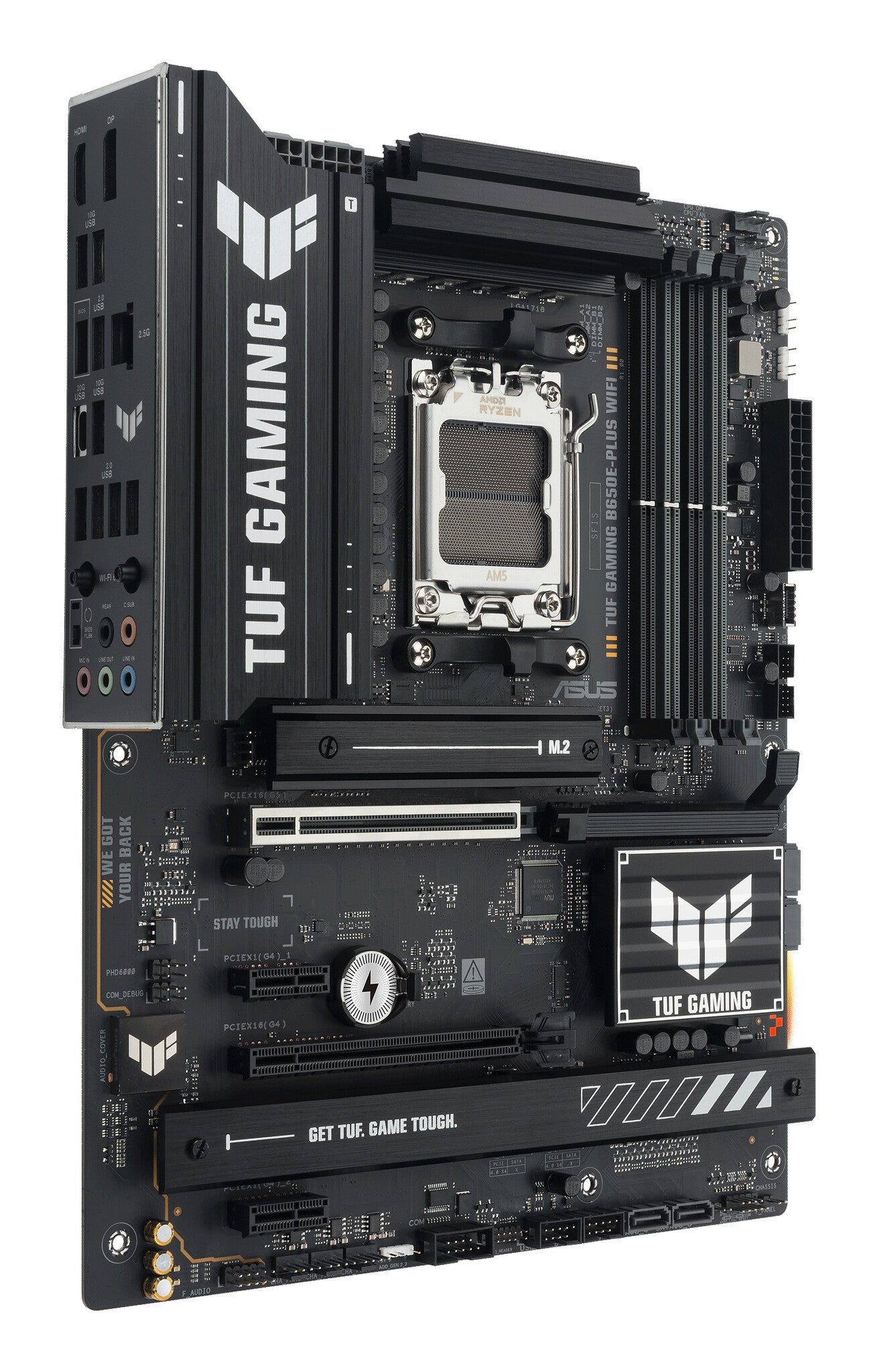

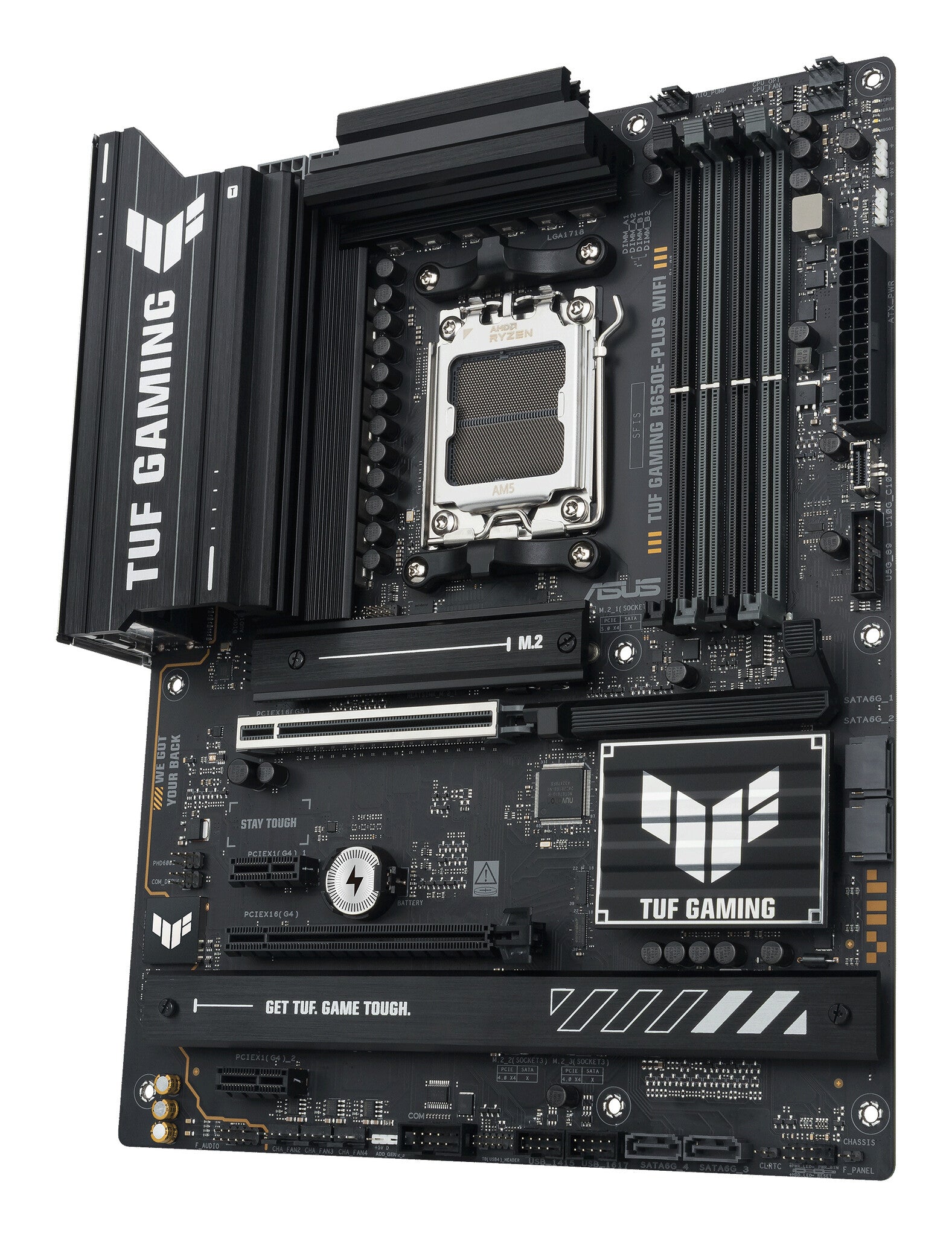

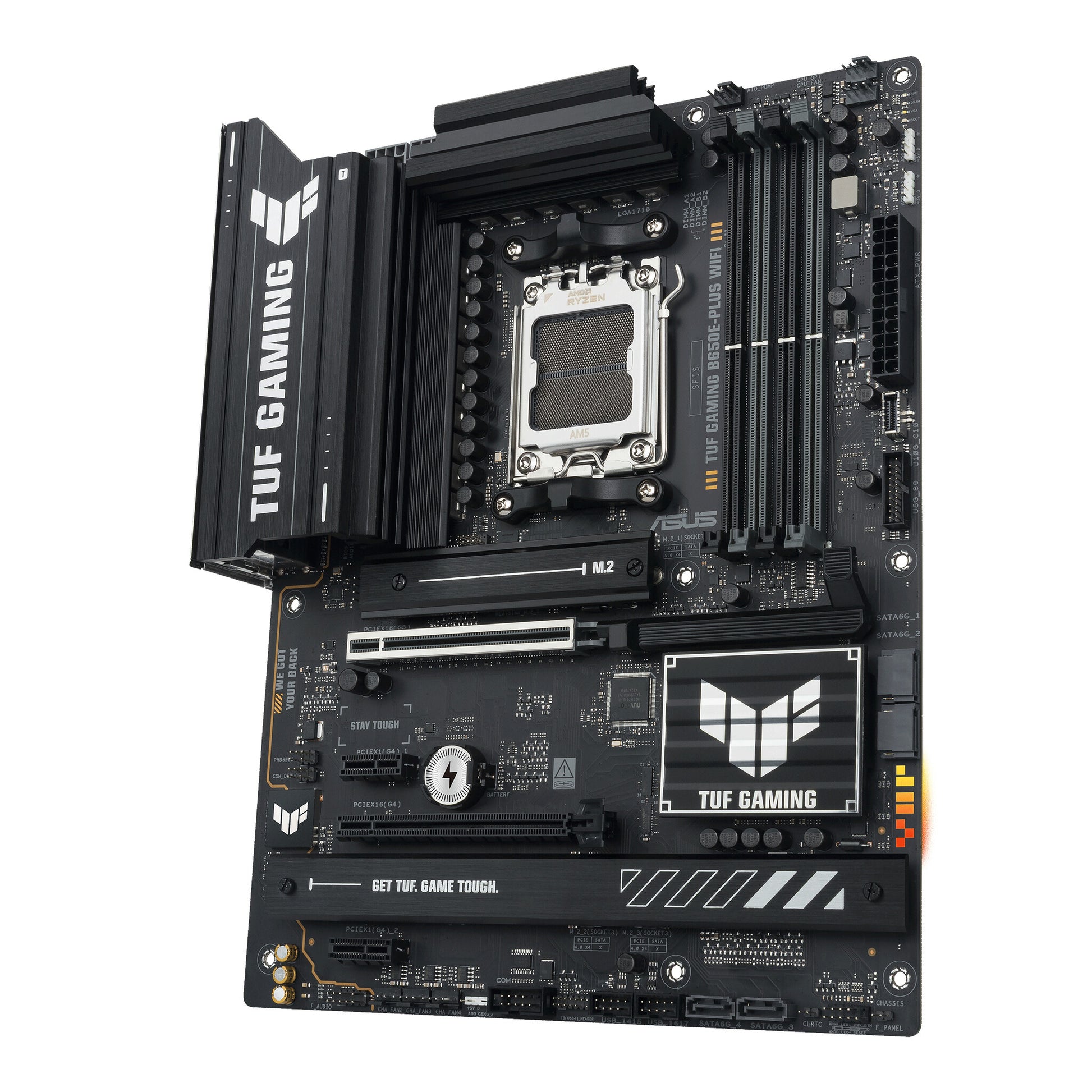

ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	7
Number of HDDs supported	4
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Thunderbolt headers	1
12V power connector	Yes
Number of COM connectors	1

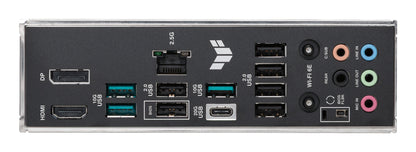

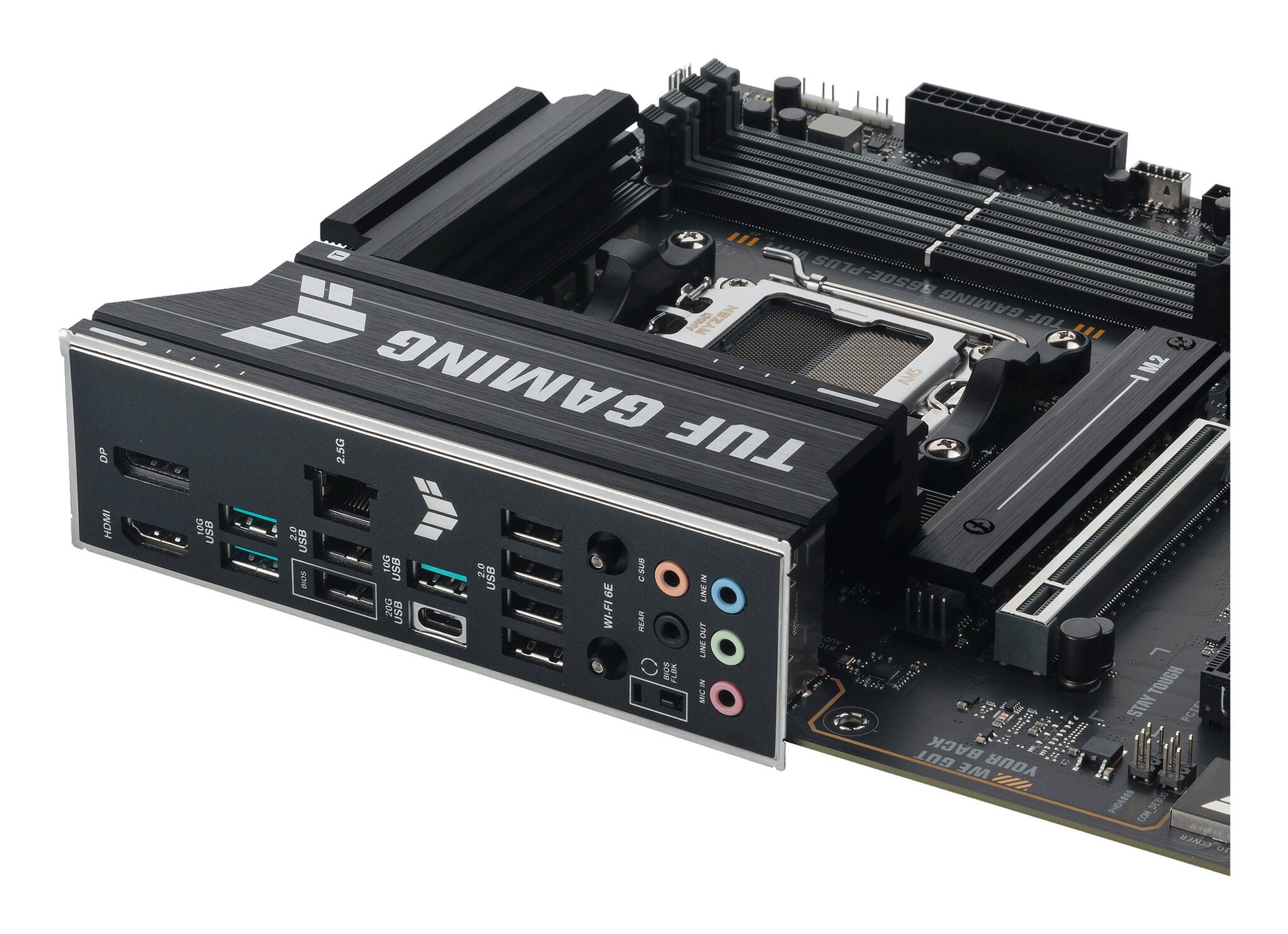

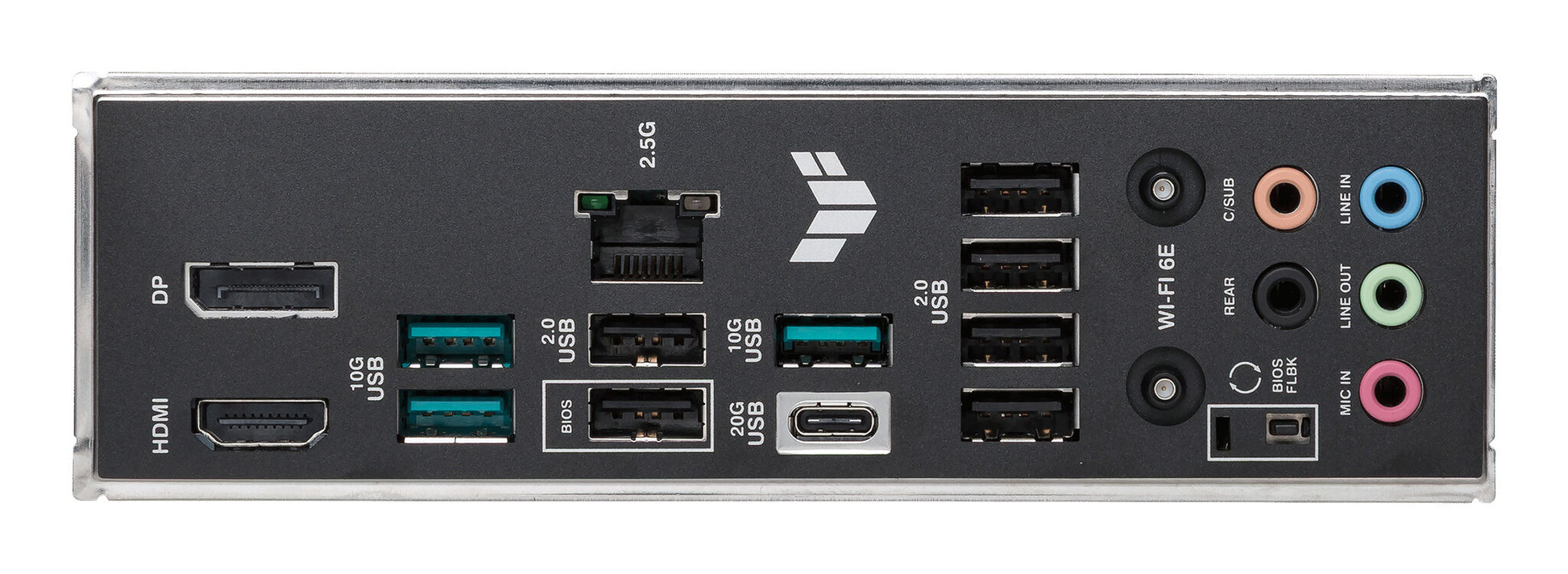

Rear panel I/O ports
USB 2.0 ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Line-in	Yes
Microphone in	Yes
WiFi-AP antenna jack	1

Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.3

Features
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio chip	Realtek ALC1220P
Audio output channels	7.1 channels
Product colour	Black
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11

Expansion slots
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
