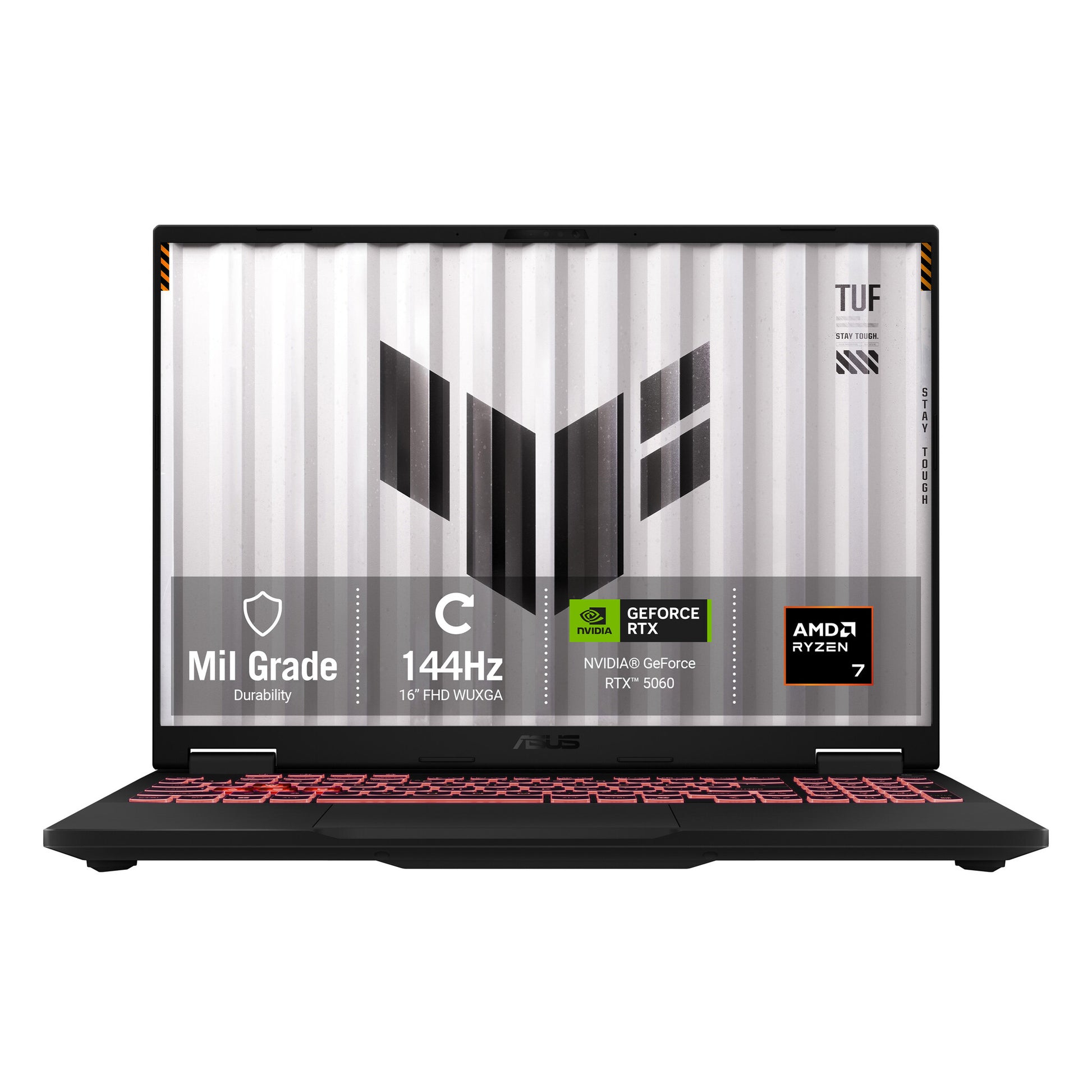

The design philosophy behind the TUF Gaming A16 is all about blending power with portability. With this lightweight all-around powerhouse, you can enjoy seamless performance wherever you go.
Design
Product type
Laptop
Product colour
Grey
Colour name
Jaeger Gray
Form factor
Clamshell
Display back cover material
Plastic
Housing material
Aluminium
Market positioning
Gaming
Country of origin
China
Display
Display diagonal
40.6 cm (16")
Display resolution
1920 x 1200 pixels
Touchscreen
No
HD type
WUXGA
Panel type
IPS-Level
Native aspect ratio
16:10
Anti-glare screen
Yes
Colour gamut
100%
RGB colour space
sRGB
Display response rise/fall
3 ms
Maximum refresh rate
144 Hz
Processor
Processor manufacturer
AMD
Processor family
AMD Ryzen™ 7
Processor generation
AMD Ryzen 200 Series
Processor model
260
Processor cores
8
Processor threads
16
Processor boost frequency
5.1 GHz
Processor frequency
3.8 GHz
L3 cache
16 MB
L2 cache
8 MB
Processor cache type
L2 & L3
Neural processor unit (NPU)
Neural processor unit (NPU)
AMD Ryzen AI
Total processor performance up to
38 TOPs
NPU performance up to
16 TOPs
Memory
Internal memory
16 GB
Internal memory type
DDR5-SDRAM
Memory form factor
SO-DIMM
Memory clock speed
5600 MHz
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express 4.0
SSD form factor
M.2
Optical drive type
No
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA® GeForce RTX™ 5060 Laptop GPU
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR7
On-board GPU manufacturer
AMD
On-board graphics card family
AMD Radeon
On-board graphics card model
AMD Radeon 780M
On-board graphics card 4K support
Yes
On-board graphics card 8K support
Yes
NVIDIA G-SYNC
Yes
AMD FreeSync
Yes
Audio
Audio system
Dolby Atmos
Number of built-in speakers
2
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera HD type
Full HD
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Antenna type
2x2
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.4
Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 3x2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes

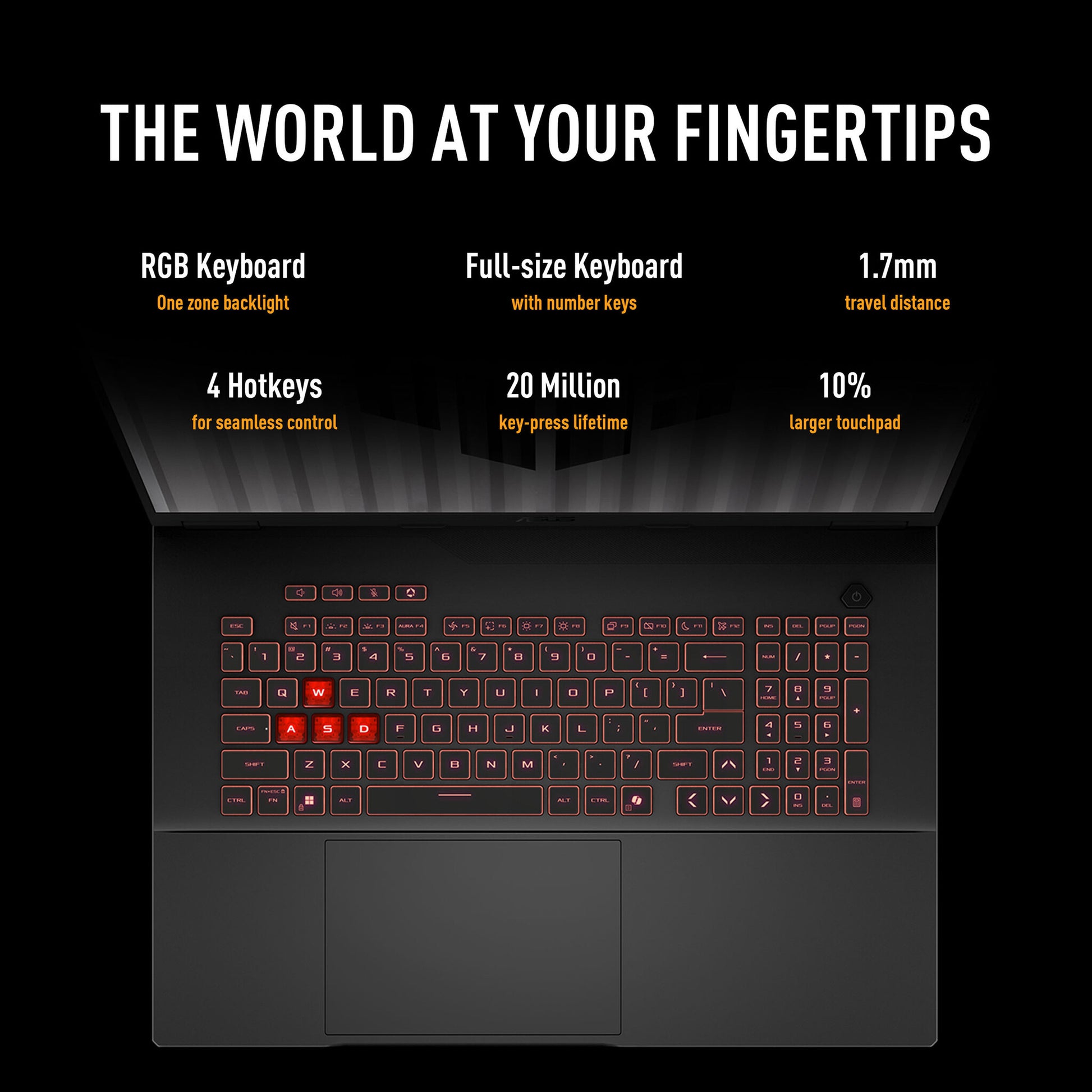

Keyboard
Pointing device
Touchpad
Keyboard backlit
Yes
Numeric keypad
Yes
Keyboard backlit zone
1-zone RGB
Keyboard backlit colour
RGB
Software
Operating system installed
Windows 11 Home
Operating system architecture
64-bit
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
4
Battery capacity
90 Wh
Power
AC adapter power
200 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
10 A
AC adapter output voltage
20 V
USB Type-C charging port
Yes
Weight & dimensions
Weight
2.2 kg
Width
354 mm
Depth
269 mm
Height (front)
1.79 cm
Height (rear)
2.57 cm
Packaging data
Package width
494 mm
Package depth
320 mm
Package height
116 mm
Package weight
3.57 kg
general_information_attribute_container_name
Product series
A16
attribute_product_family_name
TUF Gaming
Logistics data
Commodity Classification Automated Tracking System (CCATS)
