ASUS

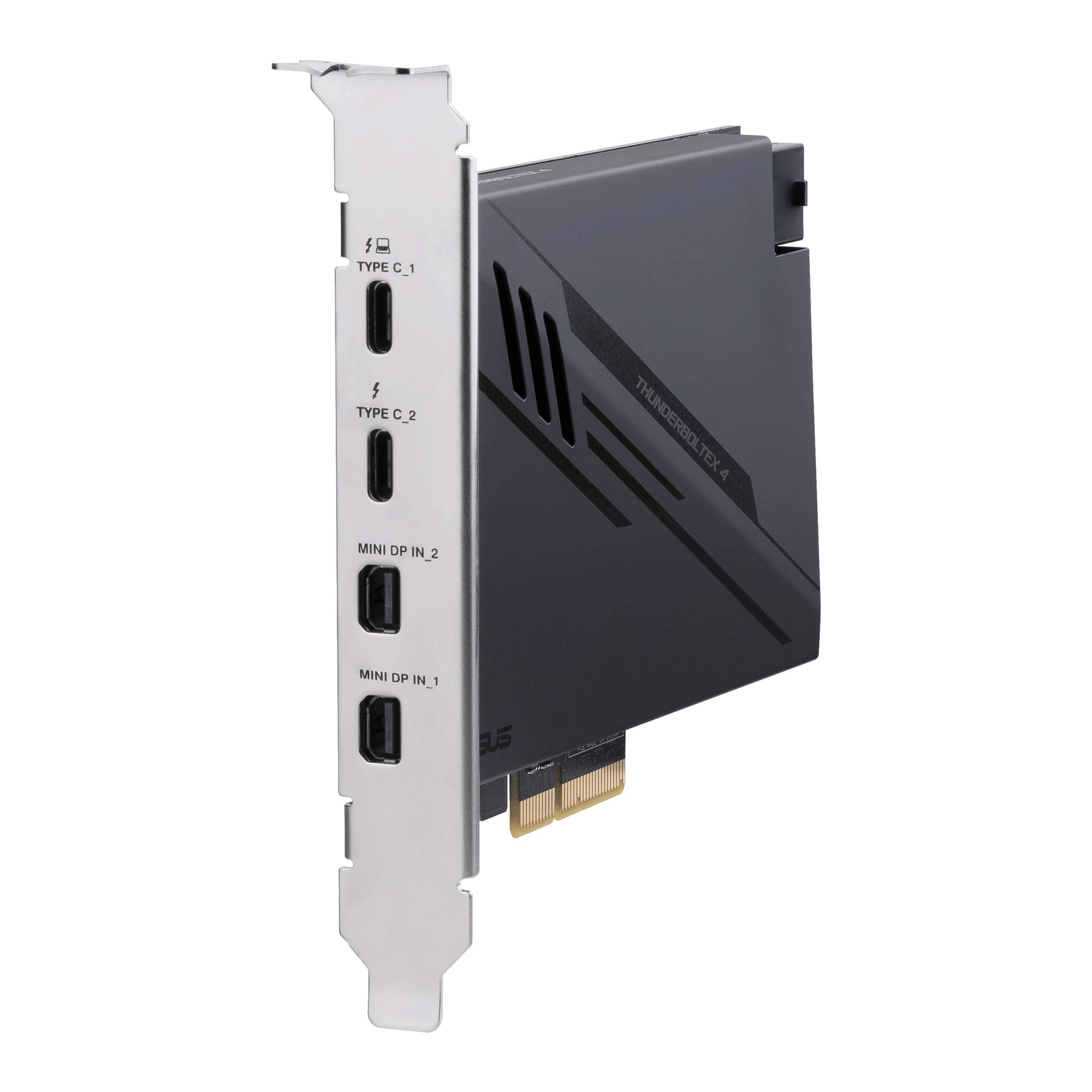

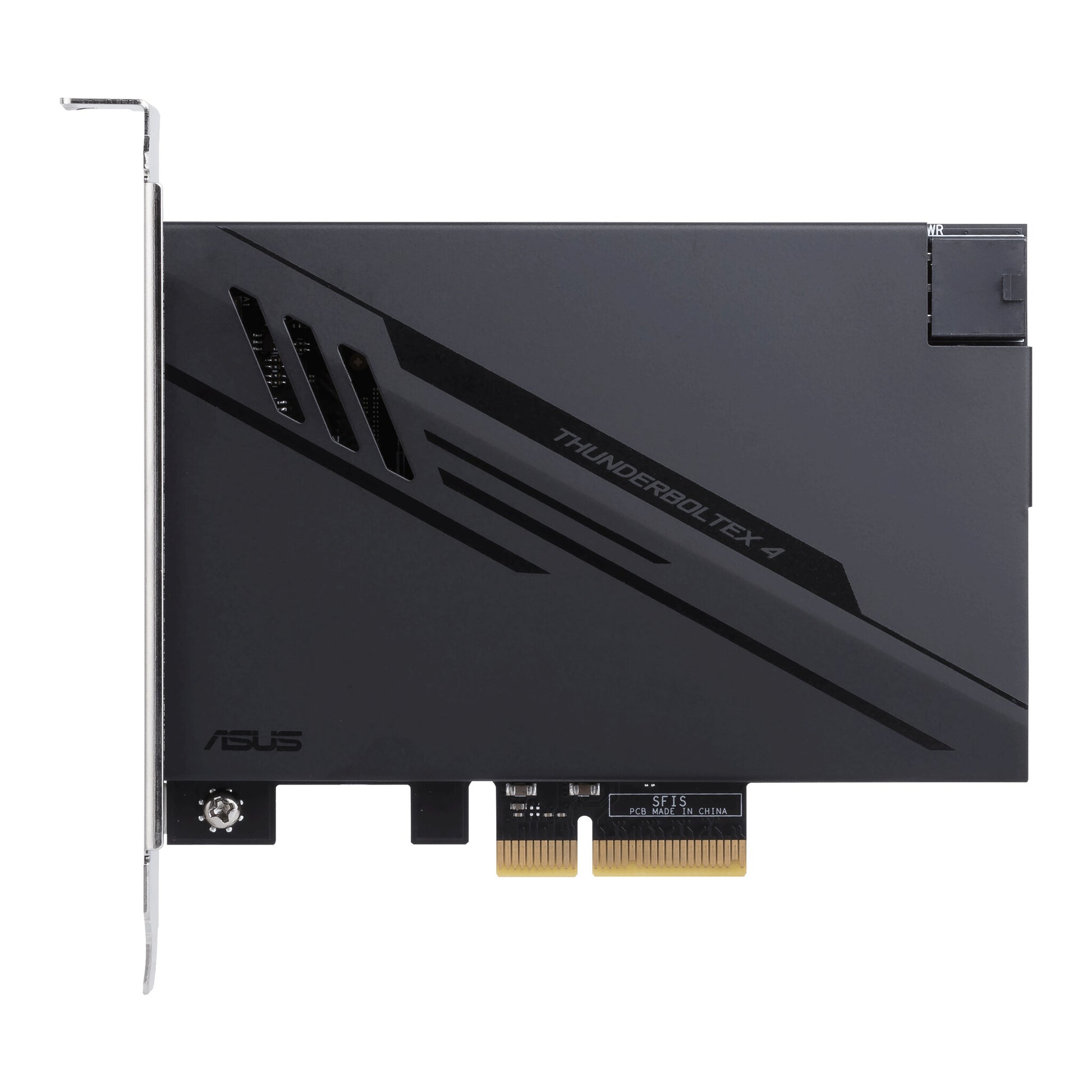

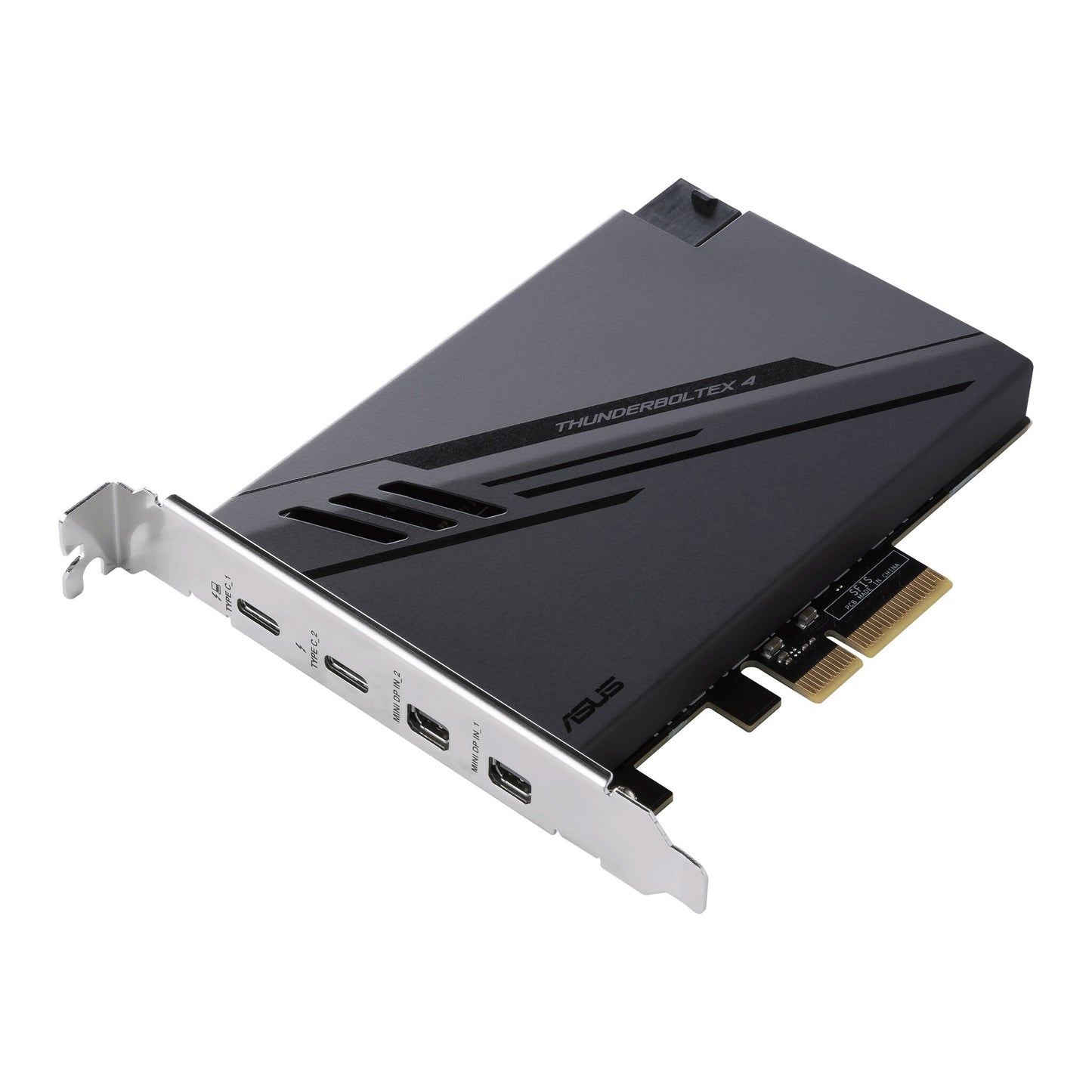

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)

£107.64 GBP
£107.64 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MC09P0-M0EAY0

Low stock: 1 left

  • Intel®-certified Thunderbolt™ 4 add-on card
  • 40 Gbps bi-directional bandwidth for superfast data transfers and video output
  • Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
  • DisplayPort™ 1.4 for 8K Ultra HD support
Intel Thunderbolt 4 JHL8540, 2 x USB Type-C (Thunderbolt 4), 2 x mini DisplayPort, 1 x 6-pin PCIe, 1 x USB 2.0 header, 1 x Thunderbolt header, PCIe 3.0 x4

Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

Ports & interfaces
Host interface PCIe
Output interface Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard PCIe 3.0
USB 2.0 ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
Design
Internal Yes
Product colour Black
Purpose PC
Features
Chipset Intel Thunderbolt 4 JHL8540
Data transfer rate (max) 40 Gbit/s
Plug and Play Yes
System requirements
Windows operating systems supported Windows 10 x64
Weight & dimensions
Width 117.7 mm
Depth 180.5 mm
Packaging data
Quantity 1

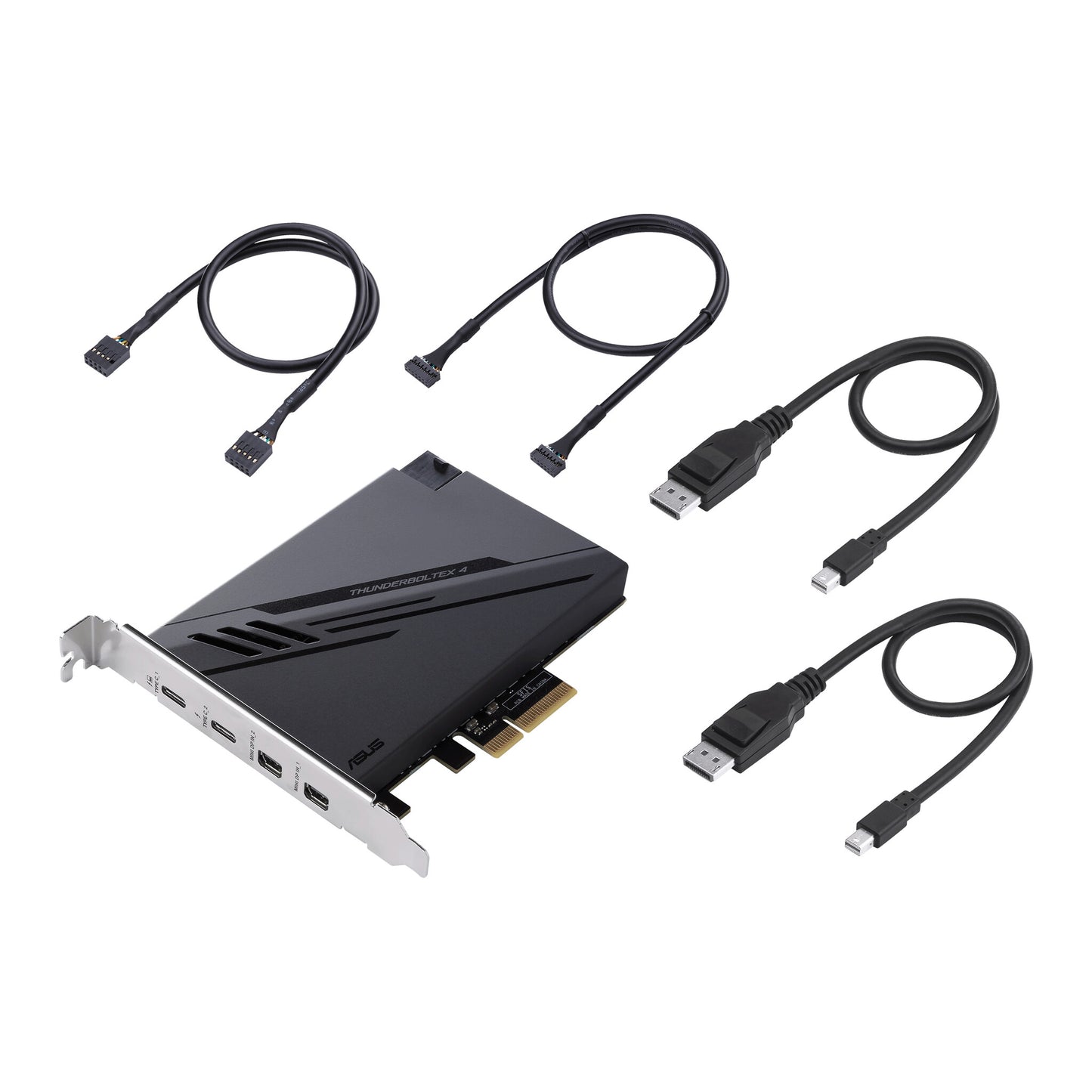

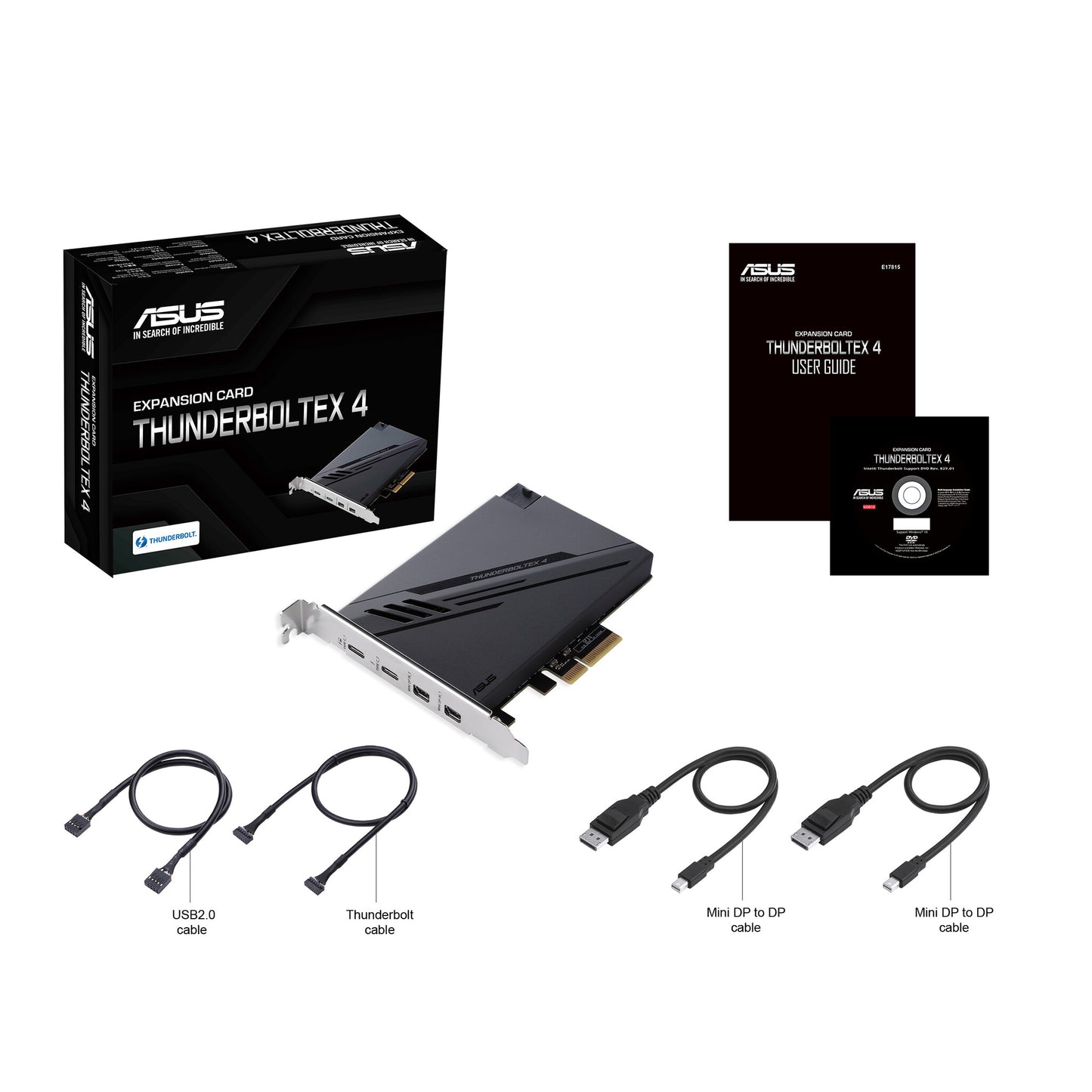

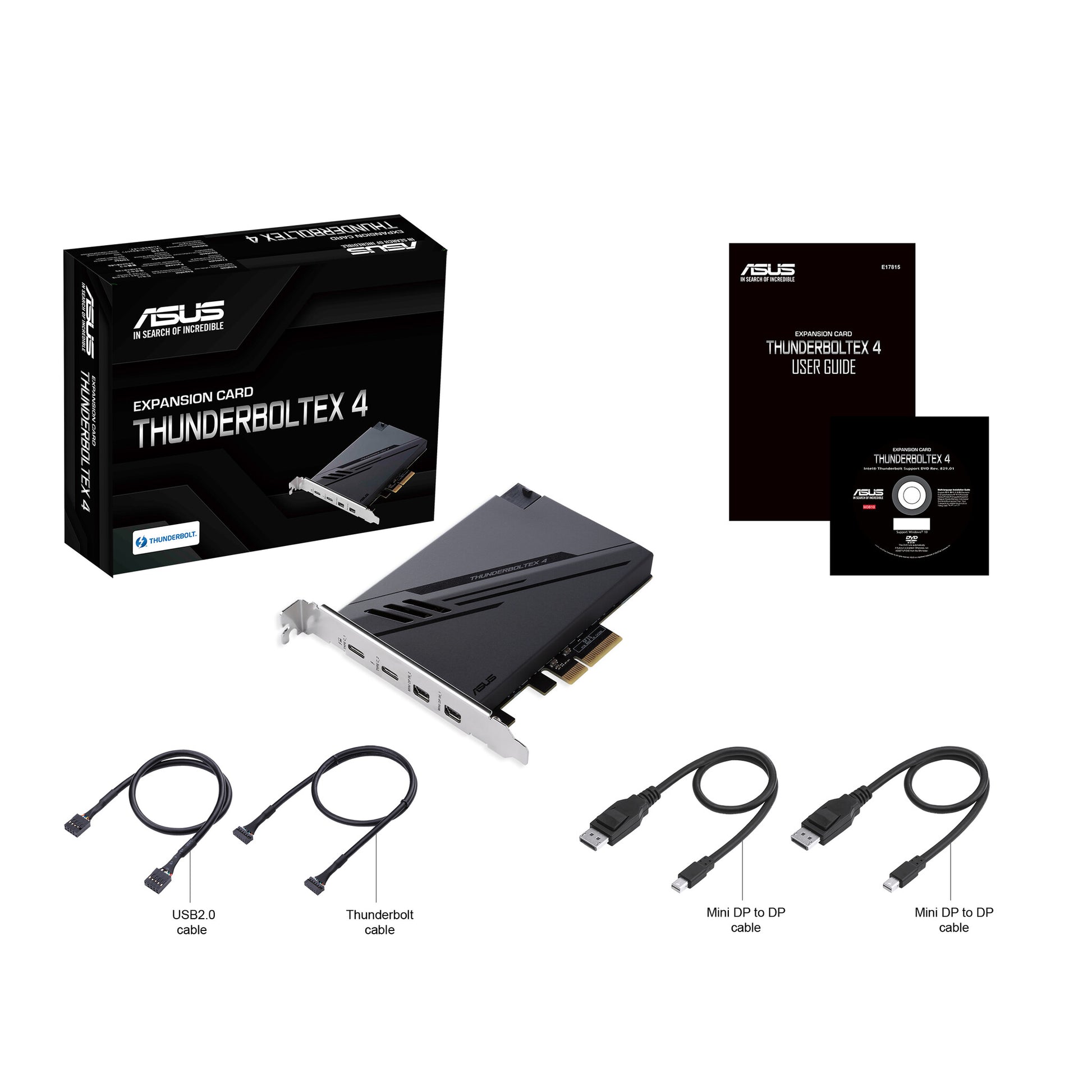

Cables included Mini DisplayPort, Thunderbolt, USB
Drivers included Yes
Manual Yes
Package type Box
Logistics data
Harmonized System (HS) code 84733020
Other features
Maximum resolution 7680 x 4320 pixels
Compatibility ASUS Intel 500
