40.6 cm (16") WQXGA 2560 x 1600 OLED, NVIDIA GeForce RTX 5060 (8GB GDDR7)
32GB LPDDR5x-SDRAM & 1000GB SSD
Intel Core Ultra 9 285H (24MB Cache), 32GB LPDDR5x-SDRAM, 1000GB SSD, 40.6 cm (16") WQXGA 2560 x 1600 OLED, Intel Arc 140T, NVIDIA GeForce RTX 5060 (8GB GDDR7), WLAN, Webcam, Windows 11 Home 64-bit

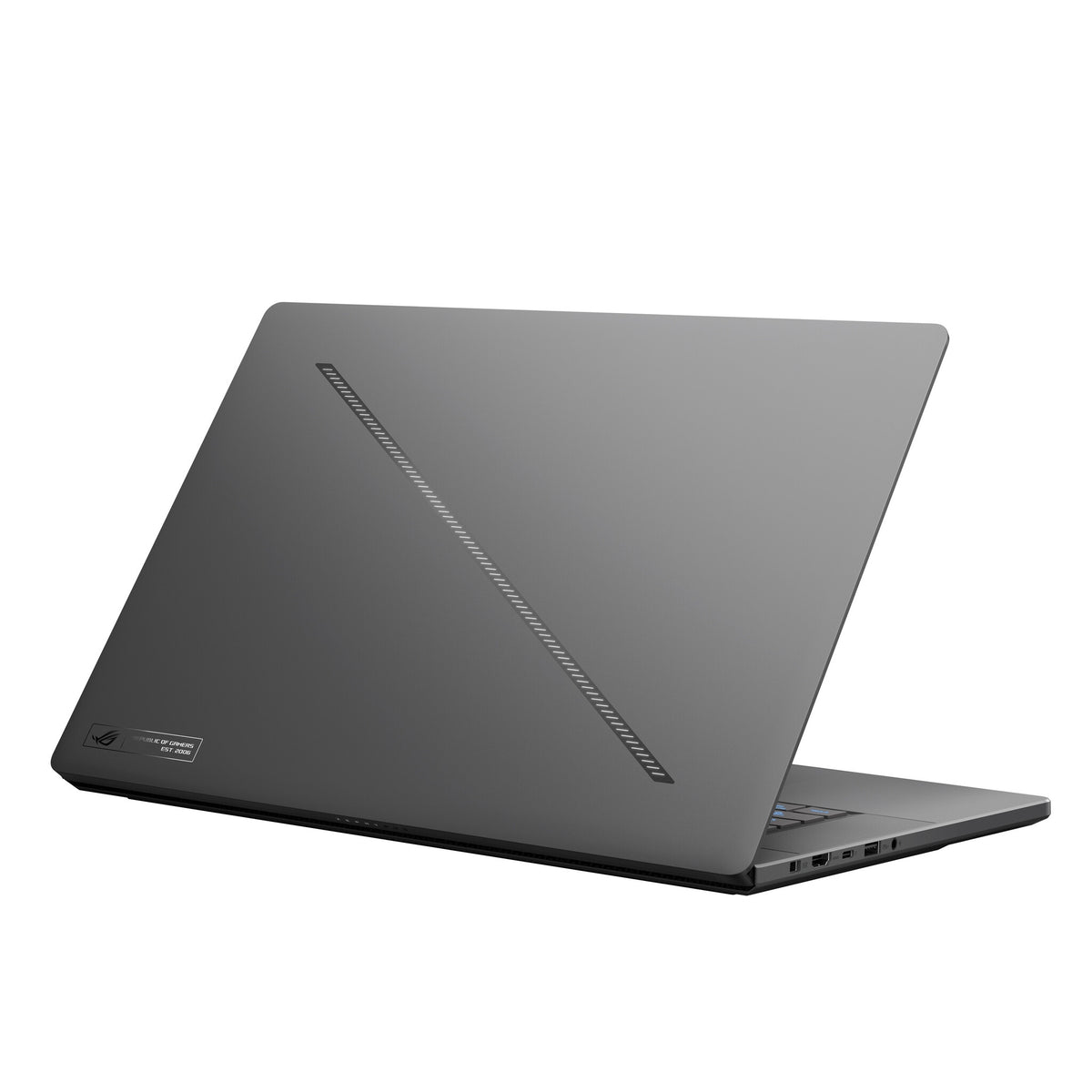

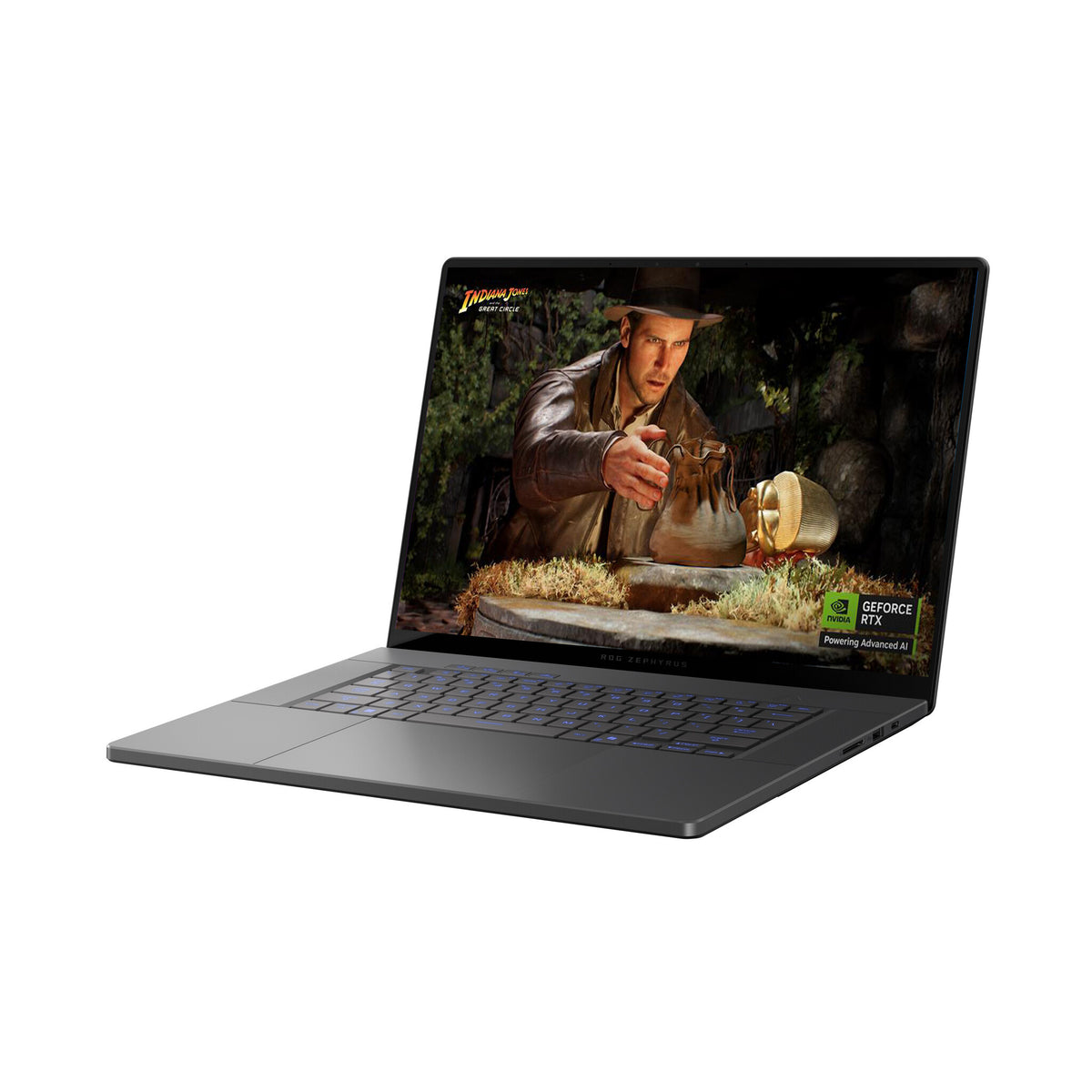

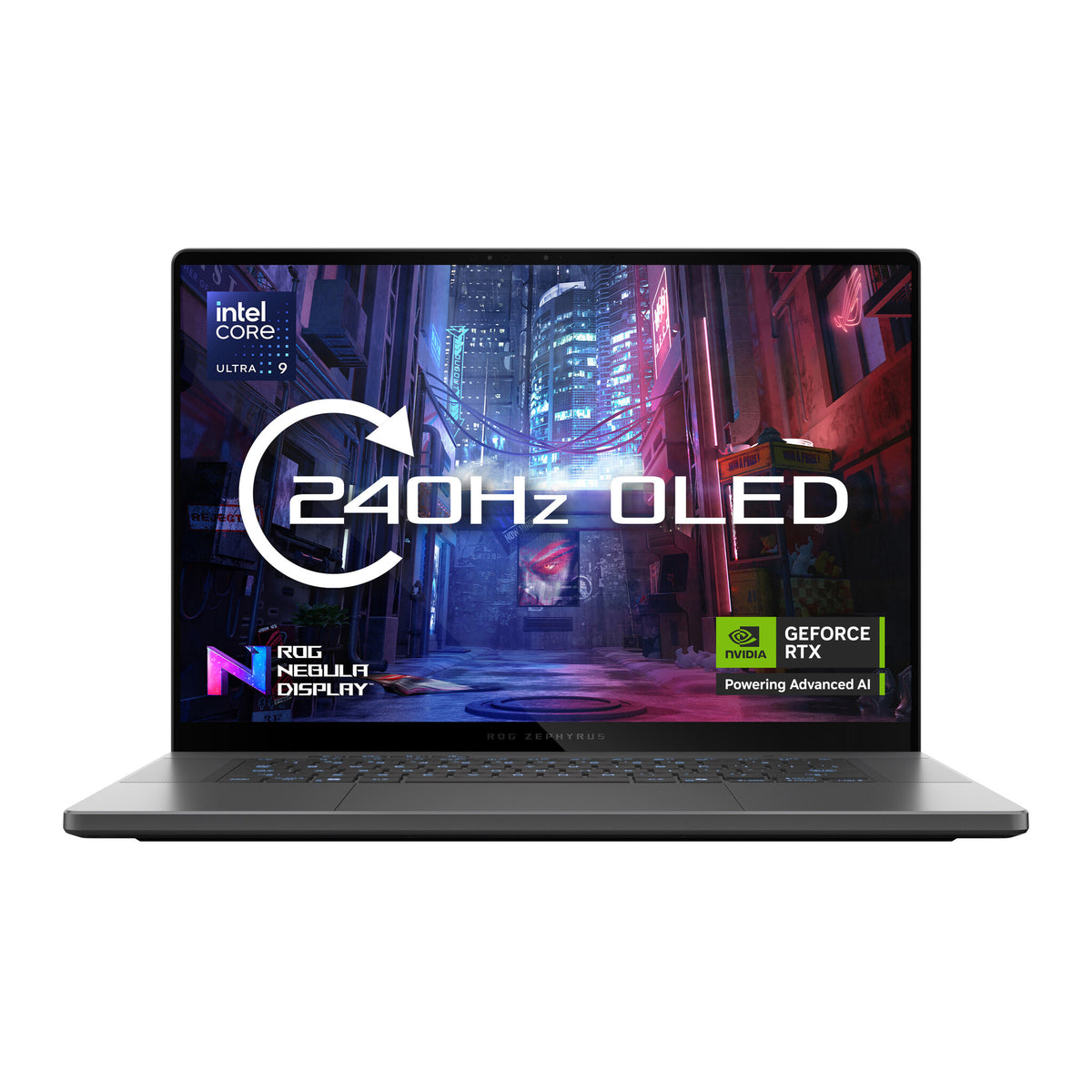

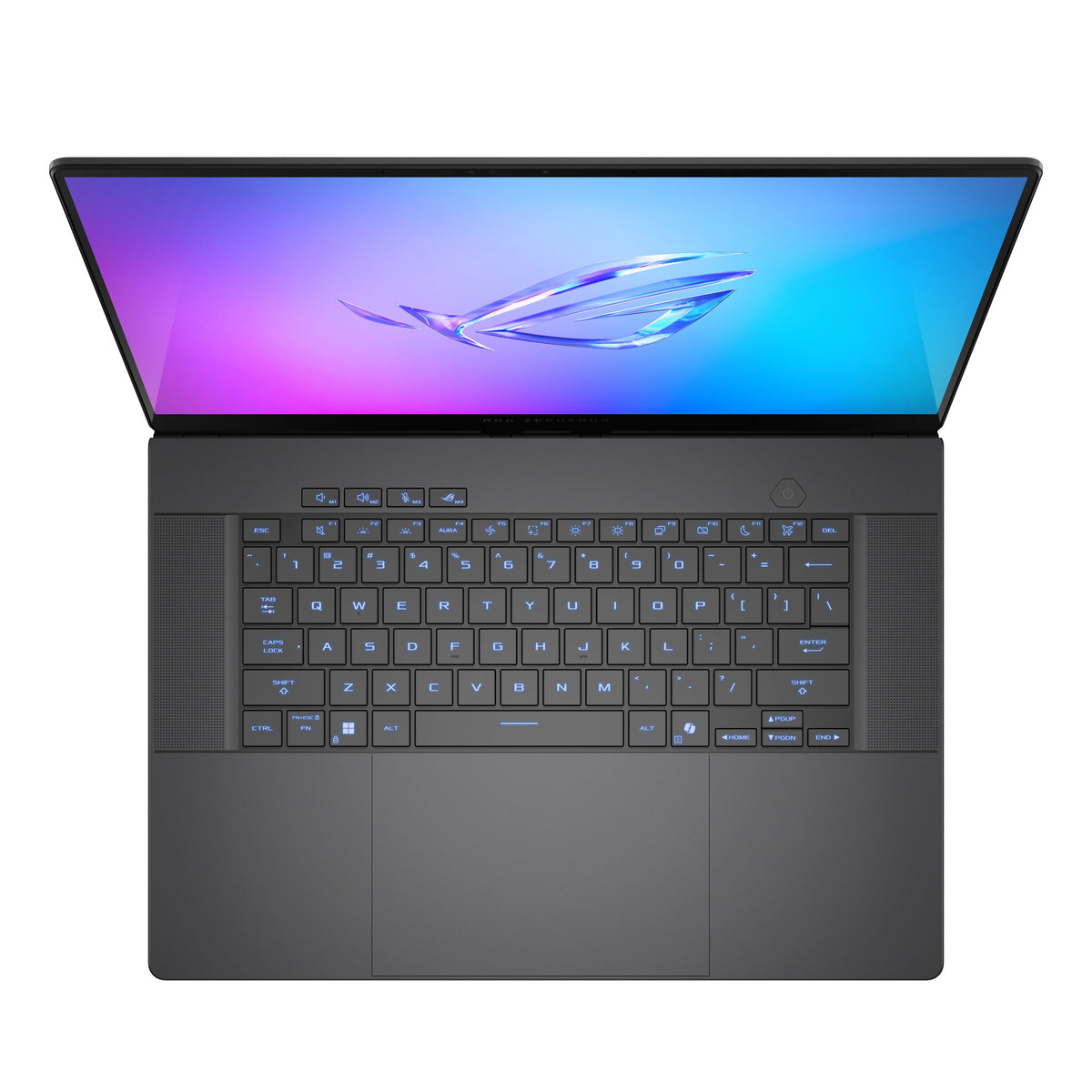

ROG ZEPHYRUS G16 (GU605)
Performance The Dawn of A New Age The 2025 Zephyrus G16 and Windows 11 Pro make gaming, creation, and everything in between a breeze. Featuring an Intel® Core™ Ultra 9 processor 285H and up to an NVIDIA® GeForce RTX™ 5090 Laptop GPU, this 16-inch machine can easily handle the latest games and cutting-edge creative software alike. The Zephyrus G16 can effortlessly transcribe voice notes into text documents, save valuable time during a video render, and play the latest AAA games at blazingly fast refresh rates. The future is here.
Design
Product type
Laptop
Product colour
Grey
Colour name
Eclipse Gray
Form factor
Clamshell
Market positioning
Gaming
Display
Display diagonal
40.6 cm (16")
Display resolution
2560 x 1600 pixels
Touchscreen
No
HD type
WQXGA
Panel type
OLED
Native aspect ratio
16:10
Display surface
Gloss
Maximum display brightness (HDR)
500 cd/m²
Colour gamut
100%
RGB colour space
DCI-P3
Maximum refresh rate
240 Hz
Contrast ratio (typical)
1000000:1
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
Dolby Vision
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor generation
Intel Core Ultra (Series 2)
Processor model
285H
Processor cores
16
Processor threads
16
Processor boost frequency
5.4 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4.5 GHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Performance-core base frequency
2.9 GHz
Efficient-core base frequency
2.7 GHz
Low Power Efficient-core Base Frequency
1000 MHz
Processor cache
24 MB
Maximum turbo power
115 W
Processor base power
45 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
99 TOPs
NPU performance up to
13 TOPs
GPU performance up to
77 TOPs
Memory
Internal memory
32 GB
Internal memory type
LPDDR5x-SDRAM
Memory form factor
On-board
Maximum internal memory
32 GB
Memory channels
Dual-channel
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express 4.0
SSD form factor
M.2
Optical drive type
No
Card reader integrated
Yes
Compatible memory cards
SD
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA GeForce RTX 5060
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR7
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc 140T
Audio
Audio system
Dolby Atmos
Number of built-in speakers
4
Number of microphones
3
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.4
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
1
Intel® Thunderbolt 4
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
Performance
Repairability index
9.3
Keyboard
Pointing device
Touchpad
Keyboard backlit
Yes
Numeric keypad
No
Keyboard backlit zone
1-zone RGB
Keyboard backlit colour
RGB
Software
Operating system installed
Windows 11 Home
Operating system architecture
64-bit
Trial software
1-month trial for new Microsoft 365 customers. Credit card required.

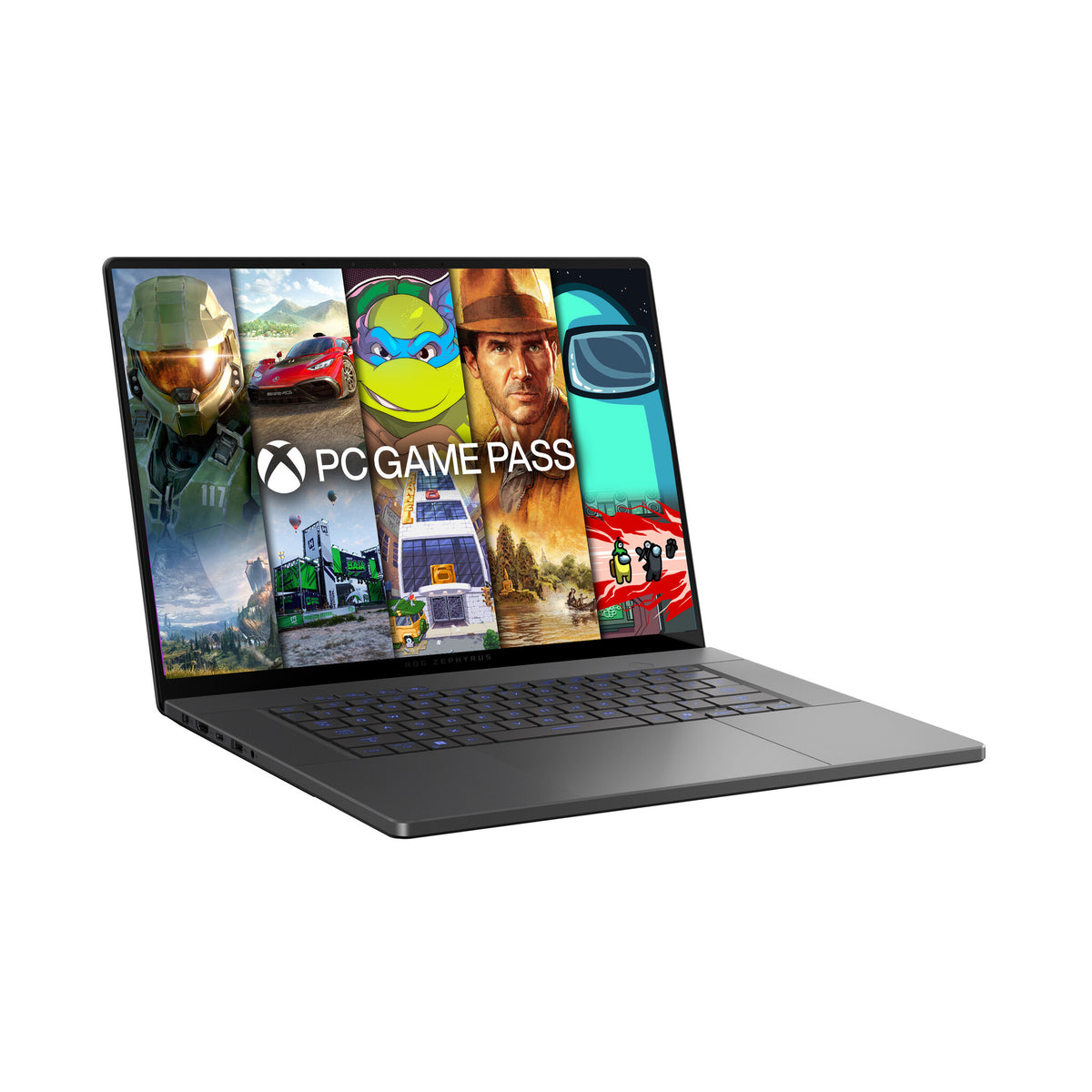

Bundled software
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
