ASUS

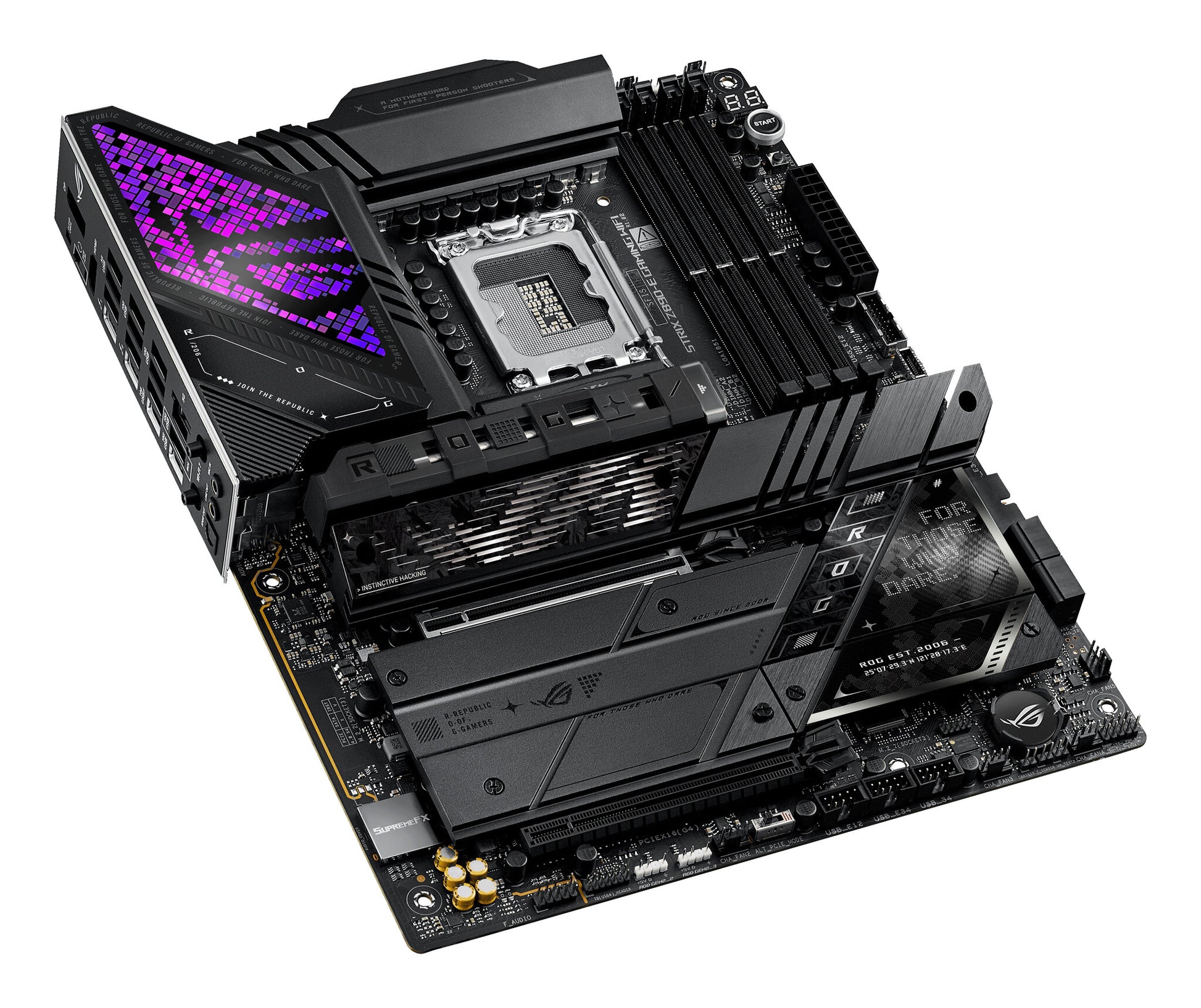

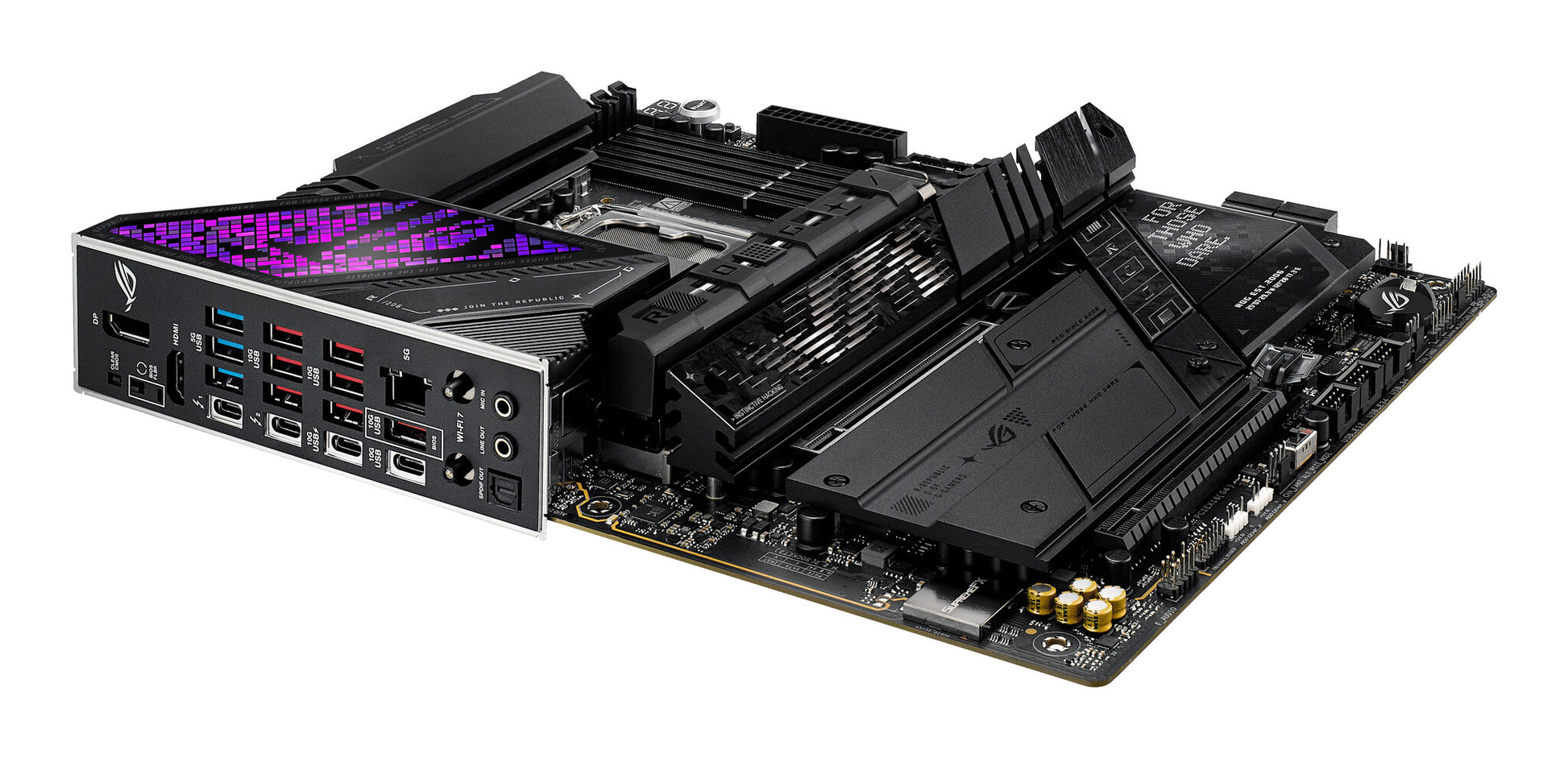

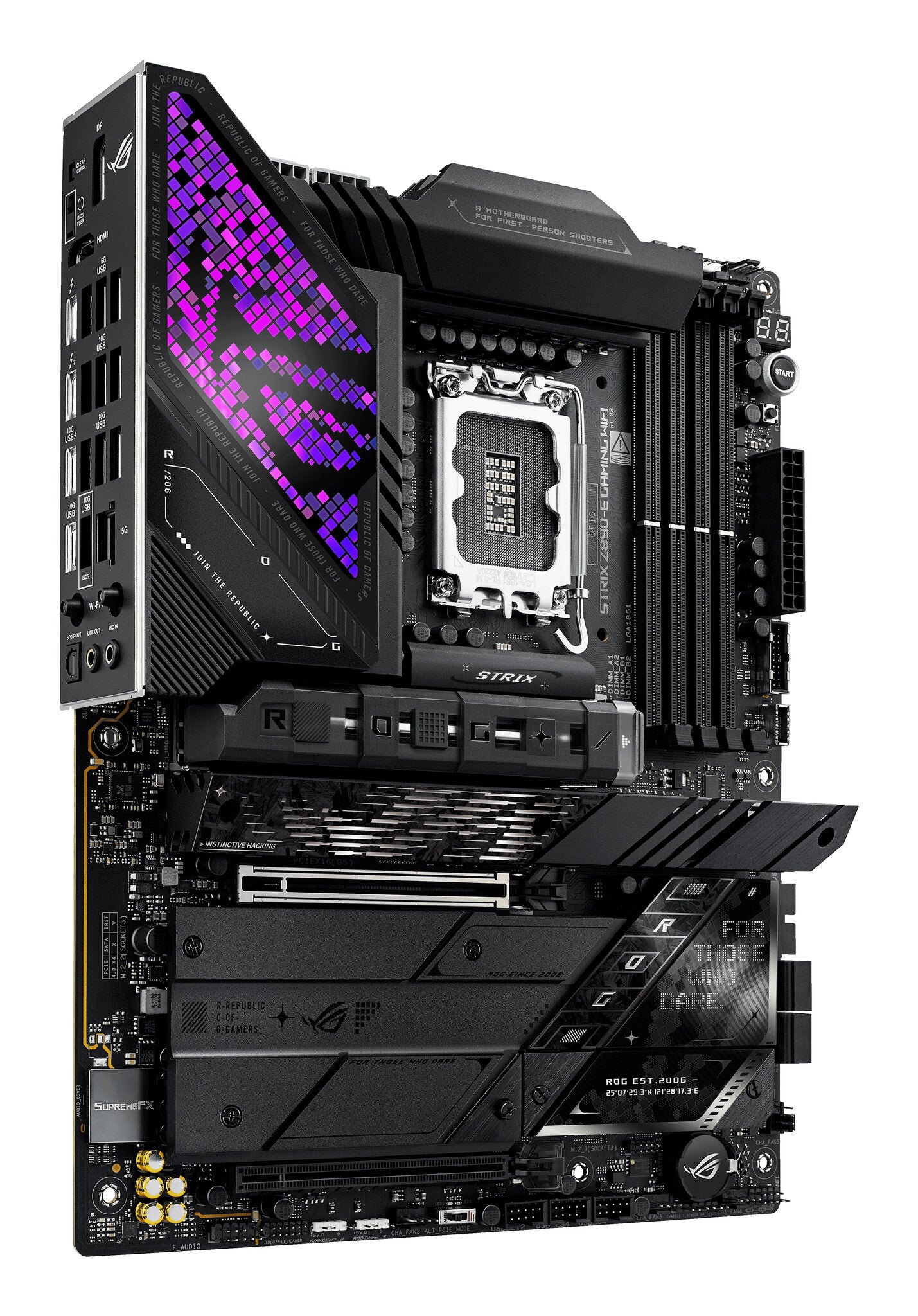

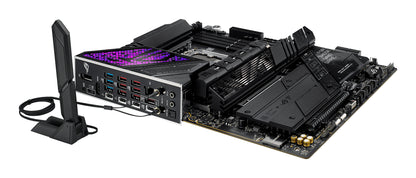

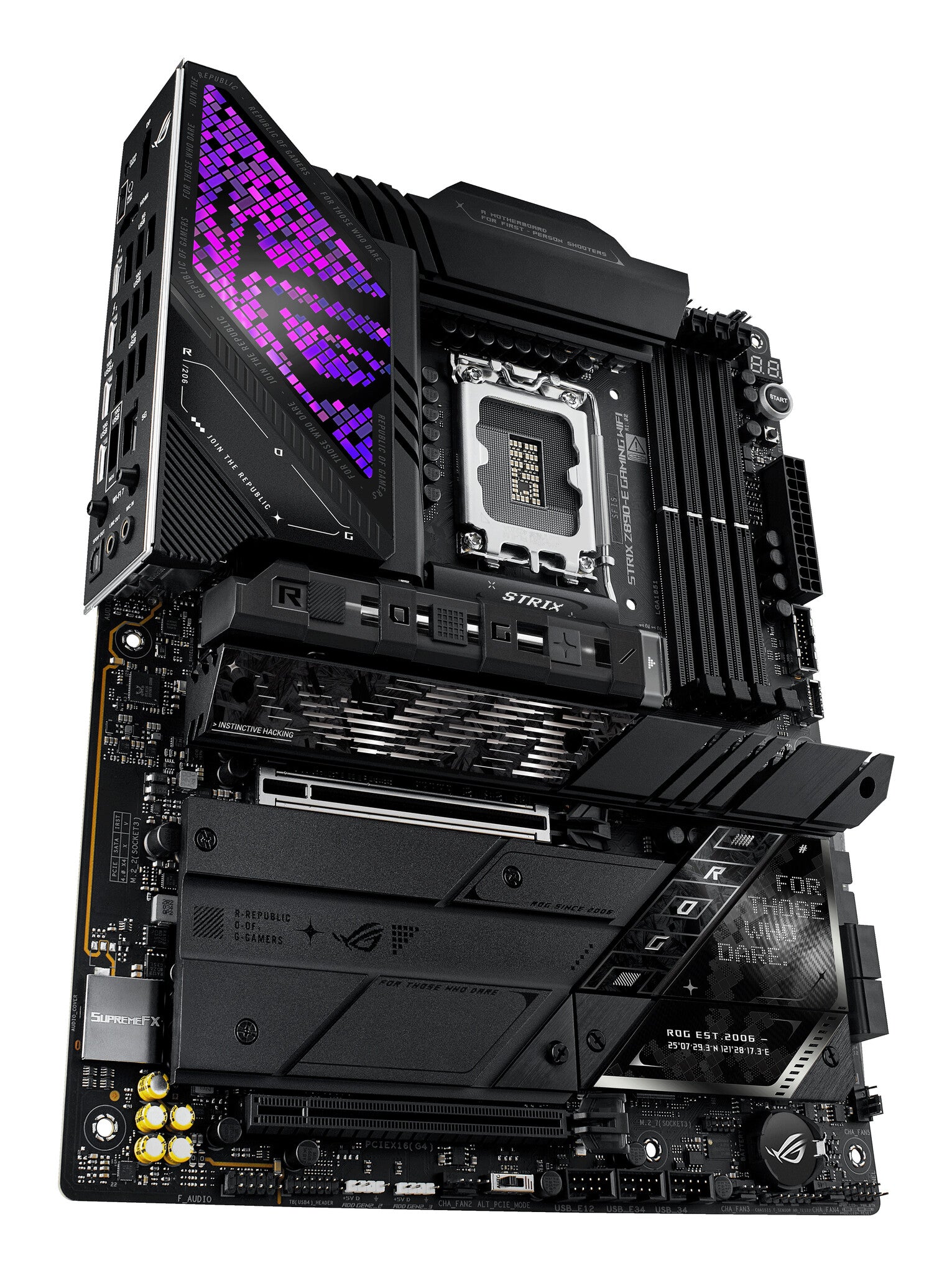

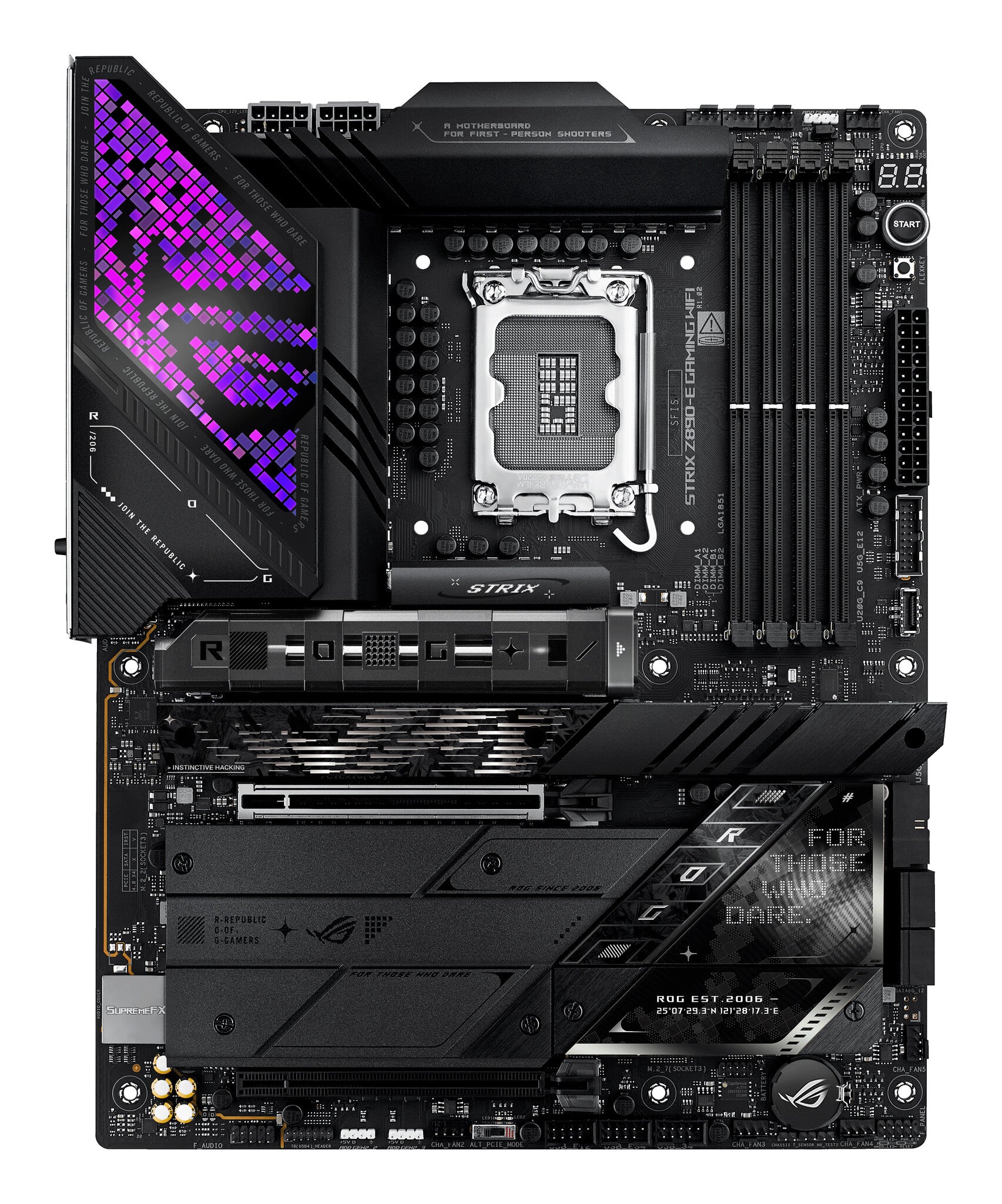

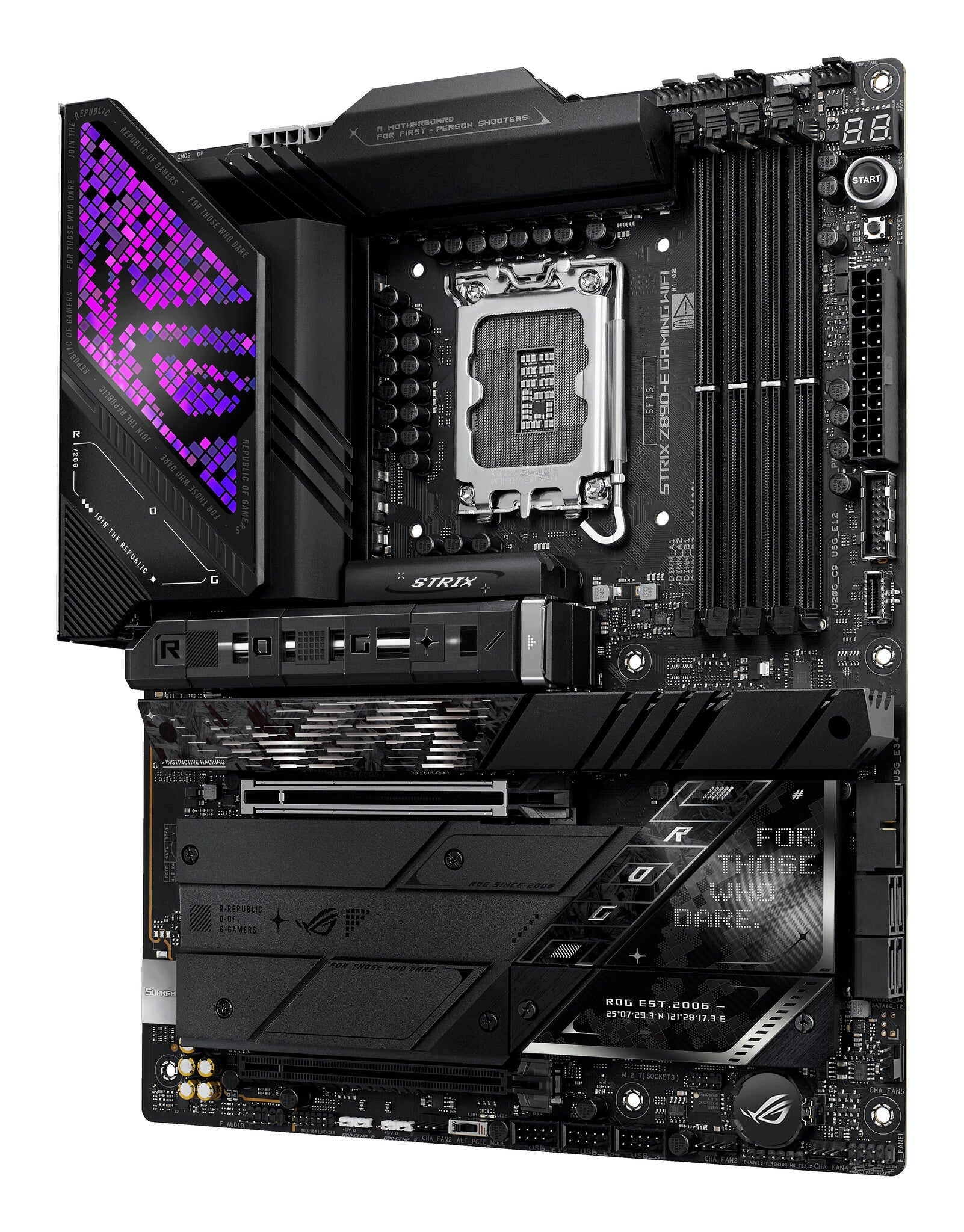

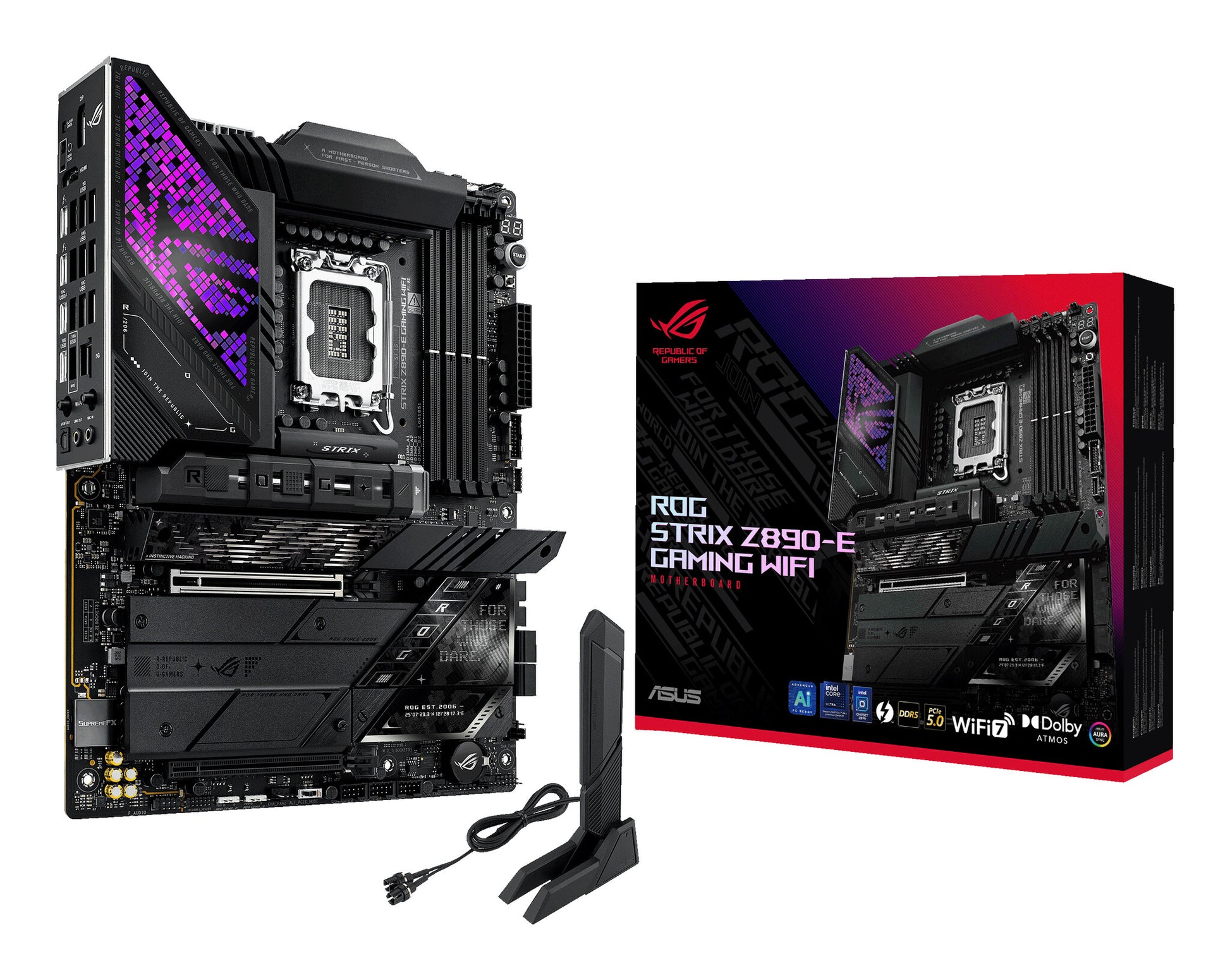

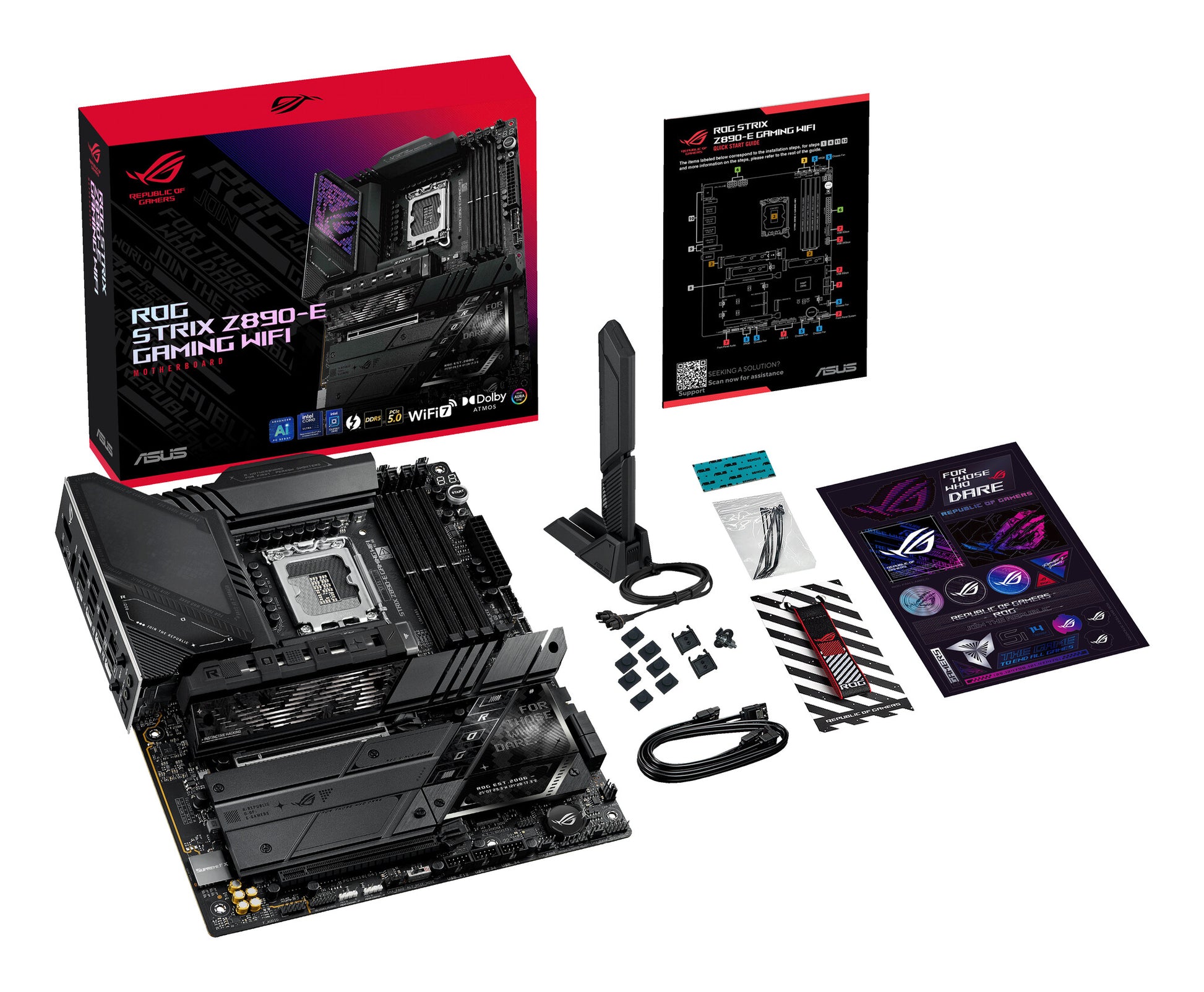

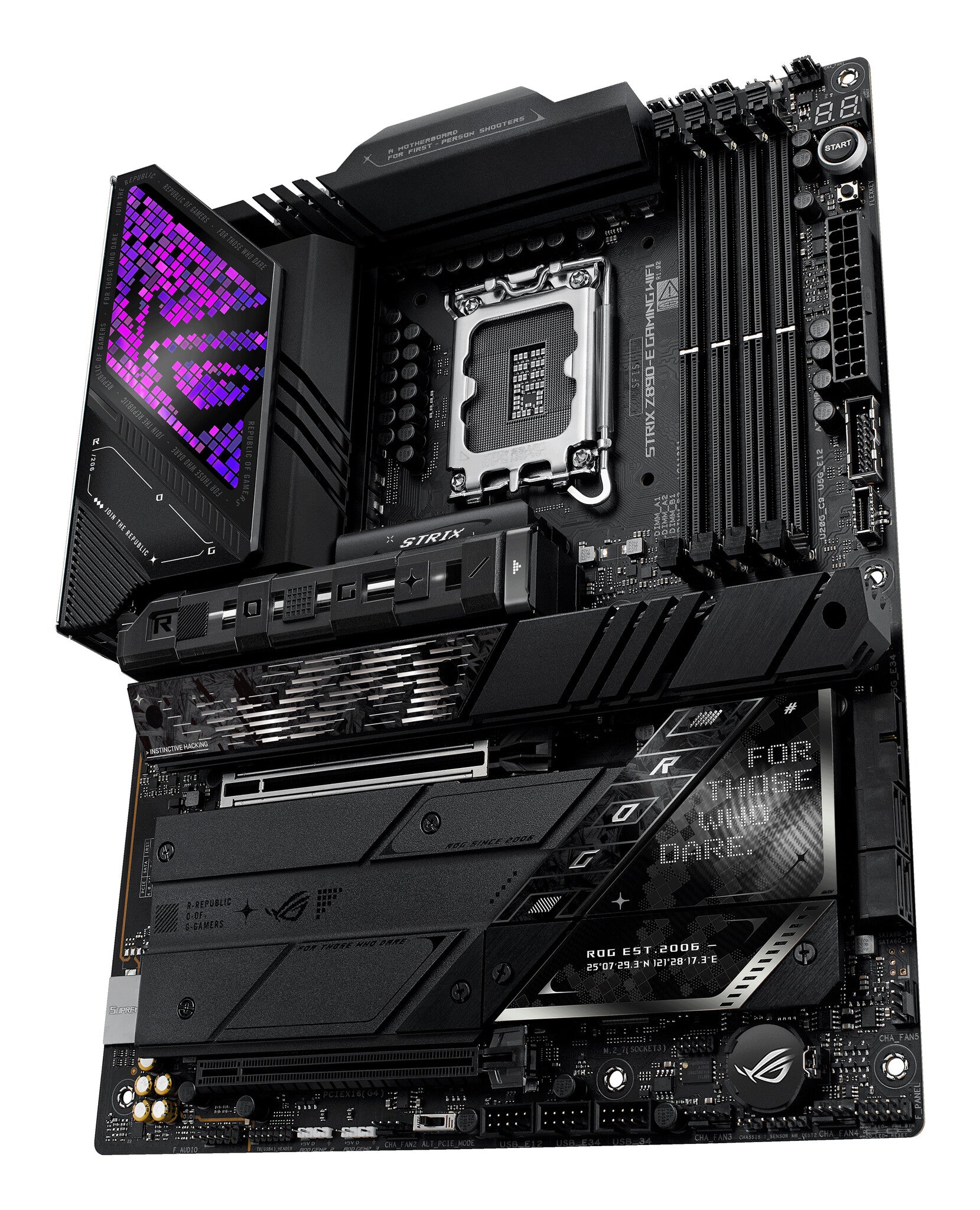

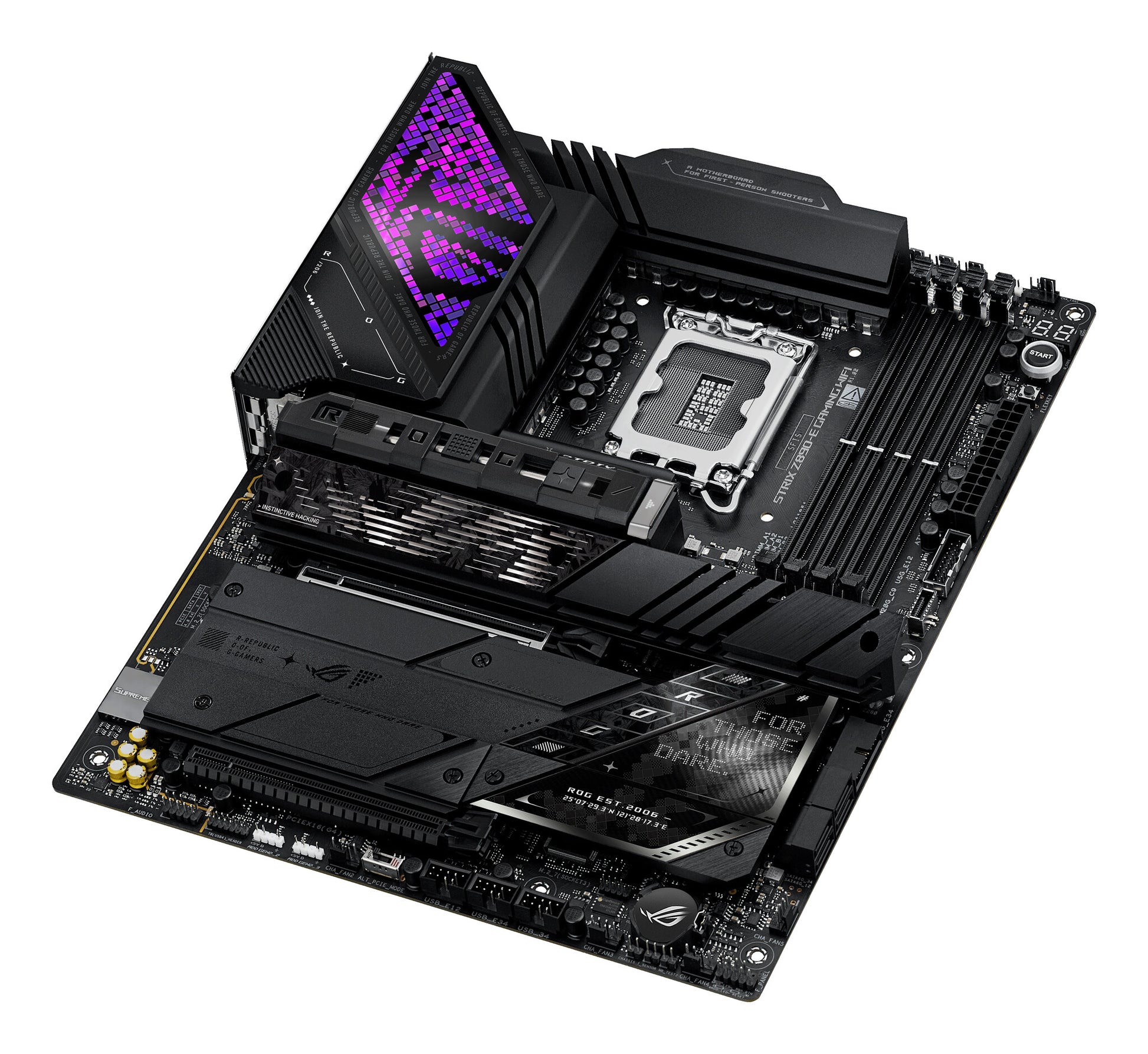

ASUS ROG STRIX Z890-E GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX

ASUS ROG STRIX Z890-E GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX

£322.90 GBP
£322.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1IM0-M0EAY0

50 in stock

  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC ATX Intel Z890 Realtek ALC4080 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 11
  • BIOS type: UEFI AMI 256 Mbit Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Intel Z890, 4 x DIMM slots, max. 192GB, DDR5, Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256Mb Flash ROM, UEFI AMI BIOS, ATX

ROG STRIX Z890-E gaming wifi
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speed (max) 8800 MHz
Maximum internal memory 192 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 11
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 5
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
Thunderbolt headers 1
12V power connector Yes

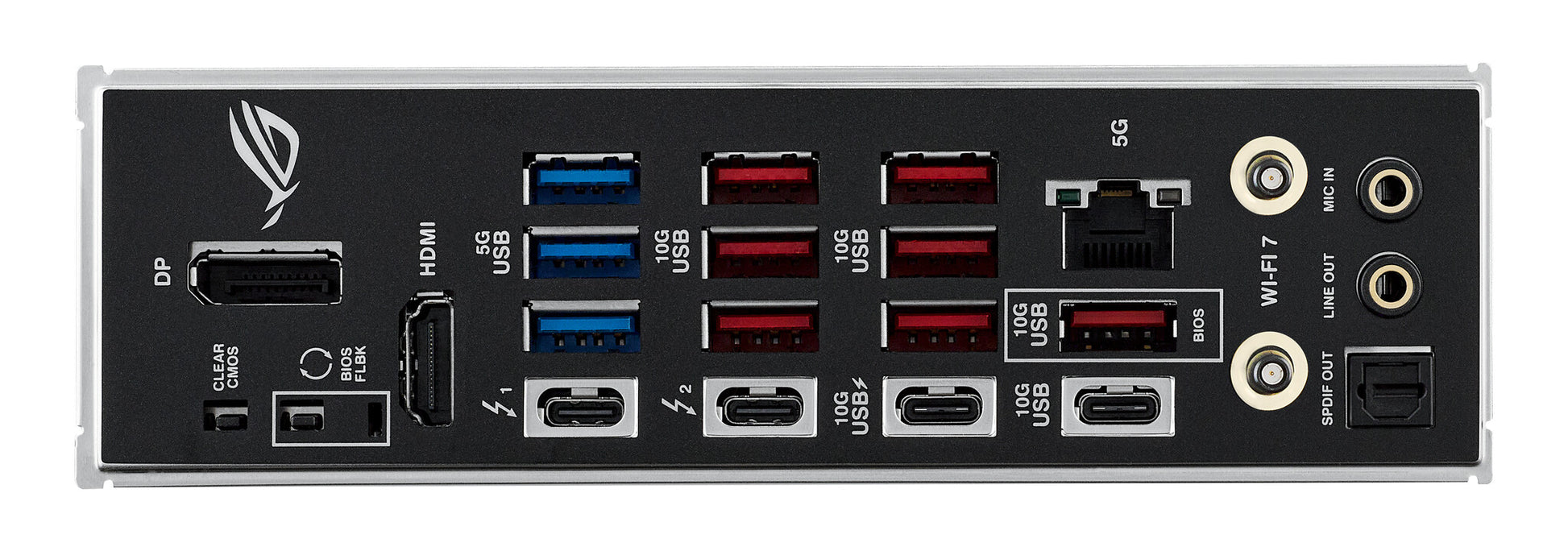

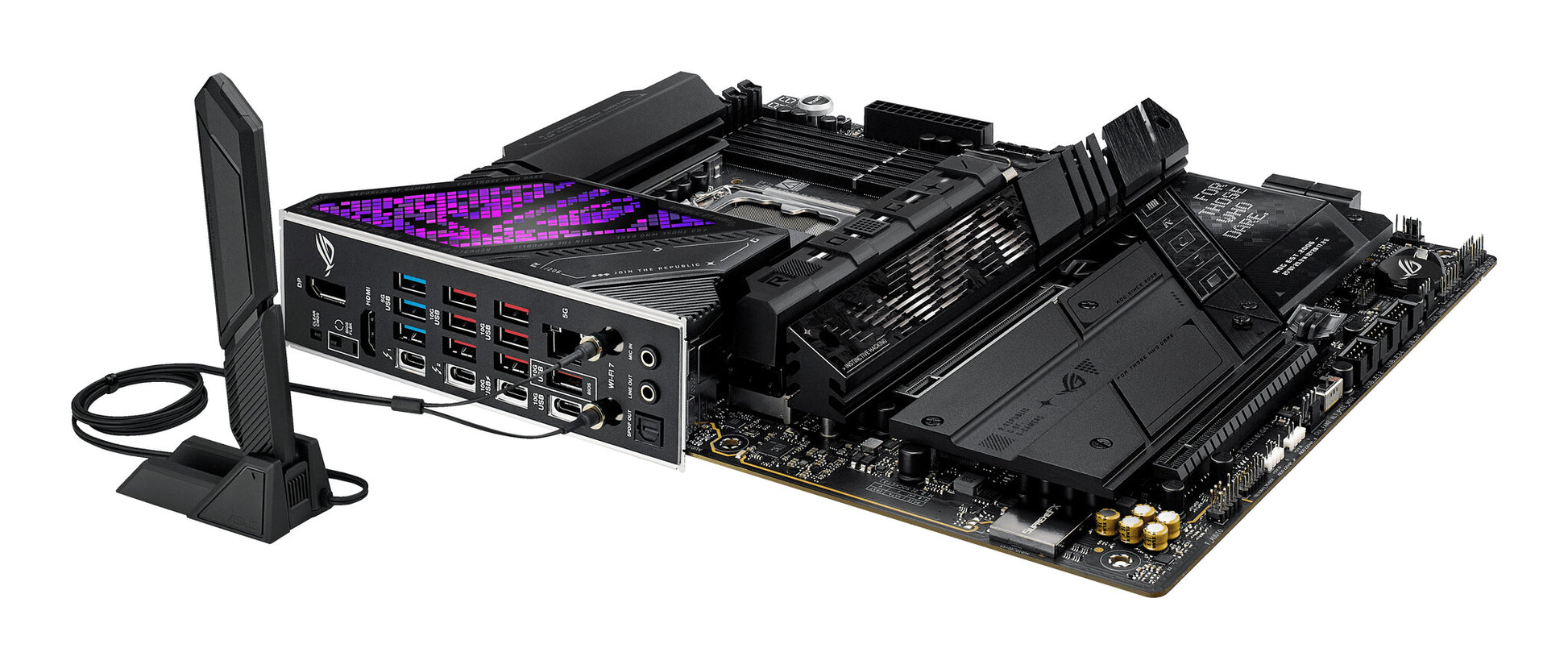

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
Microphone in Yes
S/PDIF out port Yes
Thunderbolt ports quantity 2
USB connector type USB Type-A, USB Type-C
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z890
Audio chip Realtek ALC4080
Audio output channels 7.1 channels
Product colour Black
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 7
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Yes
Packaging data
Package width 356 mm
Package depth 87 mm
Package height 281 mm
Package weight 2.58 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
