ASUS

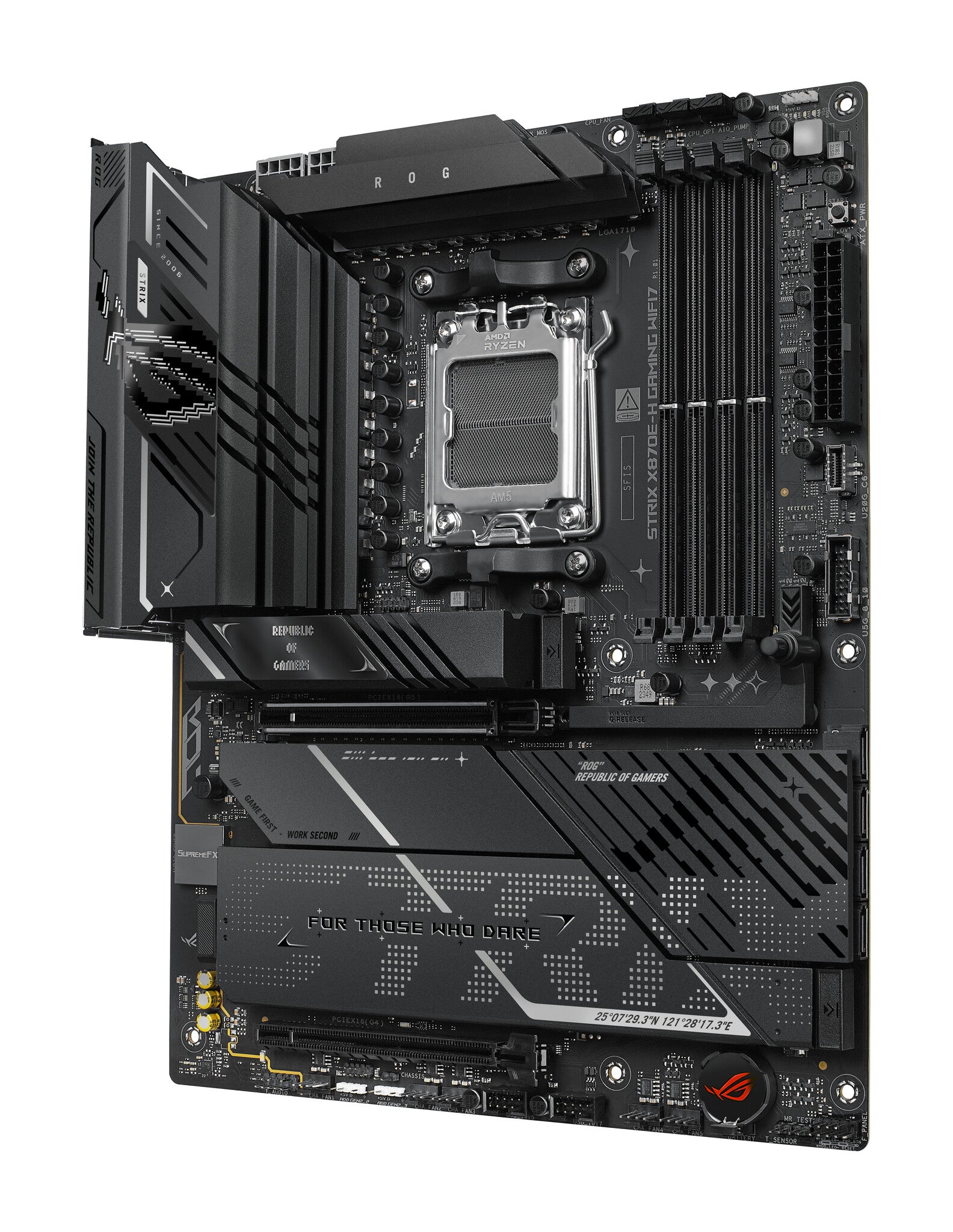

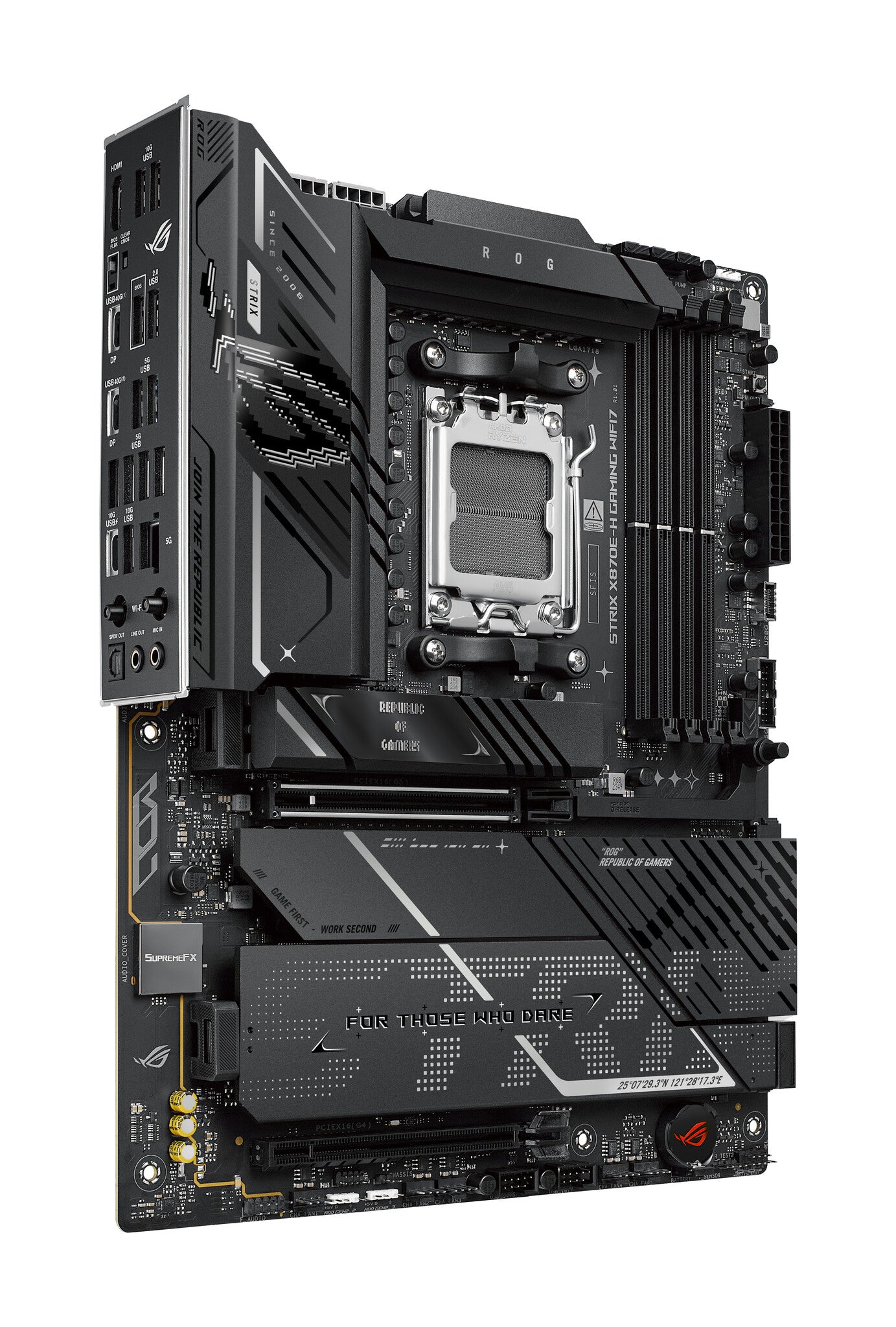

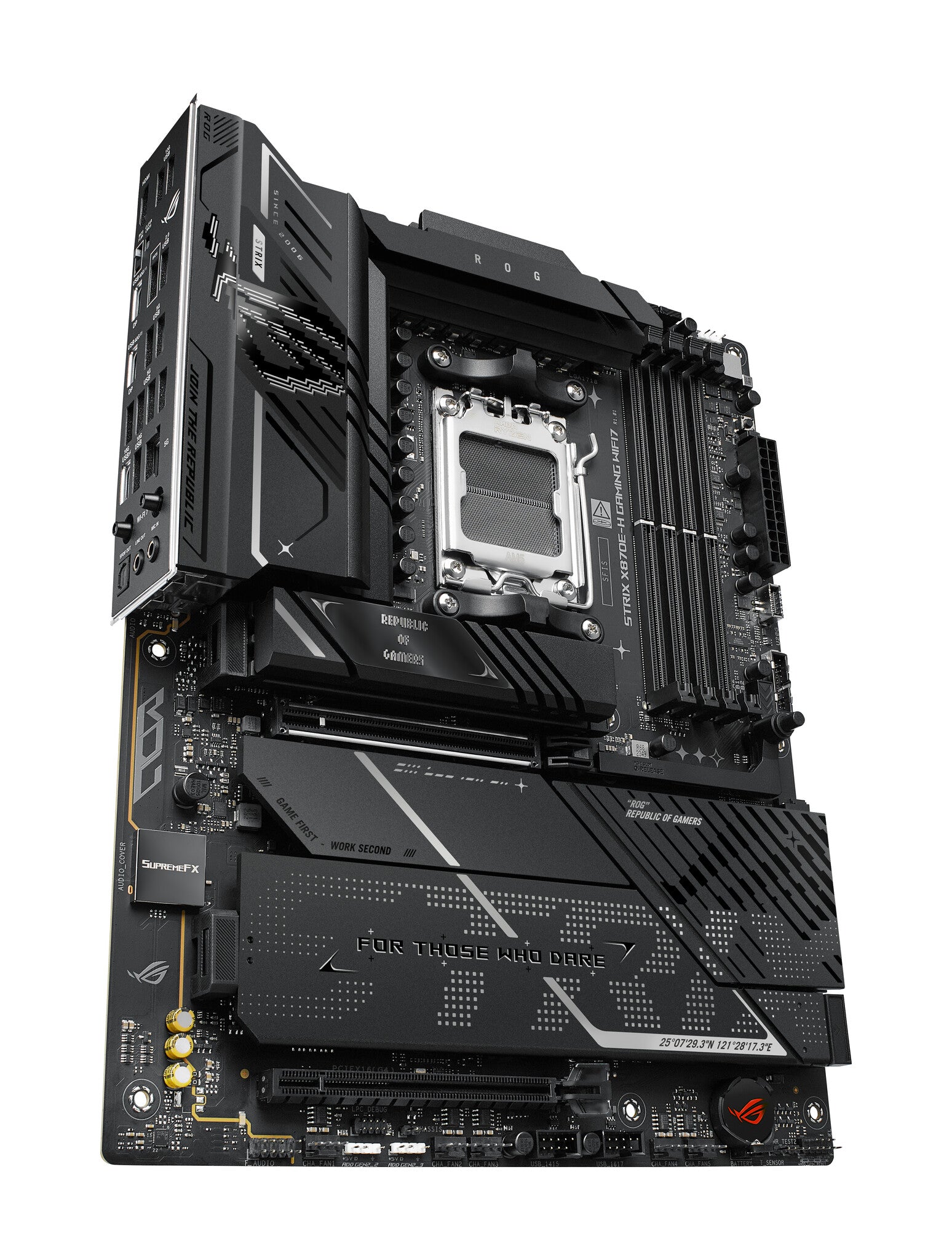

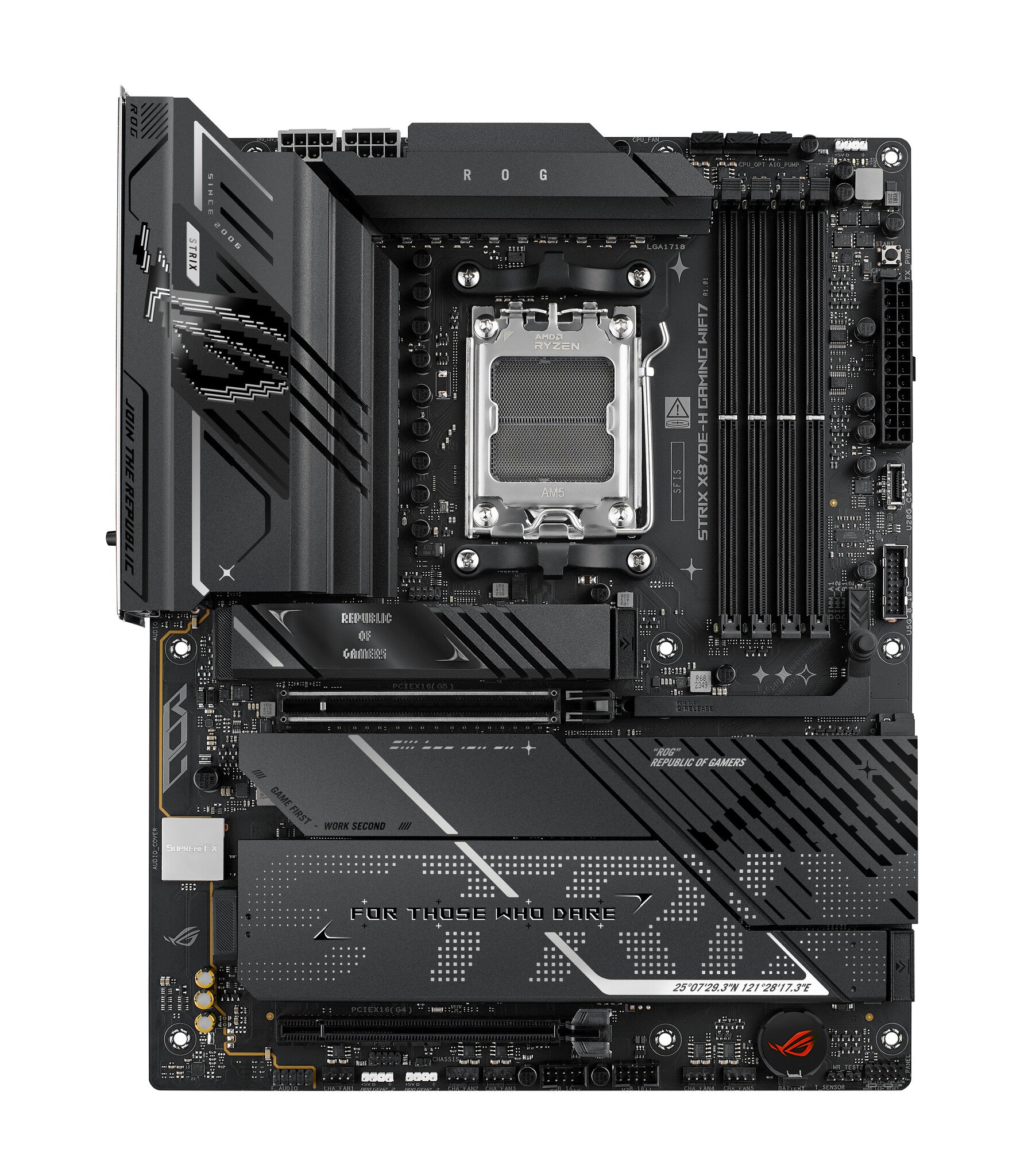

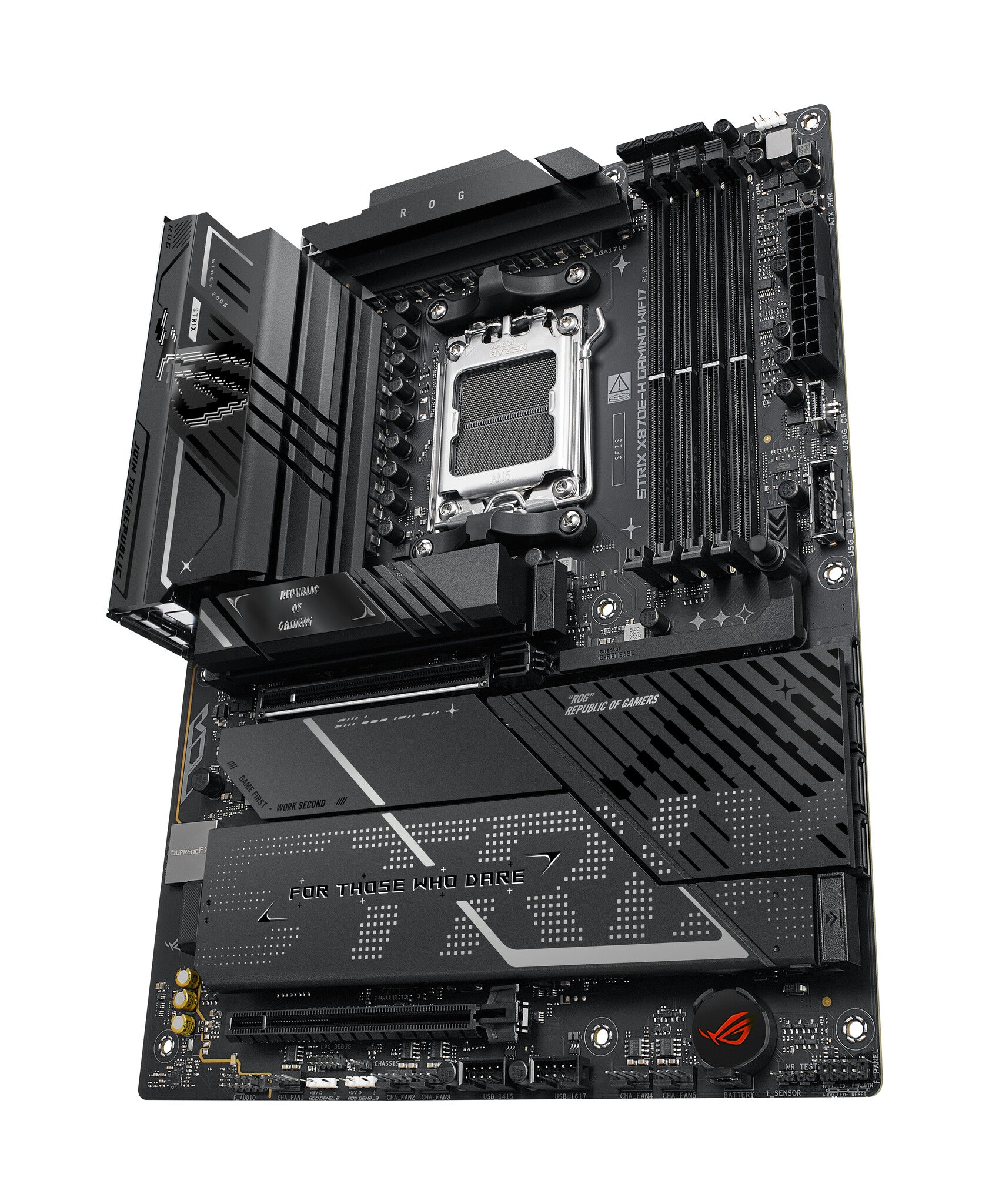

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Socket AM5 ATX

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Socket AM5 ATX

£352.99 GBP
£352.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1M90-M0EAY0

Low stock: 4 left

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E Realtek ALC1220P 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 256 Mbit
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
AMD X870E, 4 x DIMM slots, max. 256GB, DDR5

ROG STRIX X870E-H GAMING WIFI7
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 8
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 10, 5
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 5
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
Number of temperature sensor headers 1
12V power connector Yes
RGB LED pin header Yes
Number of RGB LED pin headers 3
Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB4 Gen 3x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Microphone in Yes
S/PDIF out port Yes
WiFi-AP antenna jack 1
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio chip Realtek ALC1220P
Audio output channels 7.1 channels
Product colour Black
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
4th M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 353 mm
Package depth 273 mm
Package height 68 mm
Package weight 2.07 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Packaging content
Antenna included Yes
Cables included SATA
View full details
