ASUS

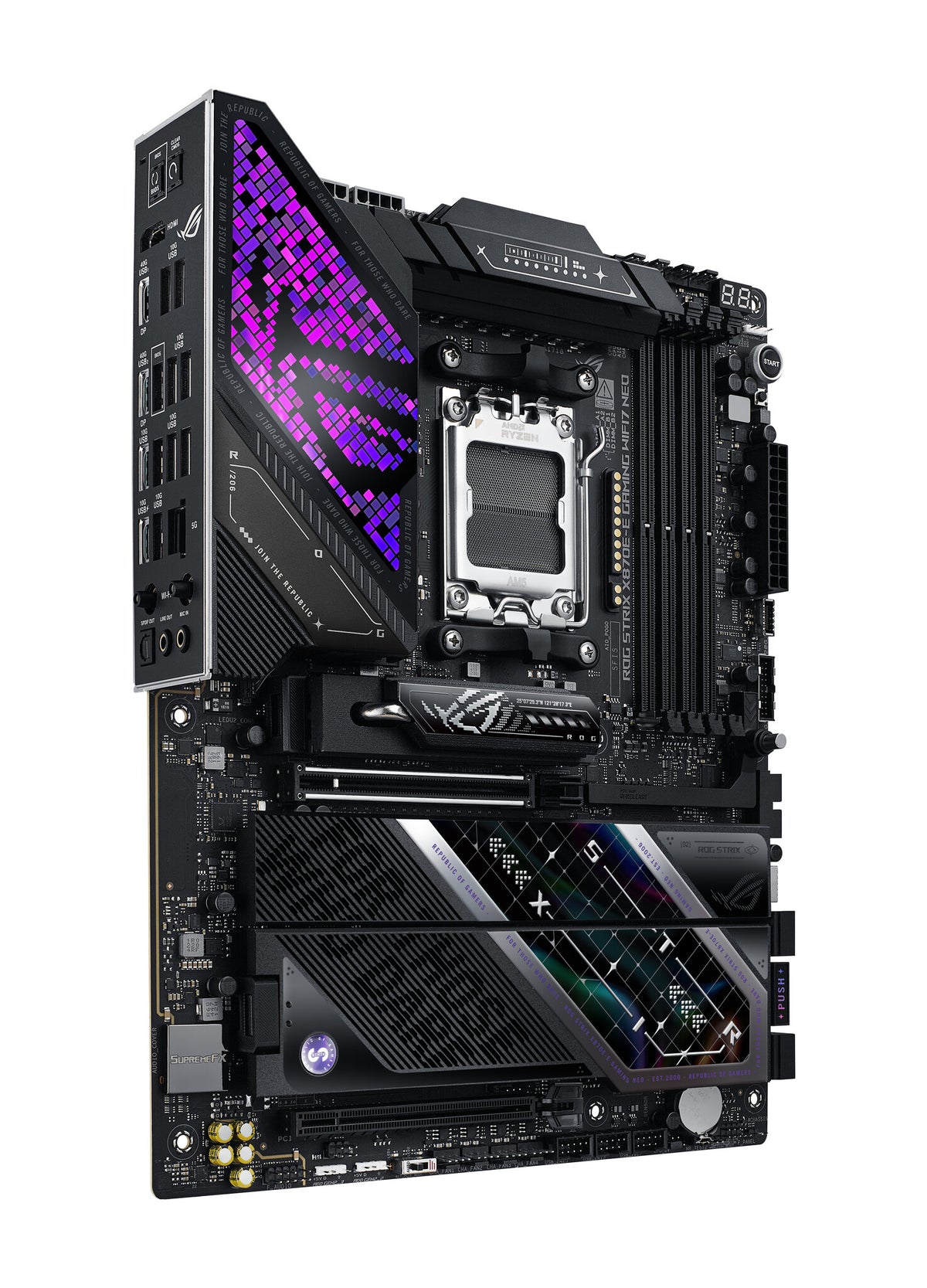

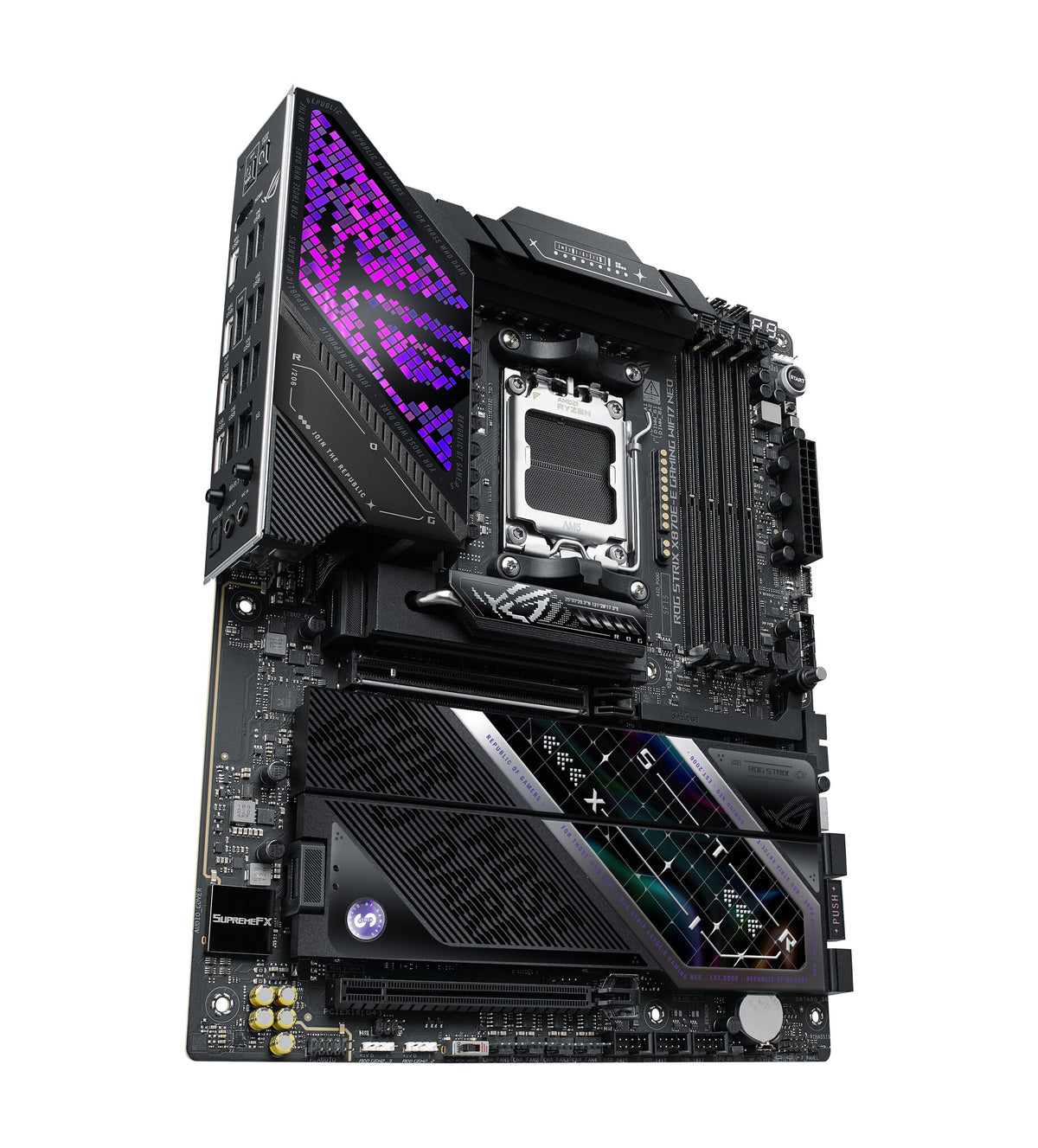

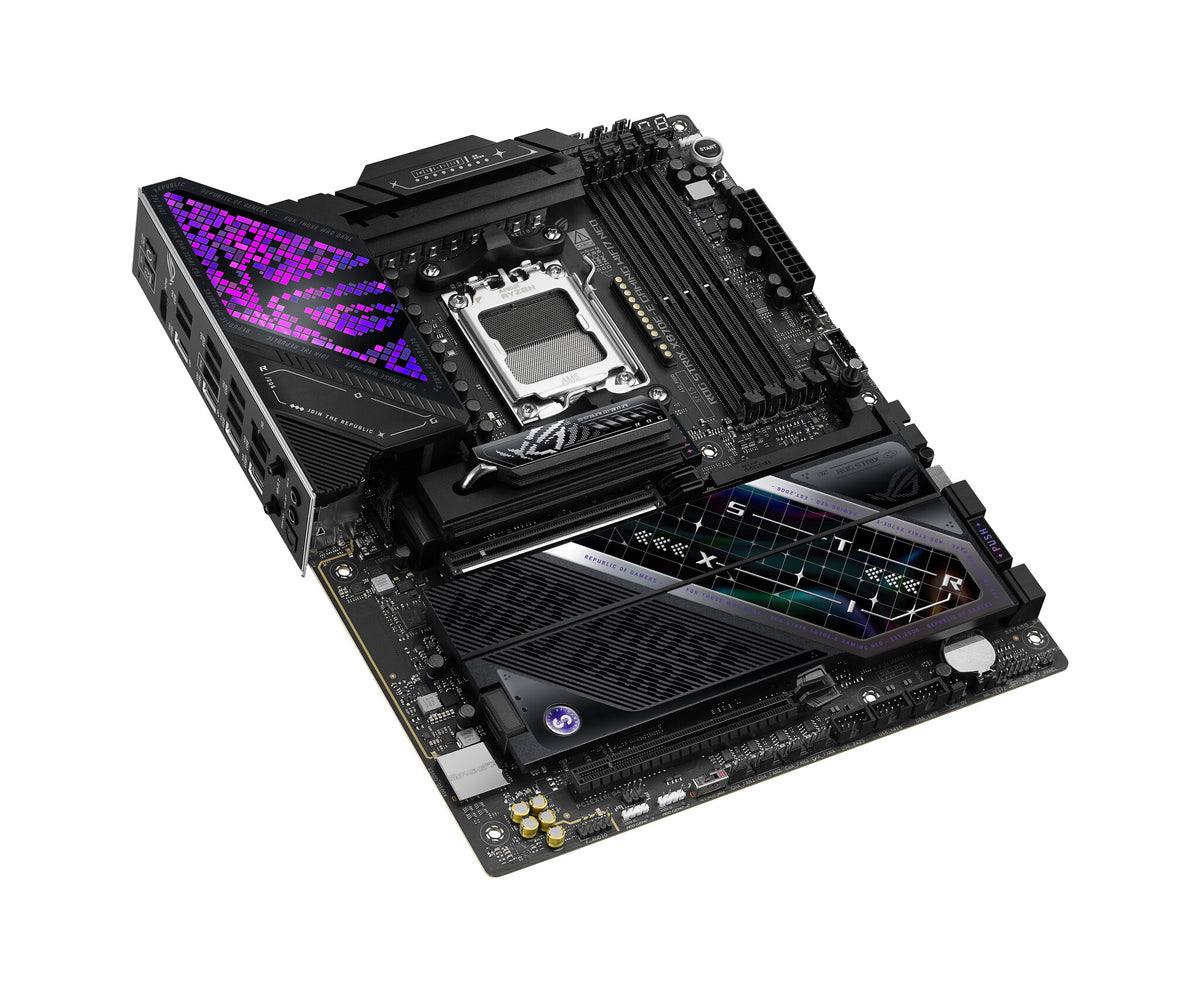

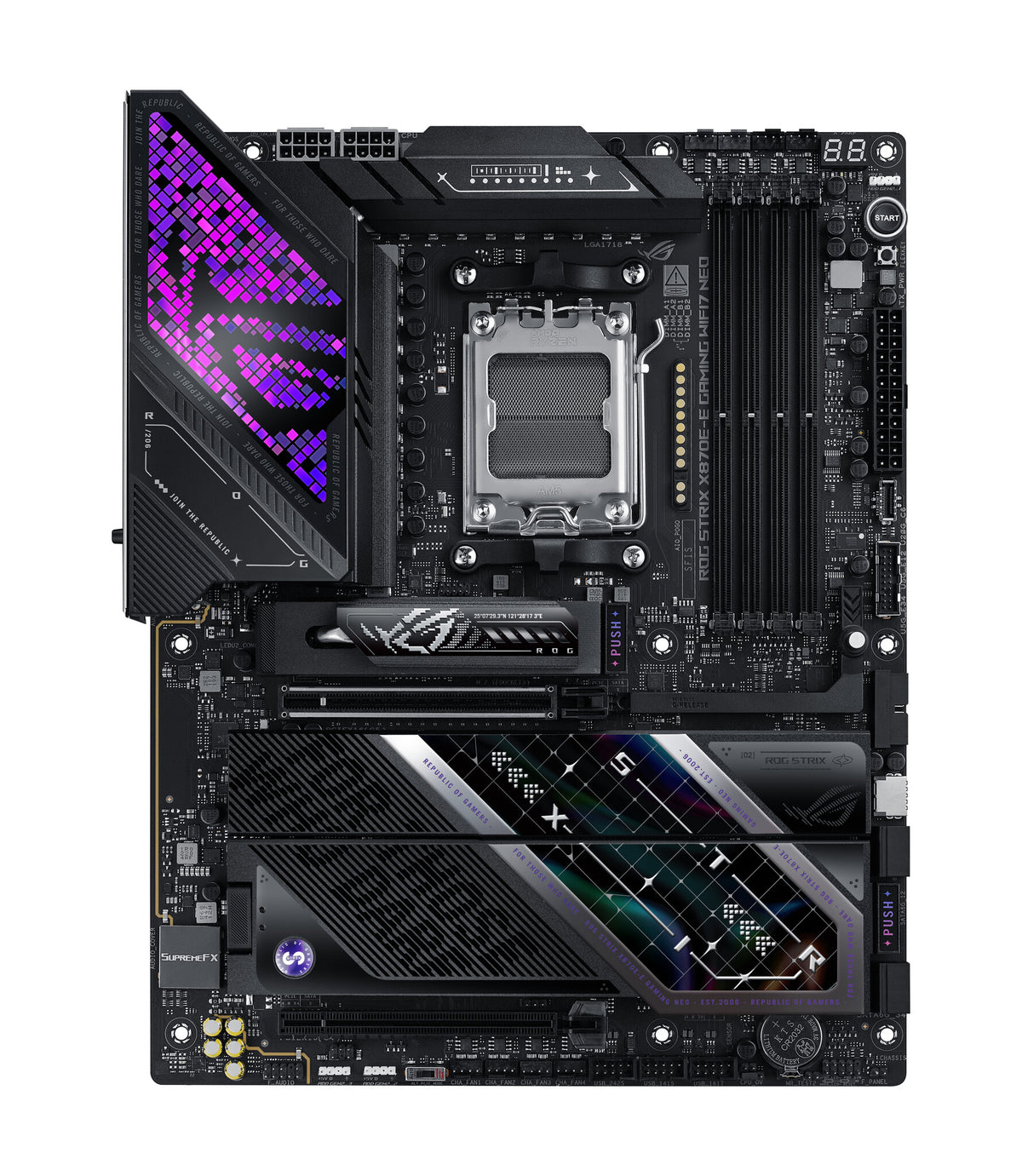

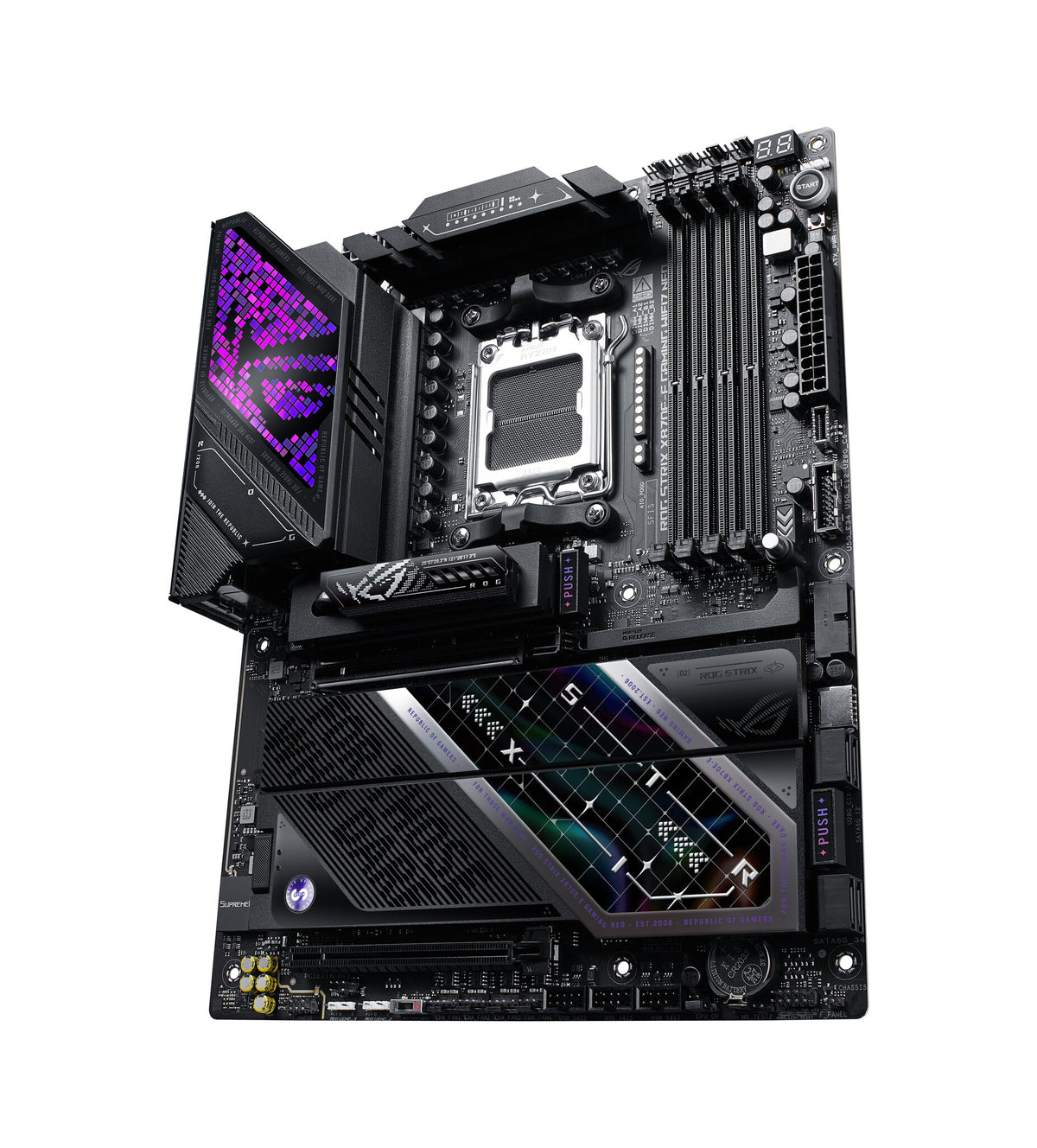

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD X870E Socket AM5 ATX

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD X870E Socket AM5 ATX

£526.06 GBP
£526.06 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1P20-M0EAY0

Low stock: 4 left

  • AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
  • PC ATX AMD X870E 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD SATA III, M.2 RAID support Number of storage drives supported: 9
  • BIOS type: UEFI AMI 64 Mbit Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth
Socket AM5, AMD X870E Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 5 x M.2(M), UEFI AMI, ATX

ROG Strix X870E-E Gaming WiFi7 Neo
The ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen™ 9000 Series processors. Enhancements such as PCIe® lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces SATA III, M.2
Number of storage drives supported 9
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2x2 connectors 2
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 5
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
12V power connector Yes
RGB LED pin header Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB4 Gen 3x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Microphone in Yes
S/PDIF out port Yes
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
WLAN controller model MediaTek MT7927
Bluetooth Yes
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio output channels 7.1 channels
Product colour Black
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 5
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
4th M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
5th M.2 largest key size 2280
5th M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 64 Mbit
Clear CMOS button Yes
Packaging data
Package width 353 mm
Package depth 273 mm
Package height 68 mm
Package weight 2.7 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Packaging content
Screws included Yes
Antenna included Yes
Cables included SATA
Other features
Weight 1.9 kg
