1 5

ASUS

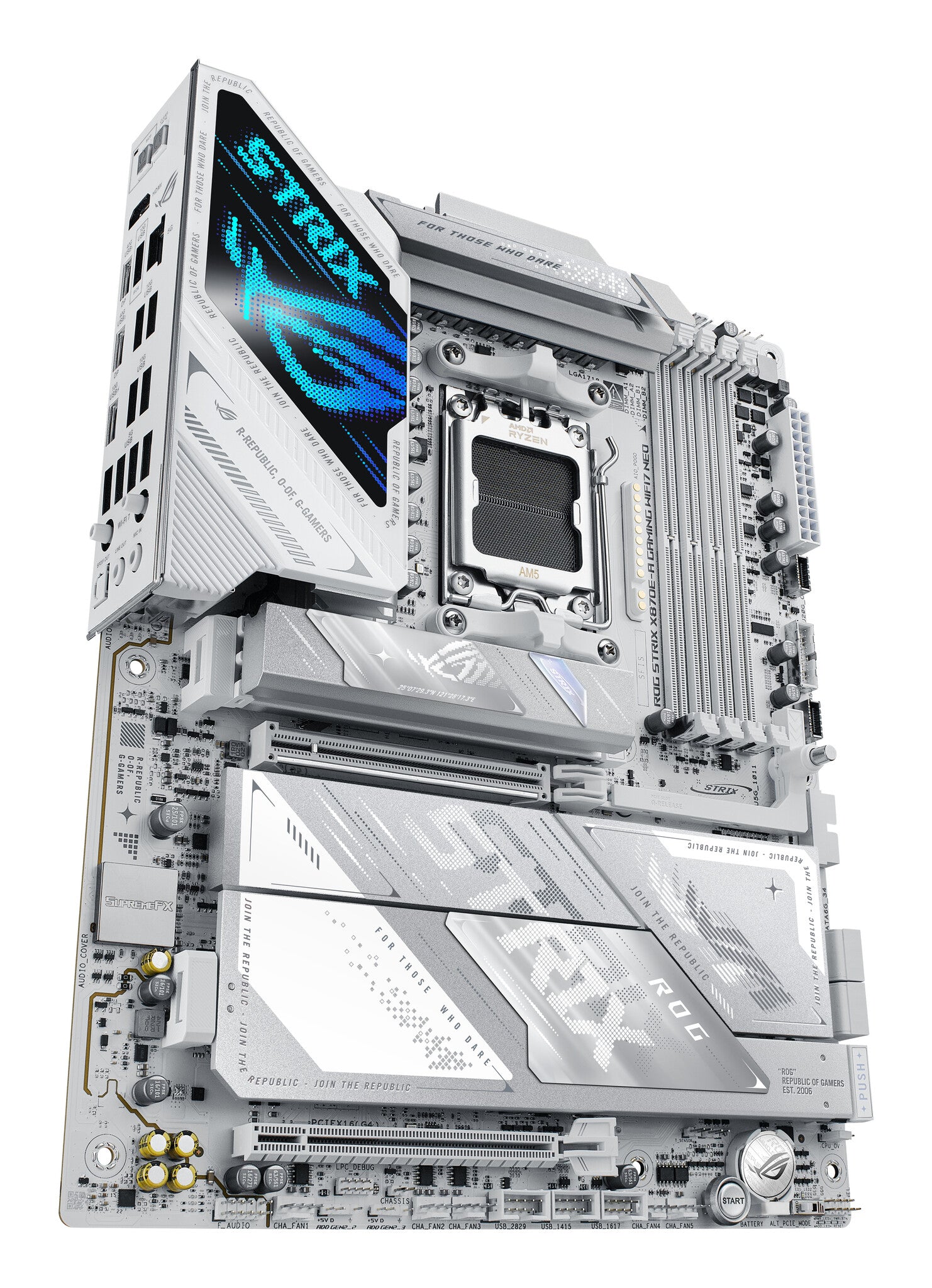

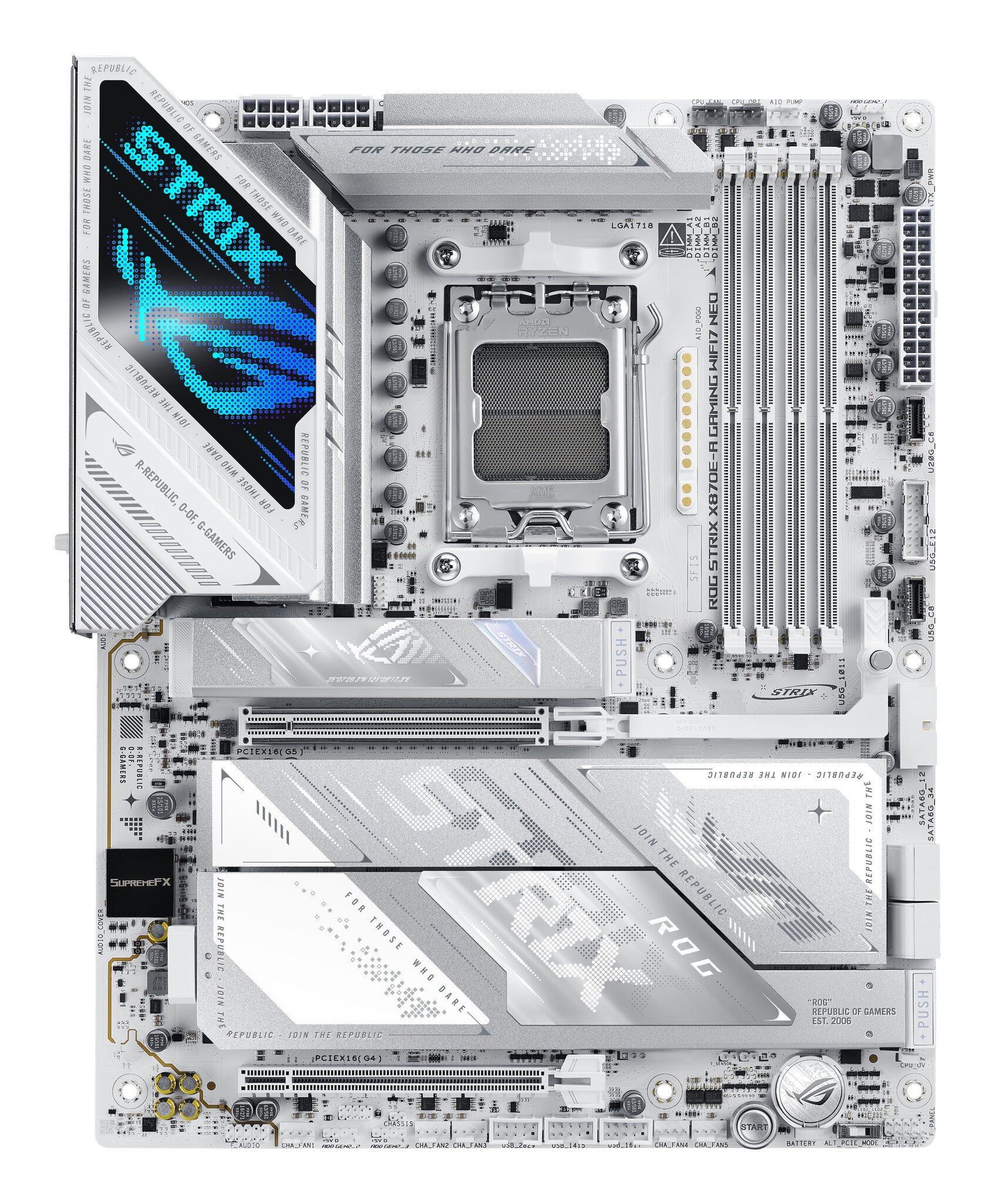

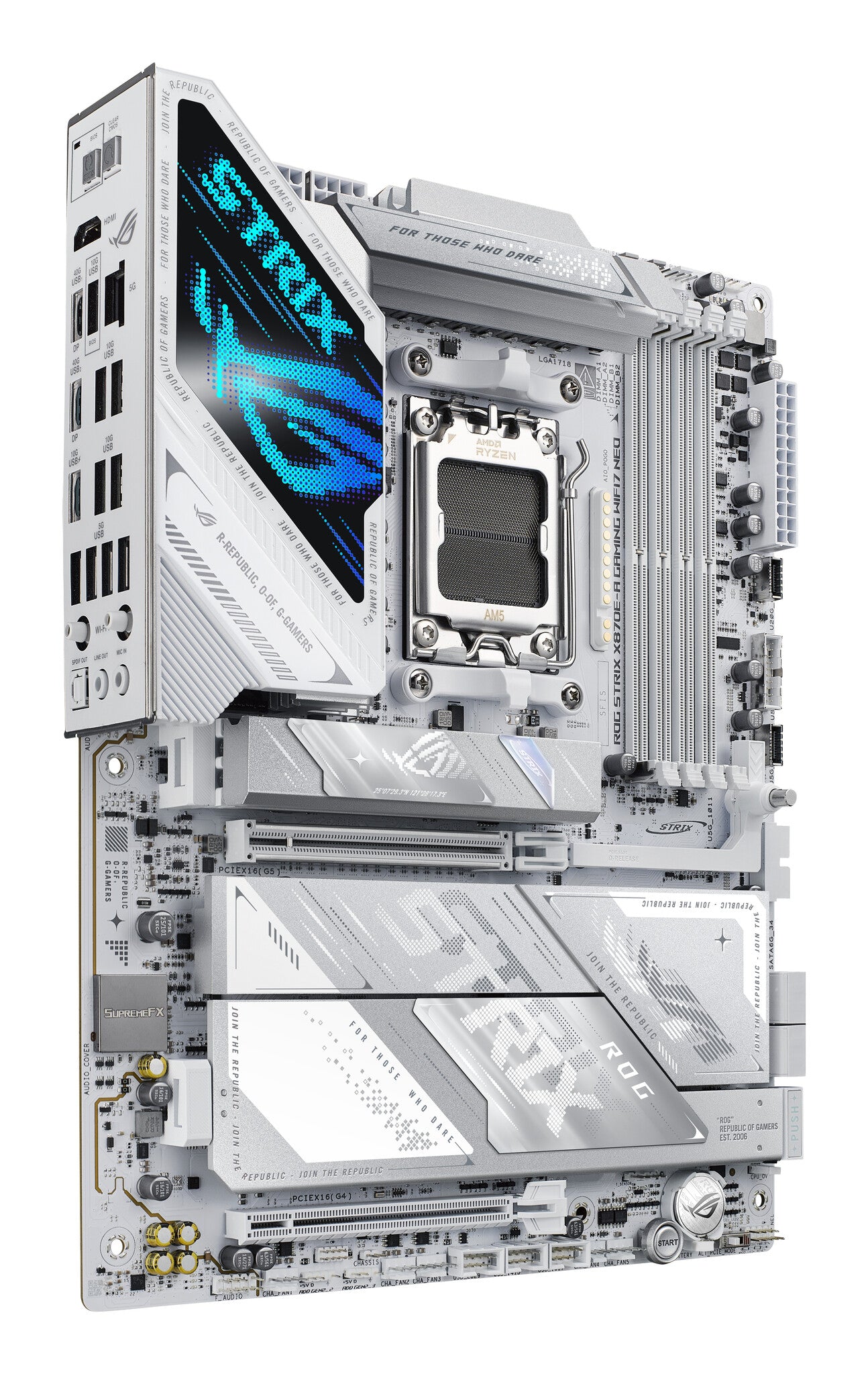

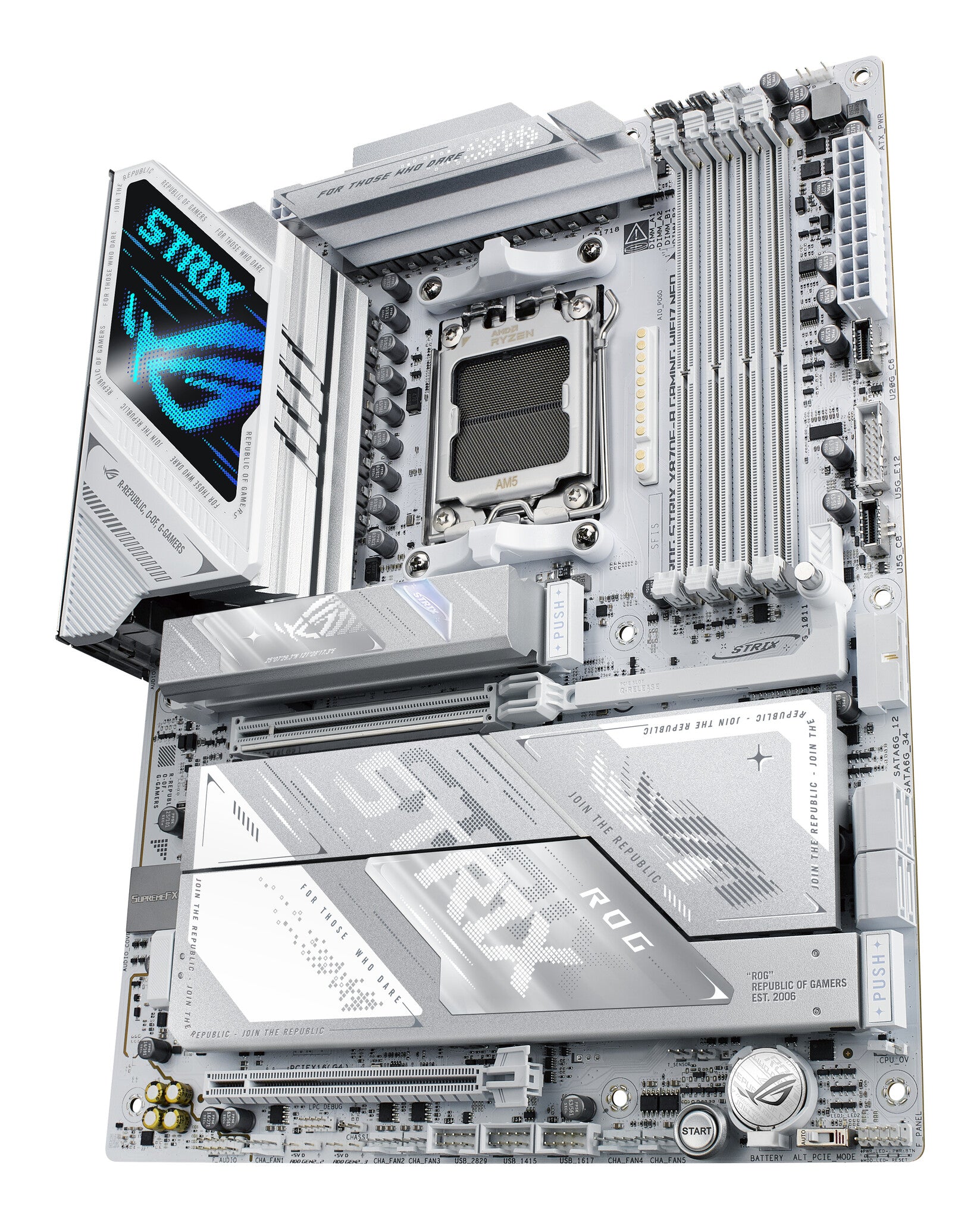

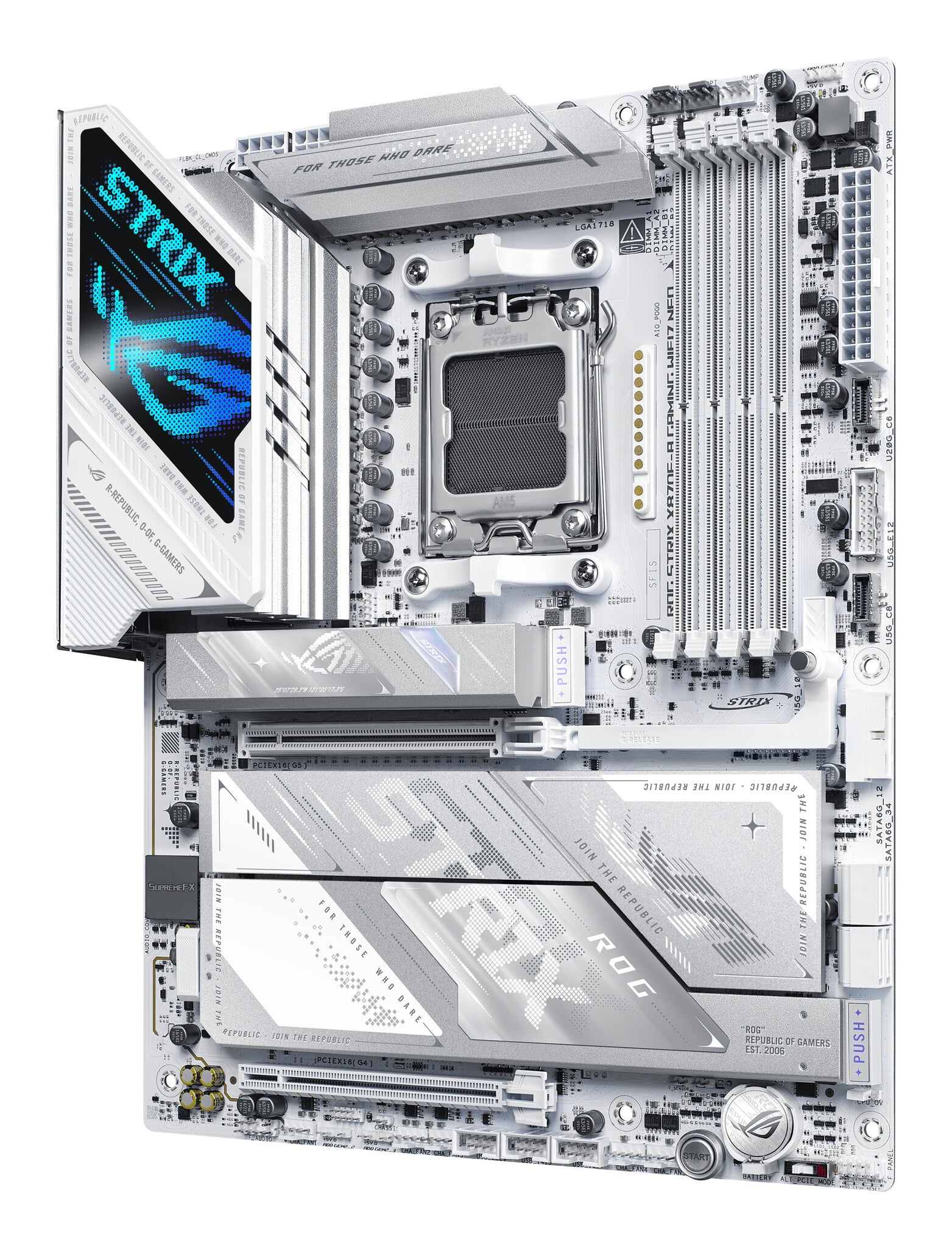

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO AMD X870E Socket AM5 ATX

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO AMD X870E Socket AM5 ATX

£421.12 GBP
£421.12 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1P30-M0EAY0

Low stock: 2 left

  • AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
  • PC ATX AMD X870E 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD SATA III, M.2 RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 64 Mbit Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
AMD X870E, Socket AM5, 4 x DIMM slots, max. 256GB DDR5, Realtek 5Gb Ethernet, Wi-Fi 7, UEFI AMI BIOS, ATX

ROG STRIX X870E-A gaming wifi7 Neo
Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speed (max) 9600 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces SATA III, M.2
Number of storage drives supported 8
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2x2 connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 5
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
12V power connector Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB4 Gen 3x2 ports quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Microphone in Yes
S/PDIF out port Yes
WiFi-AP antenna jack 1
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
WLAN controller model MediaTek MT7925
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio output channels 7.1 channels
Product colour Multicolour
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2260
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 2242
3rd M.2 highest PCI Express generation 5.0
4th M.2 largest key size 22110
4th M.2 highest PCI Express generation 5.0
BIOS
BIOS type UEFI AMI
BIOS memory size 64 Mbit
Clear CMOS button Yes
Packaging data
Package width 353 mm
Package depth 273 mm
Package height 68 mm
Package weight 2.7 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 50 mm
Other features
Weight 1.9 kg
