ASUS

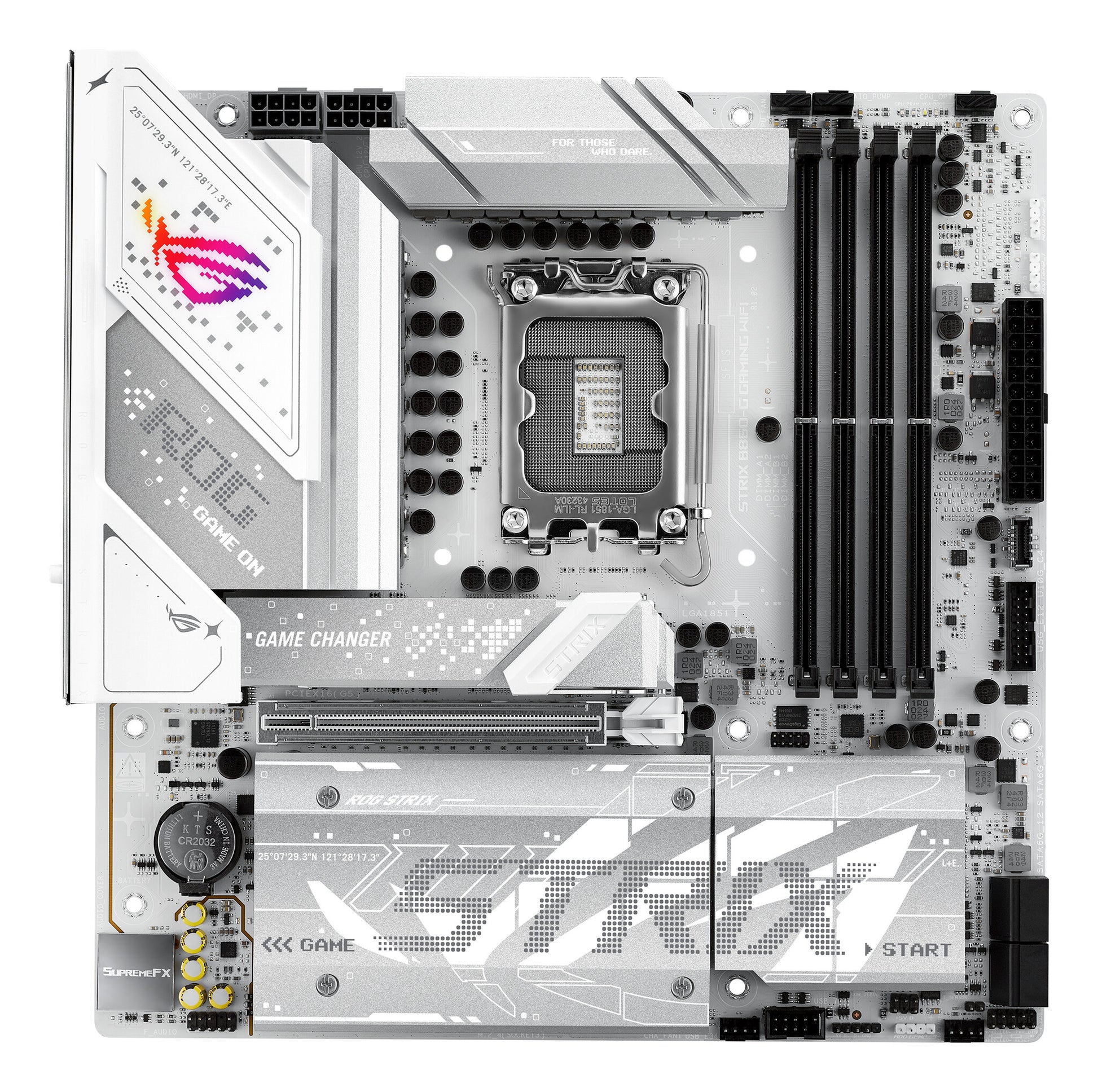

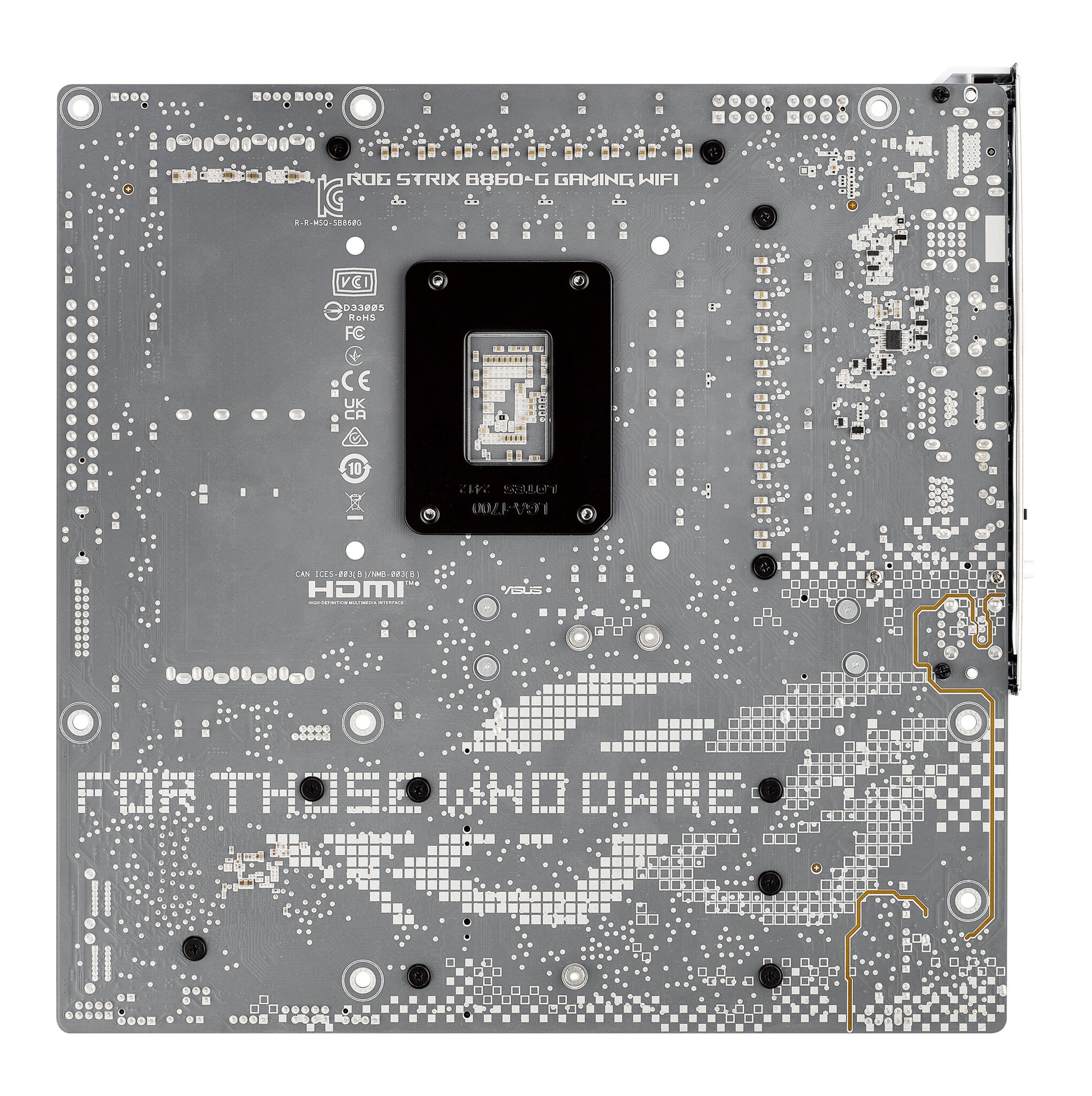

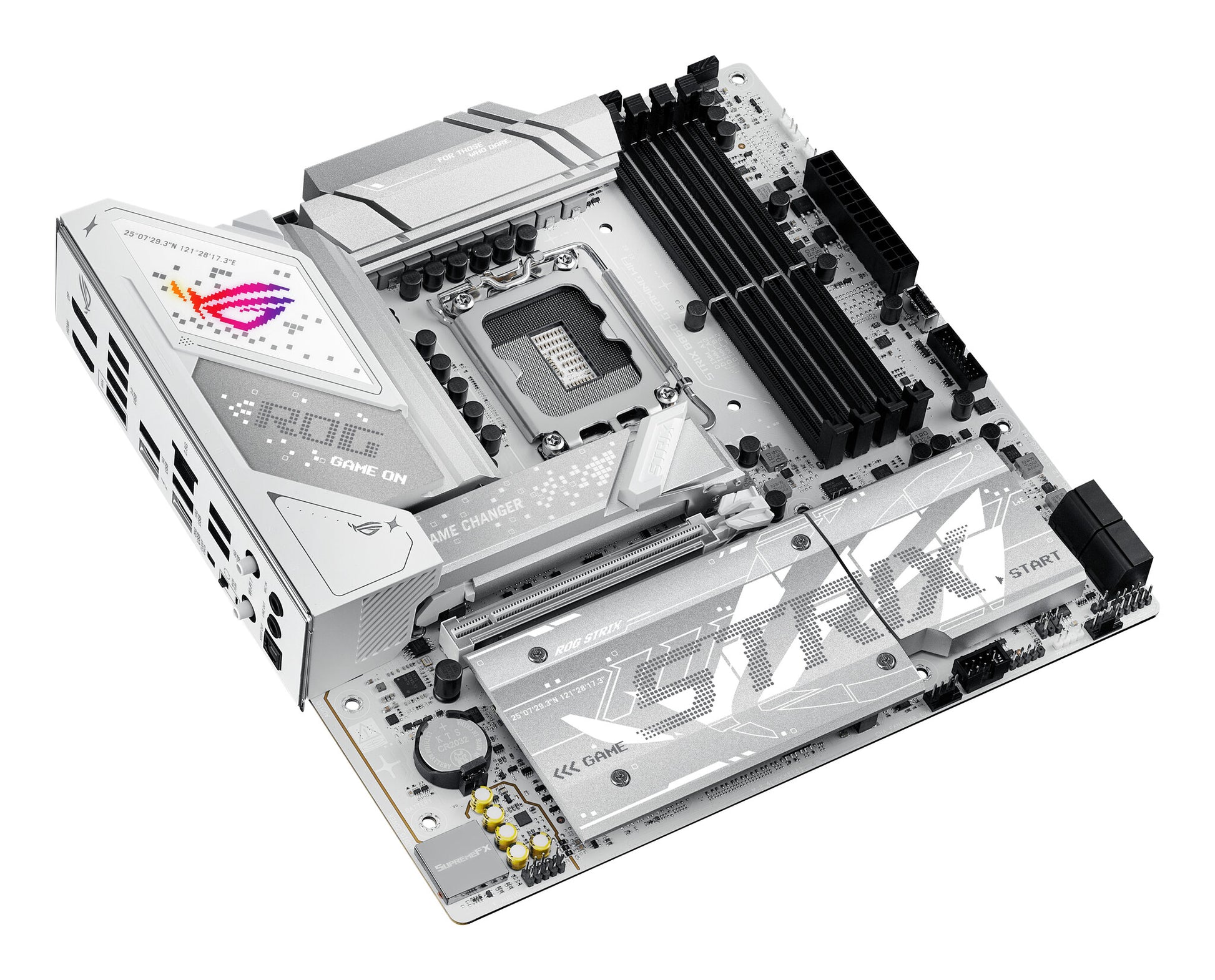

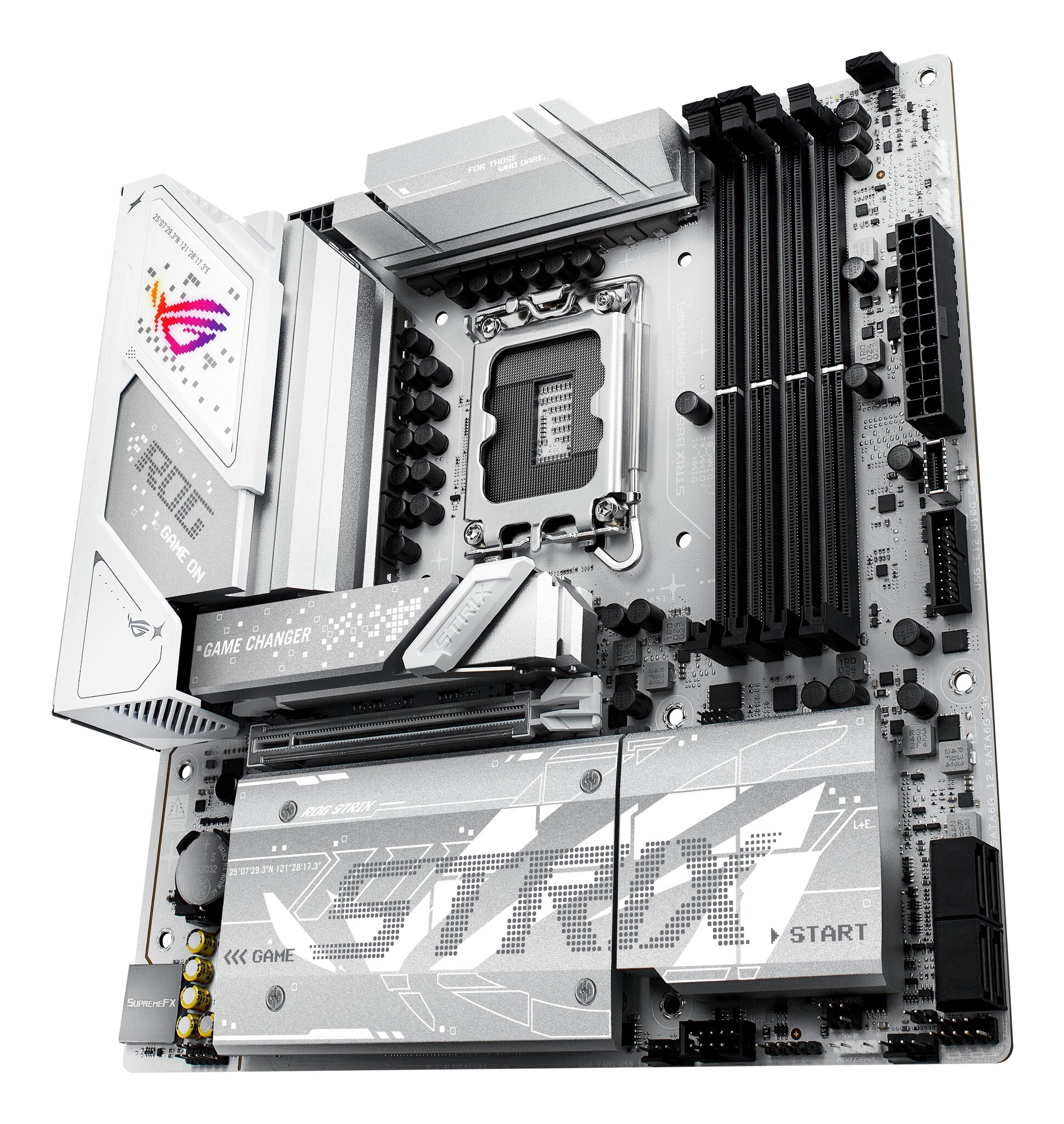

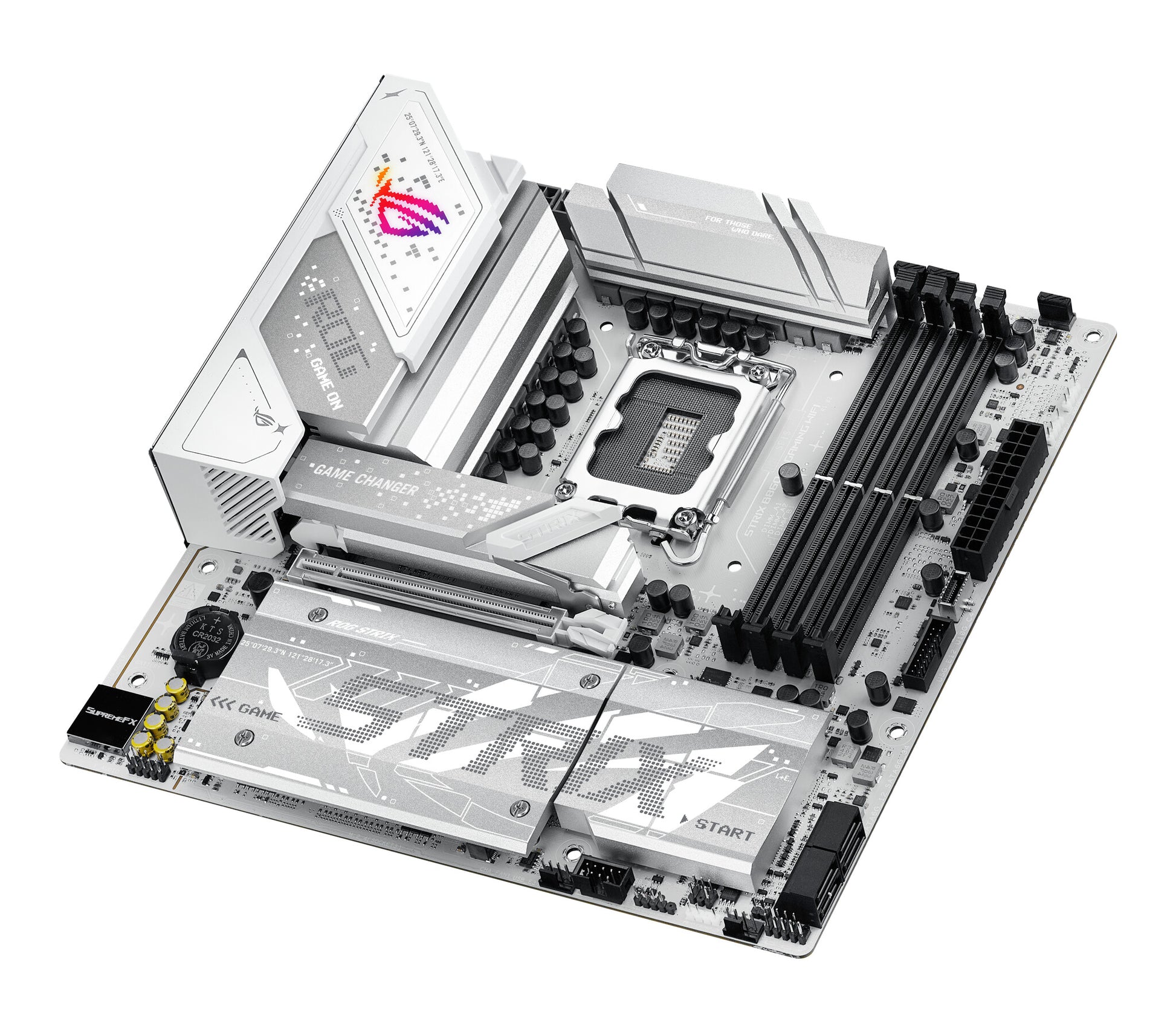

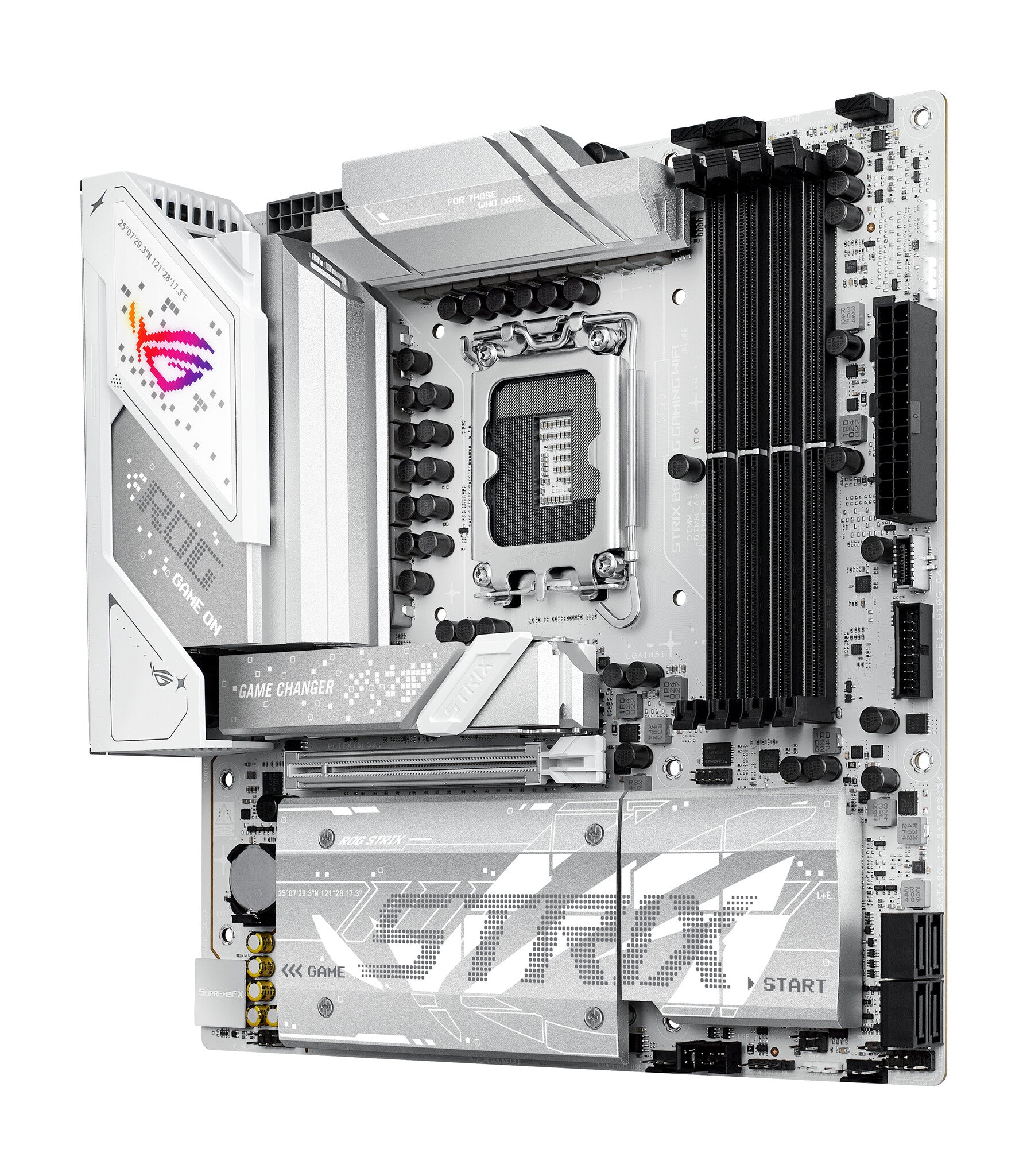

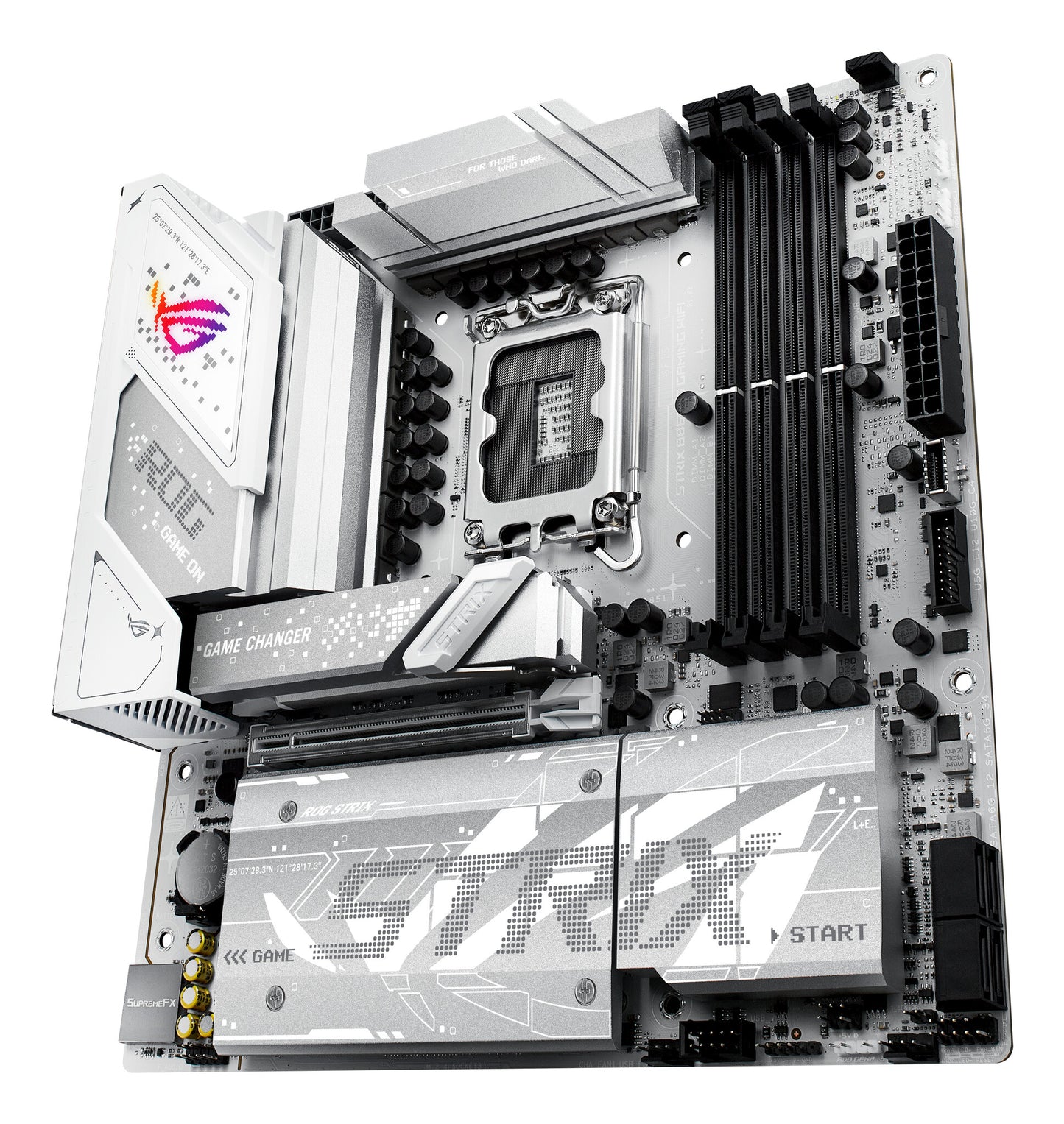

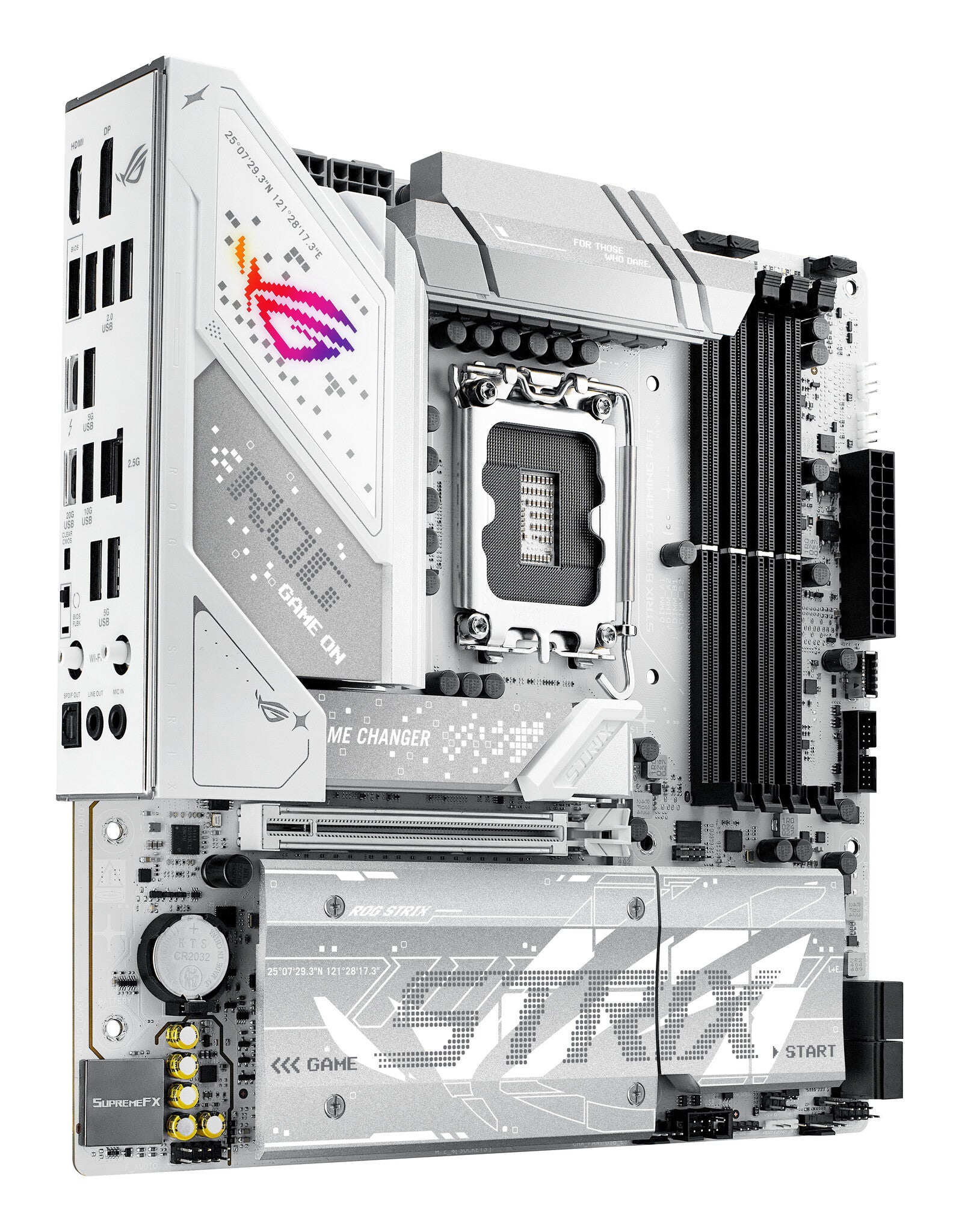

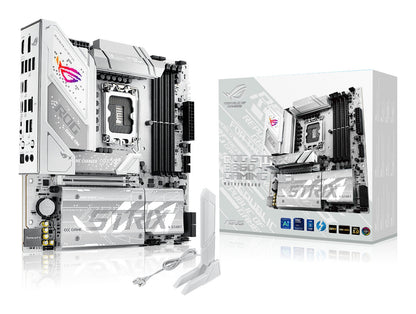

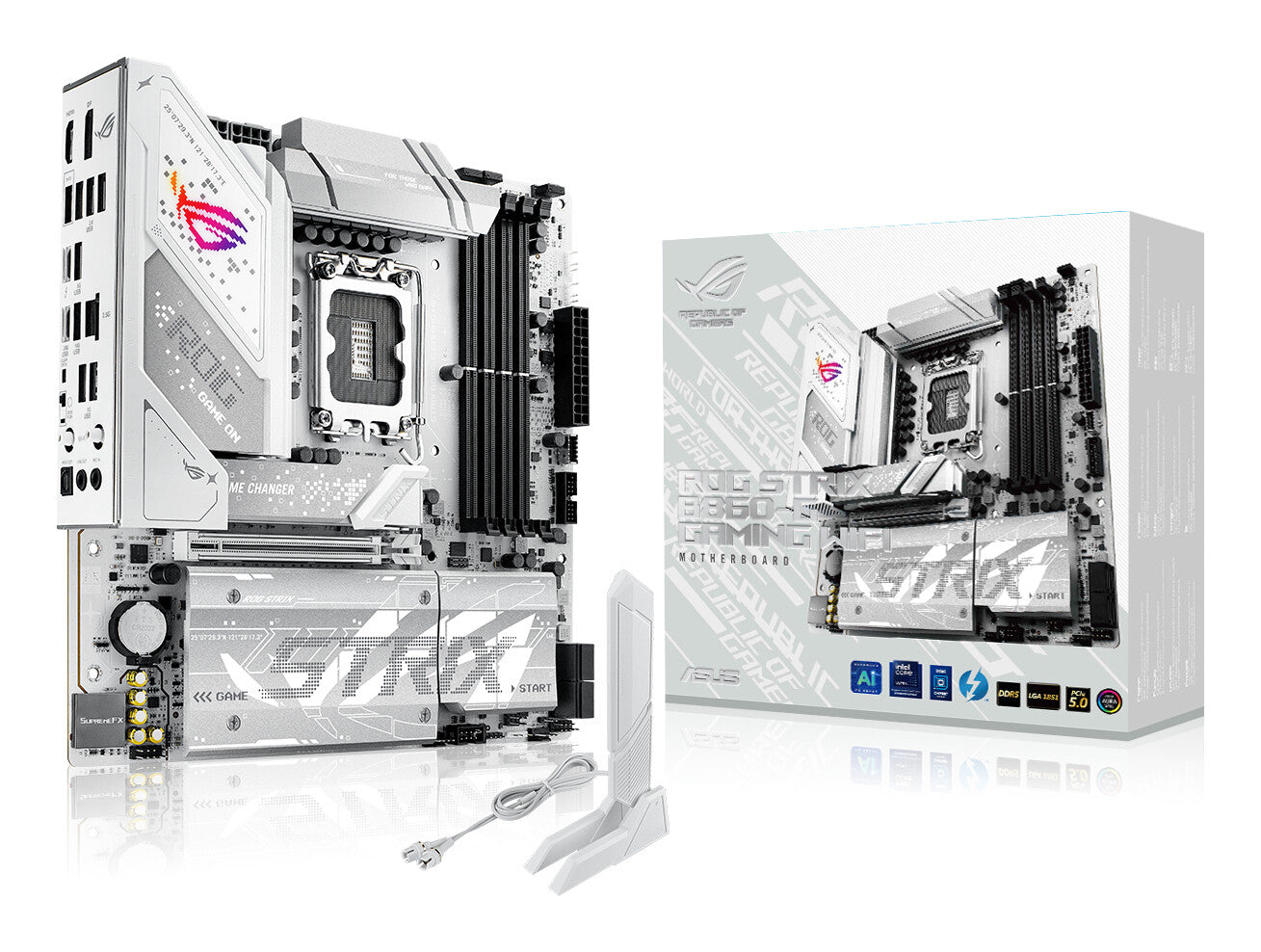

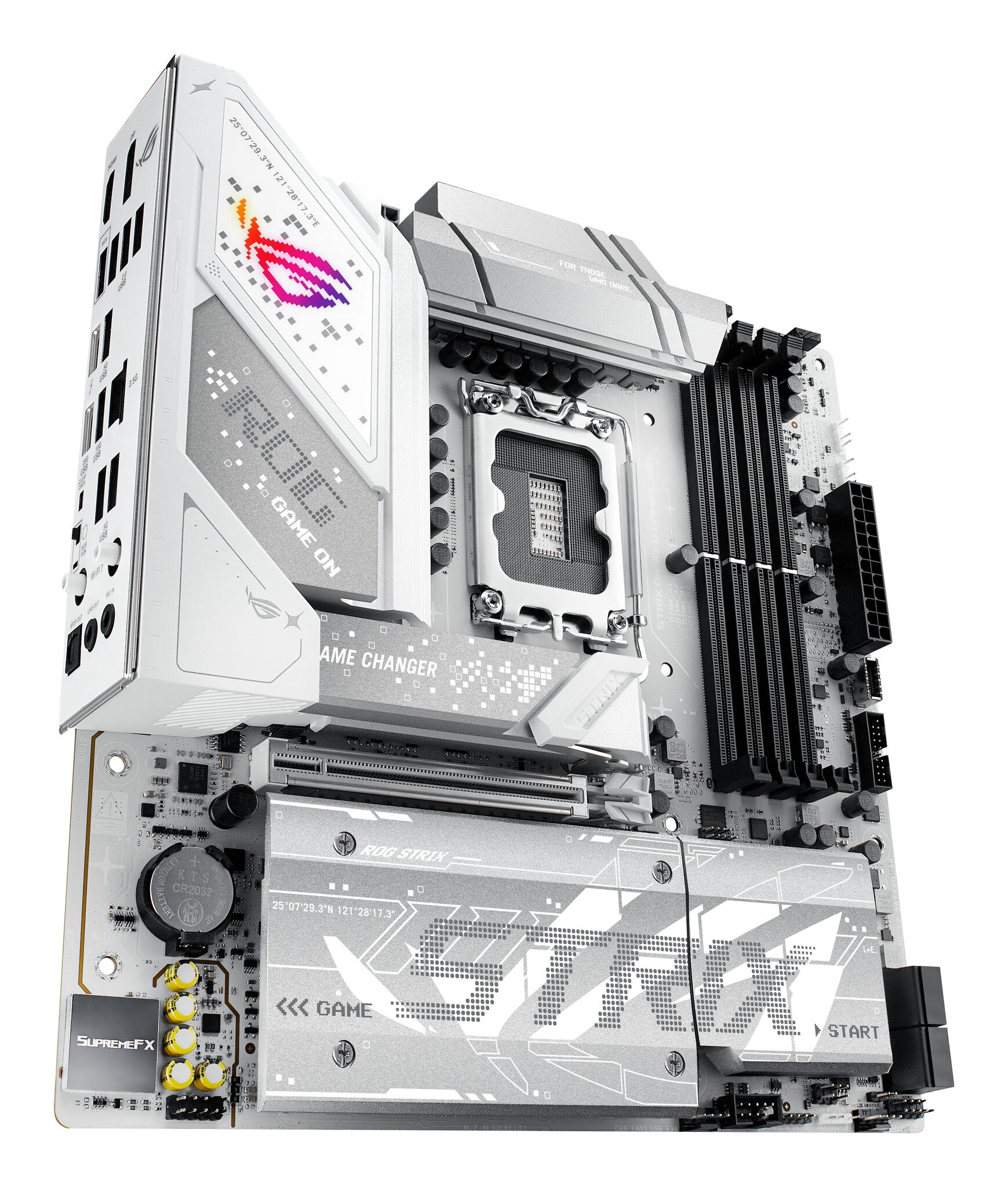

ASUS ROG STRIX B860-G GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS ROG STRIX B860-G GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

£207.82 GBP
£207.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1JF0-M0EAY0

Low stock: 6 left

  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 Realtek ALC1220P 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 256 Mbit Clear CMOS button
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Intel B860, 4 x DIMM slots, max. 256GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, micro-ATX

ROG STRIX B860-G gaming wifi
Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, the ROG Strix B860-G offers blazing-fast data transfers, outstanding connectivity, and a flexible aesthetic that adapts to bold or subtle preferences. Designed to meet the demands of elite gaming and advanced AI PC applications, it delivers the performance and speed you need.

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speed (max) 9066 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 8
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 2
EPS power connector (8-pin) Yes
12V power connector Yes

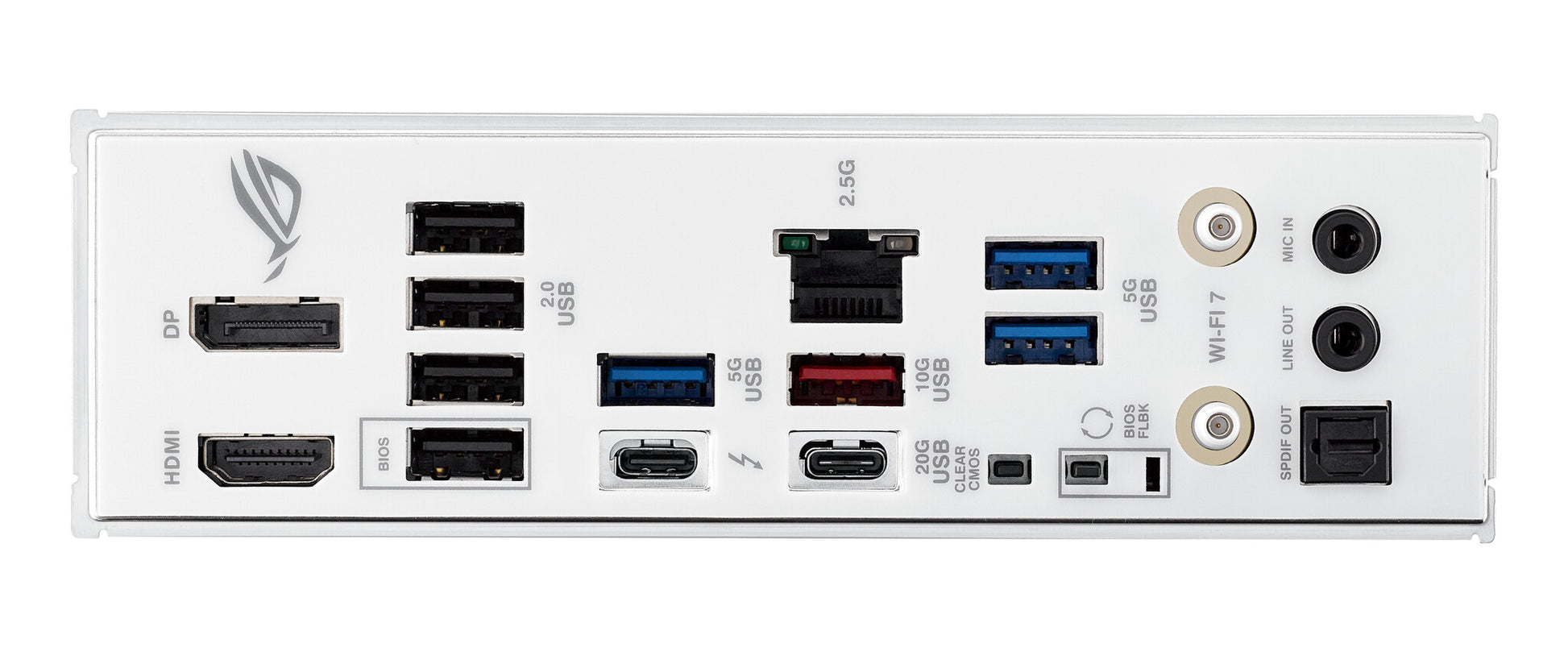

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
Microphone in Yes
S/PDIF out port Yes
Thunderbolt ports quantity 1
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B860
Audio chip Realtek ALC1220P
Audio output channels 7.1 channels
Product colour White
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 4
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Yes
Packaging data
Package width 285 mm
Package depth 274 mm
Package height 72.5 mm
Package weight 2.12 kg
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 50 mm
Other features
Weight 1.23 kg
