ASUS

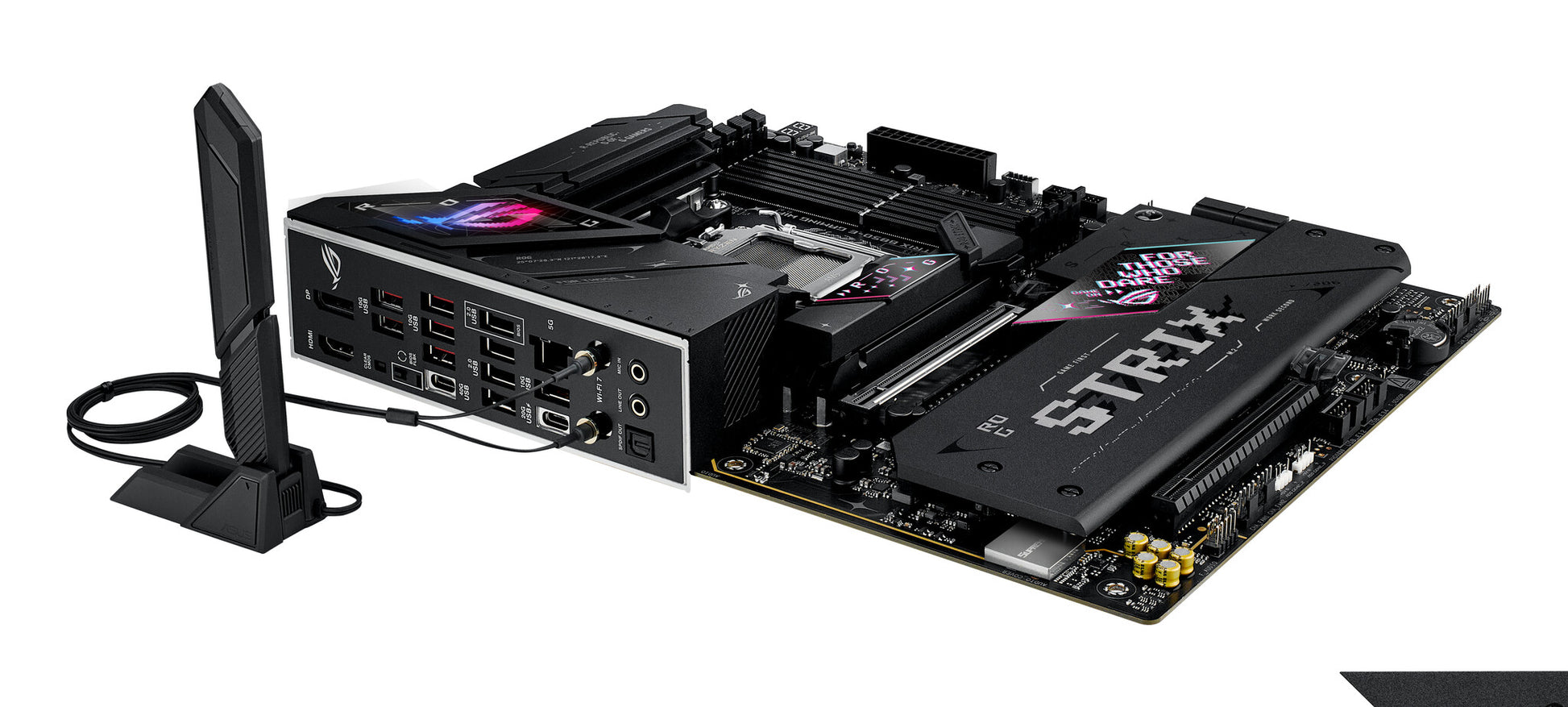

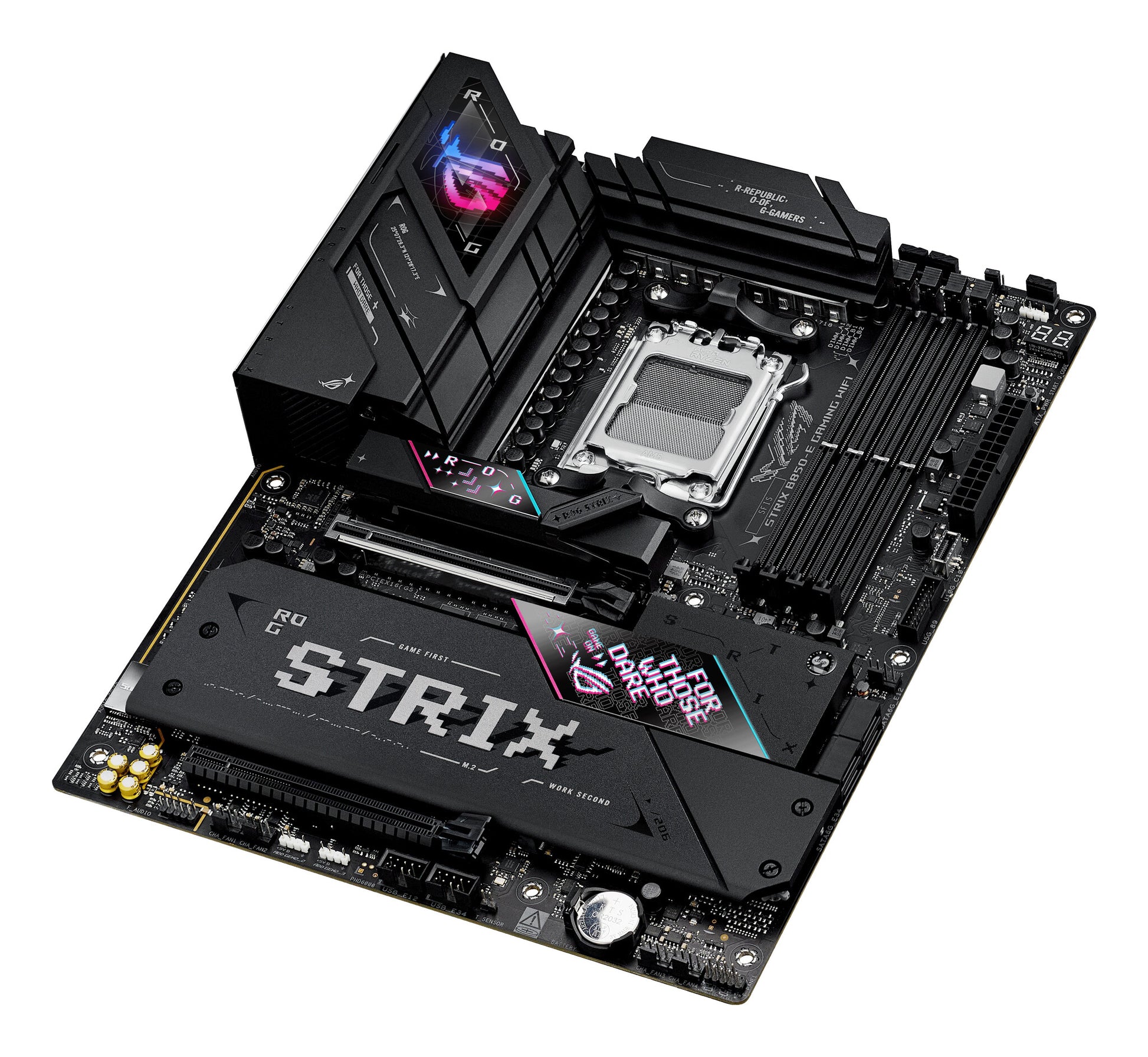

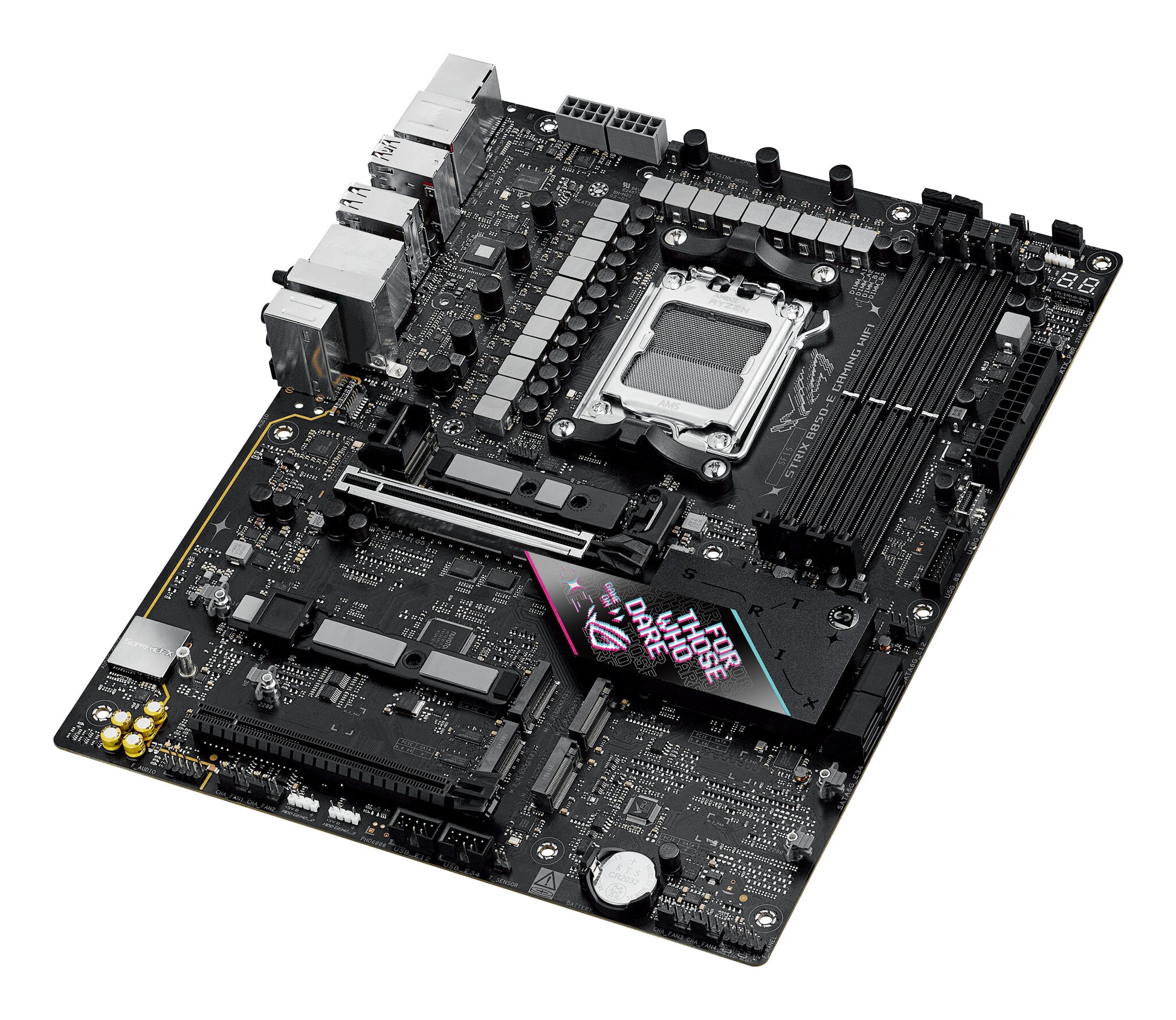

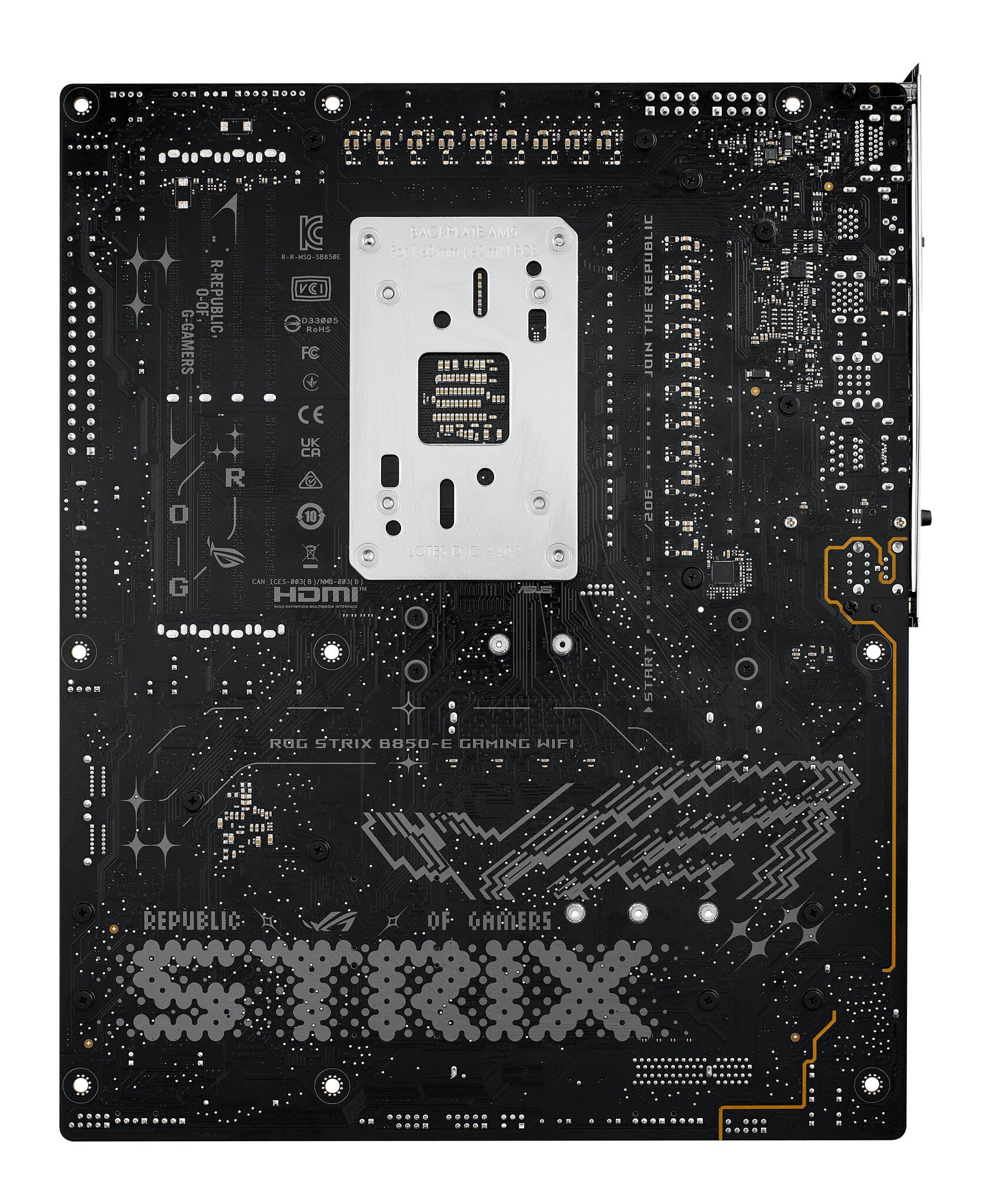

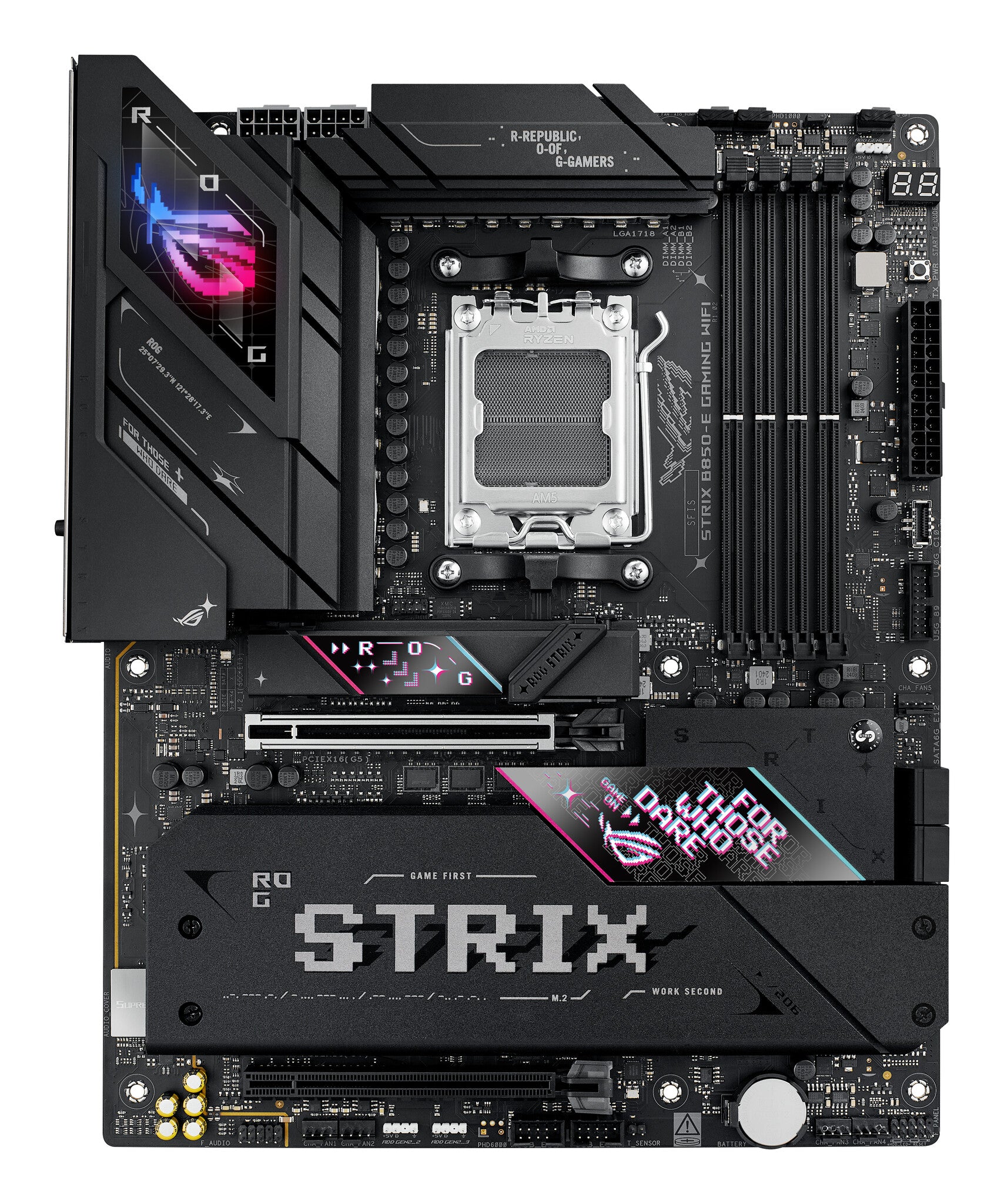

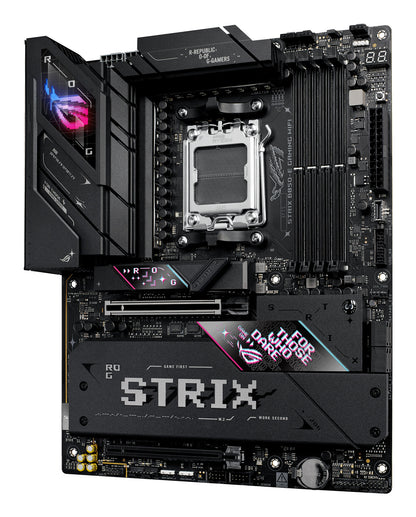

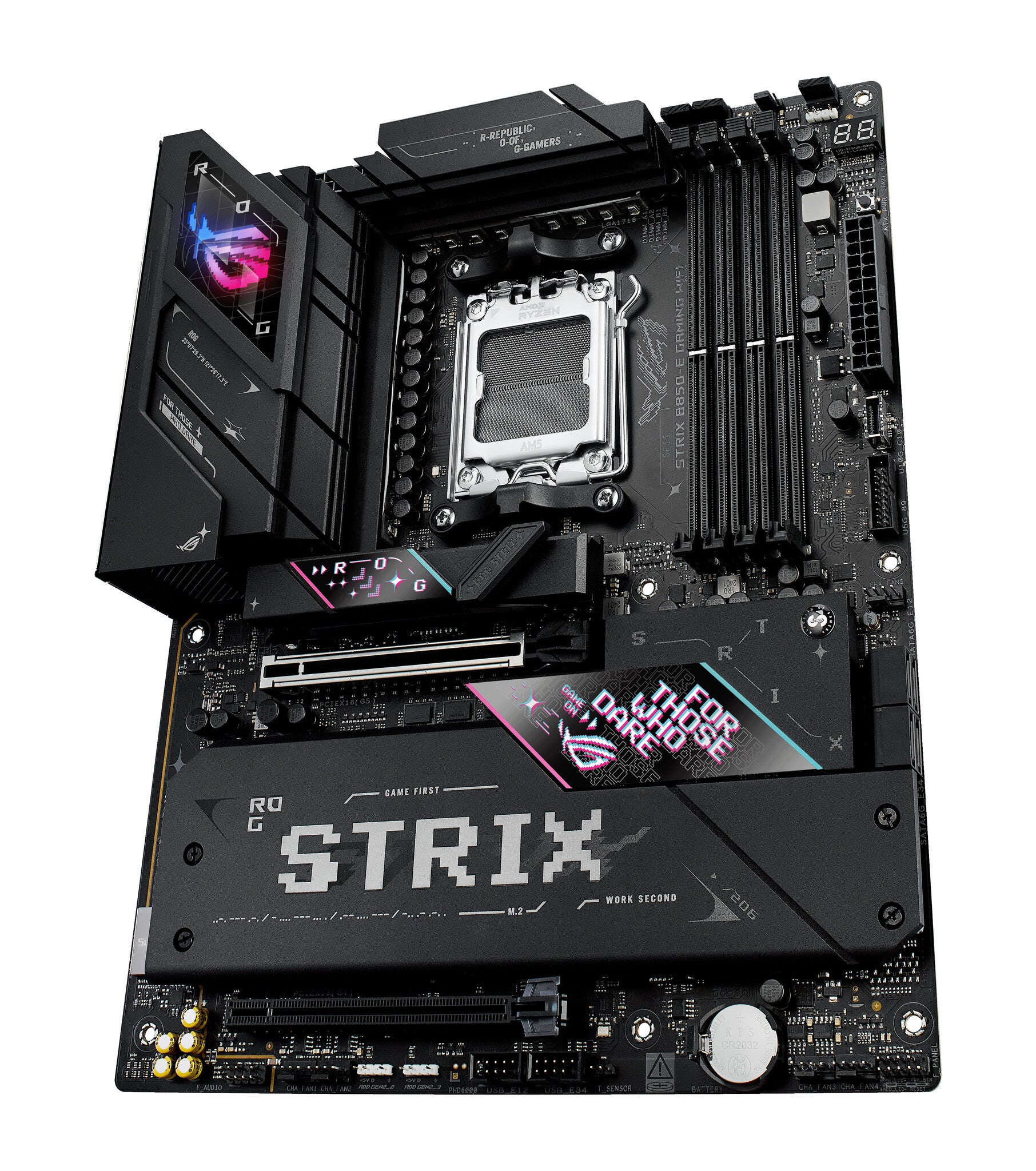

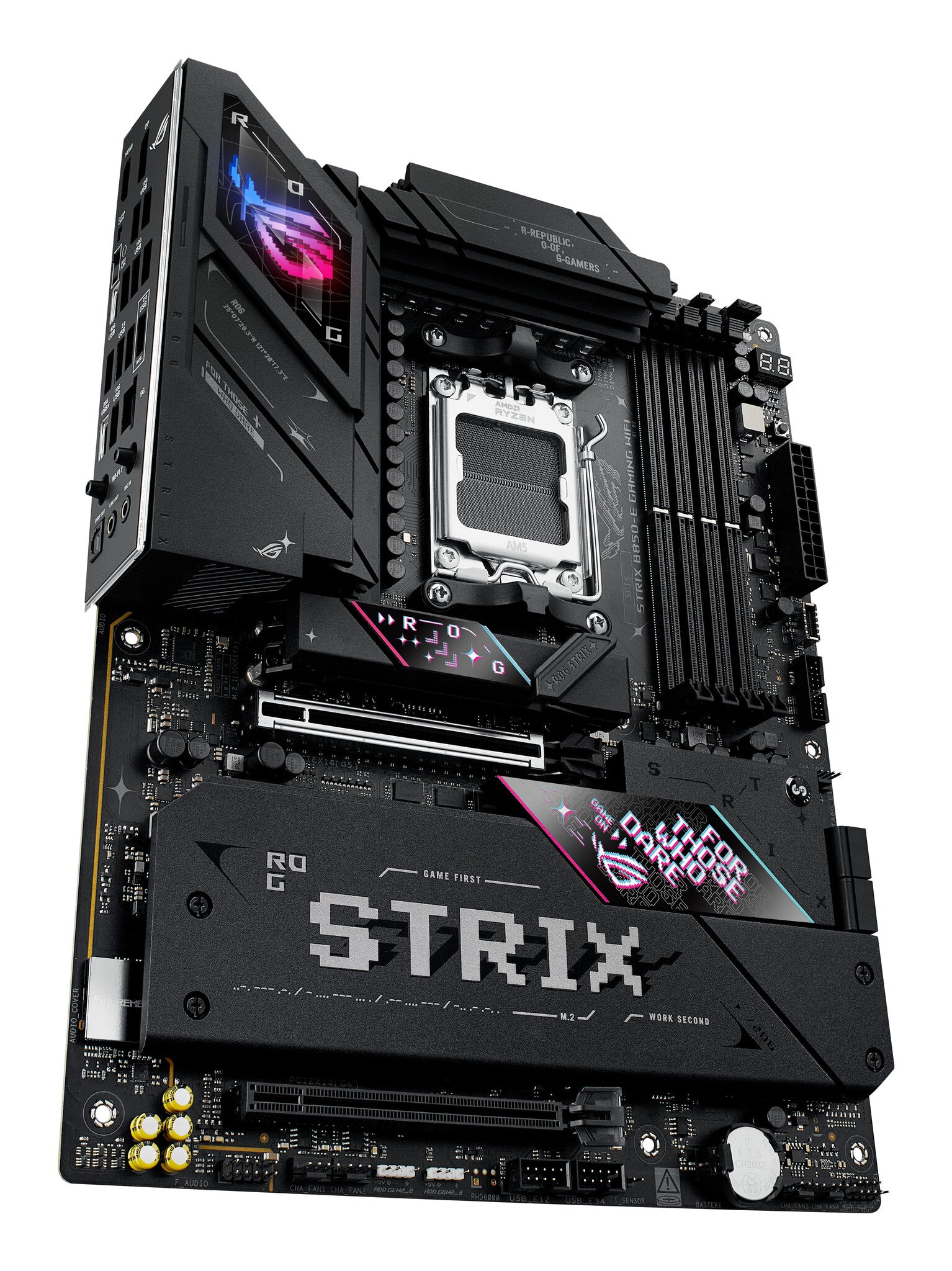

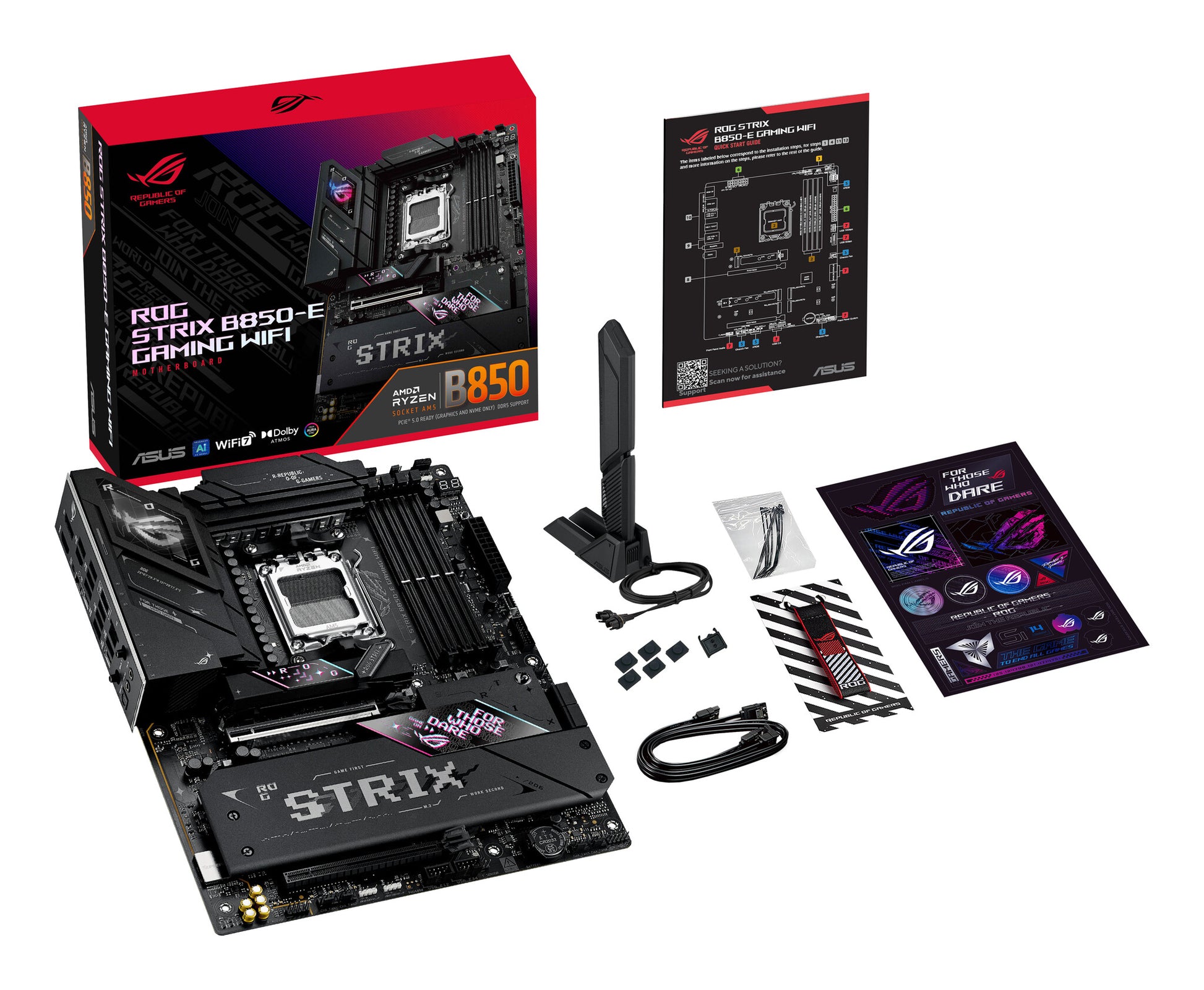

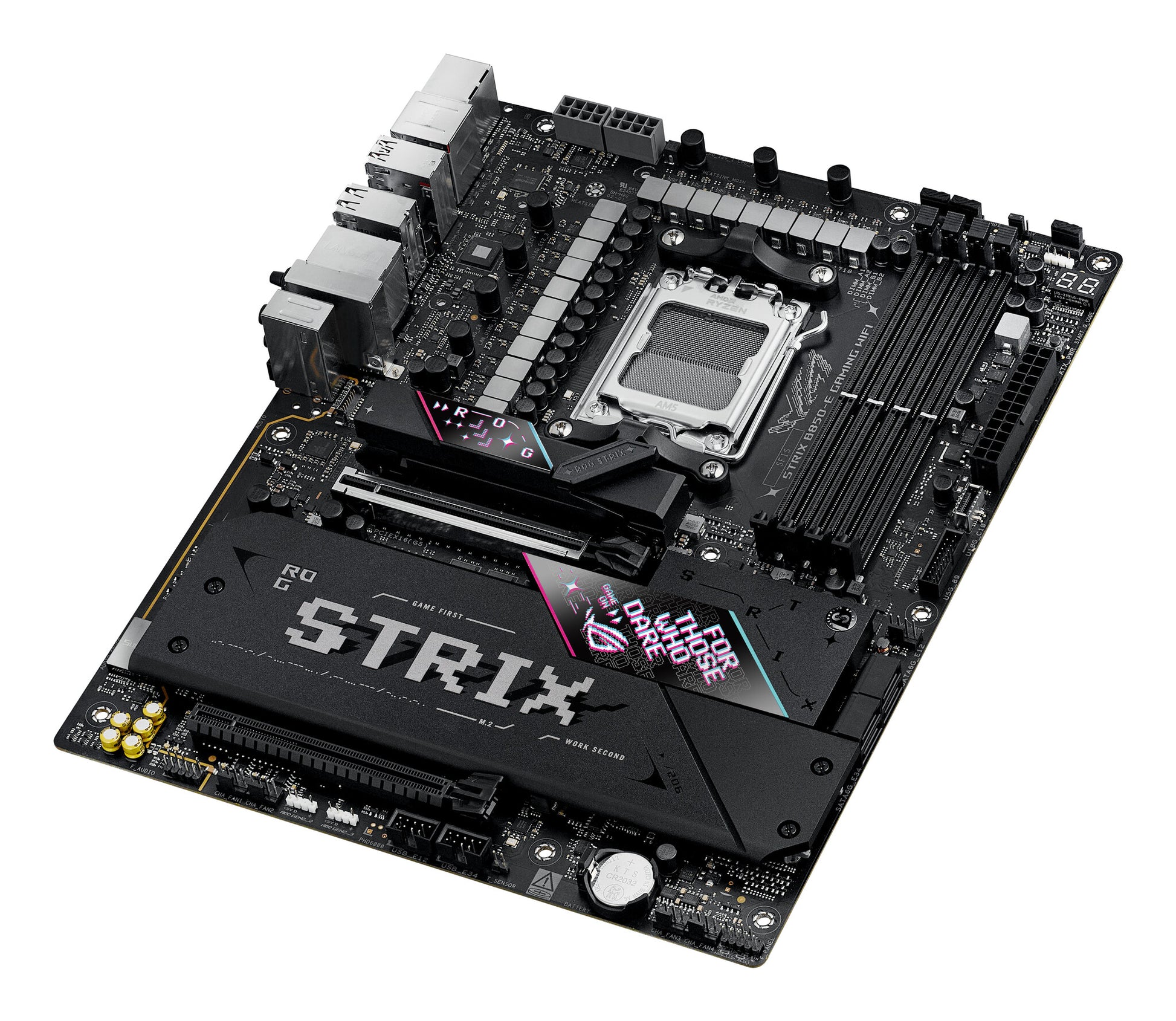

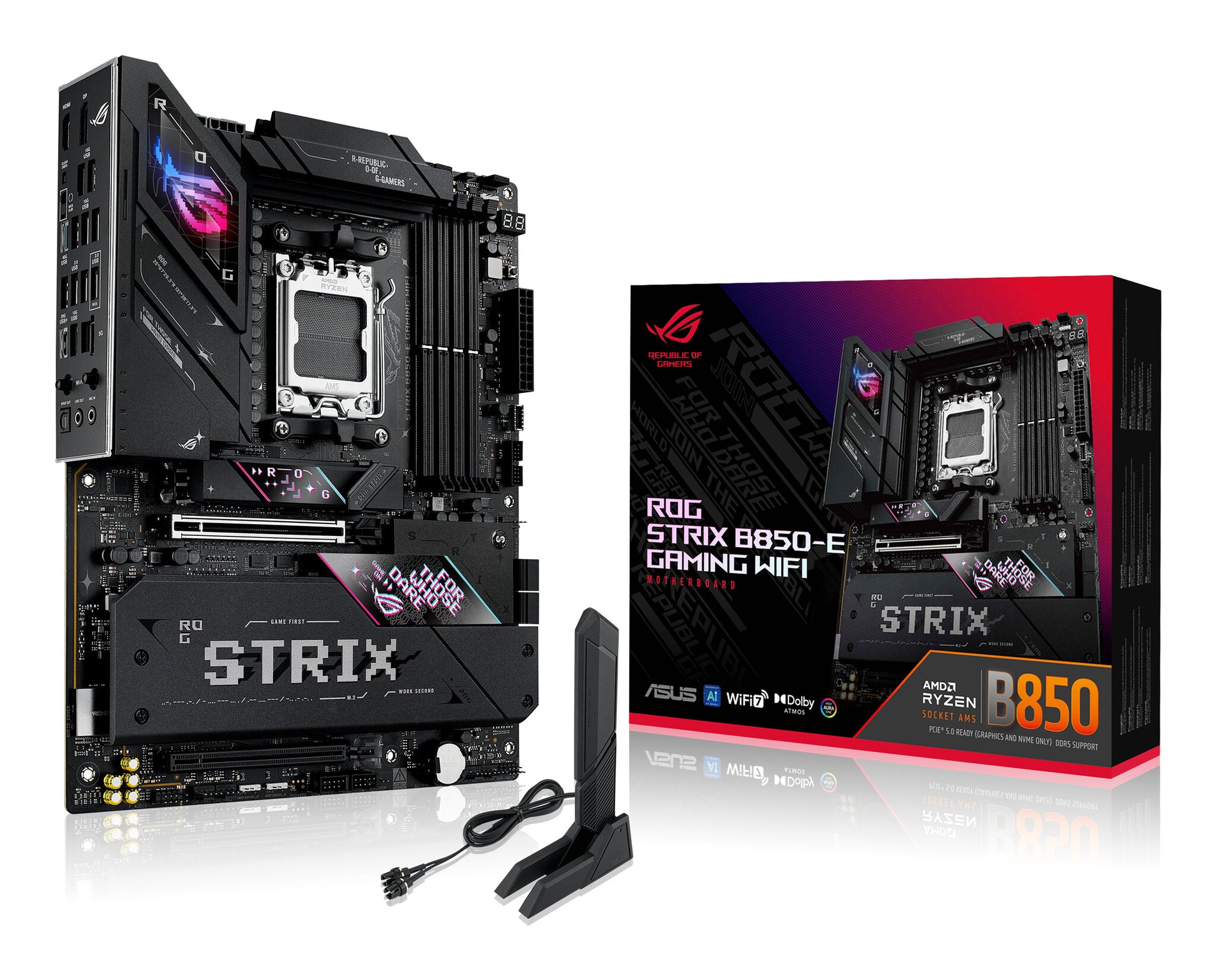

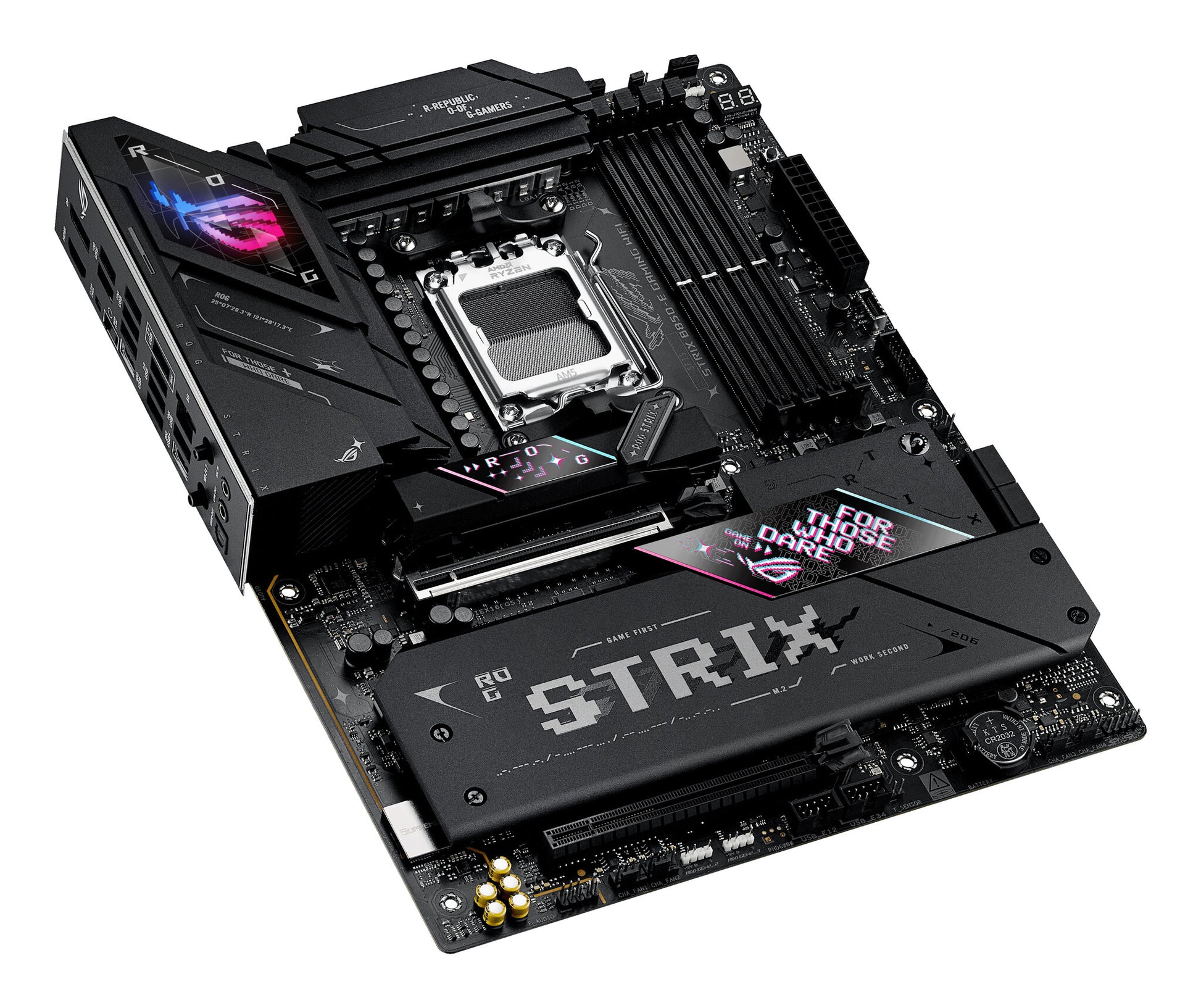

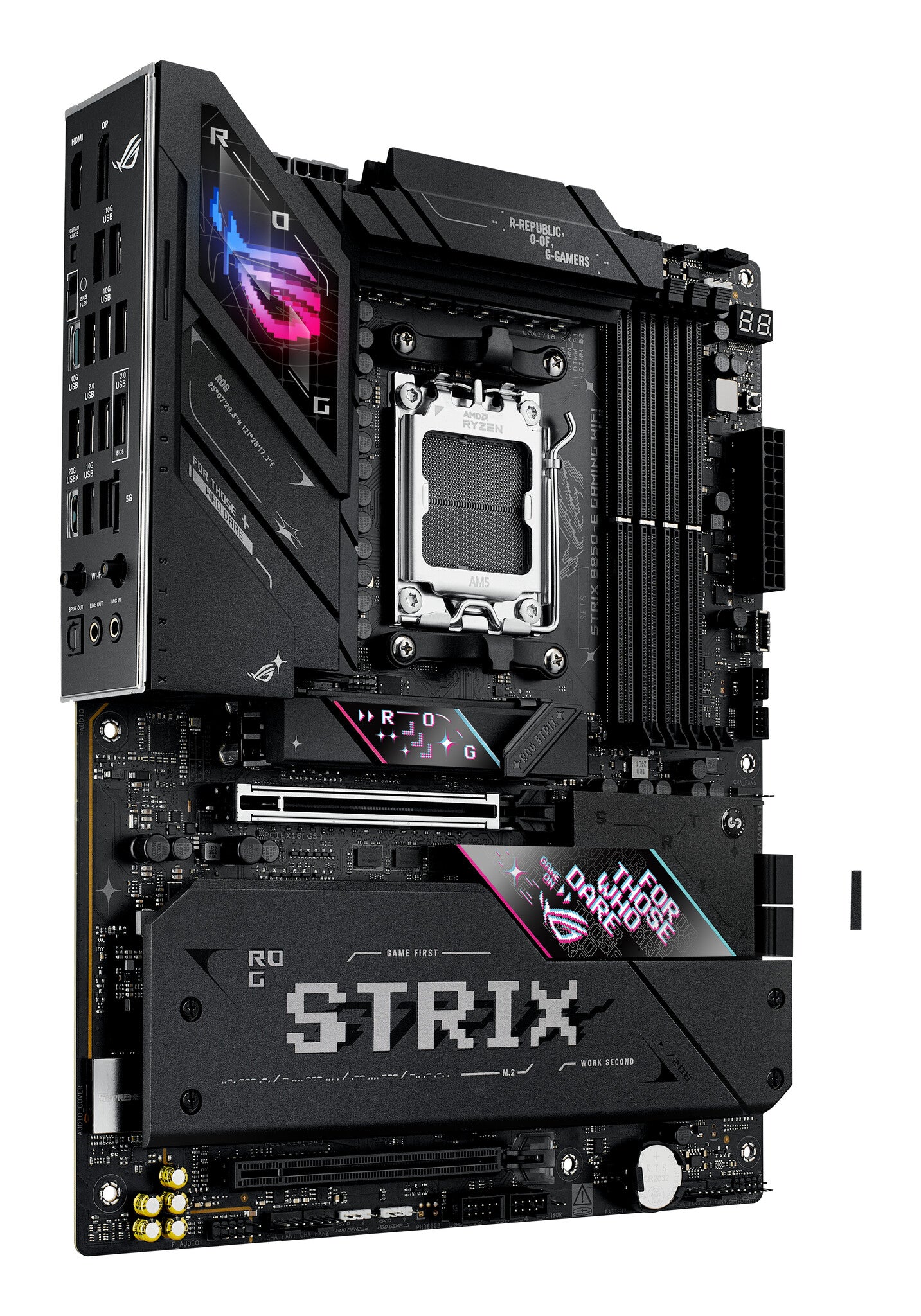

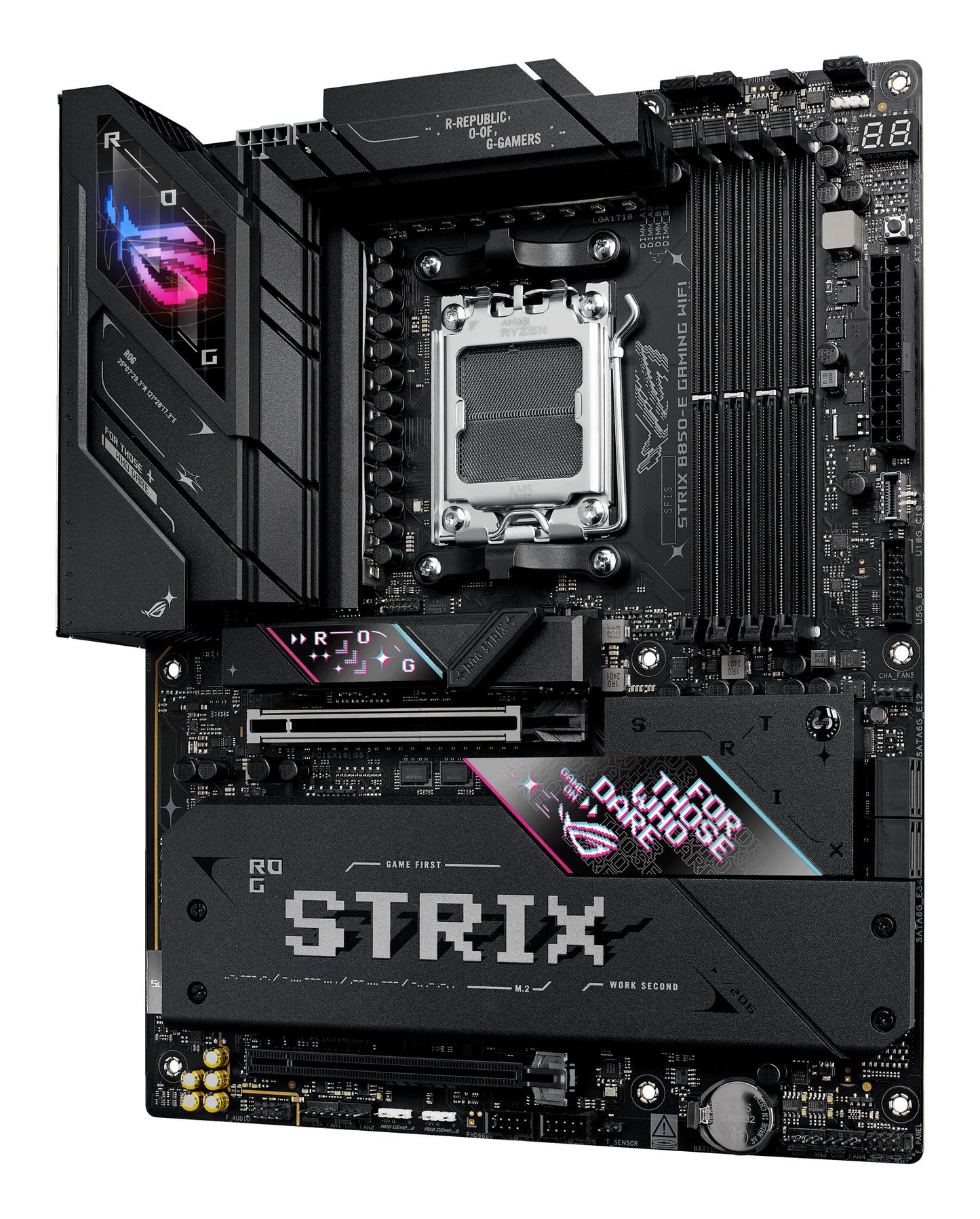

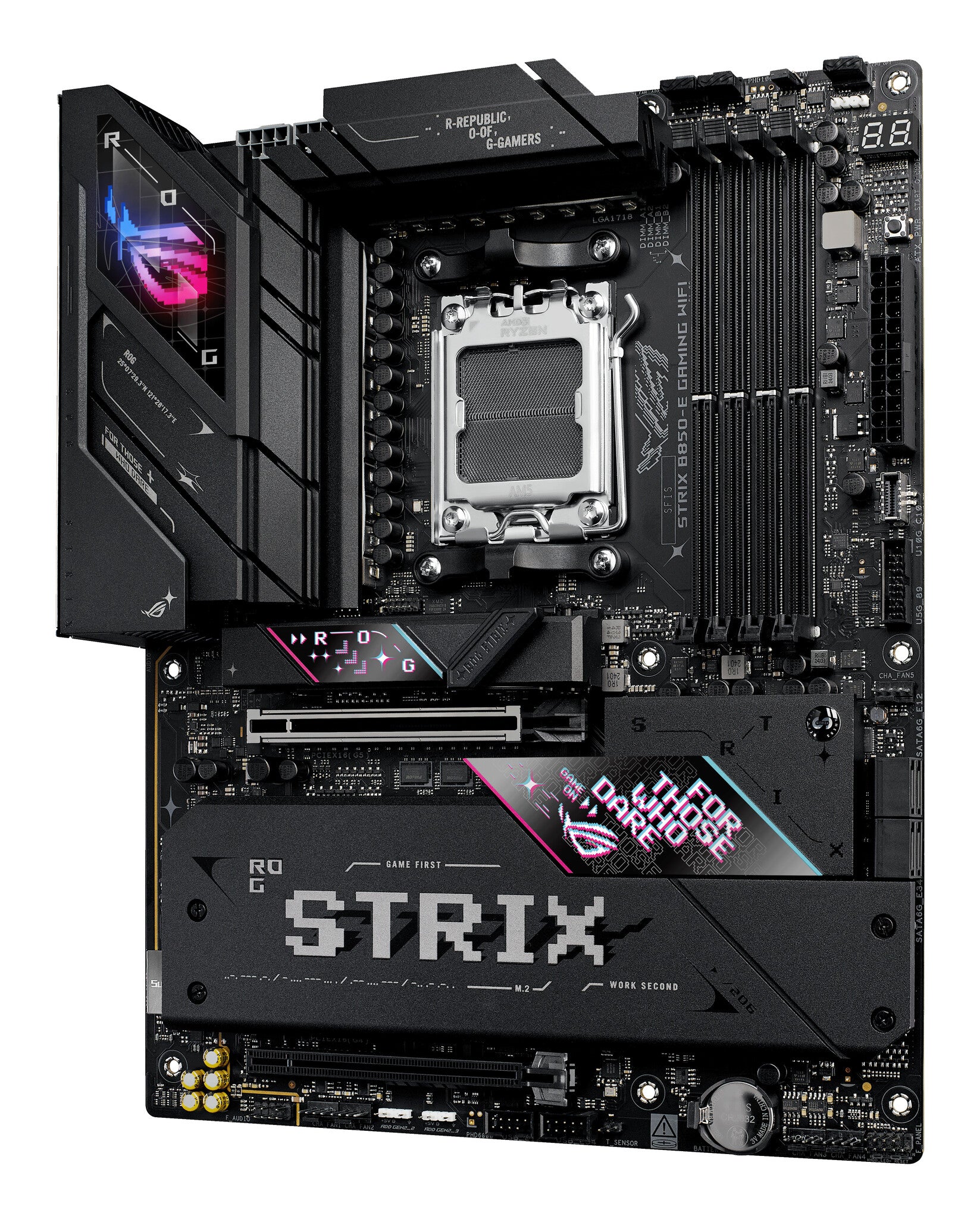

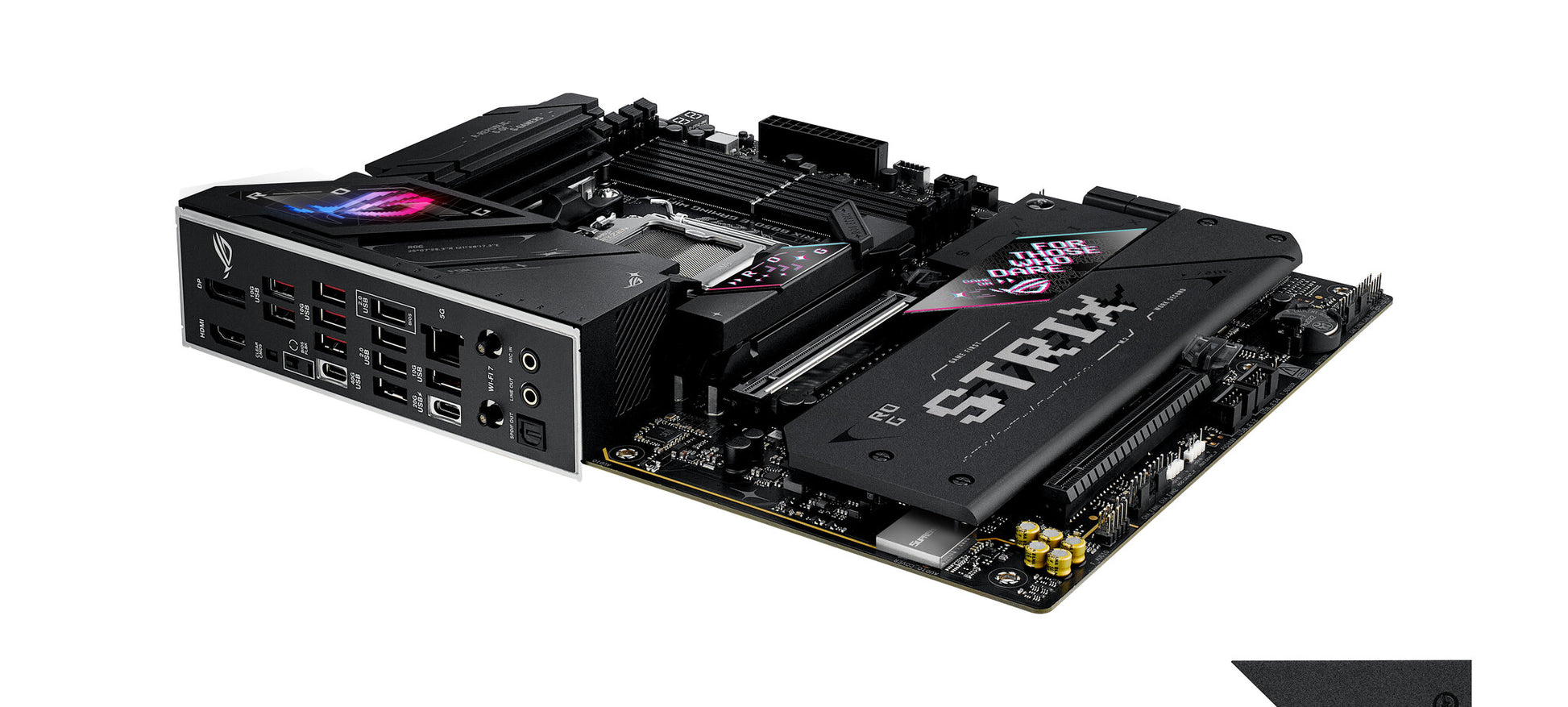

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Socket AM5 ATX

£328.90 GBP
£328.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1J60-M0EAY0

Low stock: 2 left

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B850 Realtek ALC4080 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
  • BIOS type: UEFI AMI 256 Mbit Clear CMOS button
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
AMD B850, AM5, 4 x DIMM slots, max. 256GB, DDR5, Wi-Fi 7, Bluetooth 5.4, Realtek 5Gb Ethernet, 256 Mb Flash ROM, UEFI AMI BIOS, ATX

ROG STRIX B850-E gaming wifi
The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speed (max) 8000 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 9
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 7680 x 4320 pixels
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 5
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 2
Number of temperature sensor headers 1
Number of water pump connectors 1
RGB LED pin header Yes
Number of RGB LED pin headers 3

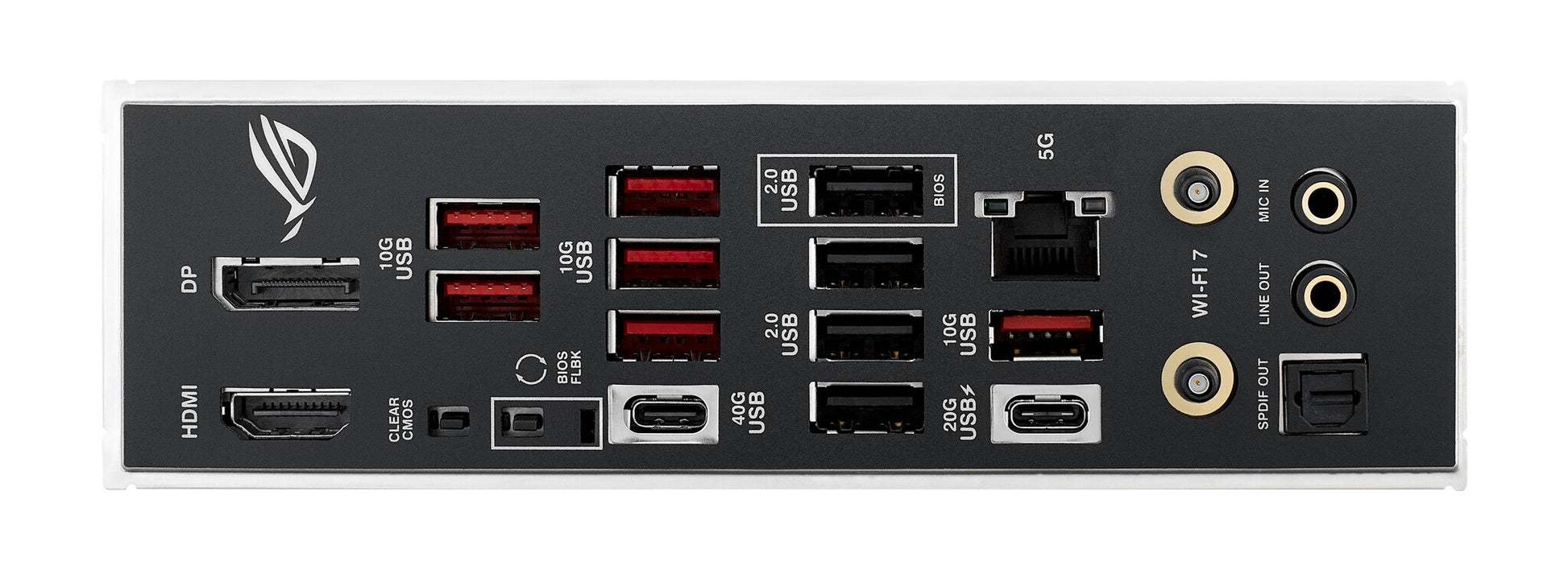

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB4 Gen 3x2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Line-in Yes
Headphone outputs 1
S/PDIF out port Yes
Digital audio optical out 1
WiFi-AP antenna jack 2
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD B850
Audio chip Realtek ALC4080
Audio output channels 7.1 channels
Product colour Black
Power source type ATX
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 5
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 5.0
4th M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
5th M.2 largest key size 2280
5th M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Yes
Weight & dimensions
Width 305 mm
Depth 244 mm
