ASUS

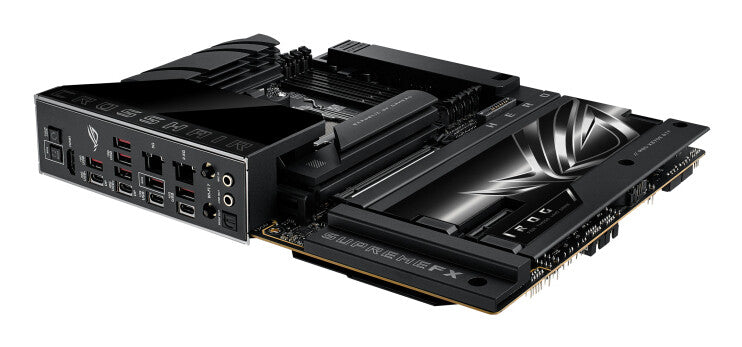

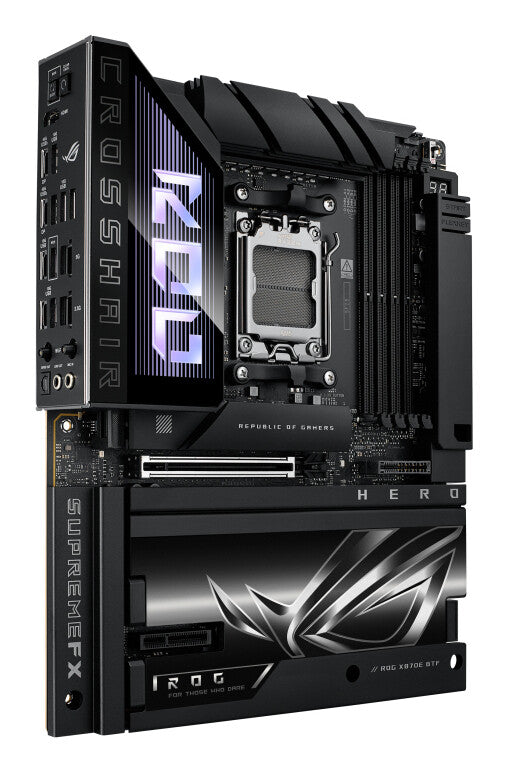

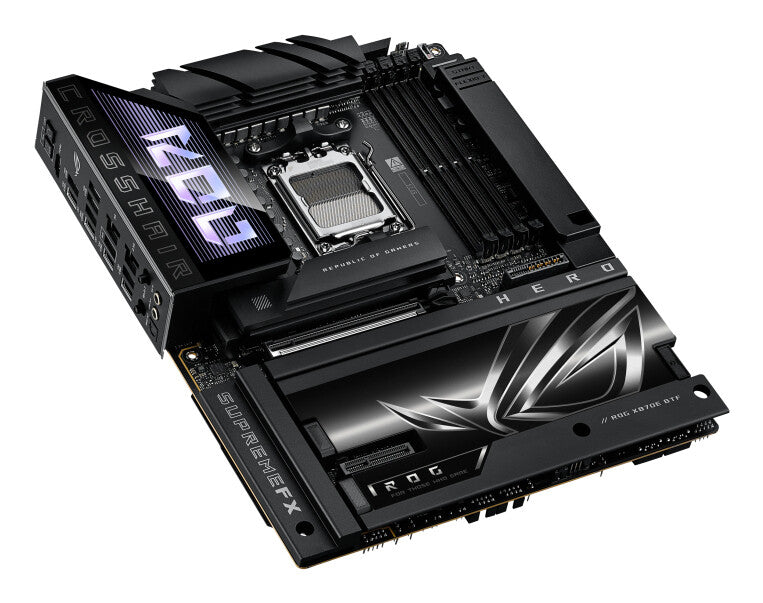

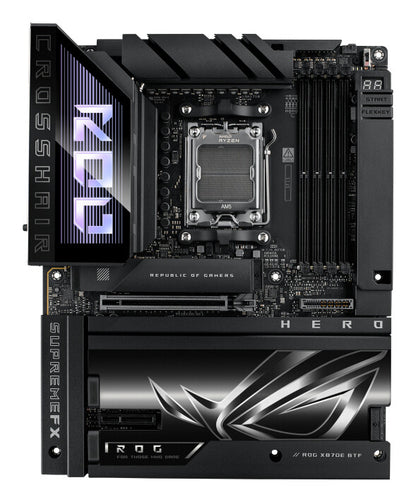

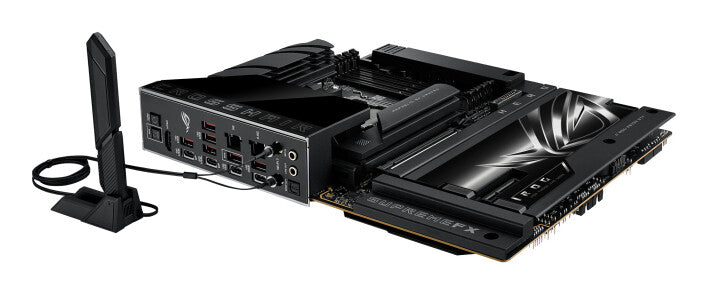

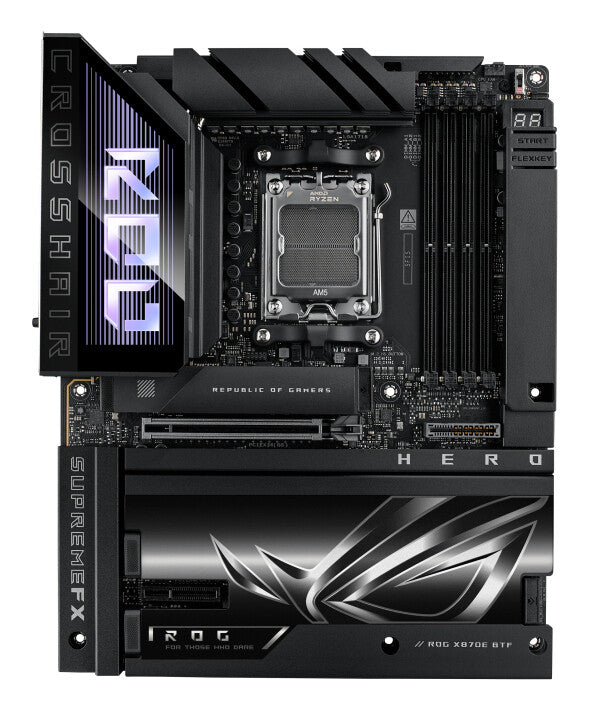

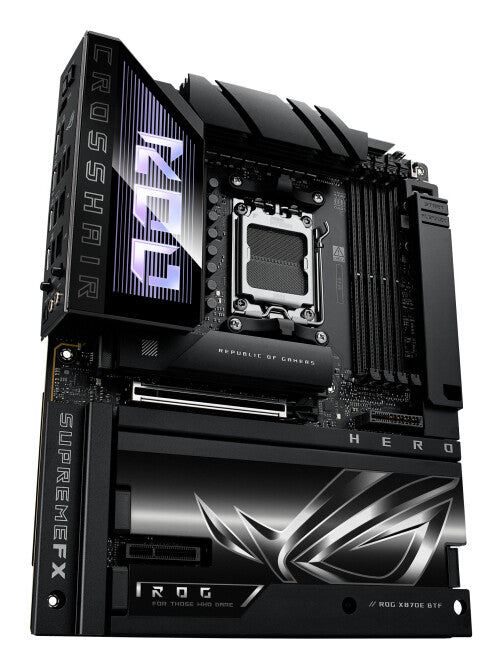

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX

£685.50 GBP
£685.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1MX0-M0EAY0

Low stock: 1 left

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
  • BIOS type: UEFI AMI 256 Mbit Clear CMOS button
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
AMD X870E, AM5, 4 x DIMM slots, max.256GB DDR5, 2.5/5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256Mb Flash ROM, UEFI AMI BIOS, ATX

ROG Crosshair X870E HERO BTF

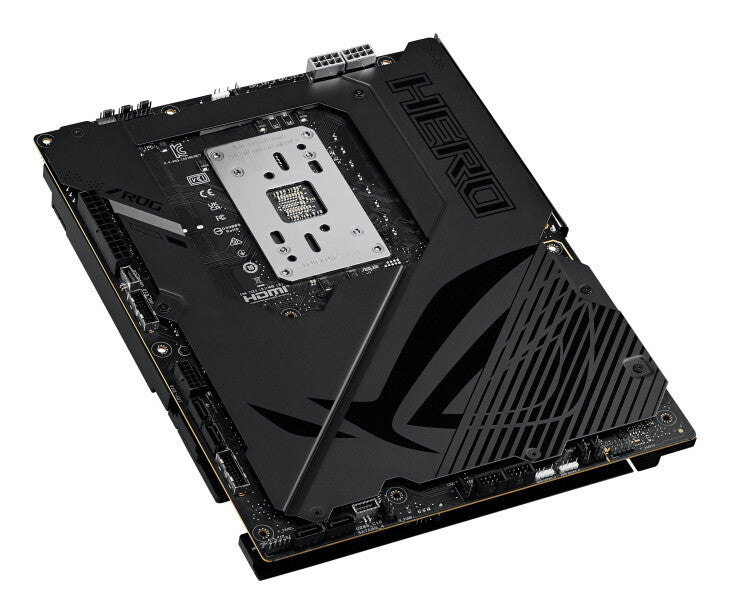

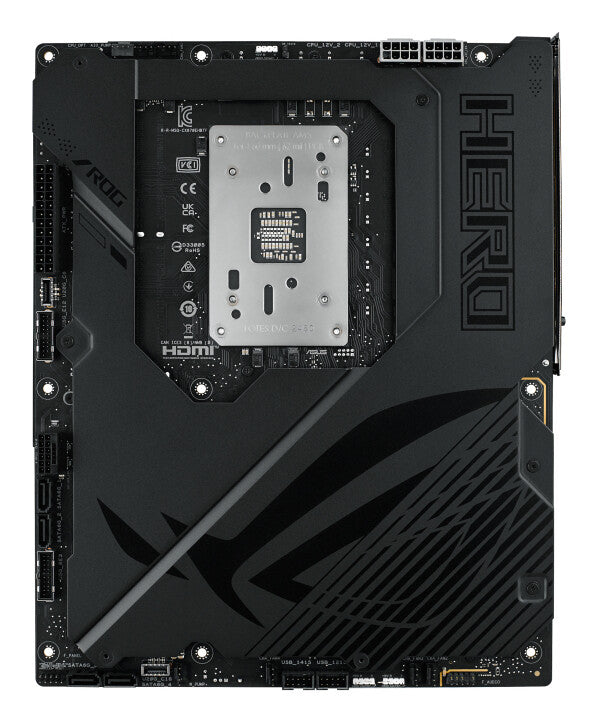

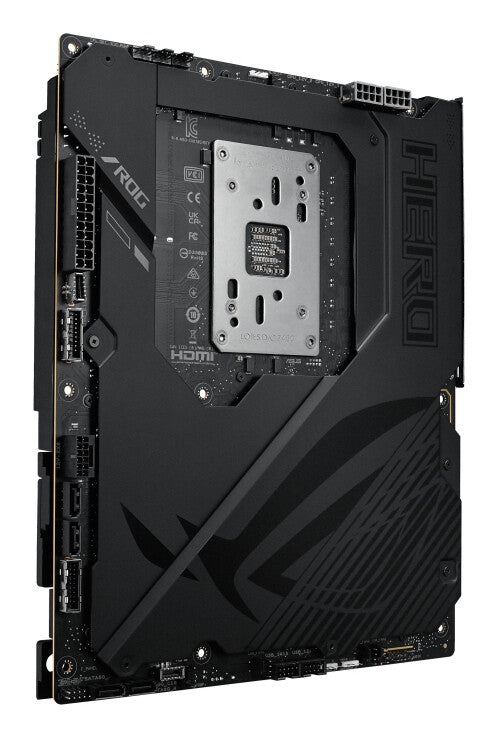

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speed (max) 8600 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 9
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2x2 connectors 2
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 4
EPS power connector (8-pin) Yes
12V power connector Yes

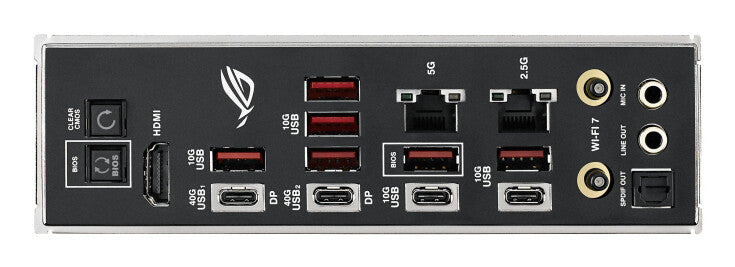

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB4 Gen 3x2 ports quantity 2
Ethernet LAN (RJ-45) ports 2
HDMI ports quantity 1
Microphone in Yes
S/PDIF out port Yes
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD X870E
Audio output channels 7.1 channels
Product colour Multicolour
Windows operating systems supported Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 5
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Clear CMOS button Yes
Packaging data
Package width 366 mm
Package depth 308 mm
Package height 110 mm
Package weight 4.47 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 57 mm
Other features
Weight 2.62 kg
