ASUS

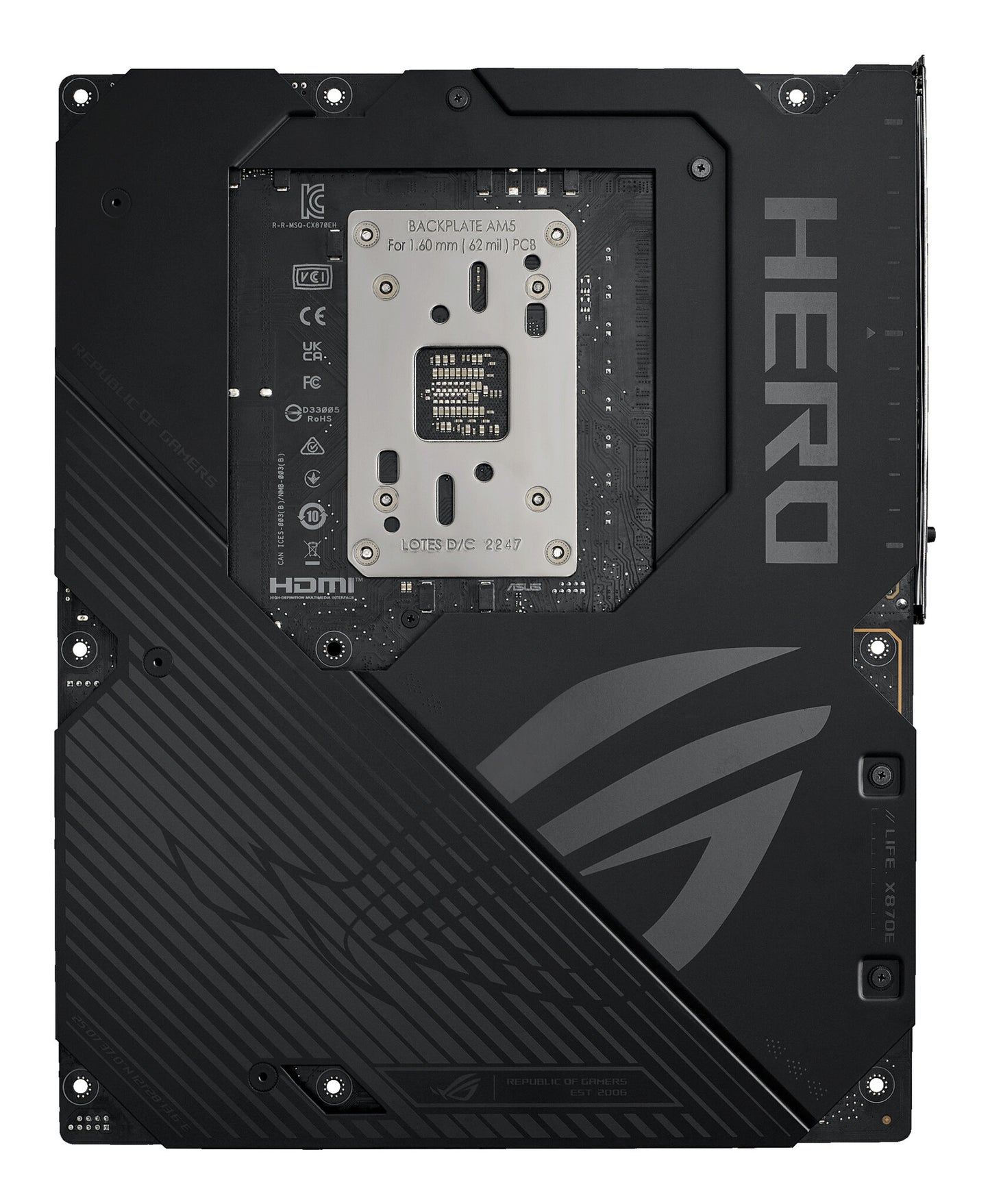

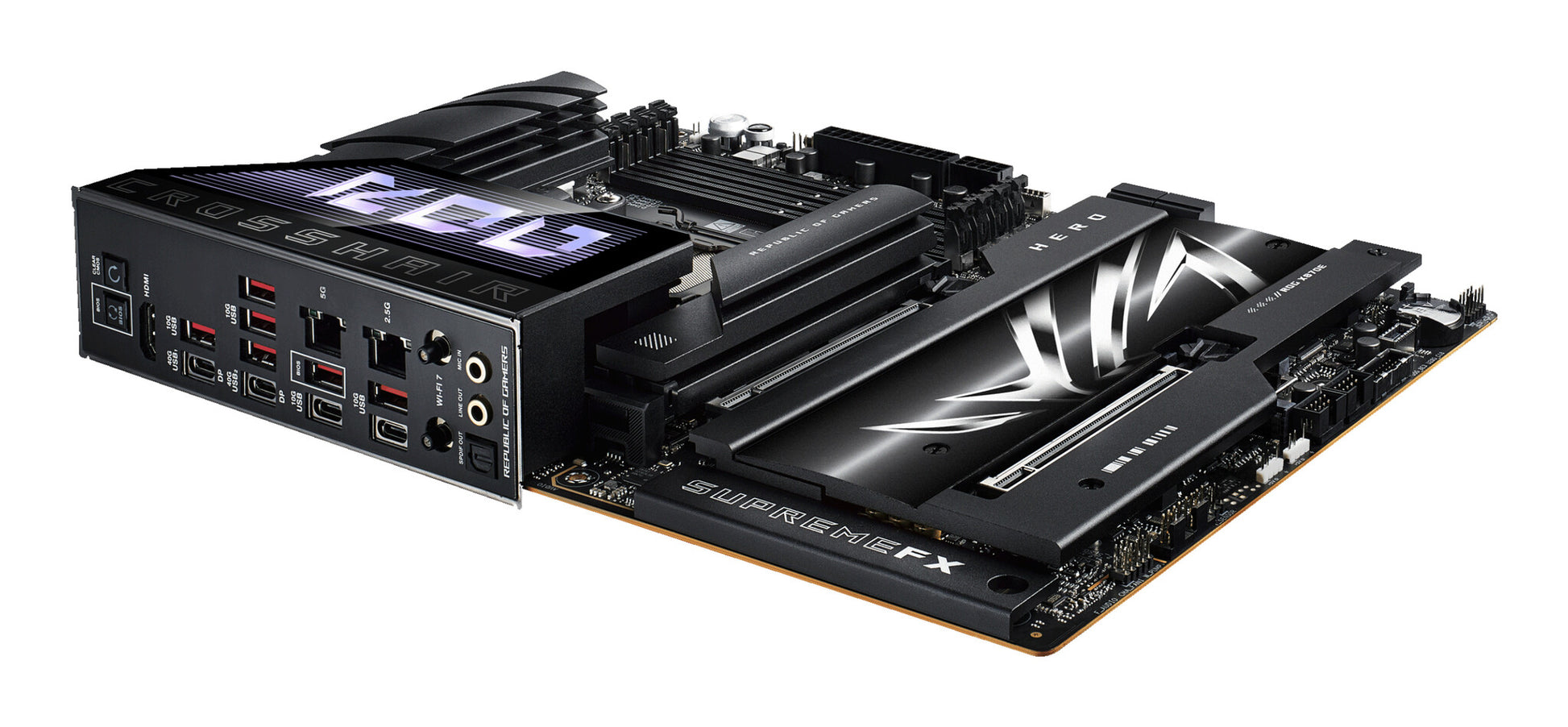

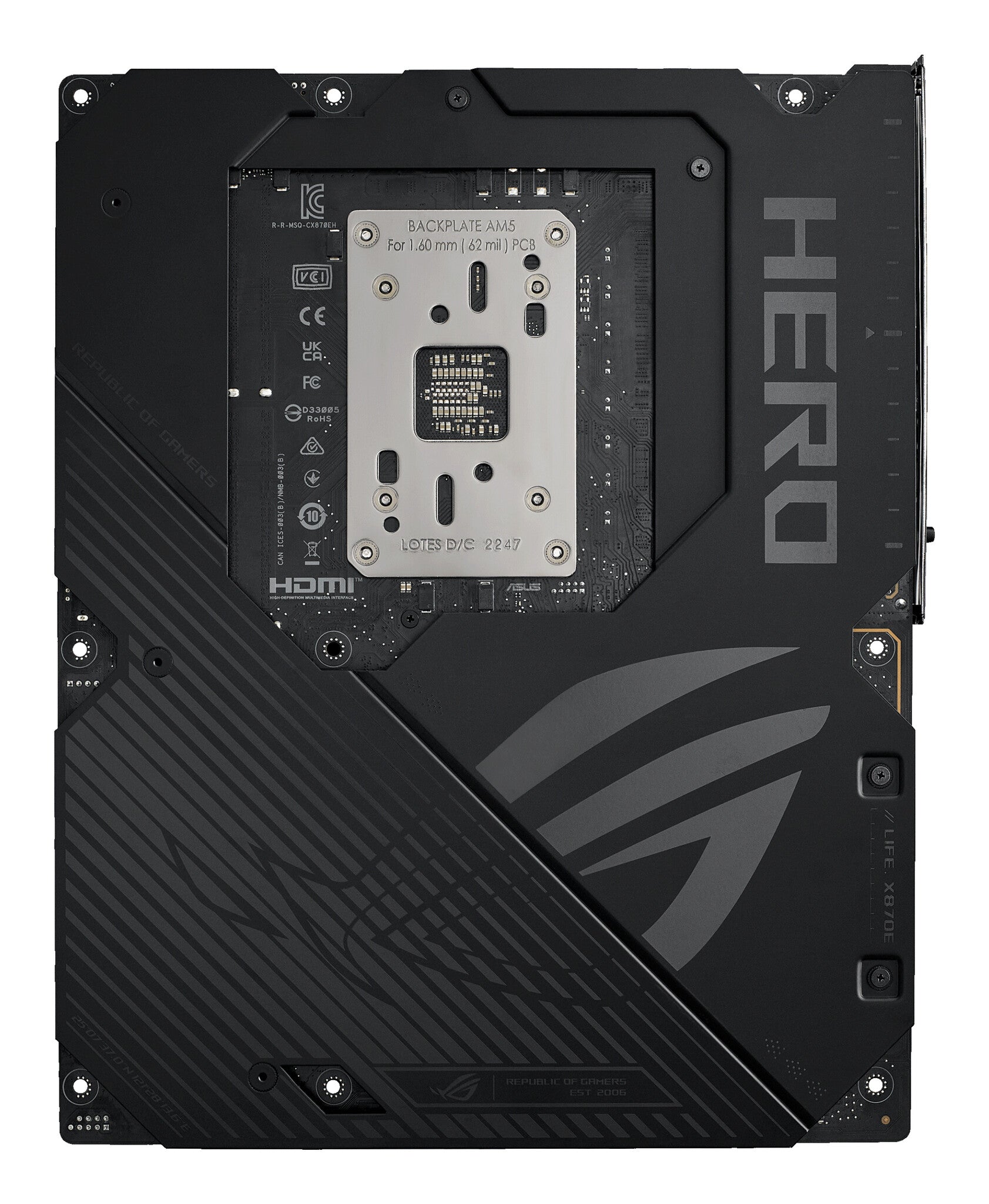

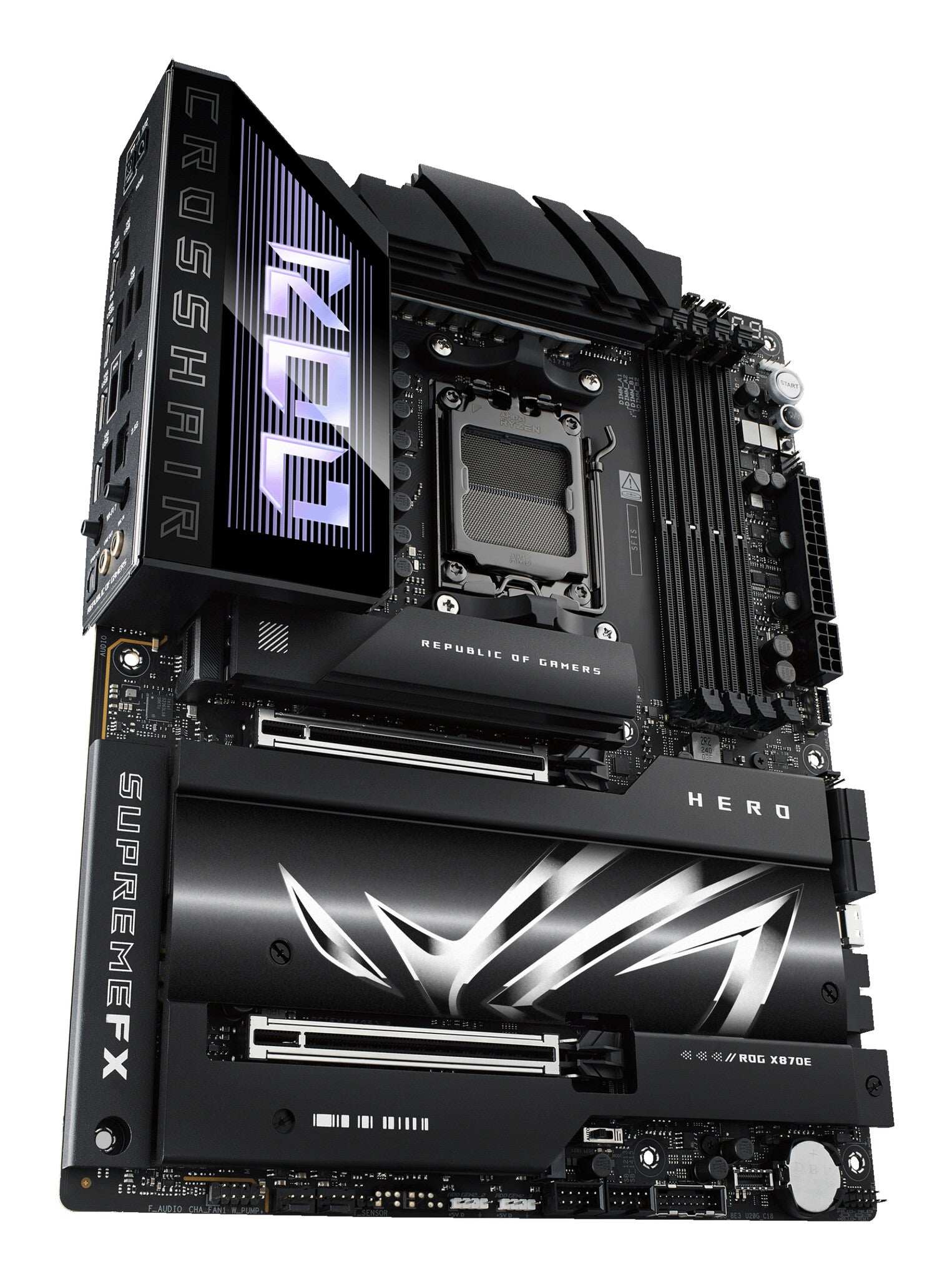

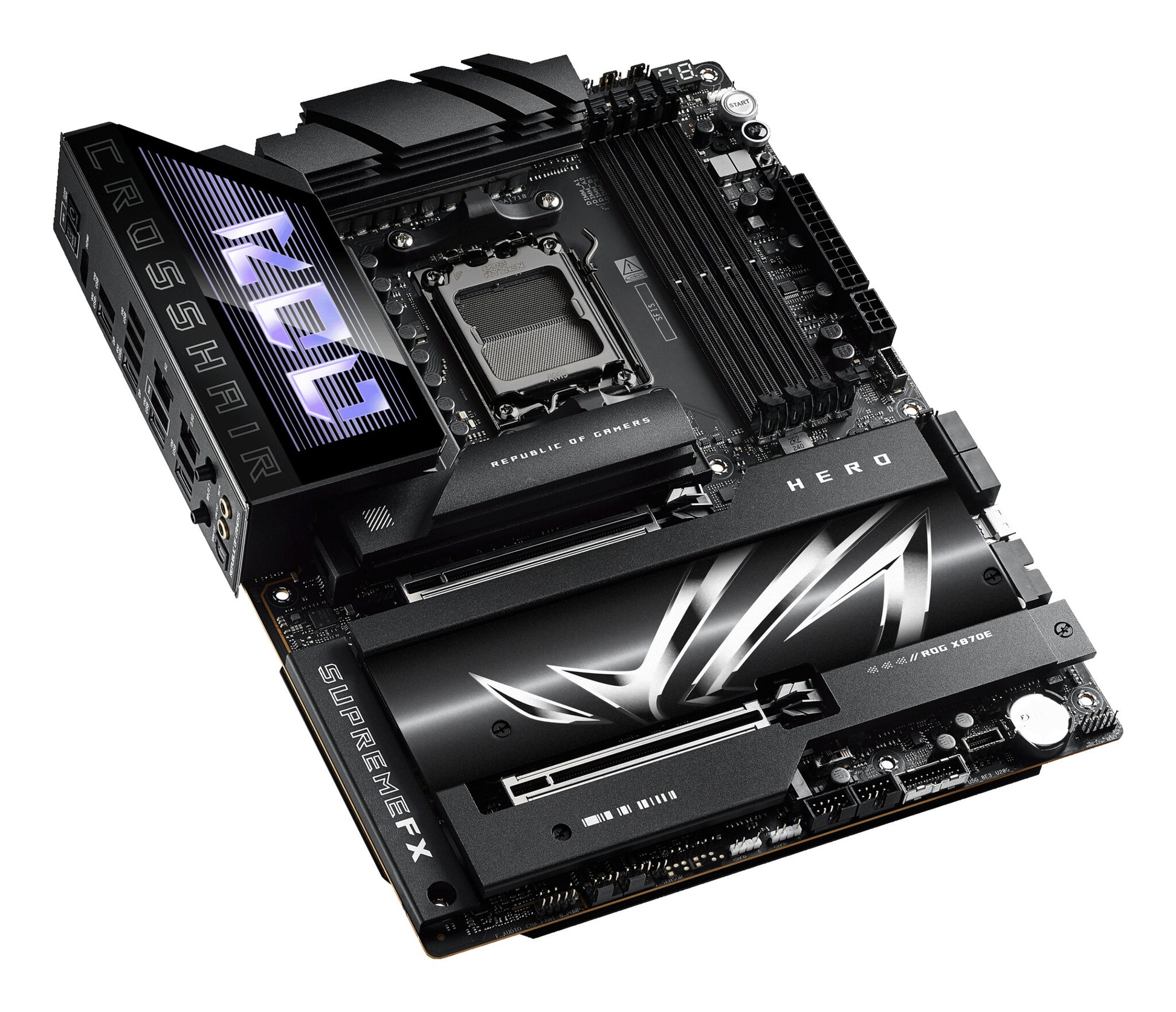

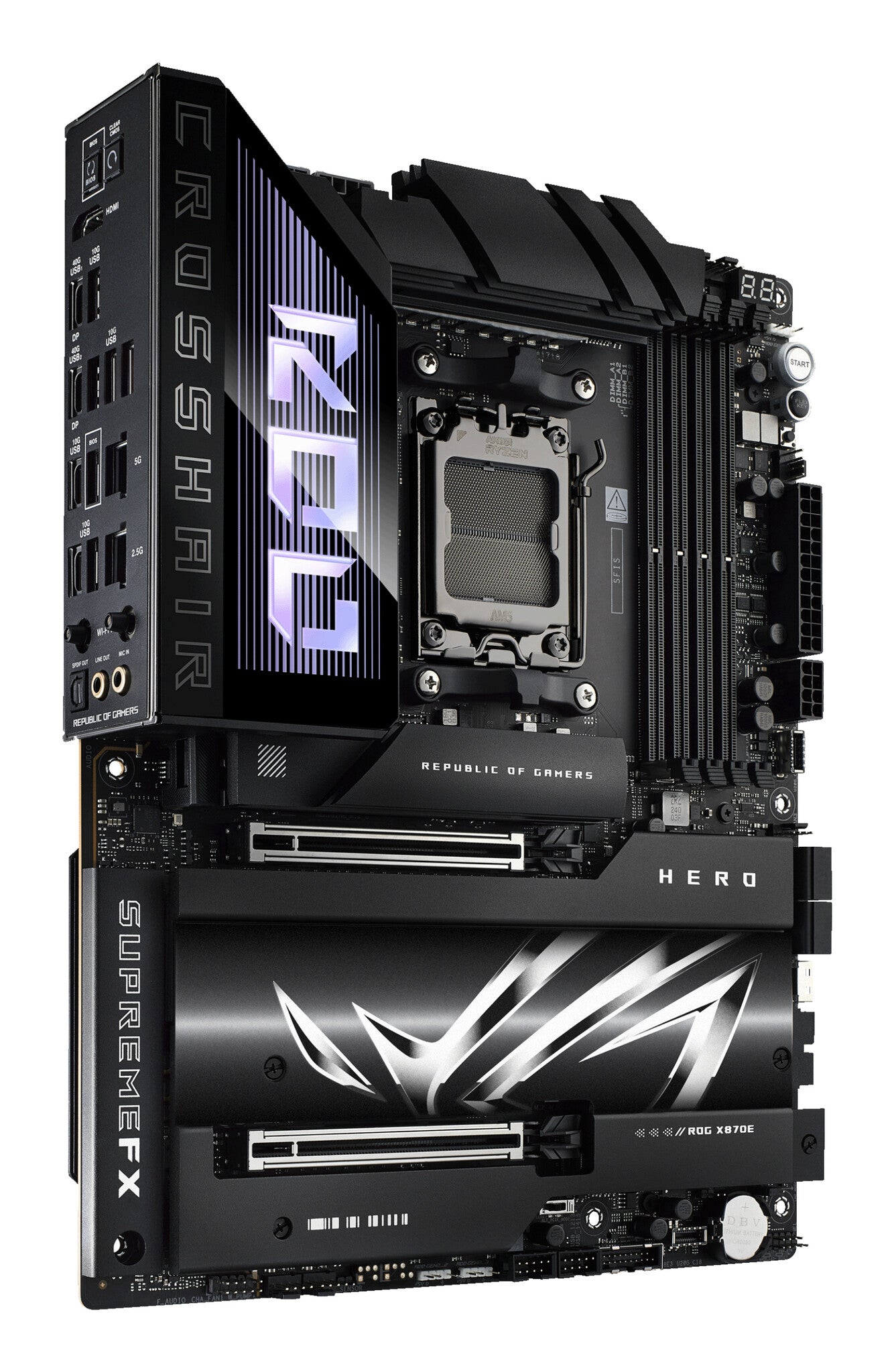

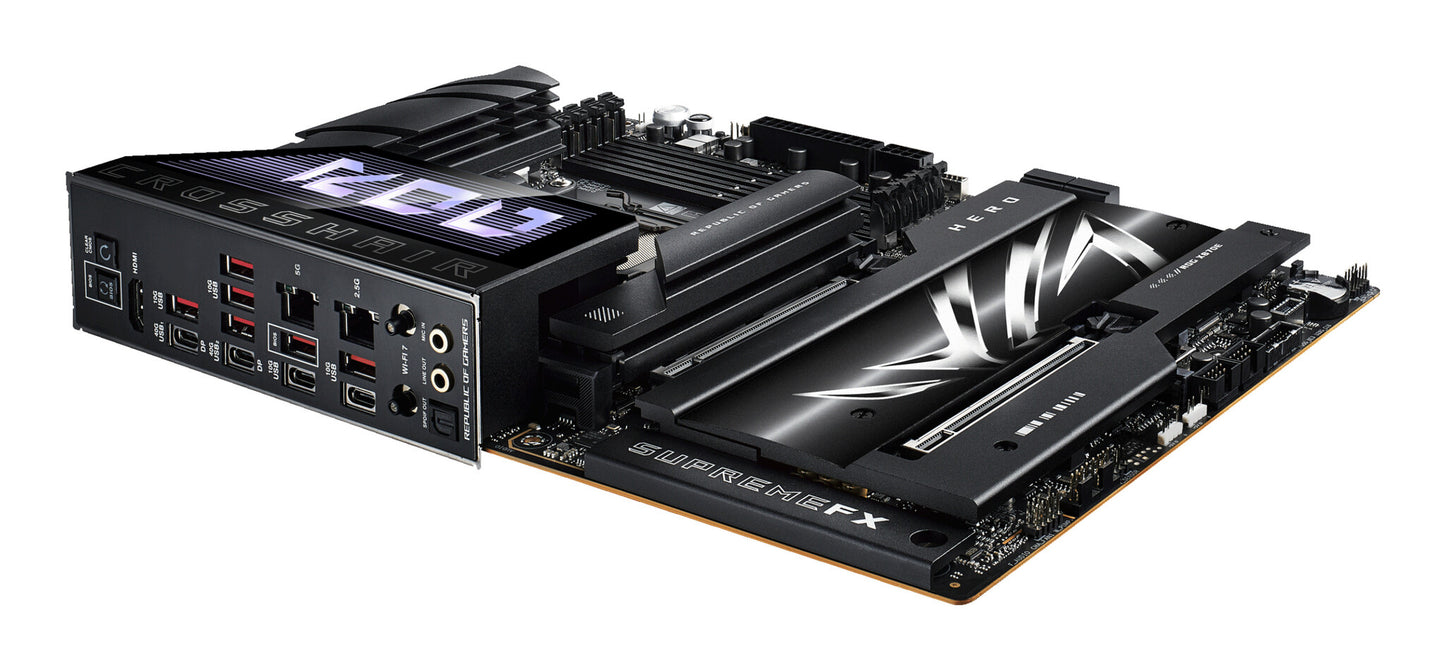

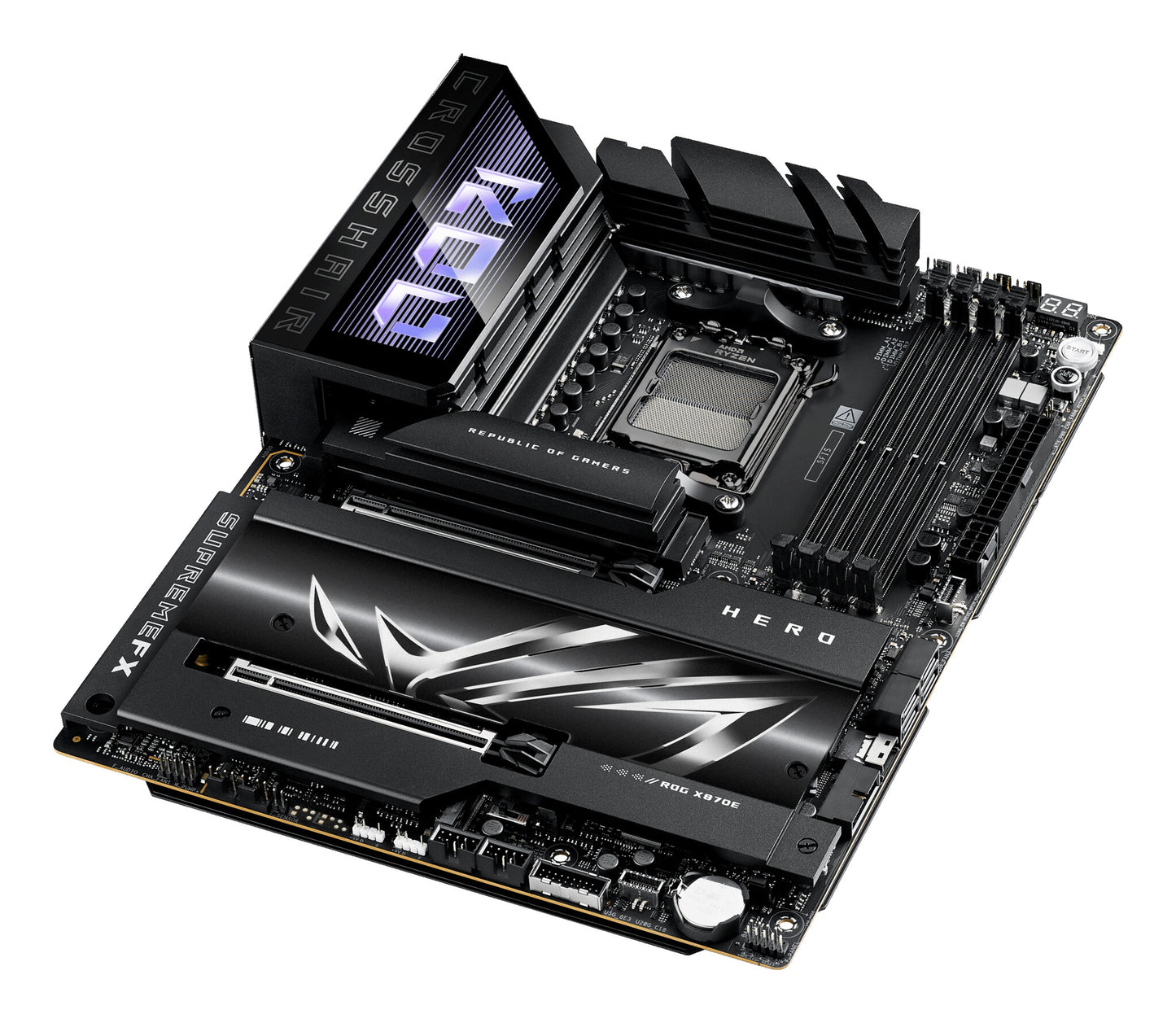

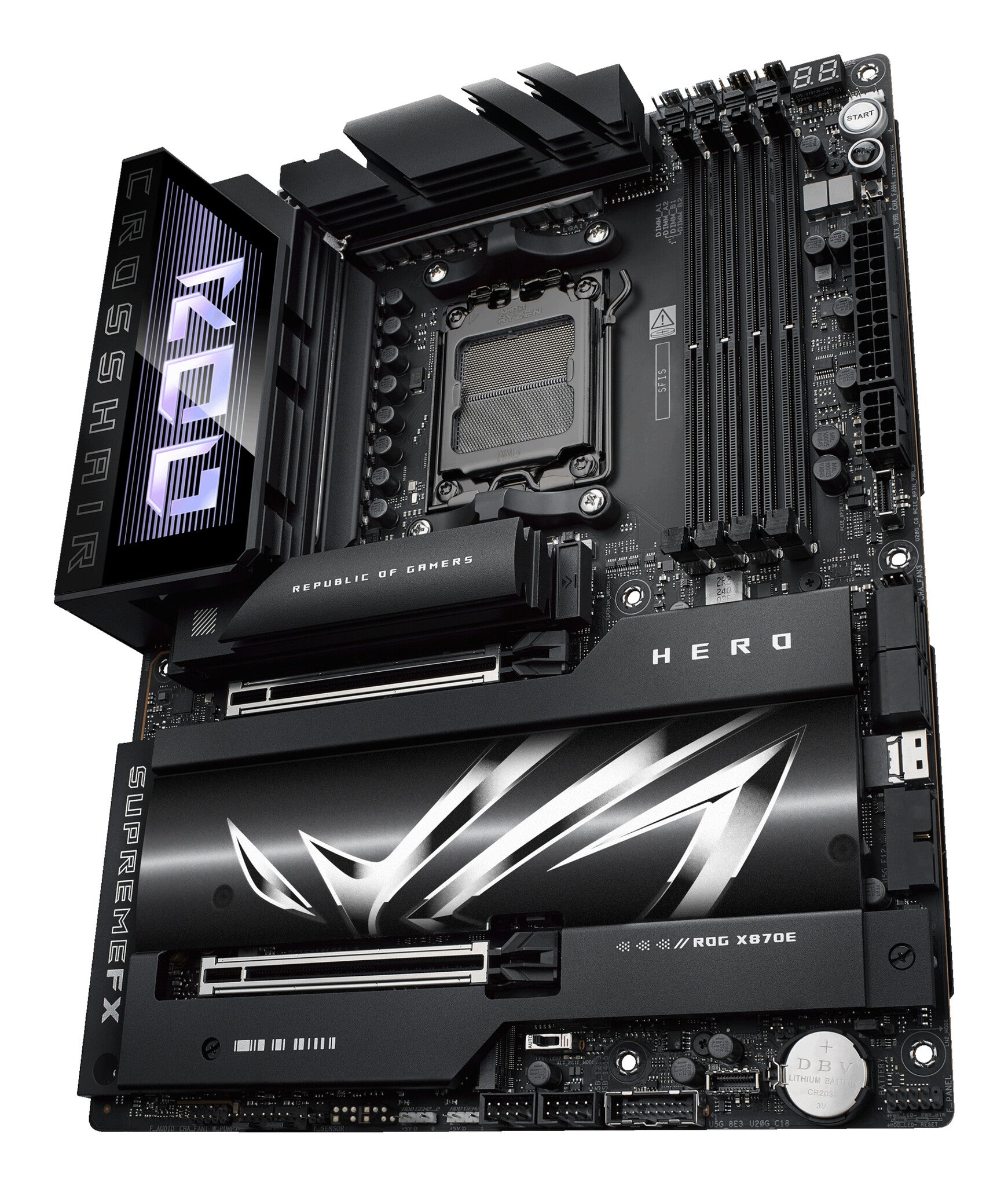

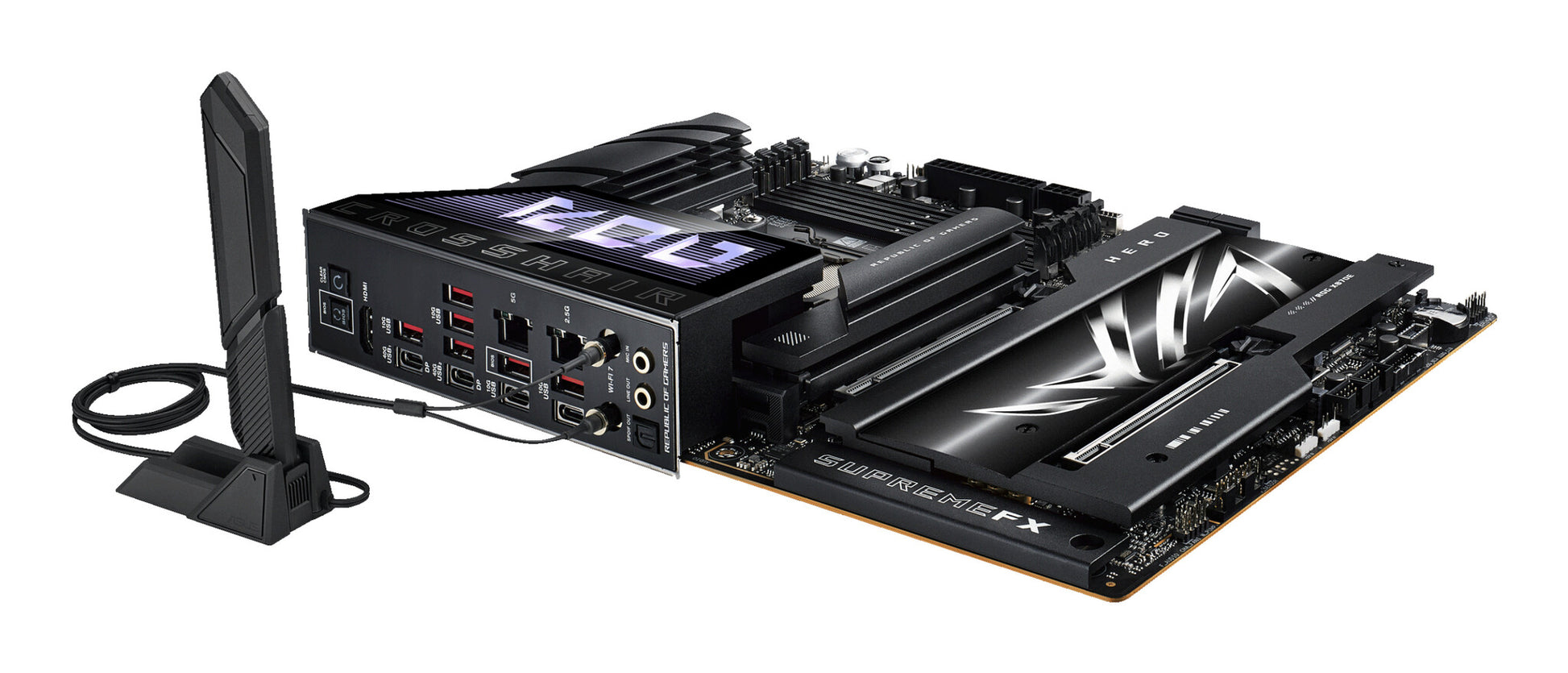

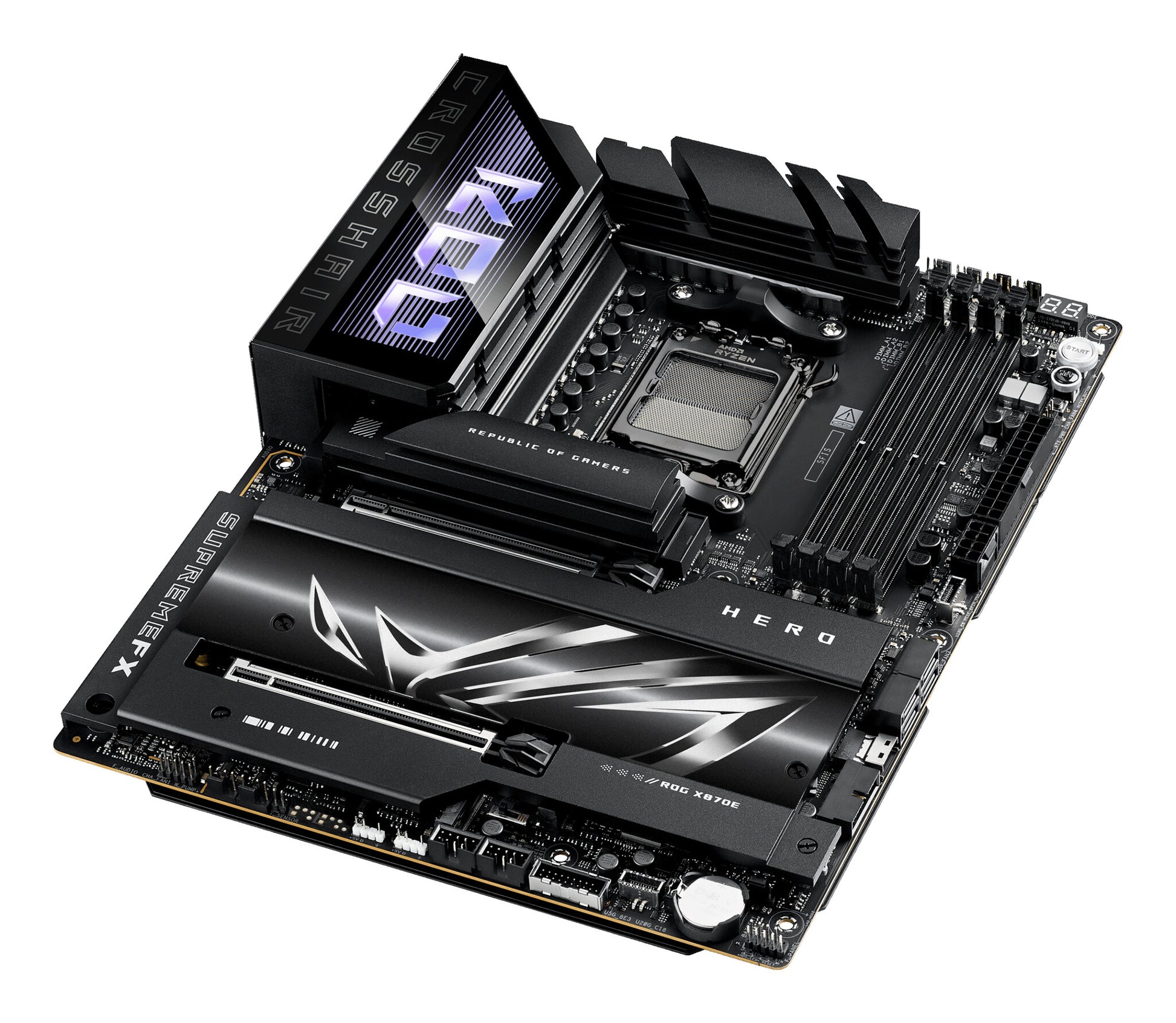

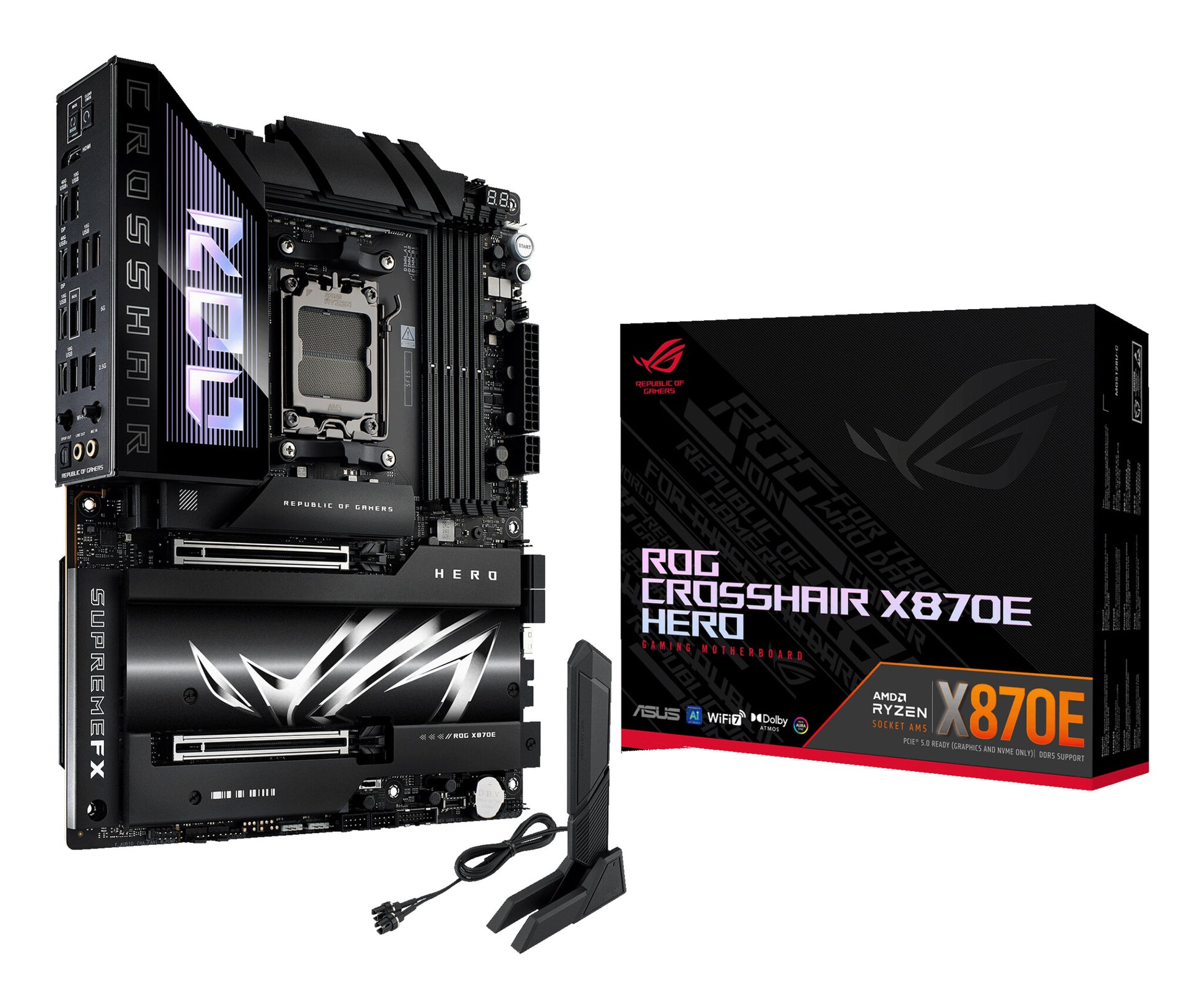

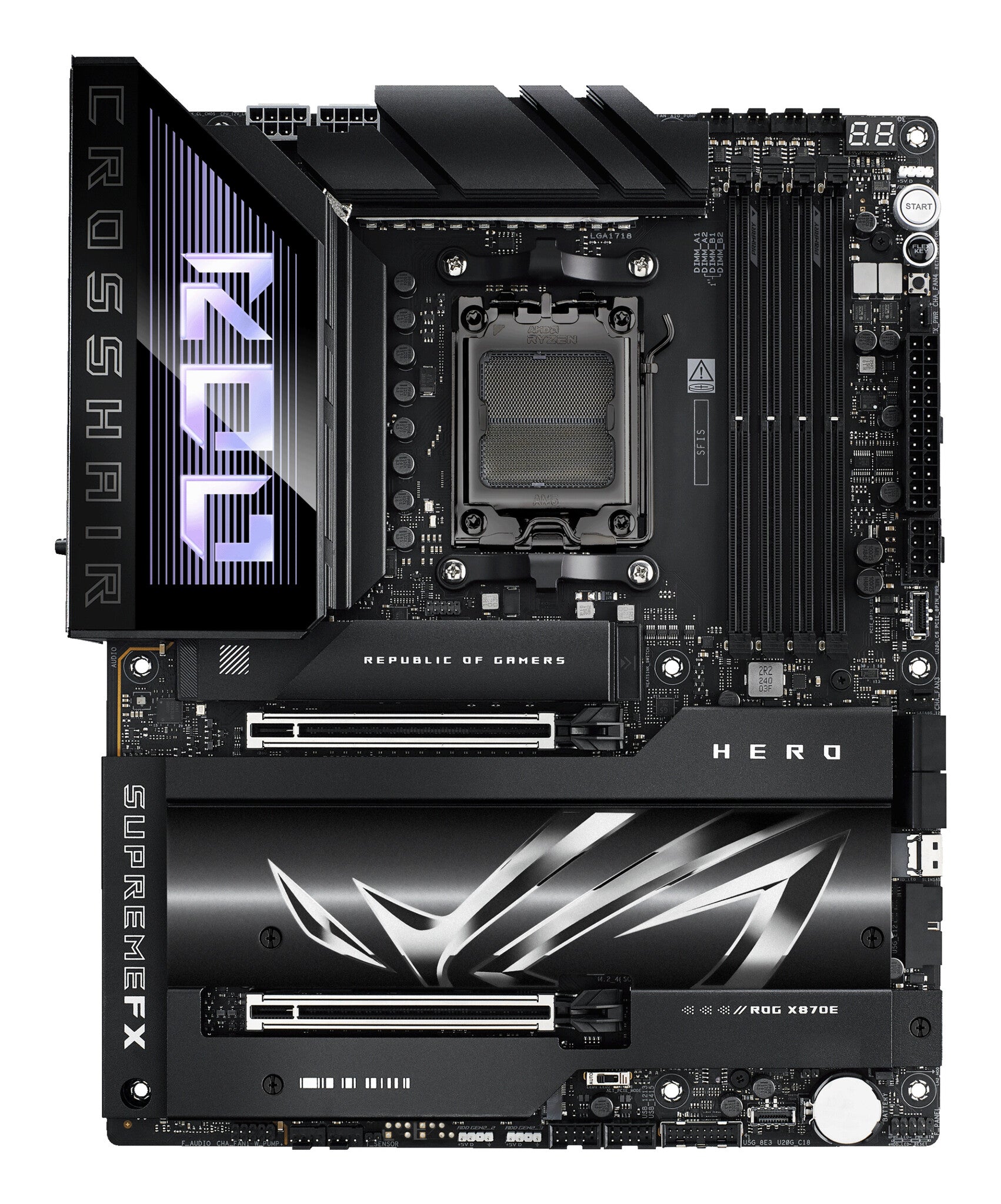

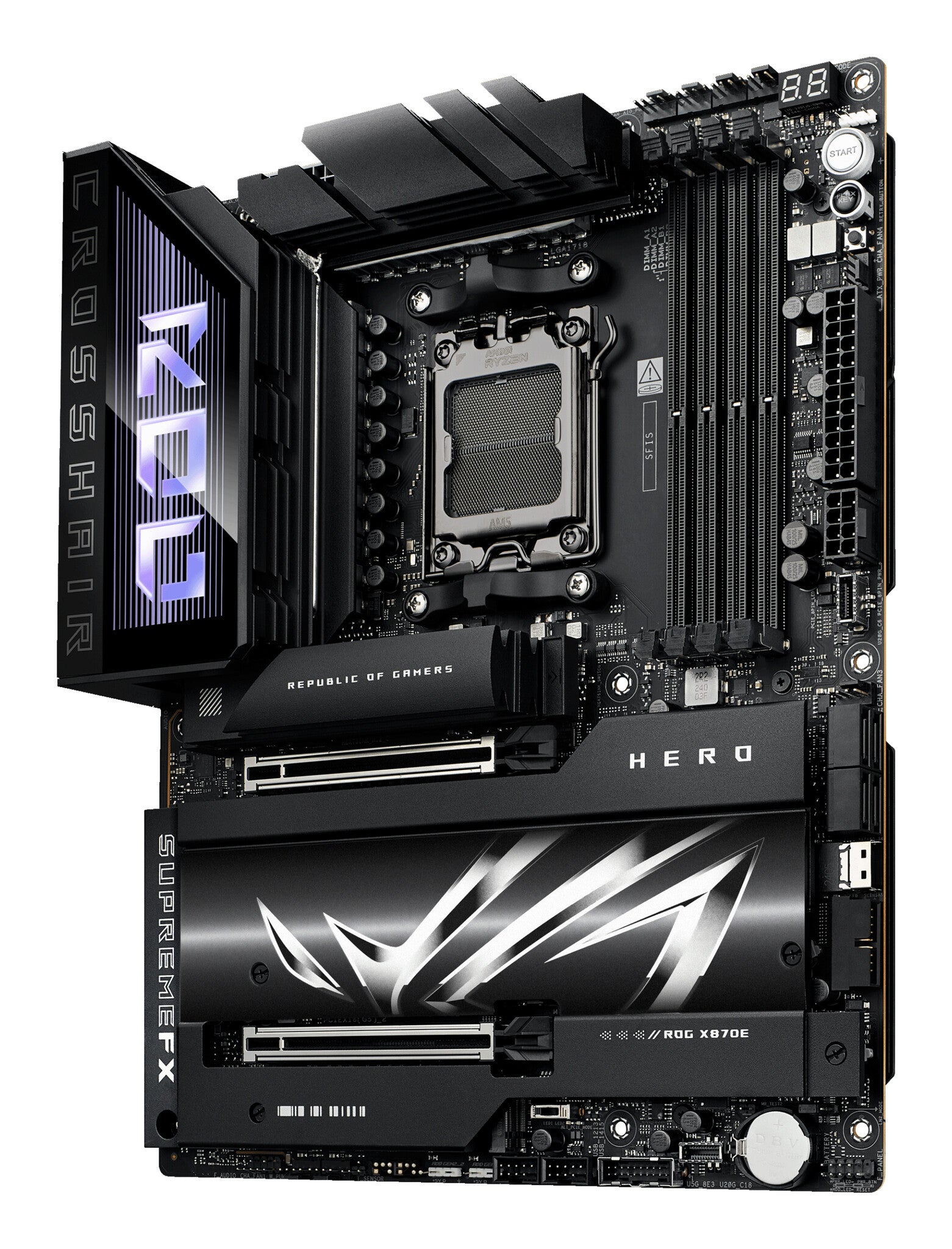

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX

£707.27 GBP
£707.27 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1IE0-M0EAY0

Low stock: 9 left

  • AMD Socket AM5
  • PC ATX AMD X870E Realtek ALC4082 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
  • HDD & SSD M.2, SATA III, SlimSAS RAID support Number of storage drives supported: 10
  • BIOS type: UEFI AMI 256 Mbit Clear CMOS button
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Teamed Power Solution, AI Networking II, Overclocking Effortless performance boost, AI Cooling II, DDR5 Max. 192GB, NitroPath DRAM Technology, AEMP, PCIe Gen 5, WIFI 7

ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

ai OVERCLOCKING
Tuning is now faster and smarter than ever before.

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Processor
Supported processor sockets Socket AM5
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Unbuffered memory Yes
Maximum internal memory 192 GB
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 10, 5
RAID support Yes
Number of HDDs supported 5
Number of storage drives supported 10
Supported storage drive interfaces M.2, SATA III, SlimSAS
Supported storage drive types HDD & SSD
Graphics
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
EPS power connector (8-pin) Yes
Number of chassis fan connectors 4
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 2x2 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 2

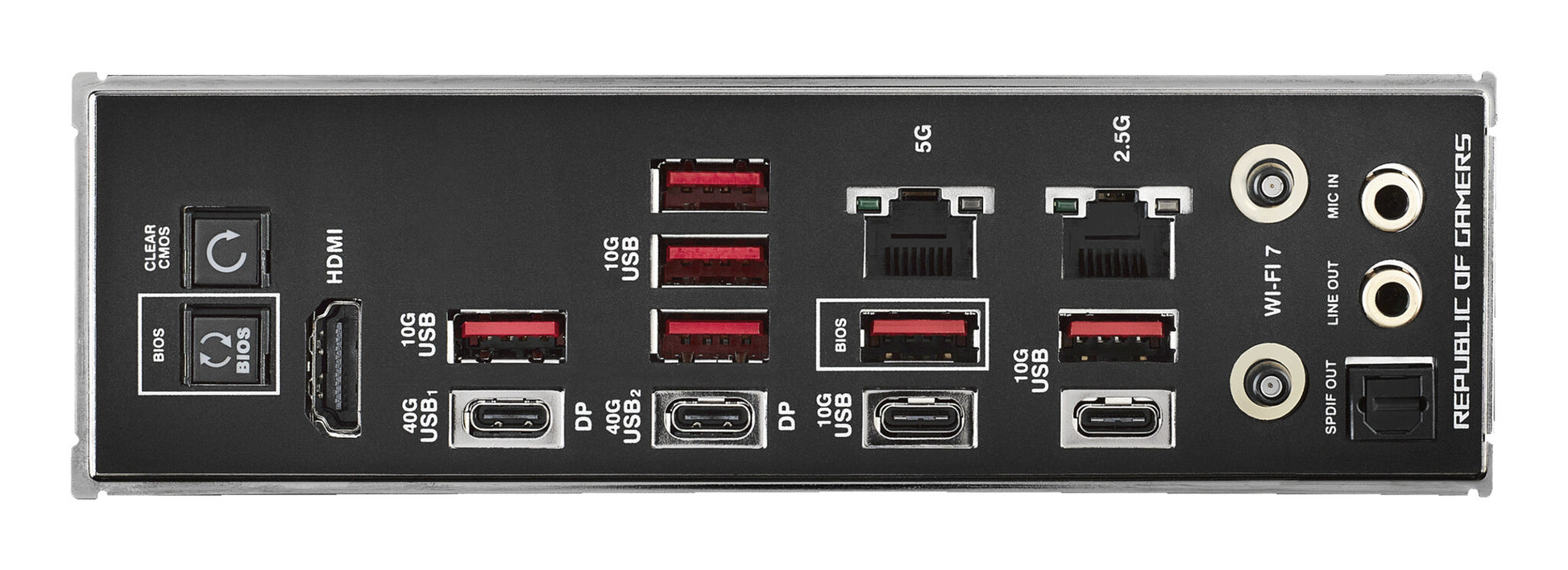

Rear panel I/O ports
WiFi-AP antenna jack 1
S/PDIF out port Yes
Microphone in Yes
Headphone outputs 1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 2
USB4 Gen 2x2 ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
Network
Bluetooth version 5.4
Bluetooth Yes
Wi-Fi standards Wi-Fi 7 (802.11be)
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 11
Audio output channels 7.1 channels
Audio chip Realtek ALC4082
Motherboard chipset AMD X870E
Motherboard chipset family AMD
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 5
PCI Express x16 (Gen 5.x) slots 2
PCI Express x16 (Gen 4.x) slots 4
BIOS
Clear CMOS button Yes
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Packaging data
Package weight 4.26 kg
Package height 108 mm
Package depth 312 mm
Package width 370 mm
Weight & dimensions
Height 50 mm
Depth 244 mm
Width 305 mm

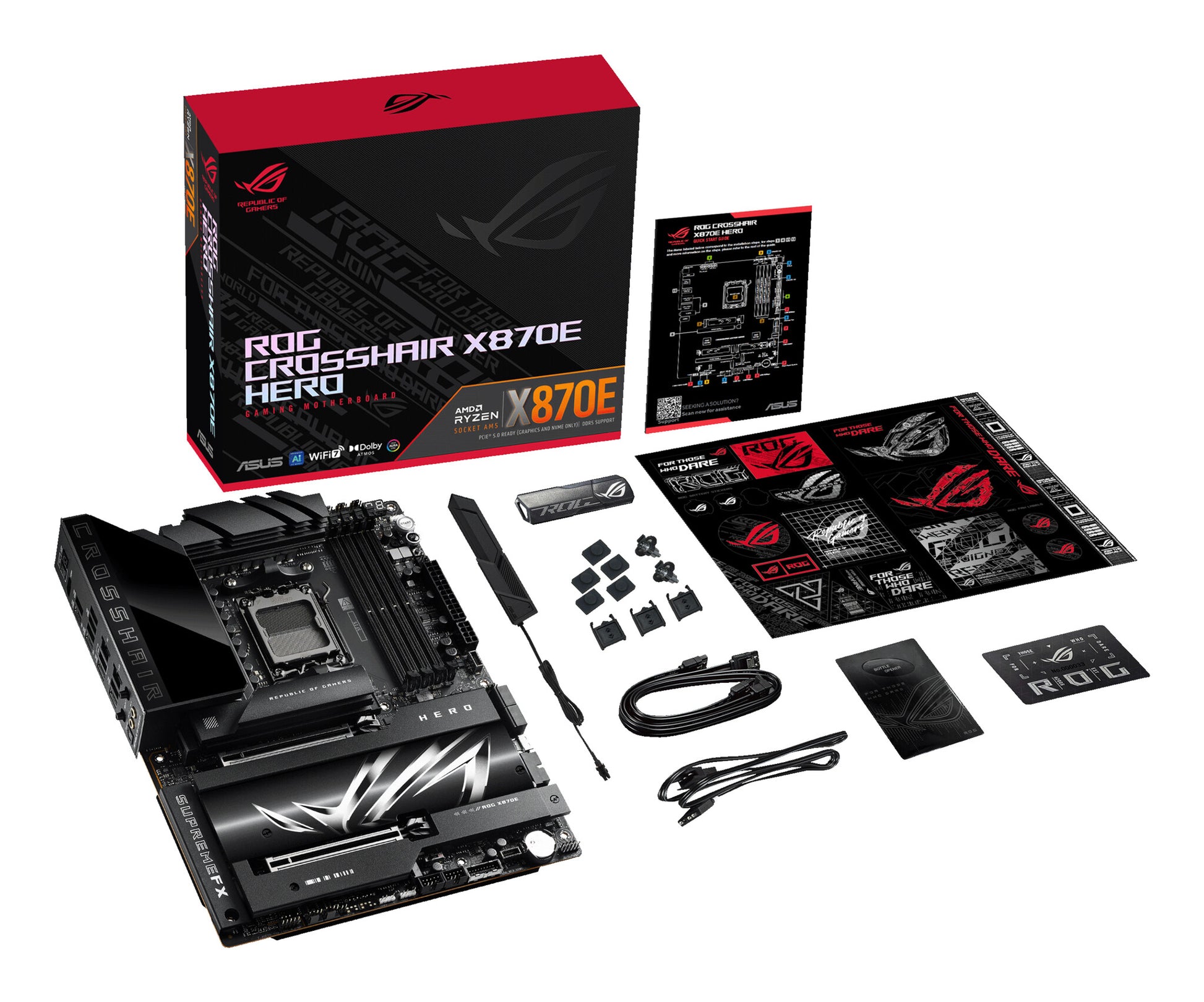

Packaging content
Drivers included Yes
Cables included SATA
Other features
Weight 2.55 kg
