SKU: 90MB1NT0-M0EAY0
Low stock: 1 left
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD X870E Realtek ALC4082 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
BIOS type: UEFI AMI 512 Mbit
5 Gigabit Ethernet, 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

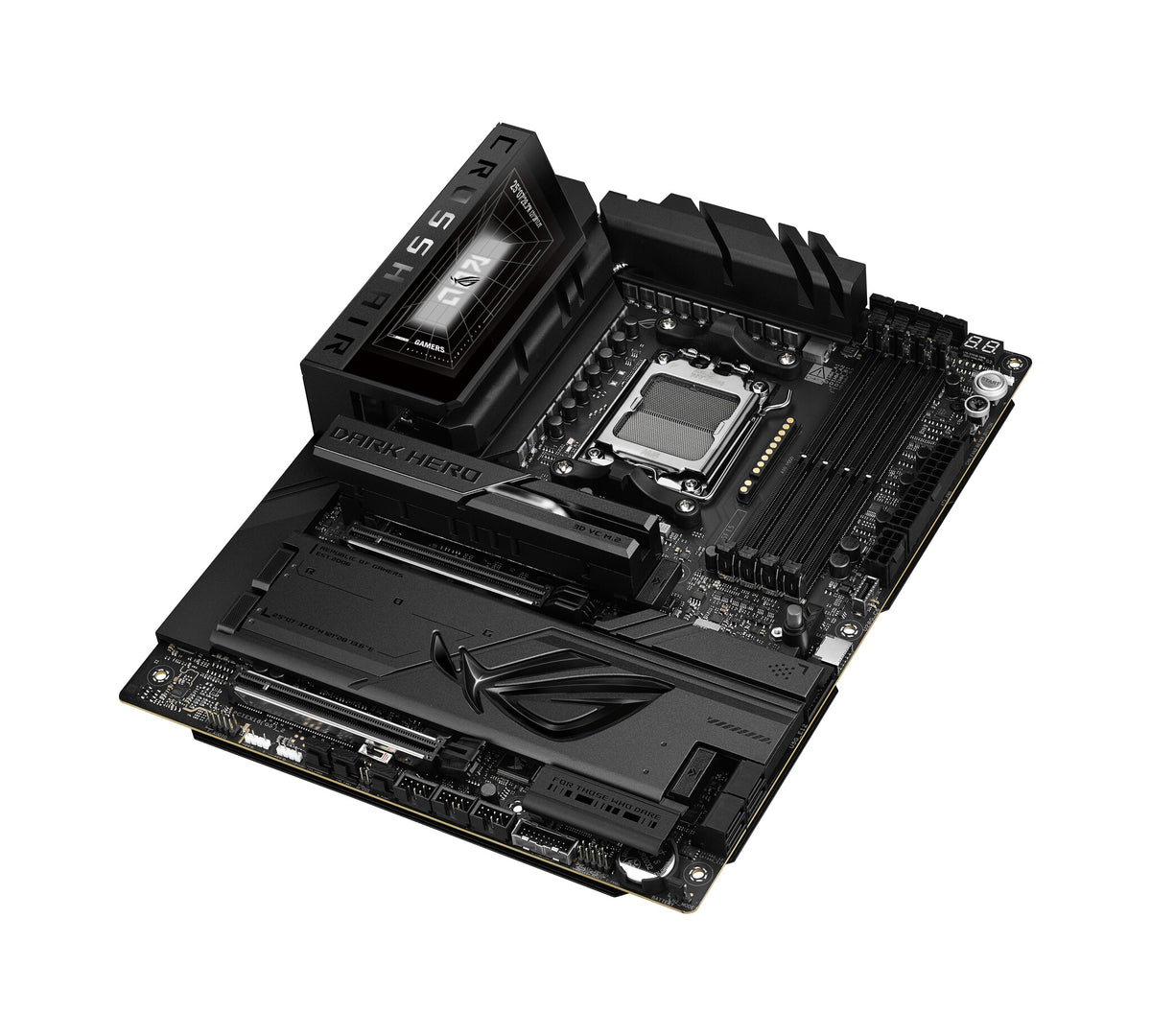

ROG CROSSHAIR X870E DARK HERO Gaming AMD AM5 (ATX, DDR5, Advanced AI PC, 10GB Ethernet, WiFi 7, 2x PCIe 5.0 M.2, 2x USB4, 2x USB 20Gbps)
Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
Processor
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
9
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2x2 connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of temperature sensor headers
1
12V power connector
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
1
Microphone in
Yes
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Network
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
MediaTek MT7927
Bluetooth
Yes
Bluetooth version
5.4
Features
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
Audio chip
Realtek ALC4082
Audio output channels
7.1 channels
Product colour
Black
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
5
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
5th M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Packaging data
Package width
308 mm
Package depth
367 mm
Package height
110 mm
Package weight
4.43 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Screws included
Yes
Antenna included
Yes
Cables included
SATA
