ASUS

ASUS PROART B850-CREATOR WIFI NEO AMD B850 Socket AM5 ATX

ASUS PROART B850-CREATOR WIFI NEO AMD B850 Socket AM5 ATX

£312.71 GBP
£312.71 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1P60-M0EAY0

Low stock: 8 left

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B850 Realtek ALC1220P 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 512 Mbit
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth

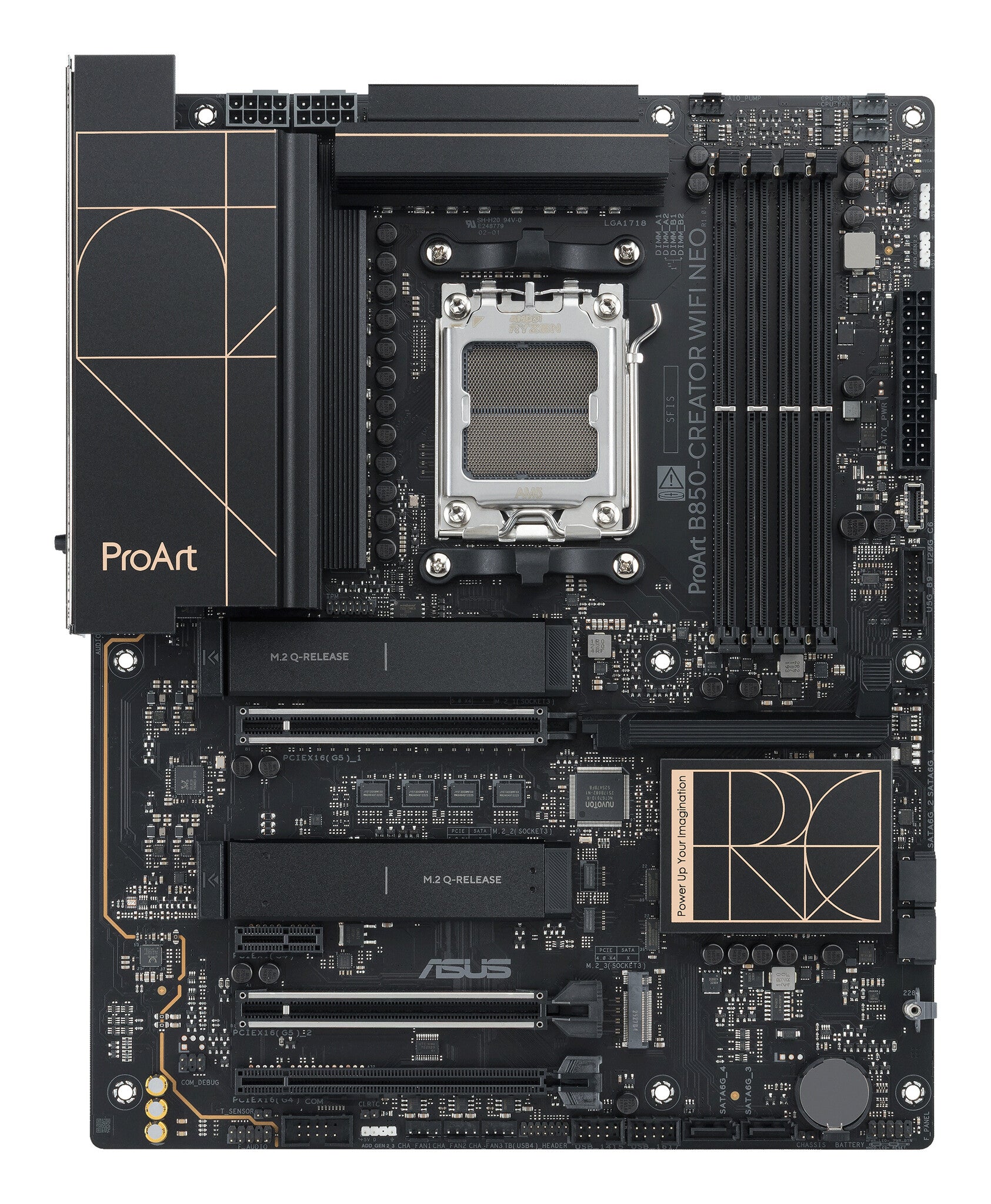

ProArt B850-CREATOR WIFI NEO AMD B850 ATX motherboard (14+2+1 Power Stages, DDR5 with AEMP, WiFi 7, Dual Realtek 5Gb Ethernet, 3x M.2 slots, PCIe 5.0 x16 SafeSlots, PCIe Slot Q-Release)

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.

With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speed (max) 9000 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 7
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Maximum resolution 7680 x 4320 pixels
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 4
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 2
Number of temperature sensor headers 1
Number of water pump connectors 1
TPM connector Yes
Thunderbolt headers 1
Number of COM connectors 1
RGB LED pin header Yes
Number of RGB LED pin headers 3

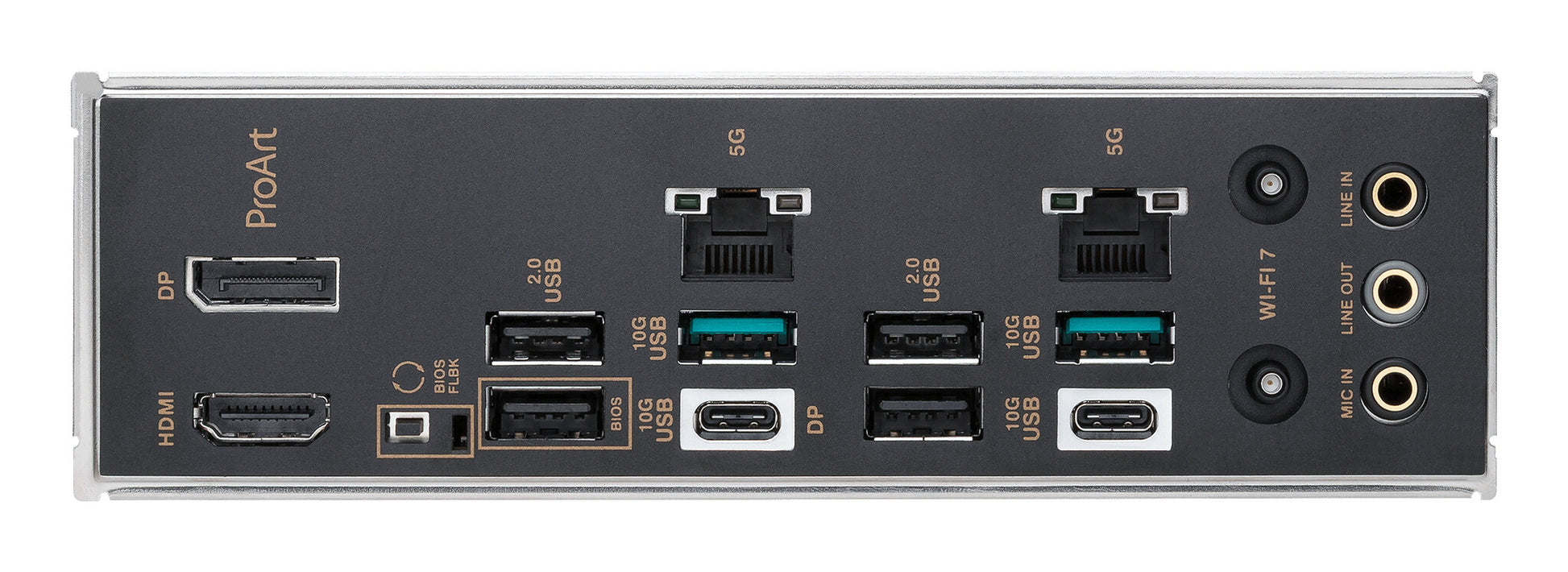

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
Ethernet LAN (RJ-45) ports 2
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Line-in Yes
Headphone outputs 1
Microphone in Yes
WiFi-AP antenna jack 2
Network
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
WLAN controller model Realtek RTL8922AE
Bluetooth Yes
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD B850
Audio chip Realtek ALC1220P
Audio output channels 7.1 channels
Product colour Black
Power source type ATX
Cooling type Passive
Windows operating systems supported Windows 11
Expansion slots
PCI Express x4 (Gen 1.x) slots 1
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 2
Number of M.2 (M) slots 3
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 512 Mbit
BIOS flashback button Yes
Packaging data
Package width 353 mm
Package depth 273 mm
Package height 68 mm
Package weight 2.14 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 48 mm

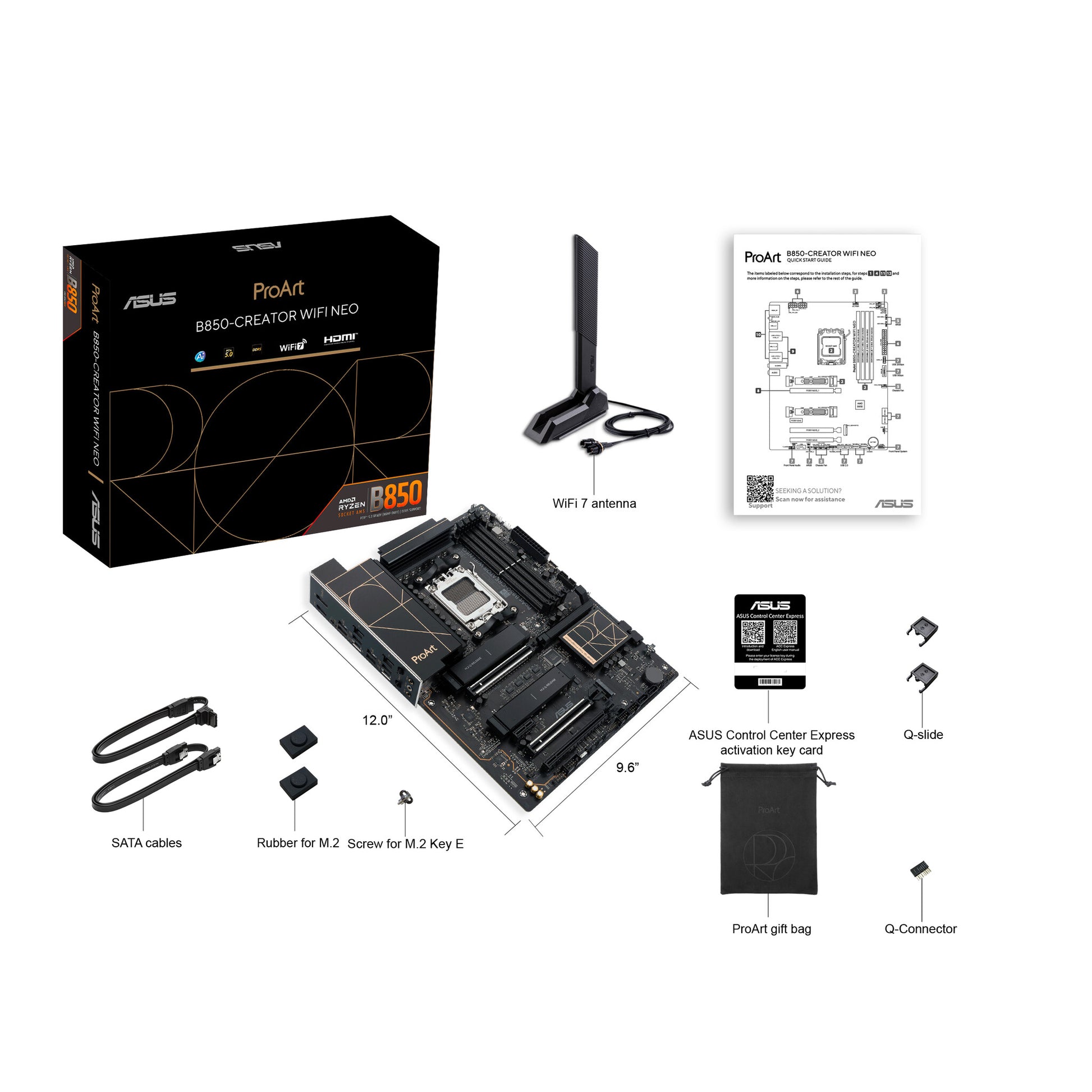

Packaging content
Screws included Yes
Antenna included Yes
Cables included SATA
Other features
Weight 1.33 kg
Quick installation guide Yes
