ASUS
Regular price
£238.90 GBP
Regular price
Sale price
£238.90 GBP
Unit price
/
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Refresh
SKU: 90MB1KEP-M0EAYC
Low stock: 3 left
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance
Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C®
DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Intel Q870, LGA1851, 4 x DIMM slots, max. 256GB, DDR5, Intel I219LM 1Gb Ethernet, 256Mb Flash ROM, micro-ATX
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
6400 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
6
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
Number of COM connectors
2

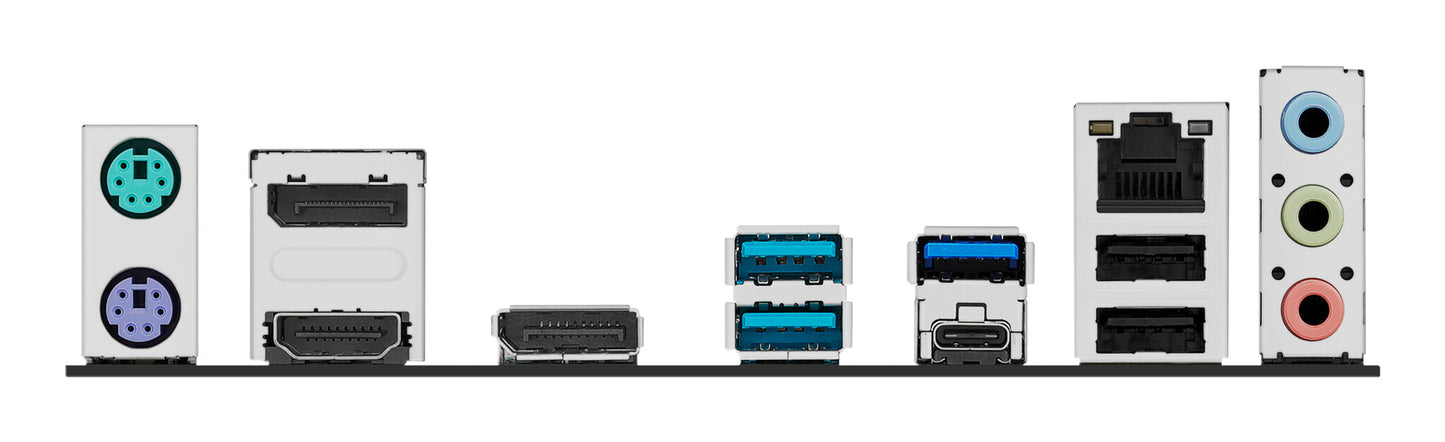

Rear panel I/O ports
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
2
HDMI ports quantity
1
DisplayPorts quantity
2
Microphone in
Yes
USB connector type
USB Type-A, USB Type-C
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I219-LM
Wi-Fi
No
Top Wi-Fi standard
Not available
Features
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel® Q870
Audio output channels
7.1 channels
Product colour
Multicolour
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS memory size
256 Mbit
Packaging data
Package width
270 mm
Package depth
263 mm
Package height
51.5 mm
Package weight
889.03 g
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
50 mm
Other features
Weight
550.6 g
