ASUS

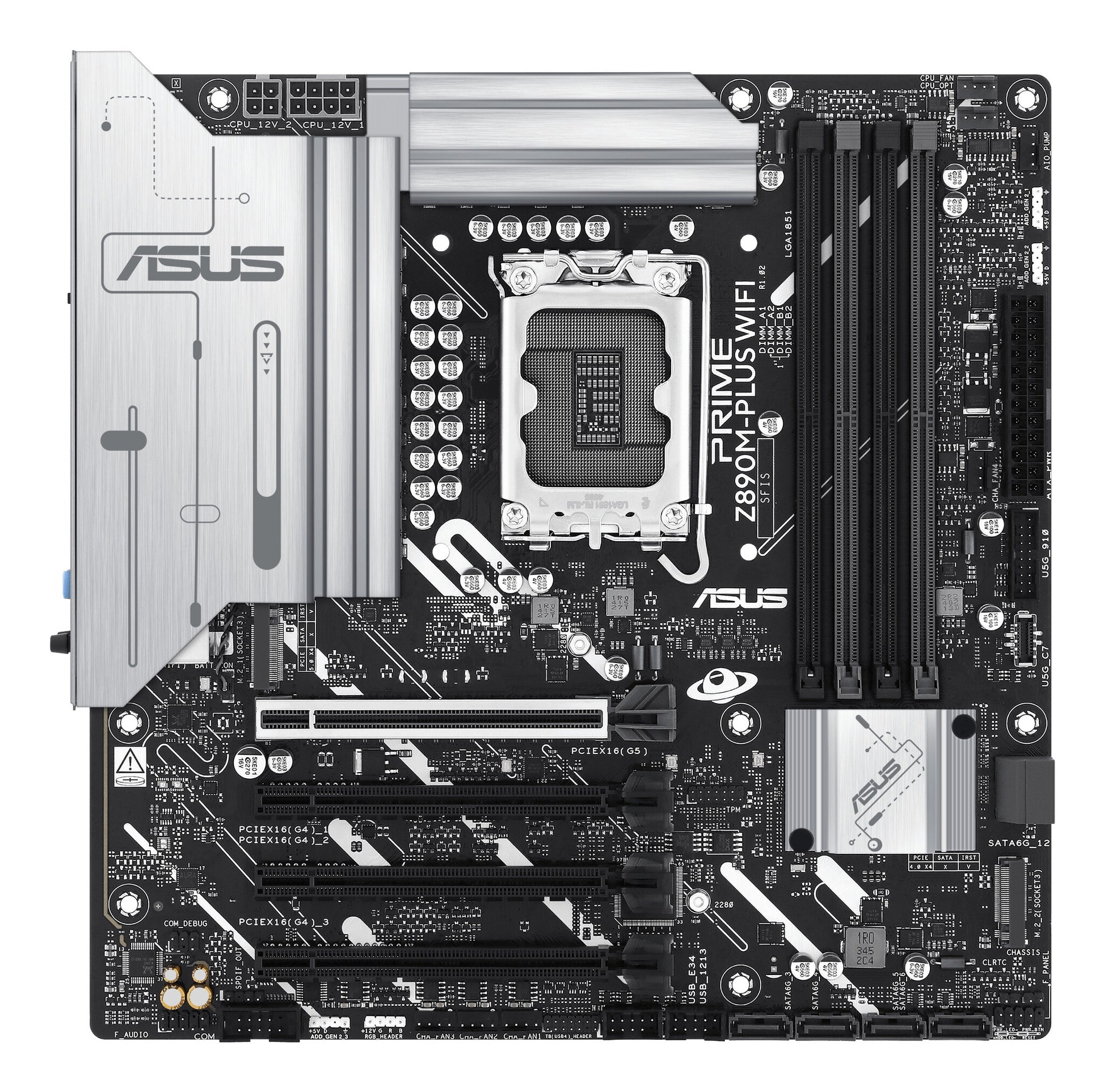

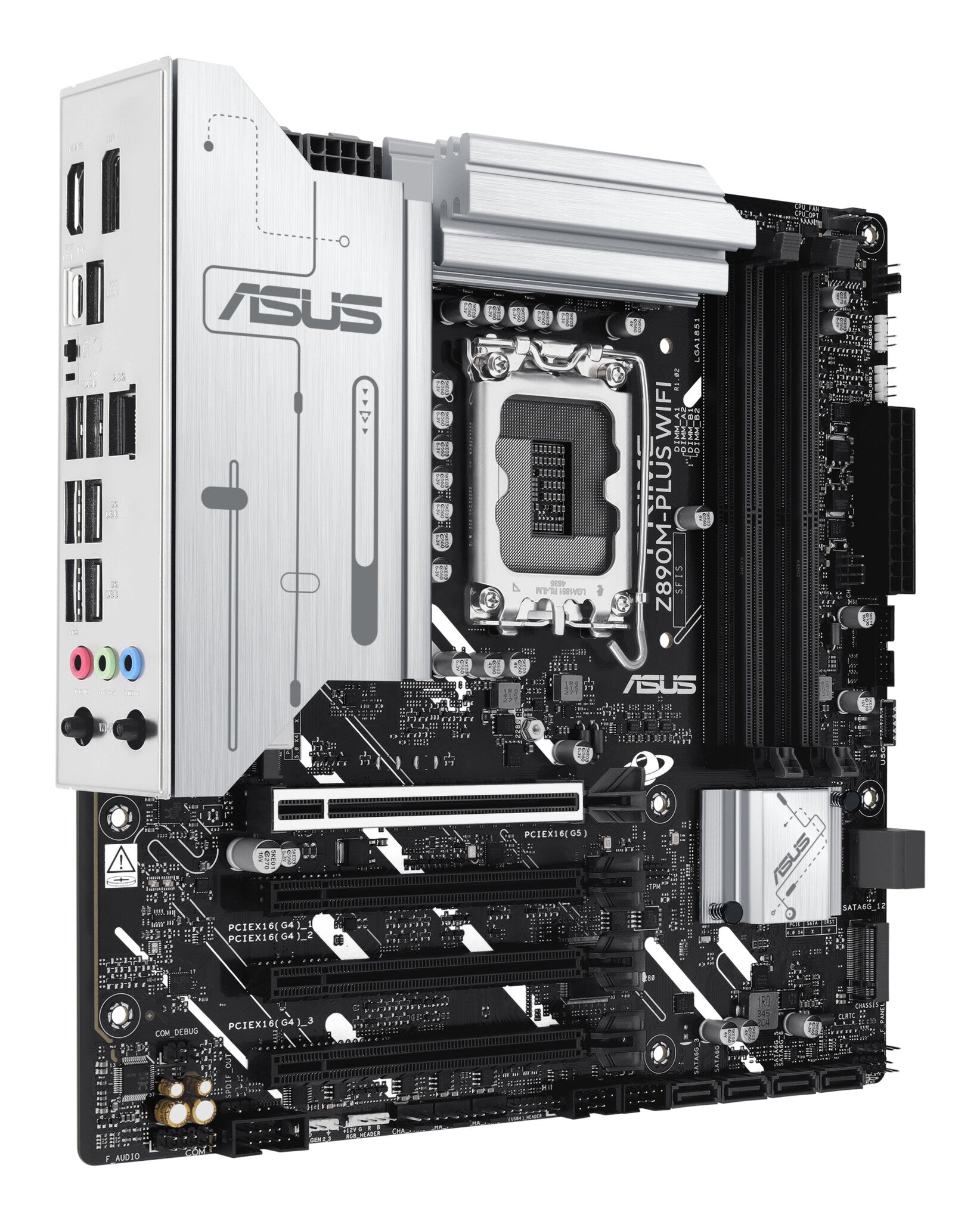

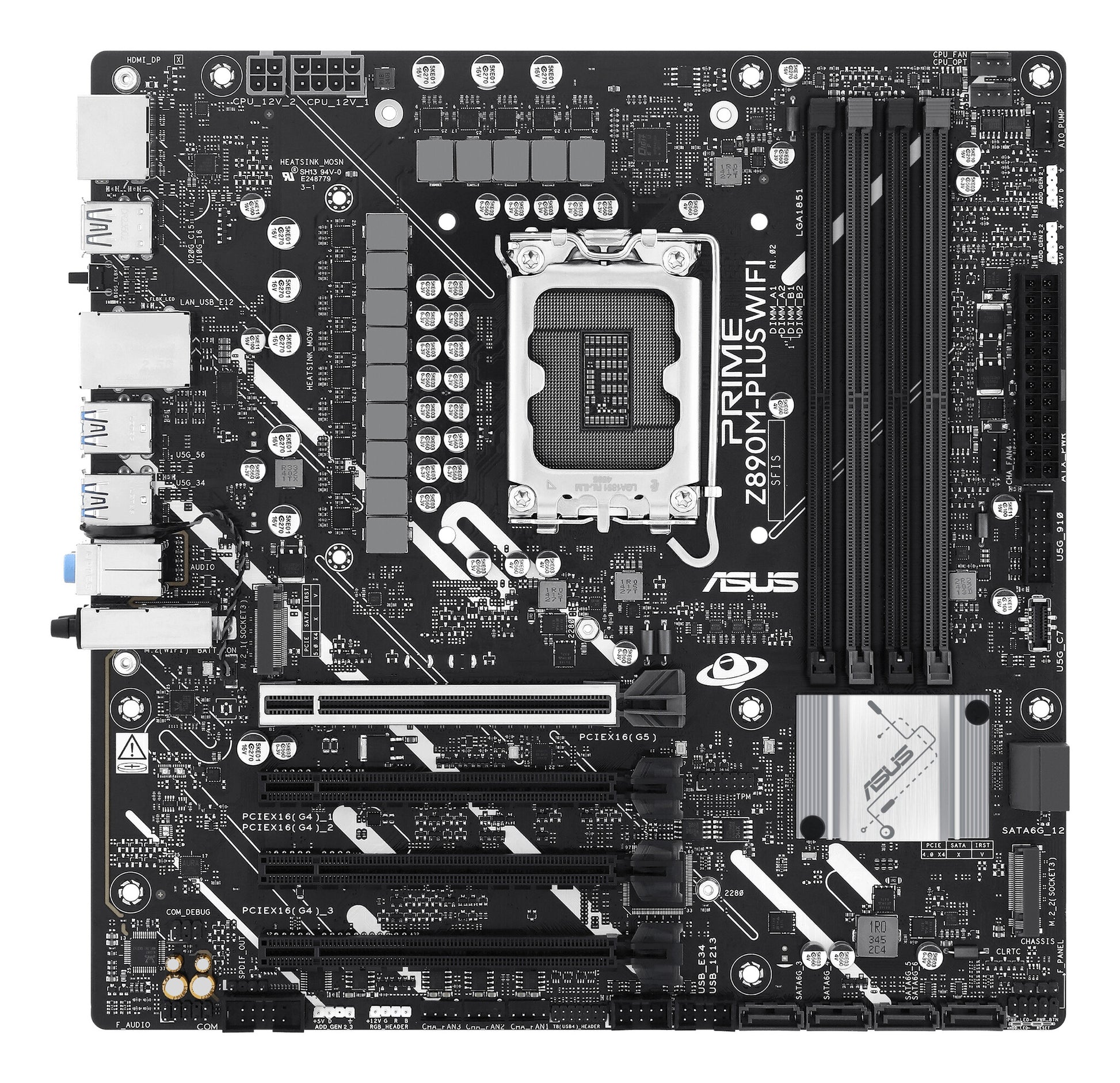

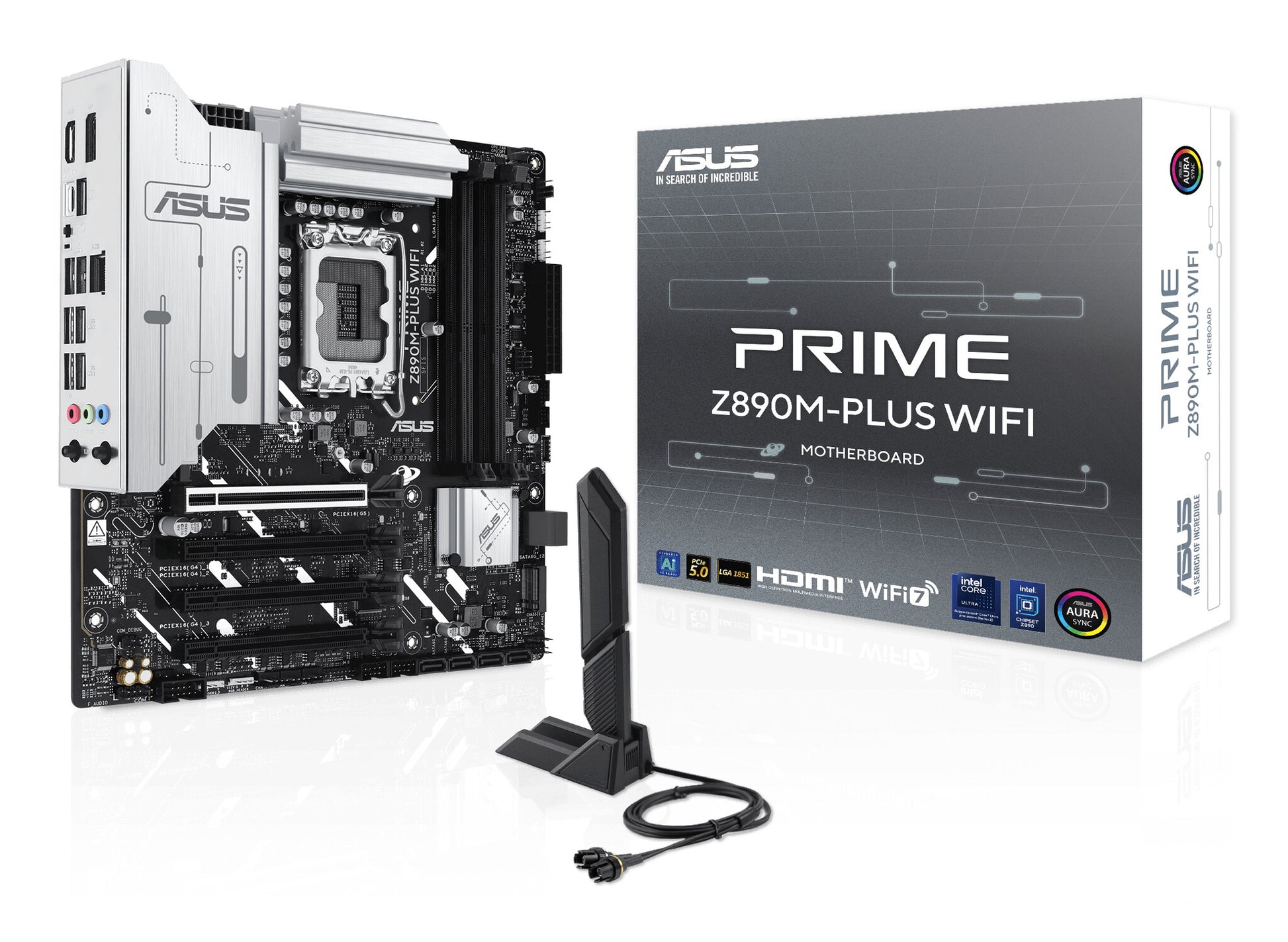

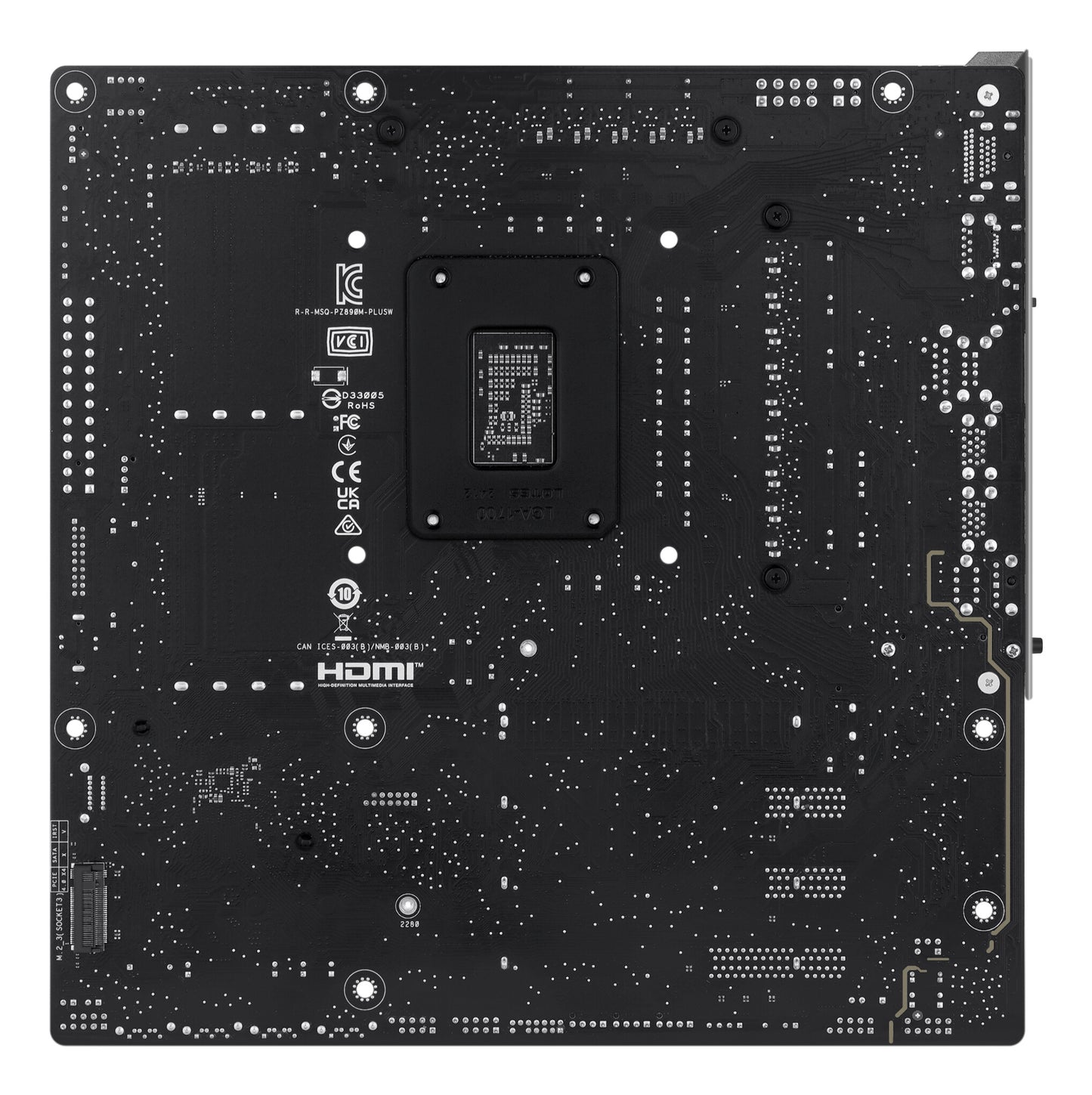

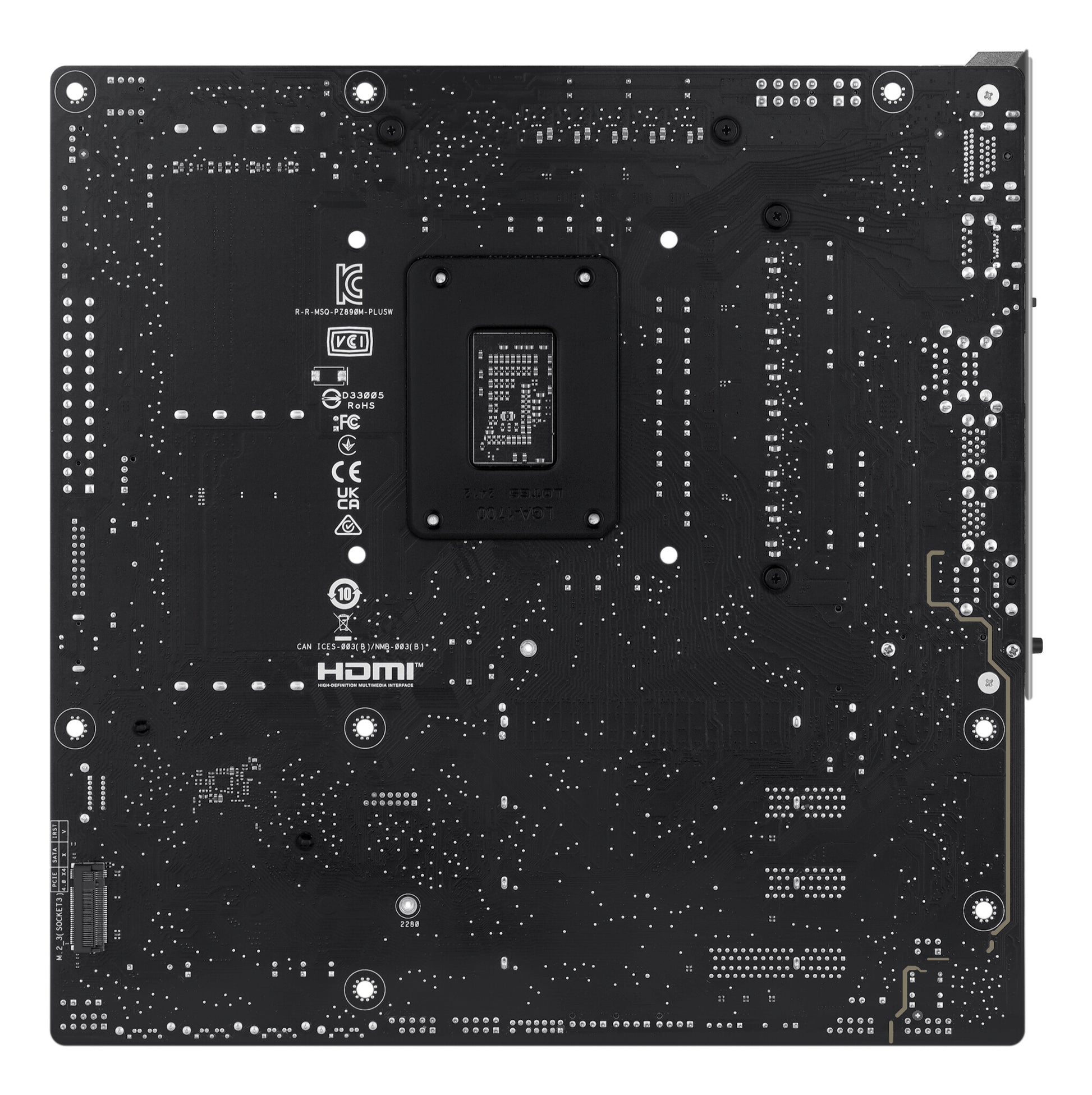

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX

£204.36 GBP
£204.36 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1J80-M0EAY0

Low stock: 5 left

  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC micro ATX Intel Z890 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Intel Z890 Chipset, 4 x DIMM slots, max. 192GB, DDR5

Z890M-PLUS WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Maximum internal memory 192 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 9
Number of HDDs supported 6
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 6
S/PDIF out connector Yes
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 4
Chassis intrusion connector Yes
TPM connector Yes
Thunderbolt headers 1
12V power connector Yes
Number of COM connectors 1
Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DisplayPorts quantity 1
Microphone in Yes
WiFi-AP antenna jack 1
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z890
Audio output channels 7.1 channels
Product colour Aluminium, Black
Windows operating systems supported Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots 3
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 275 mm
Package depth 275 mm
Package height 67.5 mm
Package weight 1.64 kg
Weight & dimensions
Width 244 mm
Depth 244 mm
Packaging content
Screws included Yes
Cables included SATA
