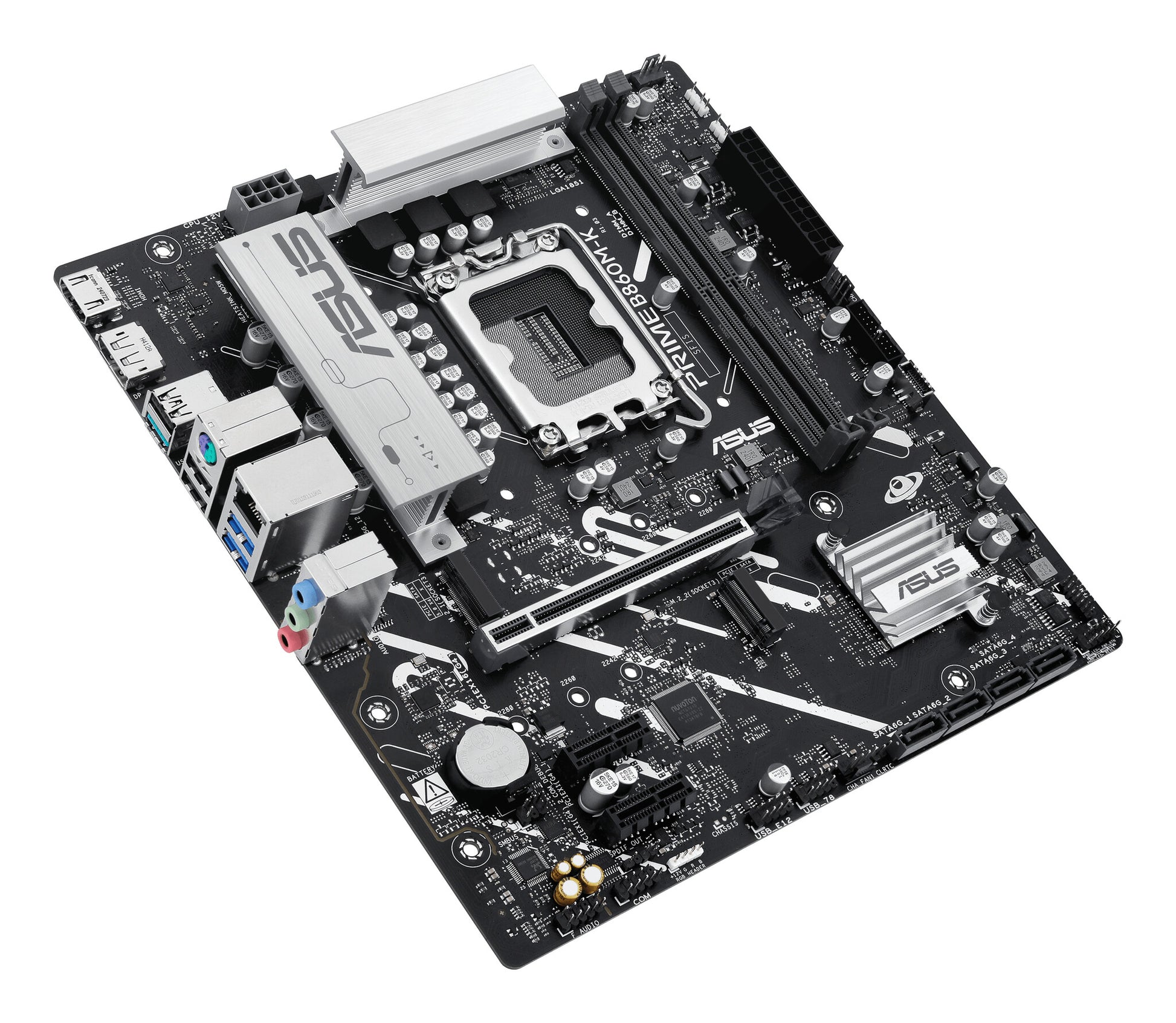

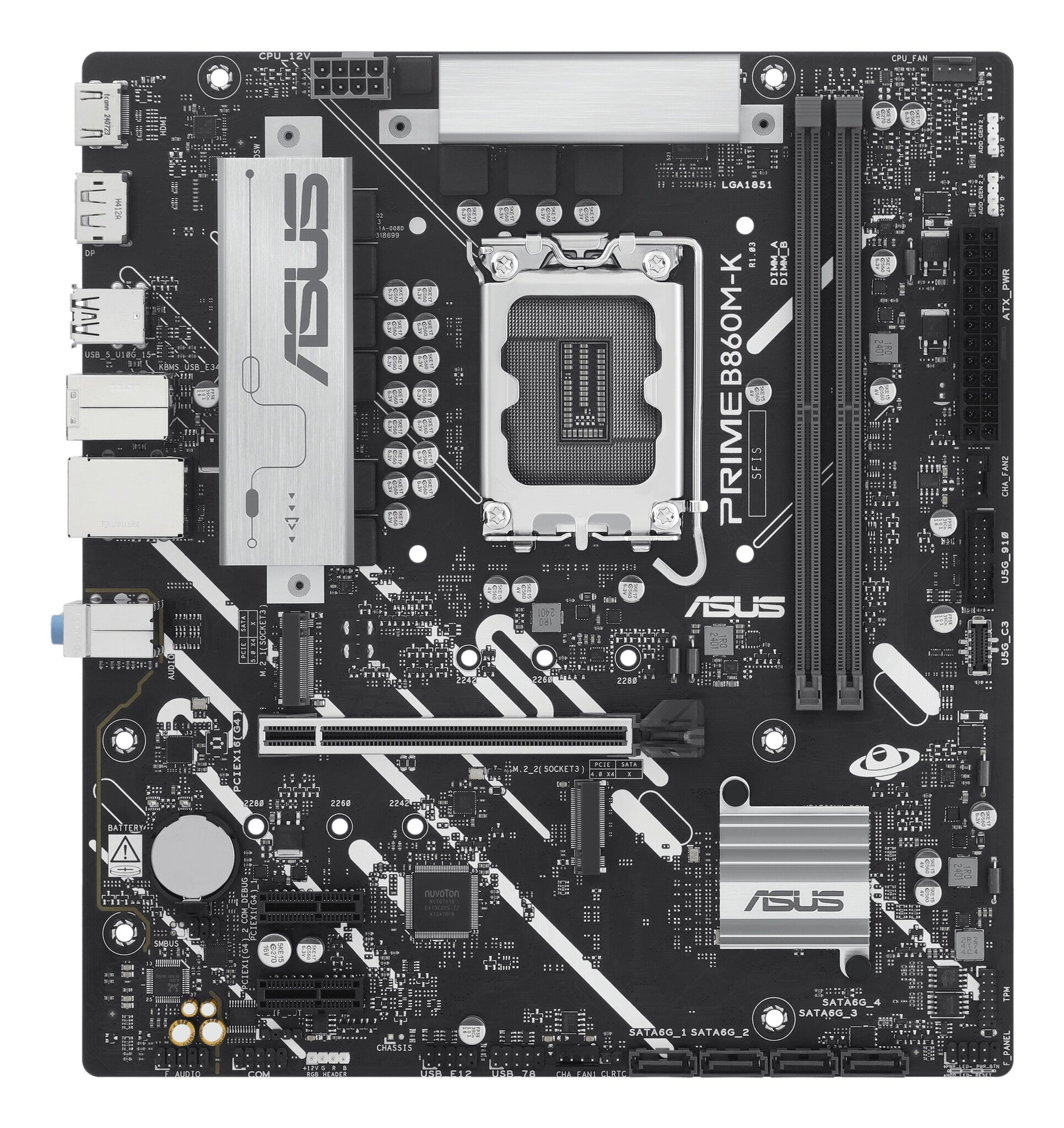

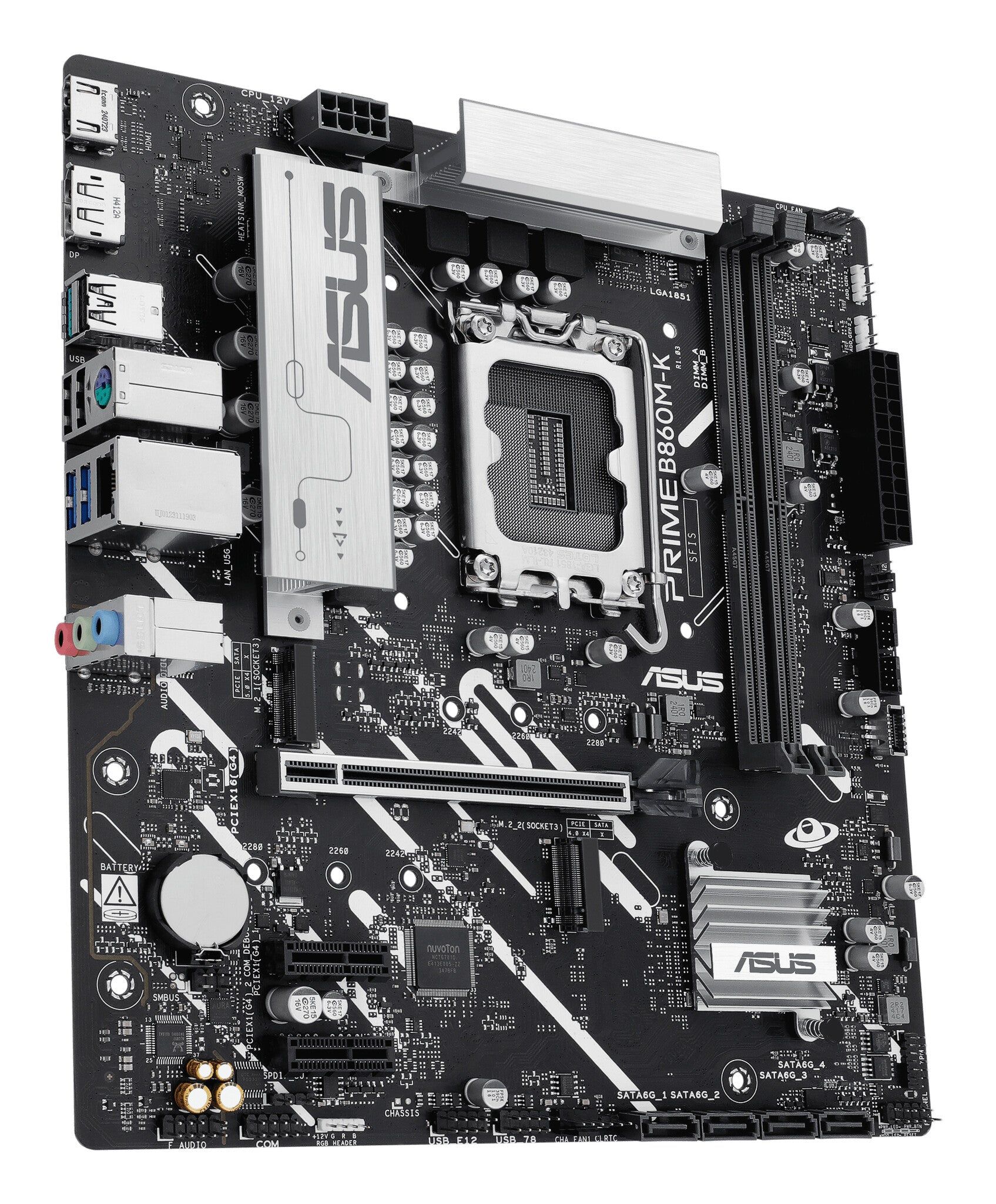

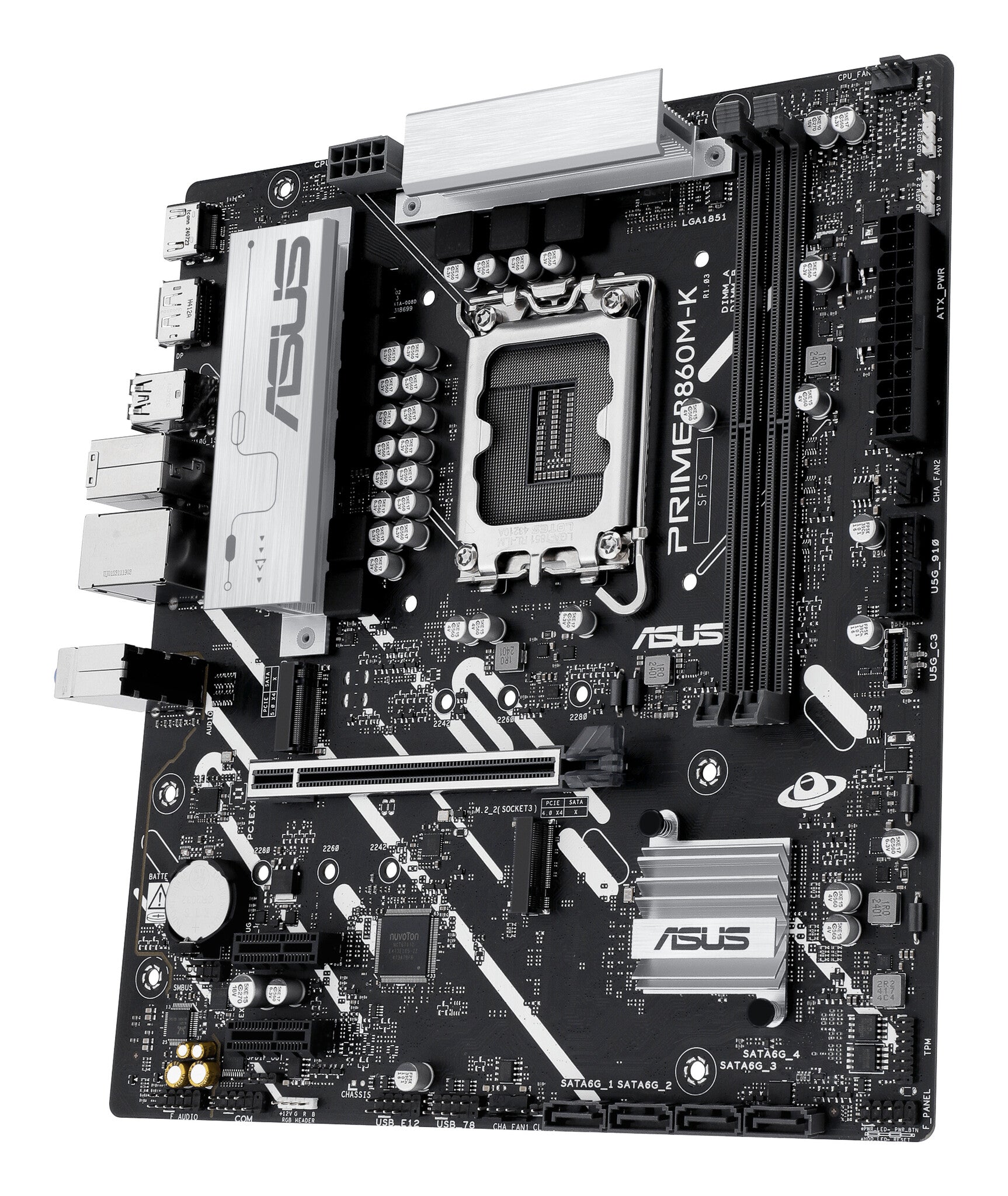

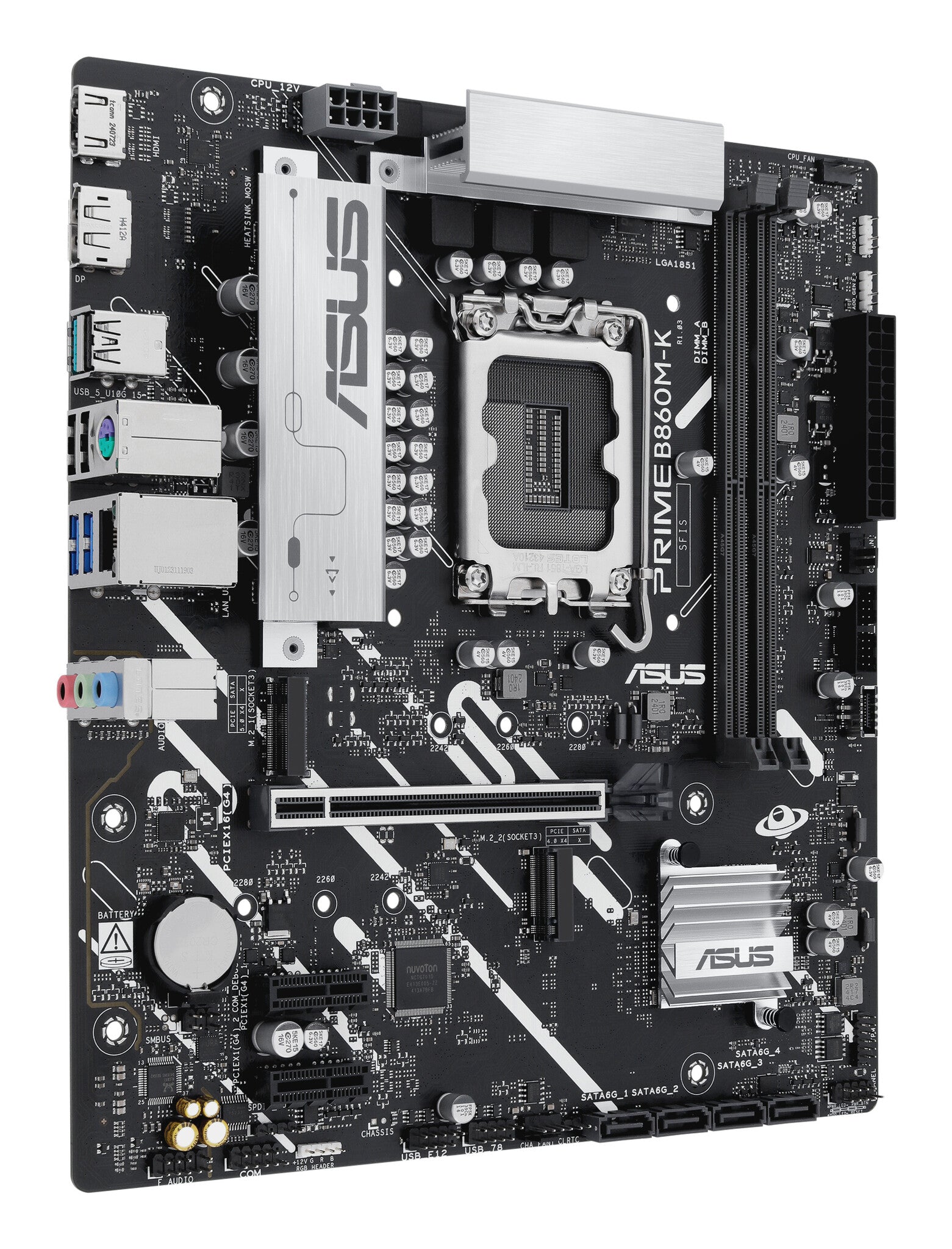

ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX

£133.01 GBP
£133.01 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1JT0-M0EAY0

24 in stock

  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet
Intel B860 Chipset, 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM

B860M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Maximum internal memory 128 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 6
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
S/PDIF out connector Yes
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 2
TPM connector Yes
12V power connector Yes
Number of COM connectors 1
RGB LED pin header Yes

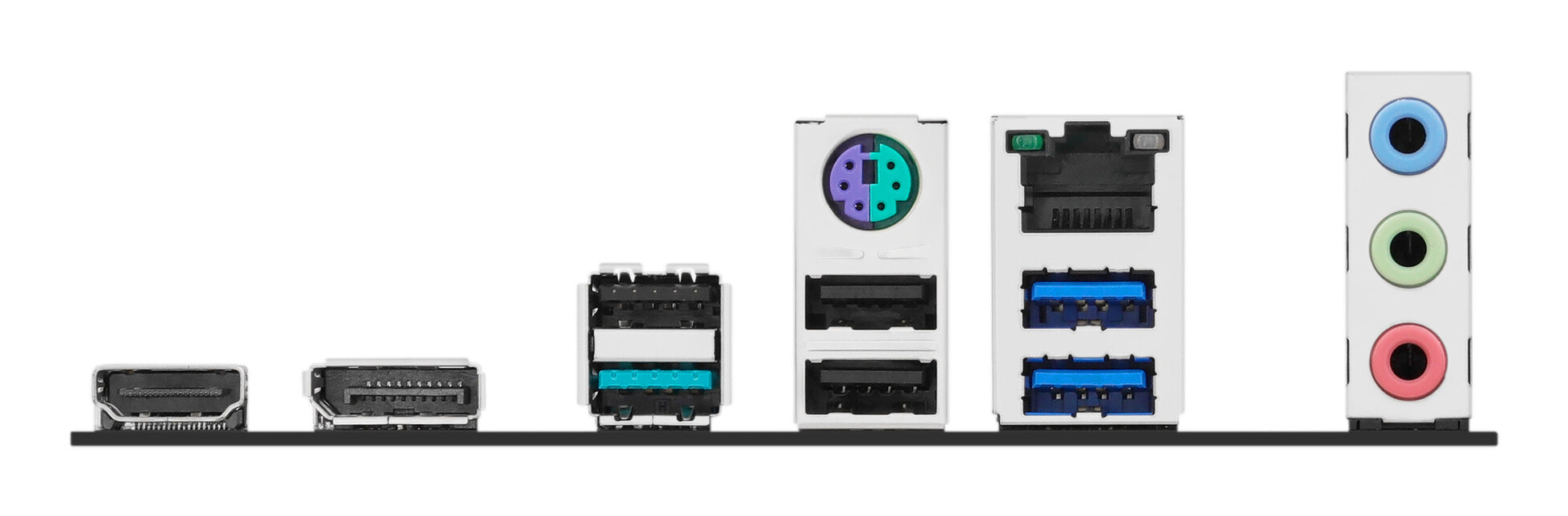

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
DisplayPorts quantity 1
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi No
Top Wi-Fi standard Not available
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B860
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 270 mm
Package depth 263 mm
Package height 51.5 mm
Package weight 1.07 kg
Weight & dimensions
Width 244 mm
Depth 222 mm

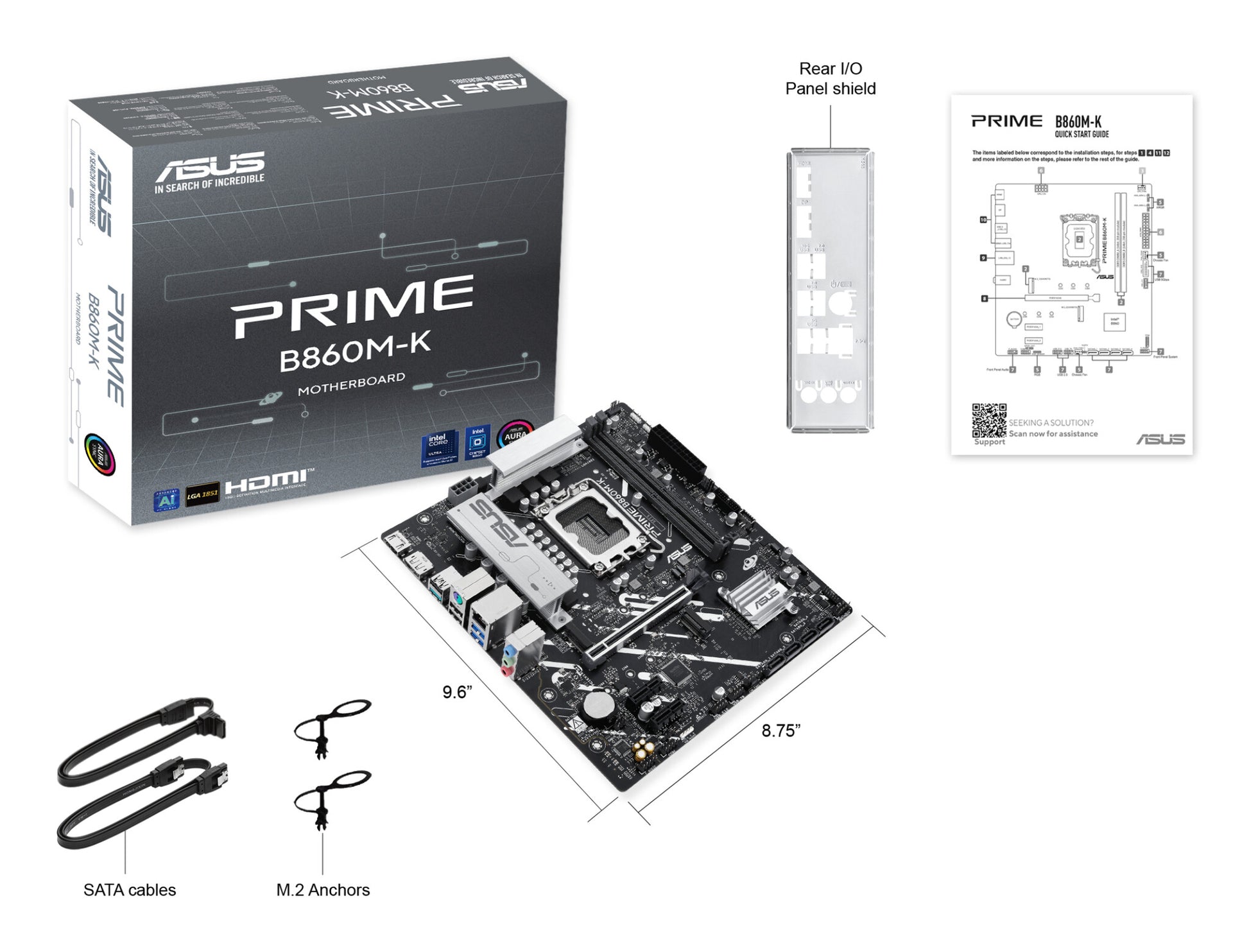

Packaging content
Cables included SATA
