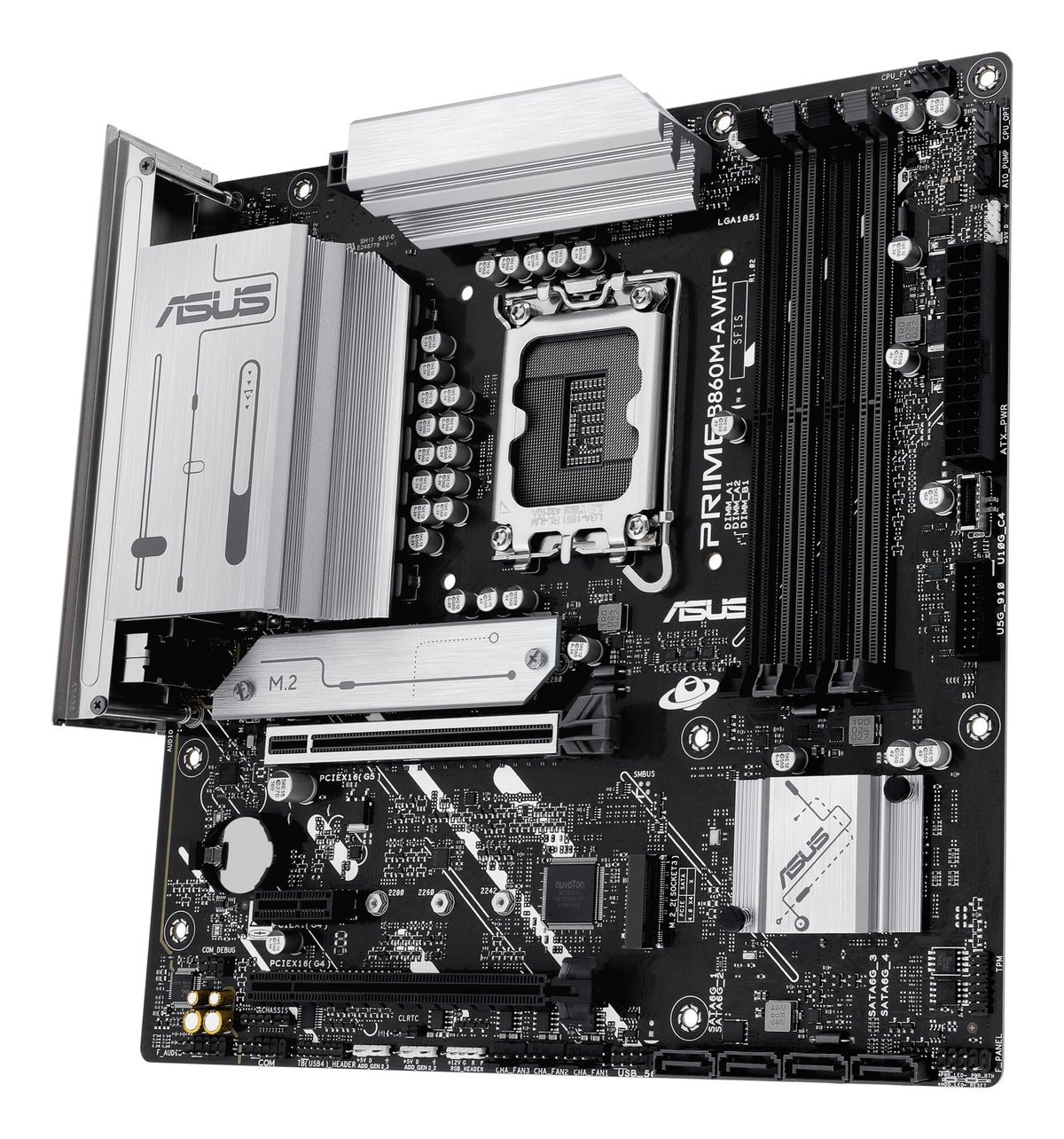

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

£167.46 GBP
£167.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1JY0-M0EAY0

100 in stock

  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Intel B860 Chipset, 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

B860M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Processor
Supported processor sockets LGA 1851
Compatible processor series Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 256 GB
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 4
Number of storage drives supported 6
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
Parallel processing technology support Not supported
Internal I/O
RGB LED pin header Yes
Number of COM connectors 1
12V power connector Yes
TPM connector Yes
Thunderbolt headers 1
Chassis intrusion connector Yes
Number of chassis fan connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
S/PDIF out connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 1
Rear panel I/O ports
WiFi-AP antenna jack 1
DisplayPorts quantity 2
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 ports quantity 4
Network
Bluetooth version 5.3
Bluetooth Yes
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11
Audio output channels 7.1 channels
Motherboard chipset Intel B860
Motherboard chipset family Intel
Motherboard form factor micro ATX
Component for PC
Expansion slots
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
Number of M.2 (M) slots 2
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 4.x) slots 1
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Packaging data
Package weight 1.44 kg
Package height 67.5 mm
Package depth 275 mm
Package width 275 mm
Weight & dimensions
Depth 244 mm
Width 244 mm
Packaging content
Cables included SATA
Screws included Yes
Antenna included Yes
