SKU: 90MB1KP0-M0EAY0
35 in stock
AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, front USB 5Gbps Type-C®, Thunderbolt™ 4 header support
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

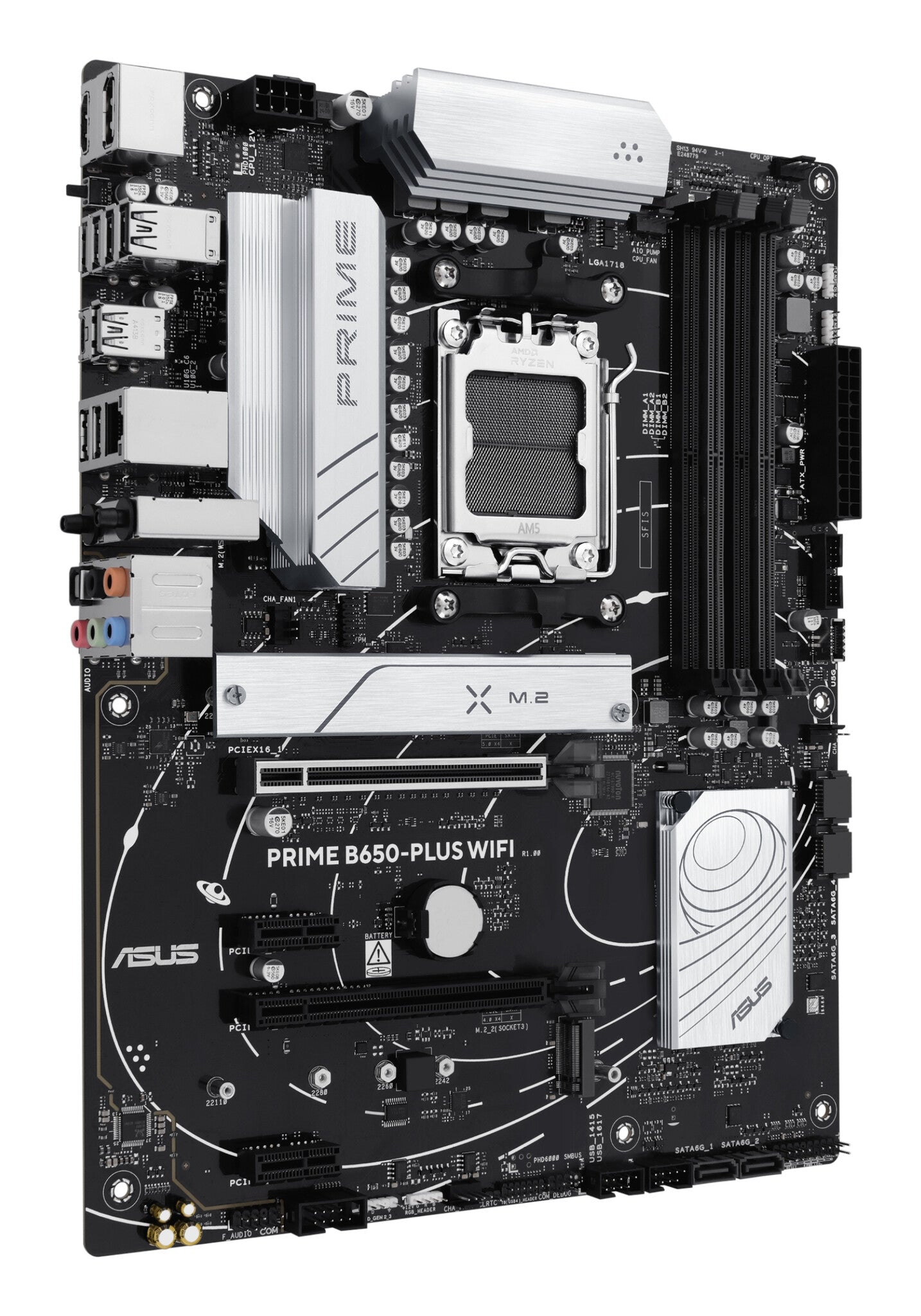

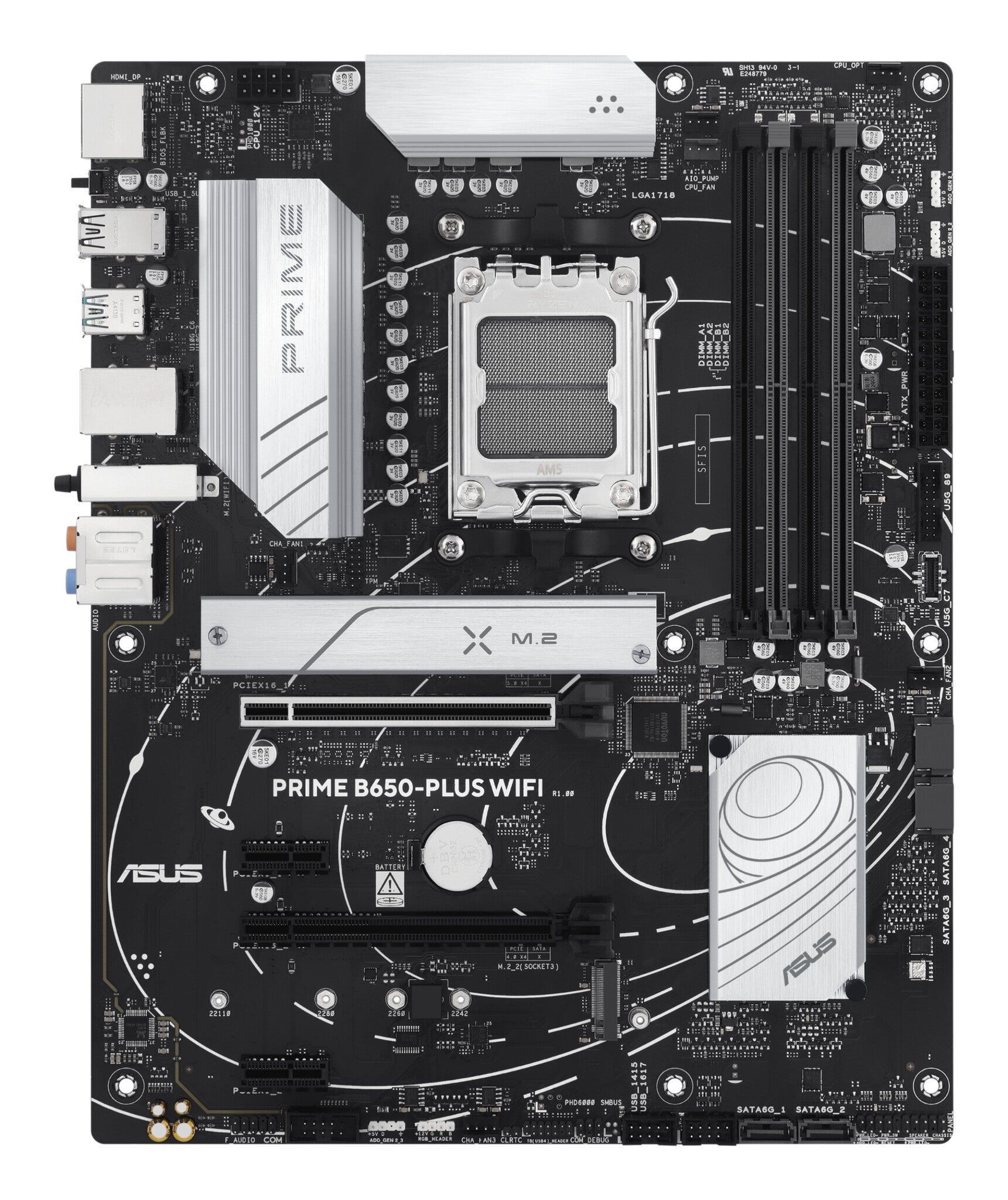

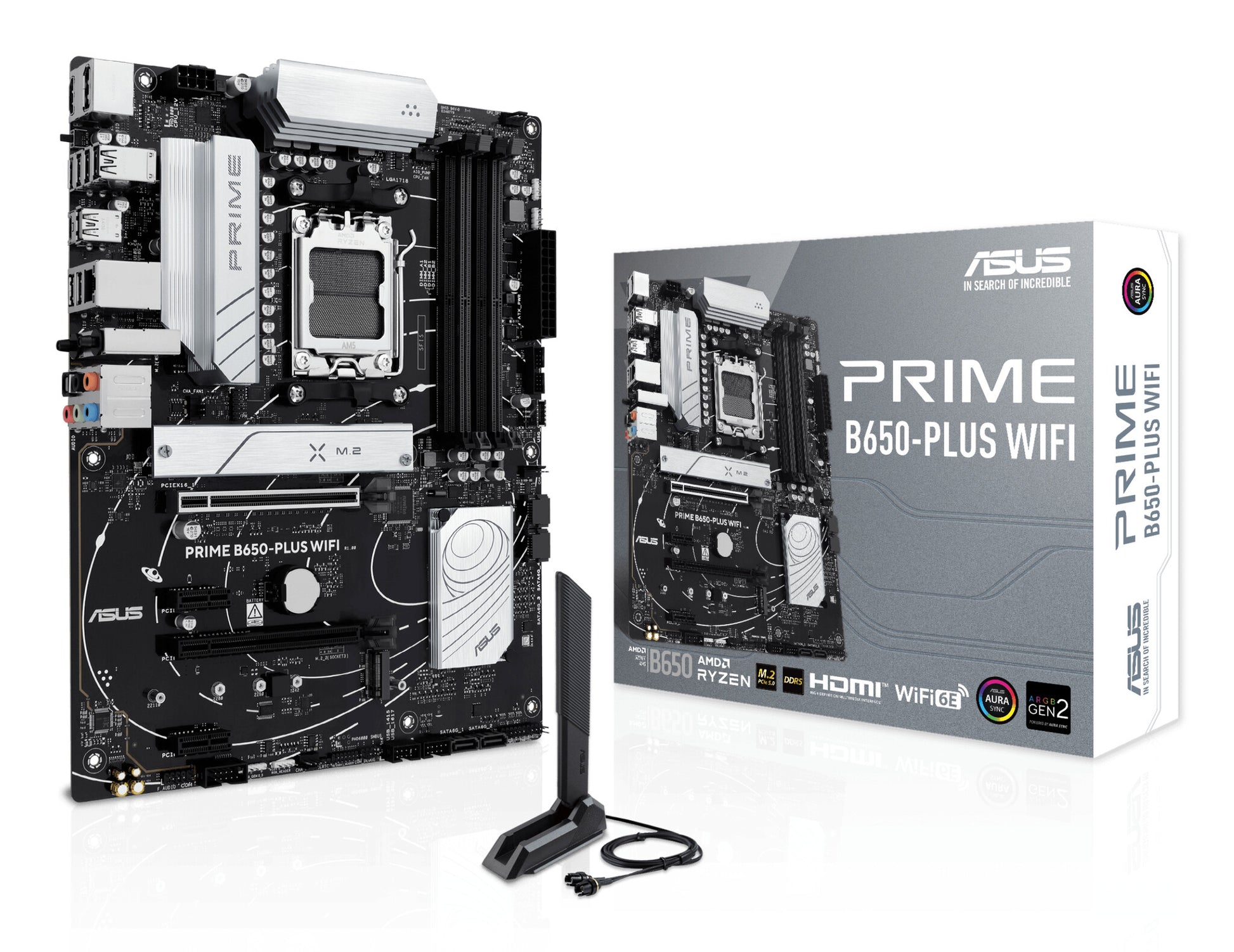

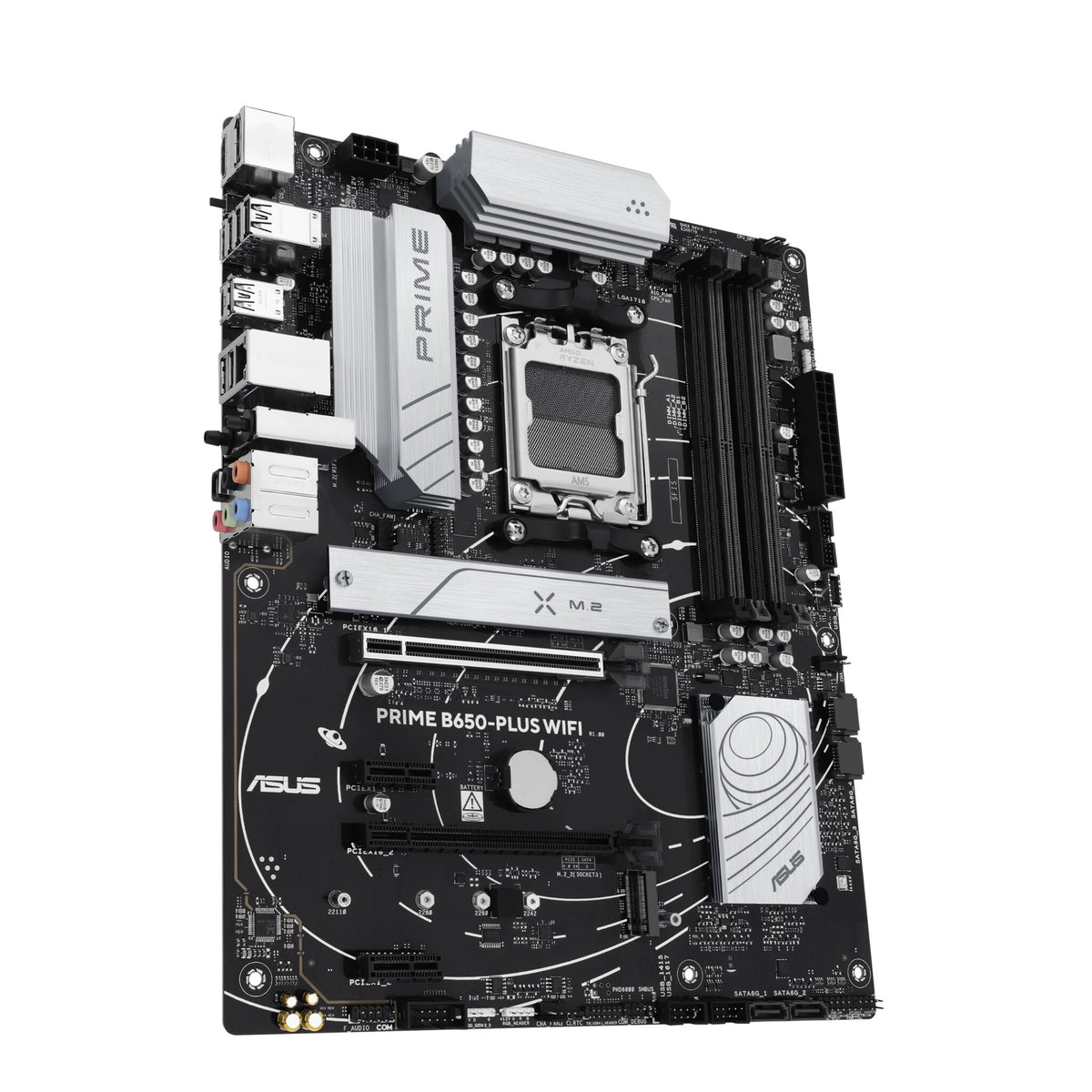

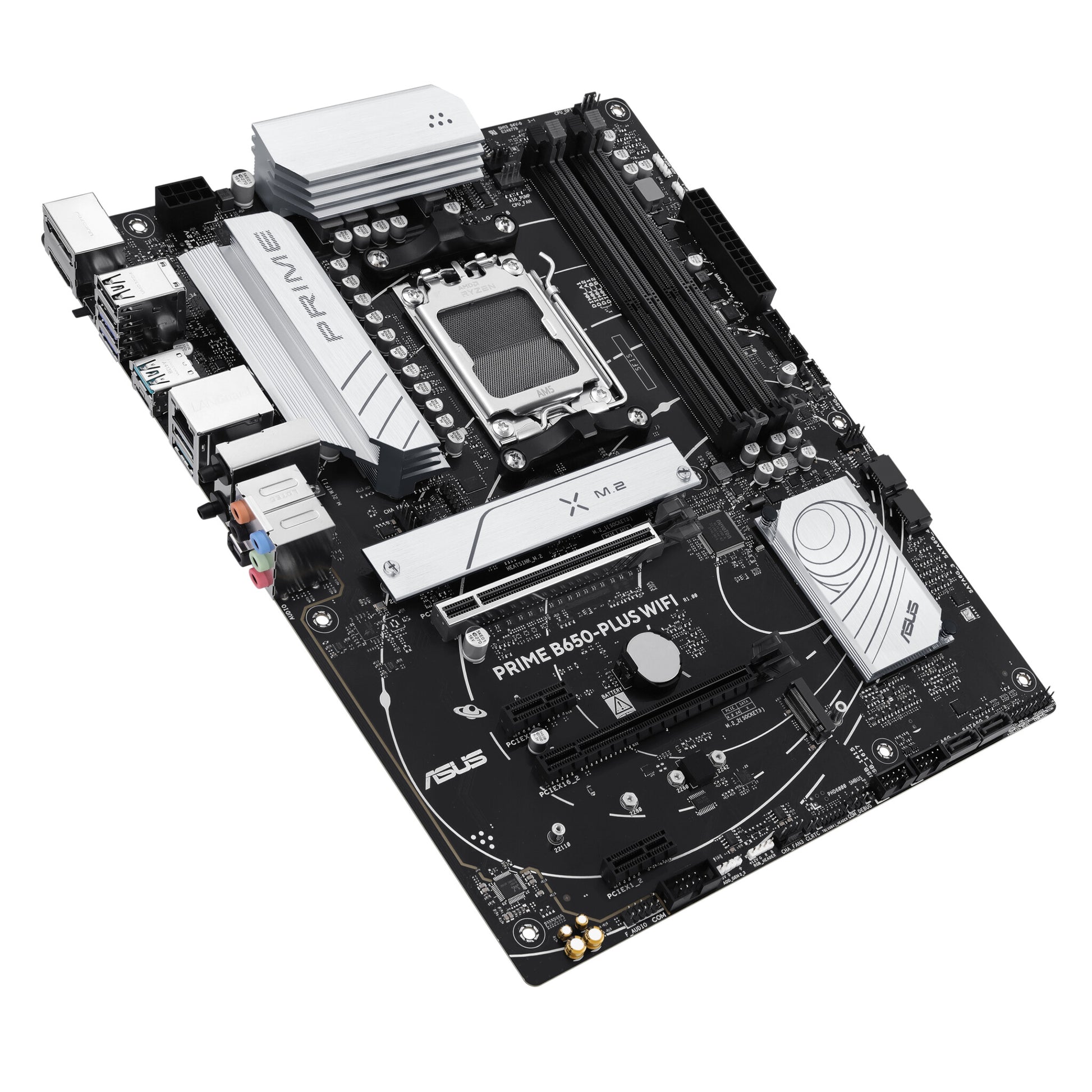

AMD B650 ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, WIFI 6E, DisplayPort, HDMI, SATA 6 Gbps, USB 10Gbps Type-C,front USB 5Gbps Type-C, BIOS FlashBack, Thunderbolt 4 header, AURA Sync
B650-PLUS WIFI
Processor
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket
Socket AM5
Processor manufacturer
AMD
Memory
Unbuffered memory
Yes
Maximum internal memory
192 GB
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
ECC сompatibility
ECC & Non-ECC
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Storage controllers
RAID levels
0, 1, 10
RAID support
Yes
Number of HDDs supported
4
Number of storage drives supported
6
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Graphics
Parallel processing technology support
Not supported
Internal I/O
Number of RGB LED pin headers
1
RGB LED pin header
Yes
Number of COM connectors
1
12V power connector
Yes
TPM connector
Yes
Thunderbolt headers
1
EPS power connector (8-pin)
Yes
Number of chassis fan connectors
3
Number of CPU fan connectors
2
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Front panel connector
Yes
Front panel audio connector
Yes
Number of SATA III connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 2.0 connectors
2

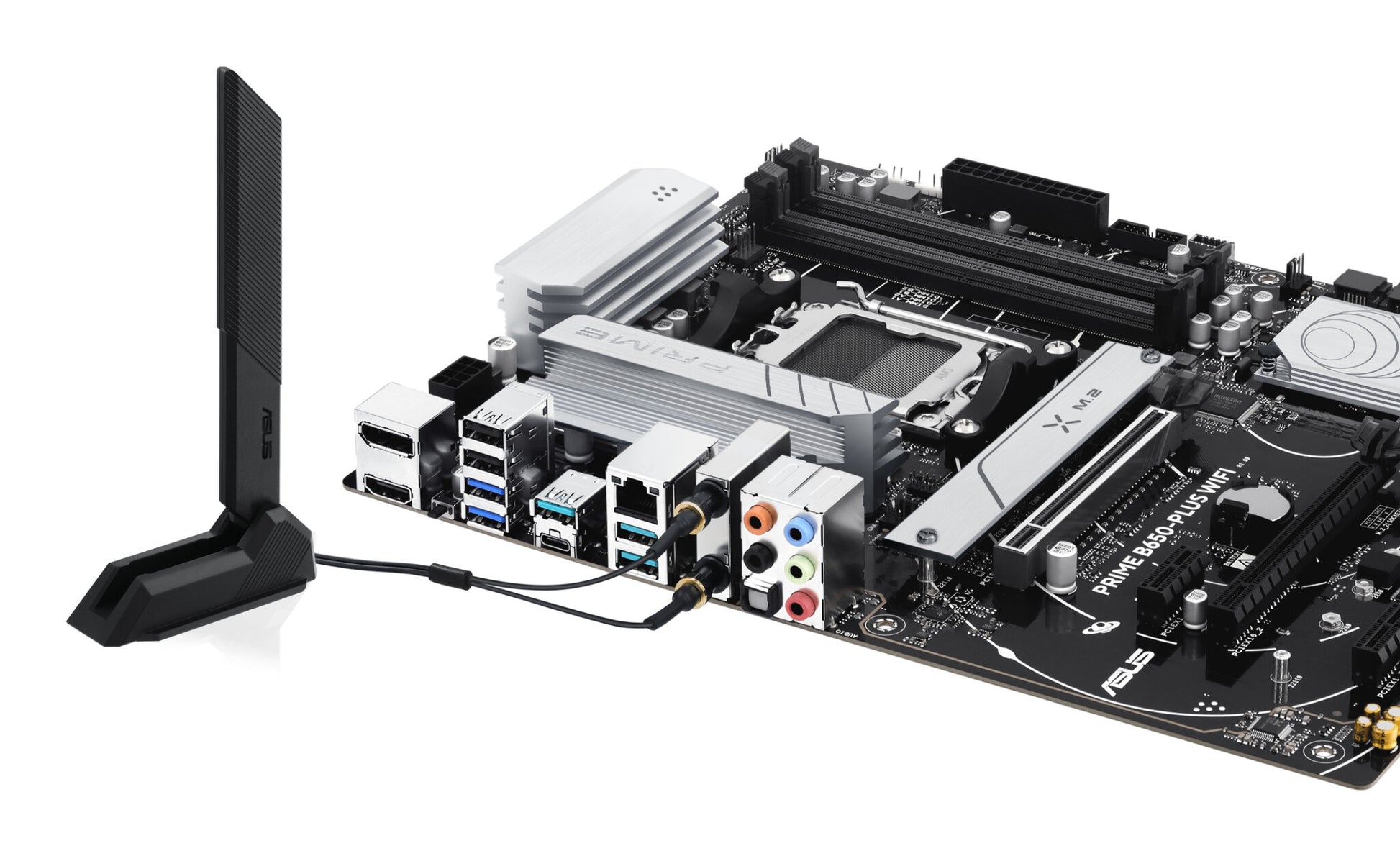

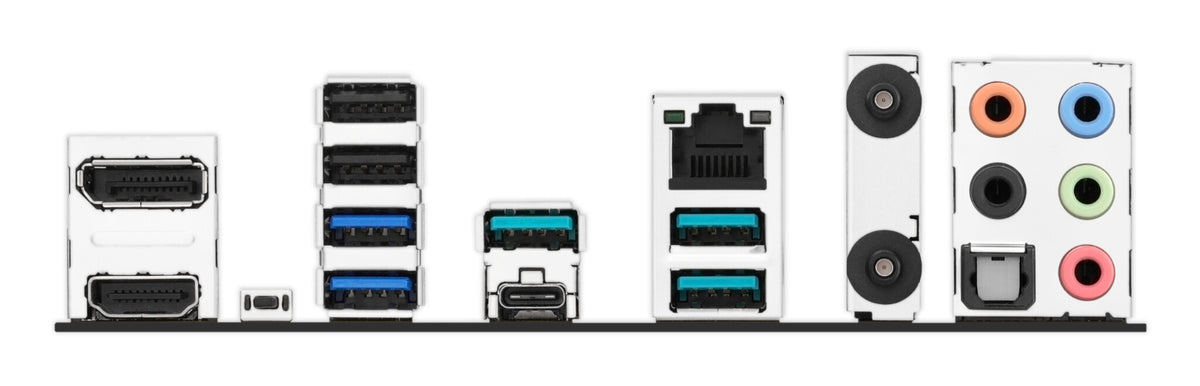

Rear panel I/O ports
WiFi-AP antenna jack
1
S/PDIF out port
Yes
DisplayPorts quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
Network
Bluetooth version
5.3
Bluetooth
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Features
Windows operating systems supported
Windows 10 x64, Windows 11
Audio output channels
7.1 channels
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
ATX
Component for
PC
Expansion slots
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
2
PCI Express x1 (Gen 4.x) slots
2
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Packaging data
Package weight
1.35 kg
Package height
68 mm
Package depth
373 mm
Package width
338 mm
Weight & dimensions
Depth
244 mm
Width
305 mm

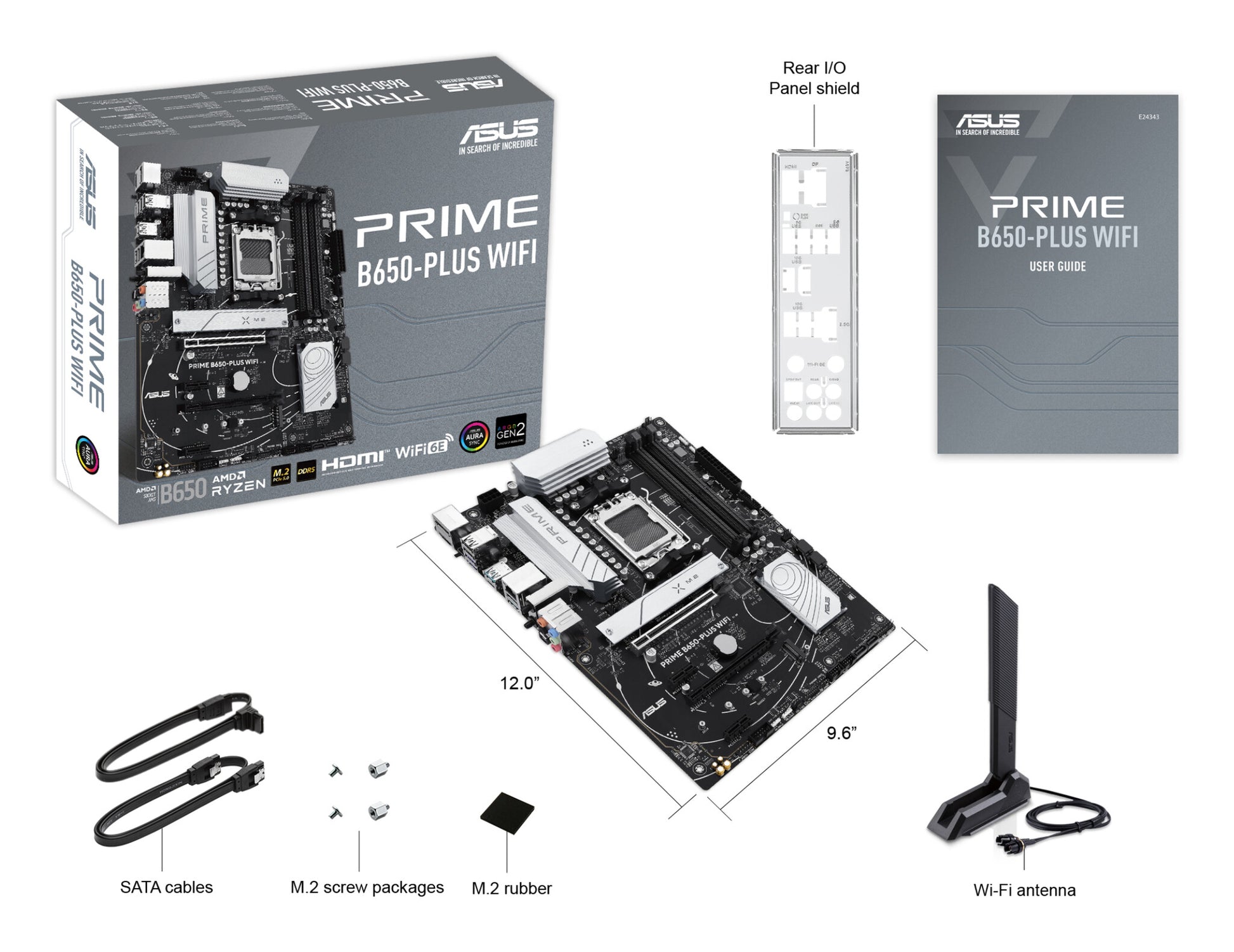

Packaging content
Cables included
SATA
Screws included
Yes
Antenna included
Yes
