ASUS PRIME A620AM-K AMD A620A Socket AM5 micro ATX

ASUS PRIME A620AM-K AMD A620A Socket AM5 micro ATX

£88.04 GBP
£88.04 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90MB1GX0-M0EAY0

324 in stock

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC micro ATX AMD A620A 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 5
  • BIOS type: UEFI AMI 256 Mbit
  • Gigabit Ethernet
AMD Socket AM5, AMD A620A Chipset

A620AM-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance
Digital Power Design
PRIME A620AM-K features 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Maximum internal memory 128 GB
Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 5
Number of HDDs supported 4
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
S/PDIF out connector Yes
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 2
TPM connector Yes
12V power connector Yes
Number of COM connectors 1
RGB LED pin header Yes
Number of RGB LED pin headers 3

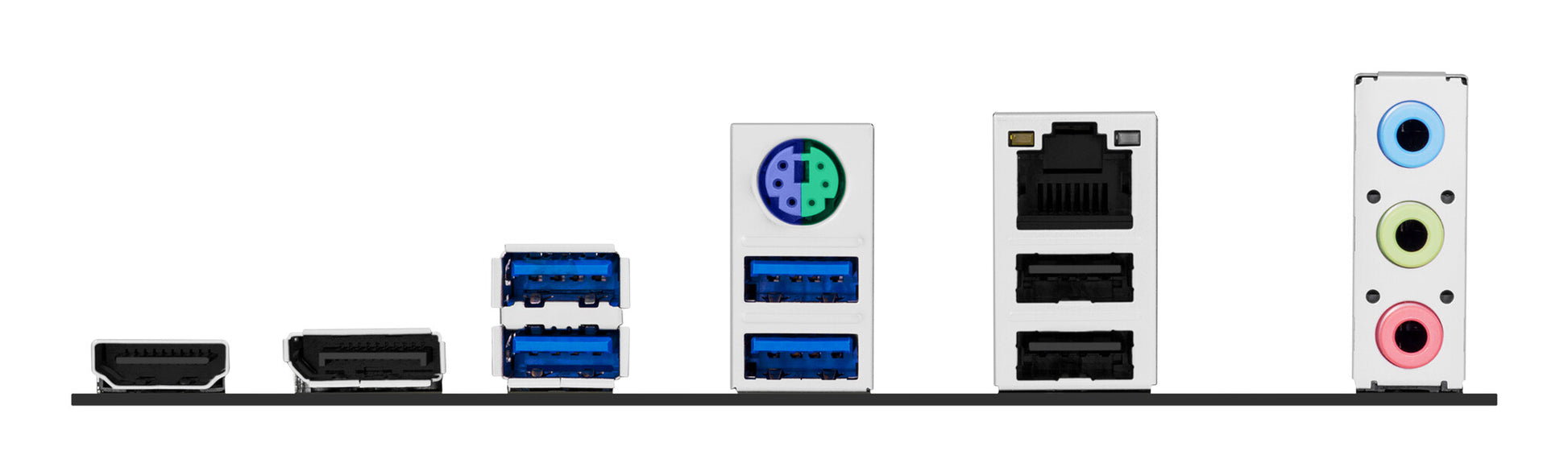

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 1
PS/2 ports quantity 1
HDMI ports quantity 1
DisplayPorts quantity 1
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD A620A
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
Packaging data
Package width 260 mm
Package depth 270 mm
Package height 51.5 mm
Package weight 900 g
Weight & dimensions
Width 226 mm
Depth 221 mm
Packaging content
Screws included Yes
Cables included SATA
