ASUS

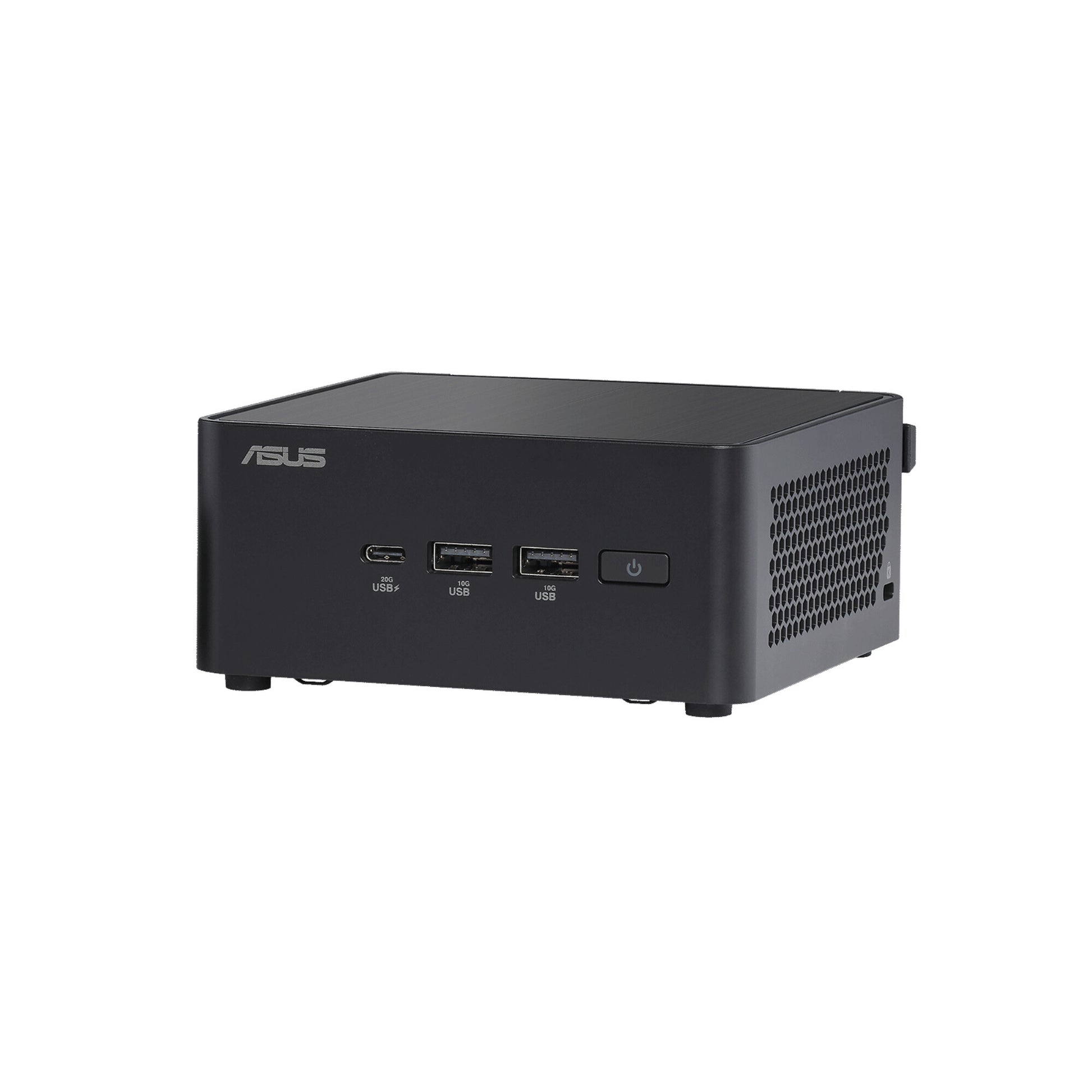

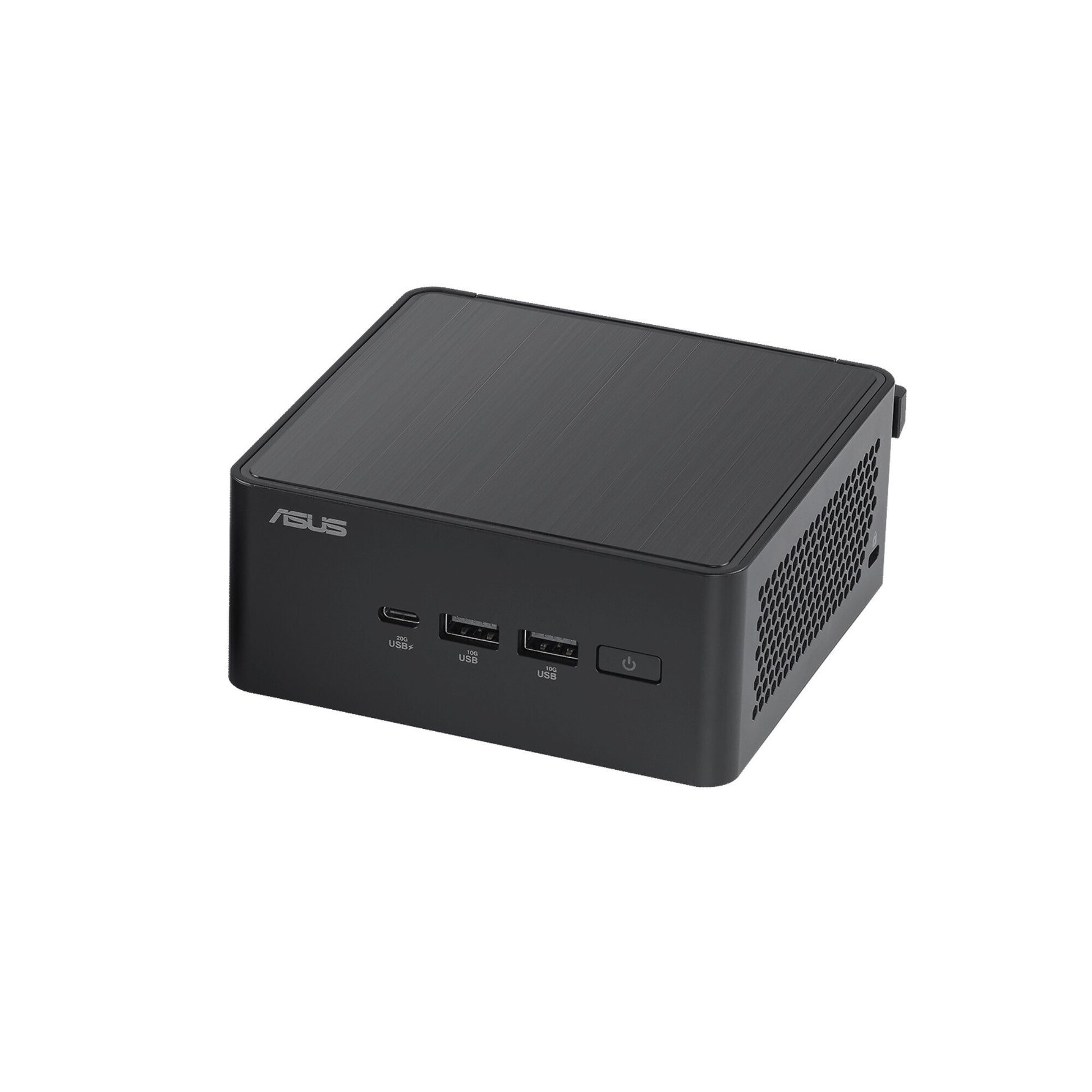

ASUS NUC 14 Pro RNUC14RVHI300003I UCFF Black 100U
ASUS NUC 14 Pro RNUC14RVHI300003I UCFF Black 100U
SKU:90AR0072-M00050
62 in stock
- Performance: Delivers best-in-class performance among comparable mini-PC offerings
- Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
- AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
- Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
- Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster
Compact Power, Intelligent Performance
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.
Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.
The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.
Processor | |
---|---|
Thermal Design Power (TDP) | 15 W |
Processor cache | 10 MB |
Efficient-core boost frequency | 3.3 GHz |
Performance-core boost frequency | 4.7 GHz |
Efficient cores | 4 |
Performance cores | 2 |
Processor threads | 8 |
Processor cores | 6 |
Processor model | 100U |
Processor generation | Intel Core (Series 1) |
Processor family | Intel Core 3 |
Processor manufacturer | Intel |
Built-in processor | Yes |
Memory | |
---|---|
Maximum internal memory | 96 GB |
Supported memory clock speeds | 5600 MHz |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Number of memory slots | 2 |
Memory slots type | SO-DIMM |
Storage | |
---|---|
NVMe | Yes |
Storage drive interface | PCI Express, Serial ATA III |
Storage drive sizes supported | 2.5,M.2 |
Supported storage drive types | SSD |
Graphics | |
---|---|
On-board graphics card model | Intel Graphics |
Graphics card family | Intel |
On-board graphics card | Yes |
Audio | |
---|---|
Built-in speaker(s) | No |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
WLAN controller model | Intel Wi-Fi 6E AX211 |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
Thunderbolt 4 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 2 |
USB4 Gen 2x2 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 2.0 ports quantity | 1 |
Design | |
---|---|
Product type | Mini PC barebone |
VESA mounting | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cooling type | Active |
Product colour | Black |
Chassis type | UCFF |
Performance | |
---|---|
Number of processors supported | 1 |
general_information_attribute_container_name | |
---|---|
attribute_product_family_name | NUC 14 Pro |
Software | |
---|---|
Windows operating systems supported | Windows 11 |
Power | |
---|---|
Power supply | 90 W |
Power supply type | External AC adapter |
Weight & dimensions | |
---|---|
Weight | 570 g |
Height | 41 mm |
Depth | 112 mm |
Width | 144 mm |
Packaging content | |
---|---|
Quick start guide | Yes |
Power cord included | Yes |
