1000W, 80 PLUS Gold, ATX 3.1, PLATINUM / A, 100-240V, 50-60Hz, 12-6A, iCOOL, 135mm Striped Axial FDB, White
Native PCIe 12V-2x6 Cable Dual Color Design With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

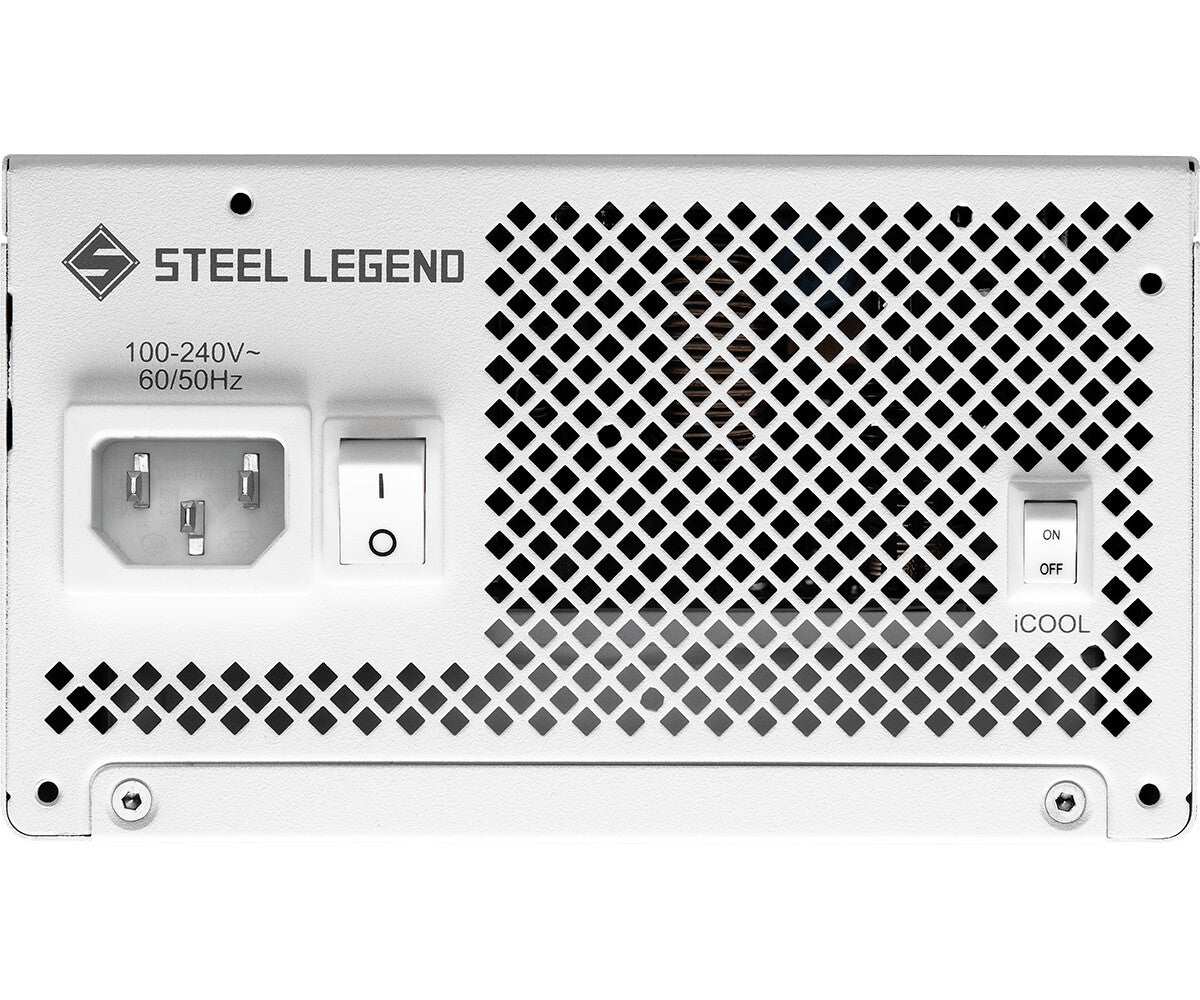

iCOOL Intelligent Fan Control Mode ●iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases. ●iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.
80 PLUS & CYBENETICS CERTIFIED The Steel Legend series power supply unit offers options of 1200W, 1000W, 850W, 750W, and 650W, available in "Steel Black" and "Steel White" ideal for mainstream systems. Certified for 80 PLUS Gold efficiency and Cybenetics Platinum rating, along with LAMBDA A+/A acoustic certification, it ensures outstanding energy performance.
CYBENETICS LAMBDA A The Steel Legend series power supply earning the prestigious Cybenetics Lambda A certification. This recognition underscores the Steel Legend series' outstanding noise control performance, making it an exceptional choice for users seeking ultra-quiet operation.

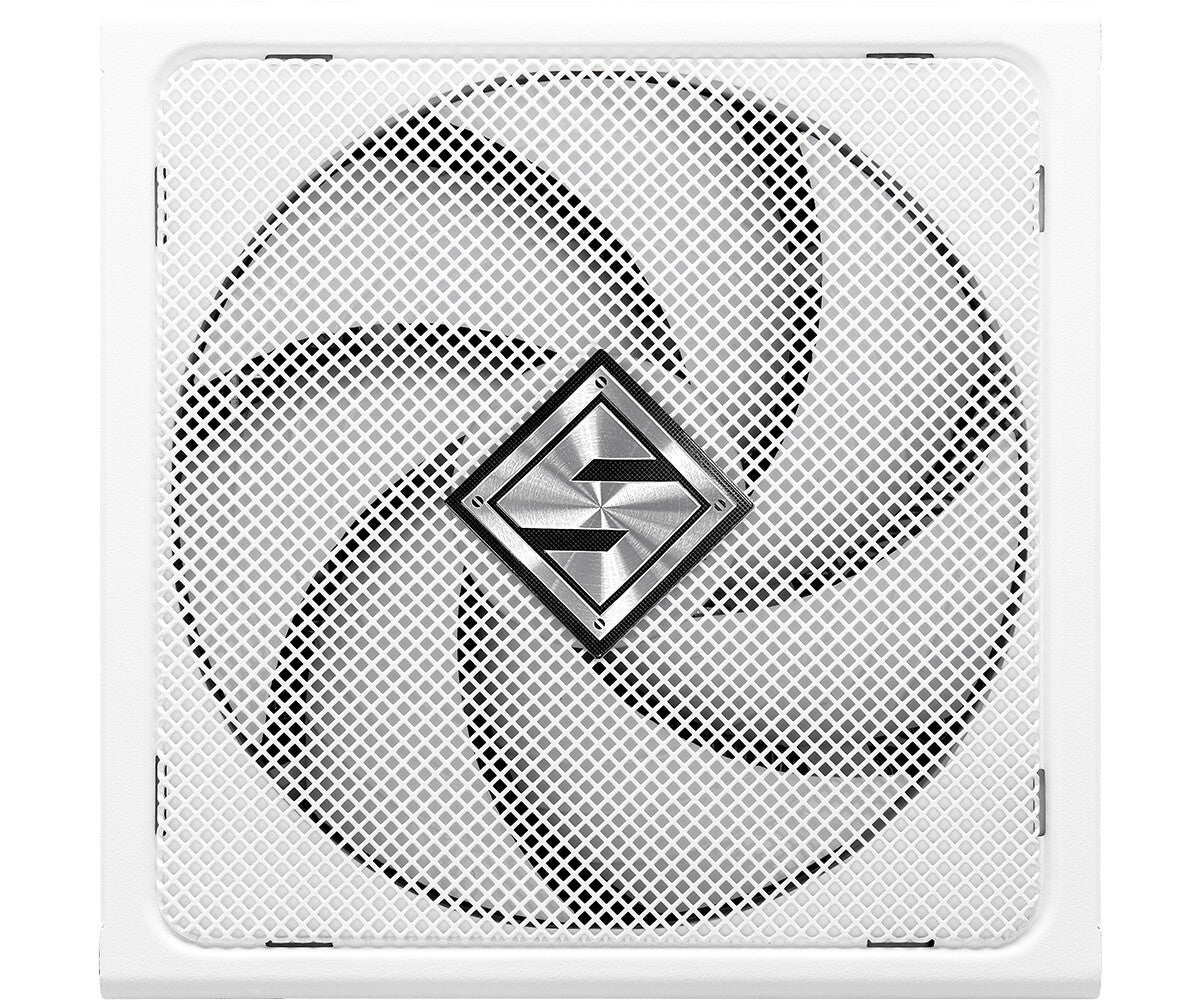

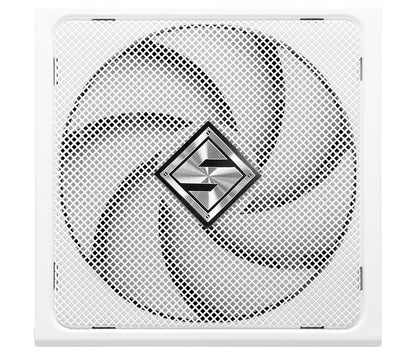

135mm Fluid Dynamic Bearing Fan The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.
Japanese Capacitors 105 °C Japanese-made Capacitor and Solid Capacitor, makes prolonged life span possible.
Safety First with ASRock Full suite of protections to keep all components safe during normal to extreme power levels. ASRock offers an outstanding 10 –Year warranty, guaranteeing long term reliable and peace of mind operation.

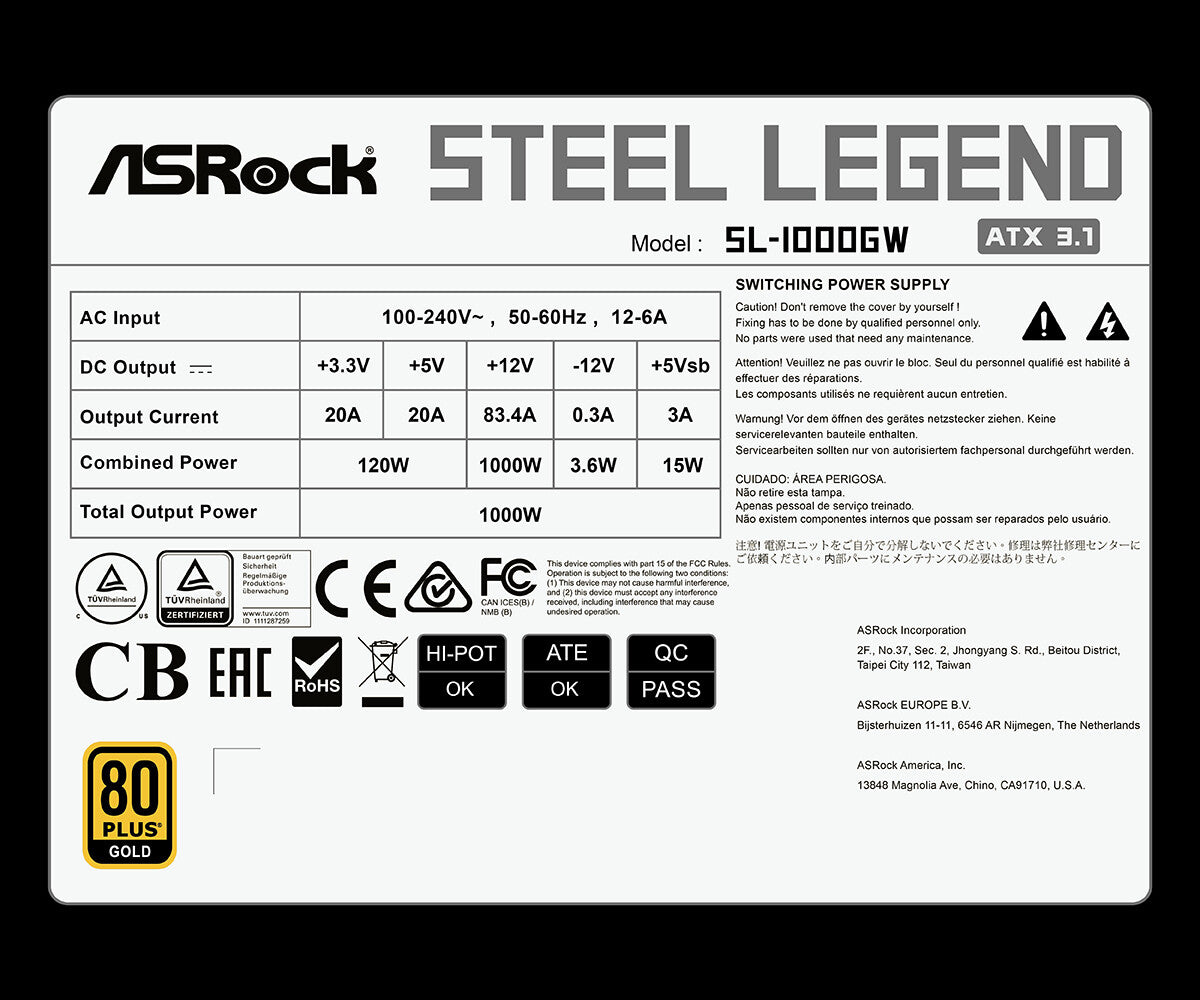

Power
Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
12 - 6 A
Combined power (+3.3V)
120 W
Combined power (+12V)
1000 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
83.4 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power excursion
200%
Power protection features
Over current, Short circuit, Over voltage, Under voltage, Overheating, Over power

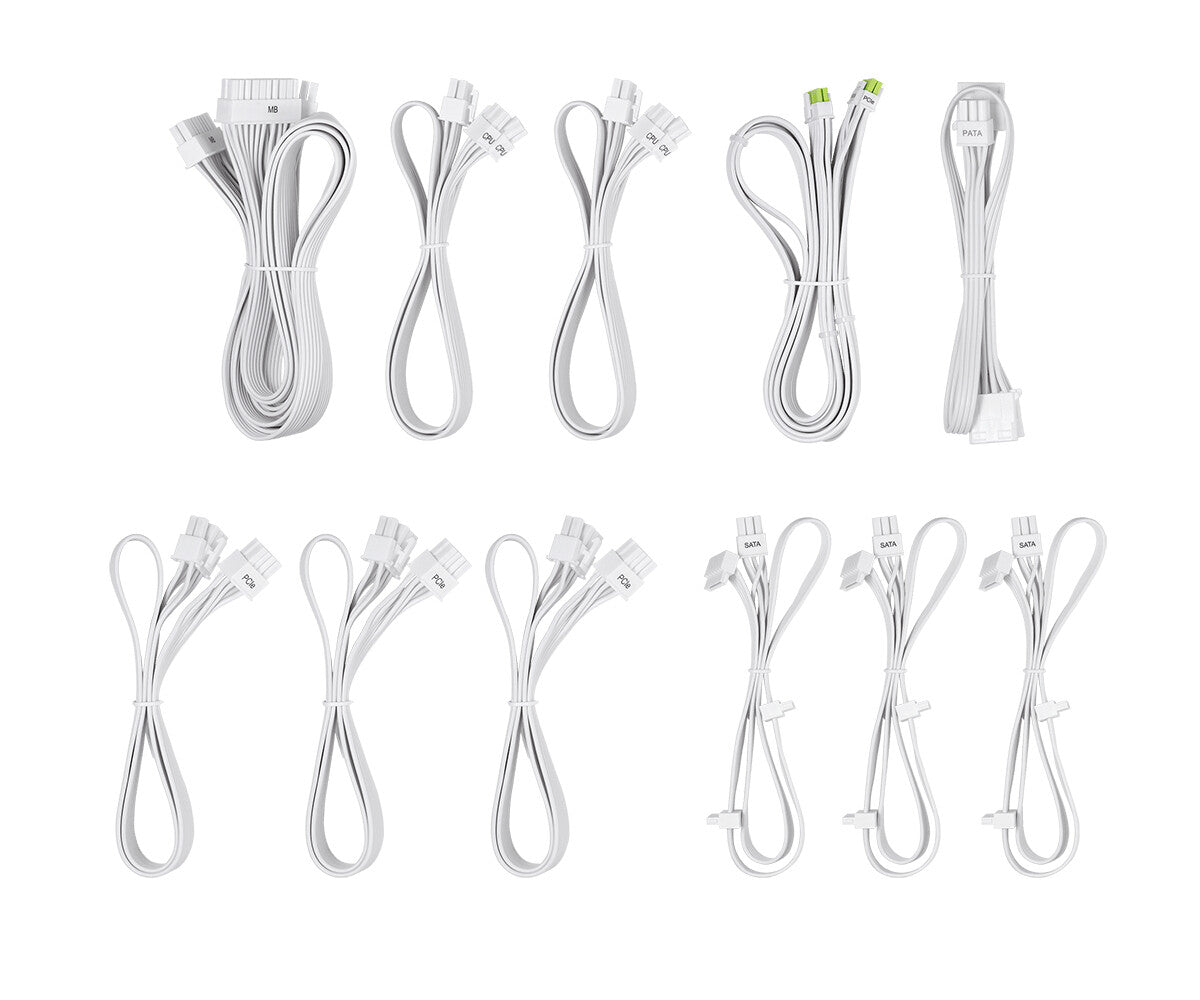

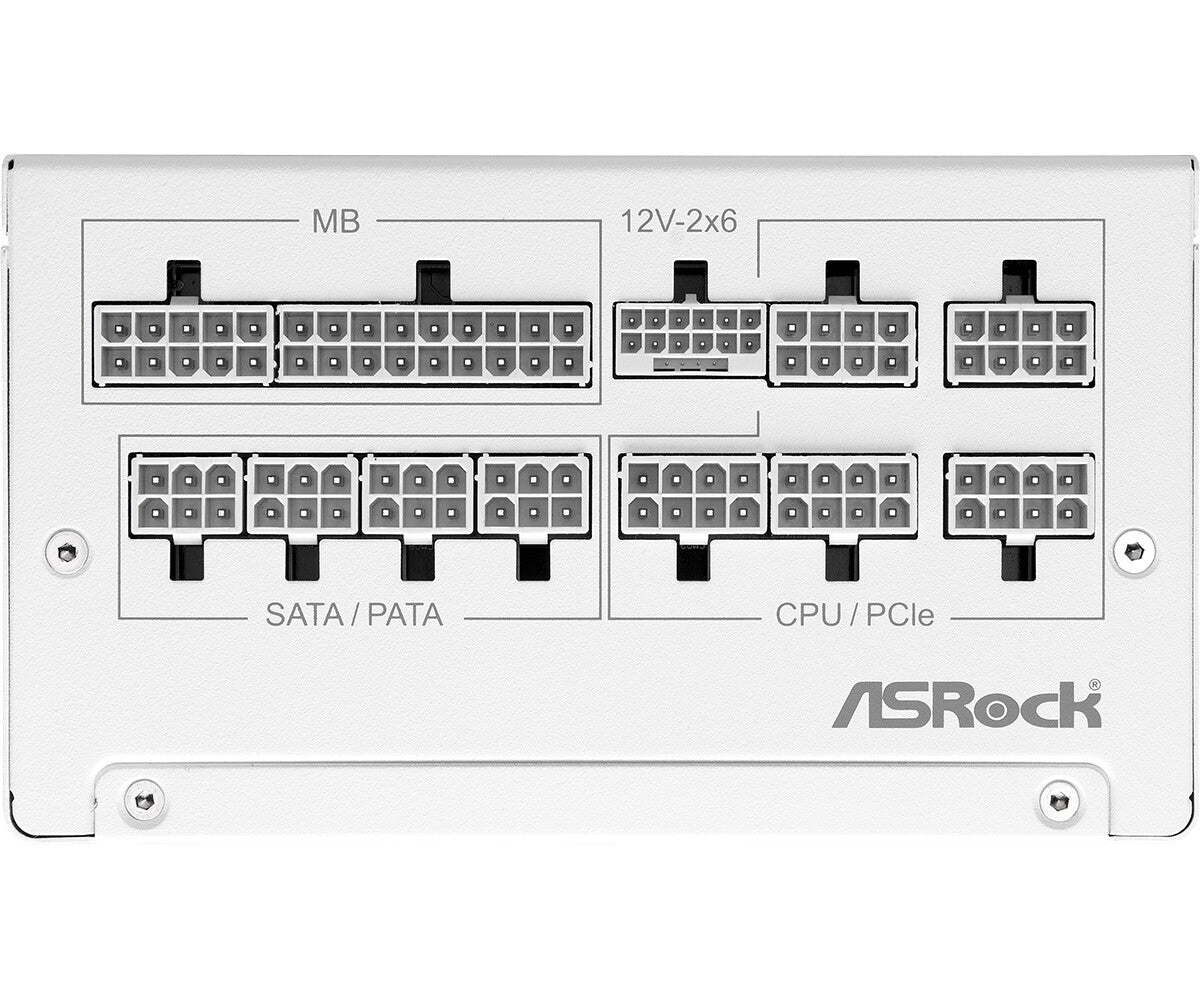

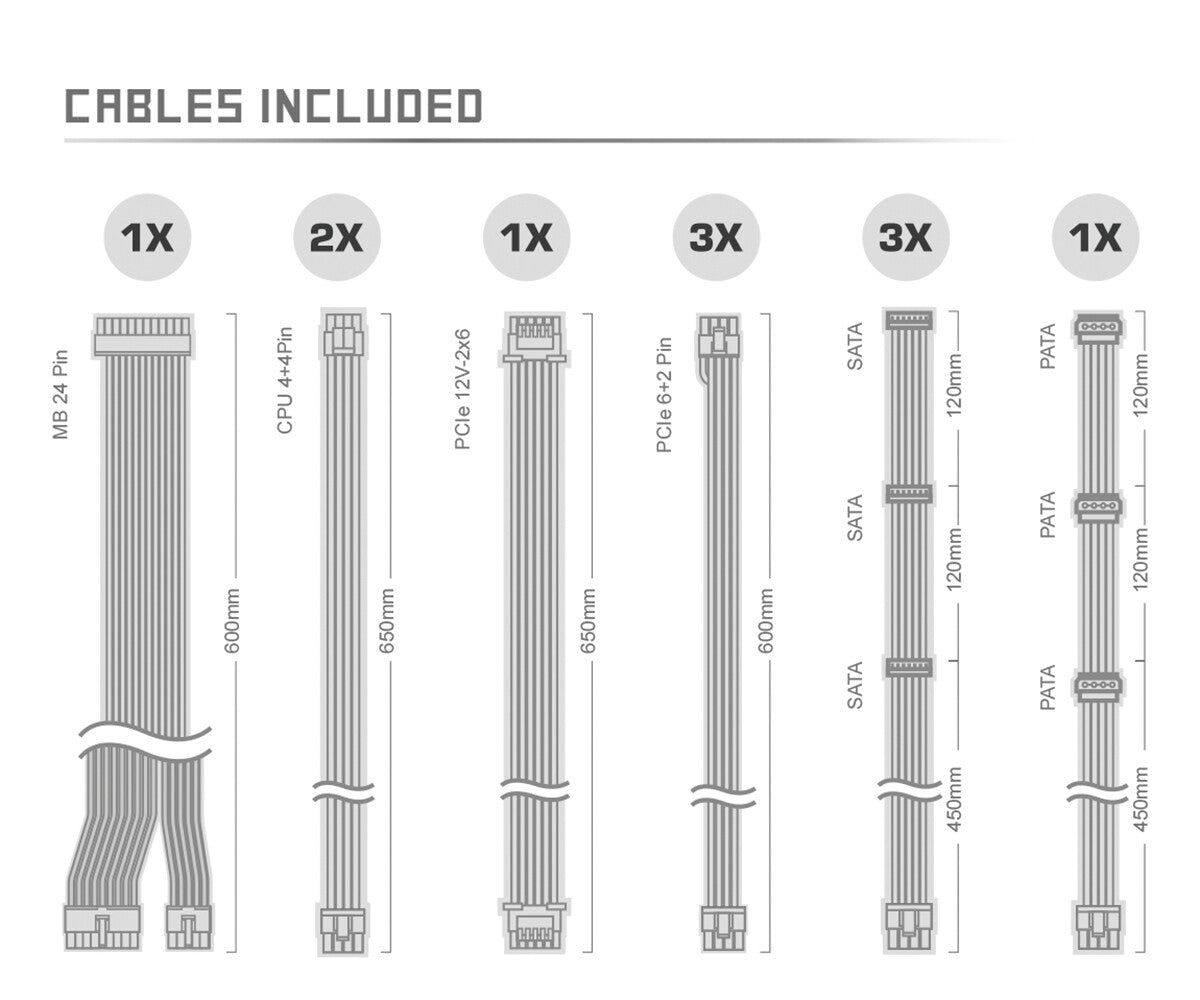

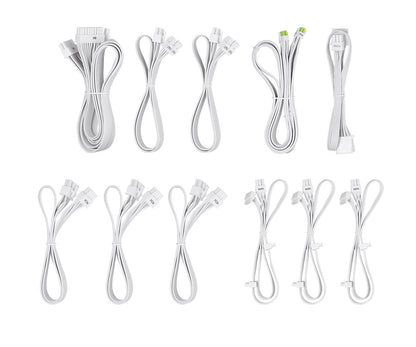

Ports & interfaces
Motherboard power connector
24-pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
9
SATA power cable length
450,570,690 mm
Number of SATA power cables
3
Peripheral (Molex) power connectors (4-pin)
3
Peripheral (Molex) power cable length
450,570,690 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (12+4 pin)
1
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
Performance
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Cybenetics certification
Platinum
Cybenetics noise rating
A
ATX version
3.1
Capacitor country of origin
Japan
Cooling system
iCOOL
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h
Design
Product colour
White
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan location
Top
Illumination
No
On/off switch
Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Packaging data
Package type
Box
Technical details
Doesn't contain
Lead, Mercury, Cadmium
Compliance certificates
CE, CB, EAC, RoHS, Federal Communications Commission (FCC)
