Asrock
Regular price
£459.19 GBP
Regular price
Sale price
£459.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:B650D4U
Low stock: 2 left

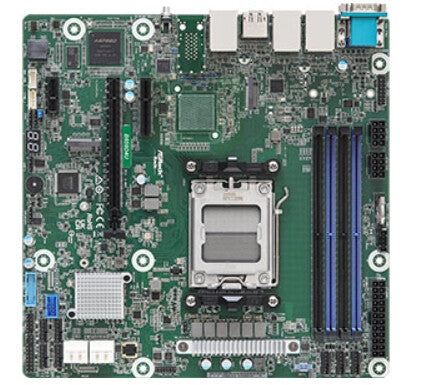

- Micro-ATX (9.6"x 9.6")
- Support AMD Ryzen 7000 series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
- Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (1GbE) by Intel® i210
- 4 SATA 6Gb/s
- 1 HDMI, 1 DisplayPort
- Remote management (IPMI)
Rack B650d4u Micro-atx Server Motherboard Single Socket Amd Ryzen 7000 Se
| Processor |
|---|
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Maximum internal memory |
32 GB |
| Supported memory clock speed (max) |
5200 MHz |
| Supported memory clock speeds |
3600,5200 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory voltage |
1.1 V |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Graphics |
|---|
| On-board graphics card model |
Aspeed AST2600 |
| Internal I/O |
|---|
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Number of SATA III connectors |
4 |

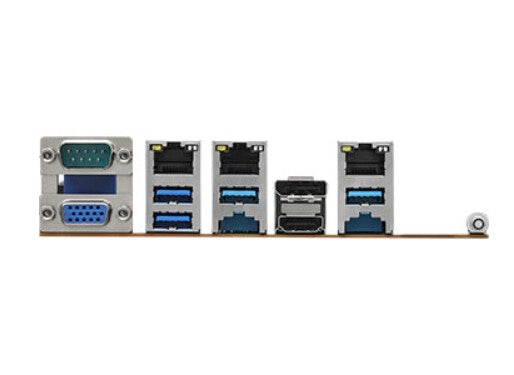

| Rear panel I/O ports |
|---|
| Serial ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| IPMI LAN (RJ-45) port |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Features |
|---|
| PC health monitoring |
CPU, Fan, Voltage |
| Motherboard chipset |
AMD B650 Express |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
micro ATX |
| Component for |
Server |
| Expansion slots |
|---|
| PCI Express x4 (Gen 4.x) slots |
1 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
3.5 |
| ACPI version |
6.4 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 90% |
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Depth |
243.8 mm |
| Width |
243.8 mm |
