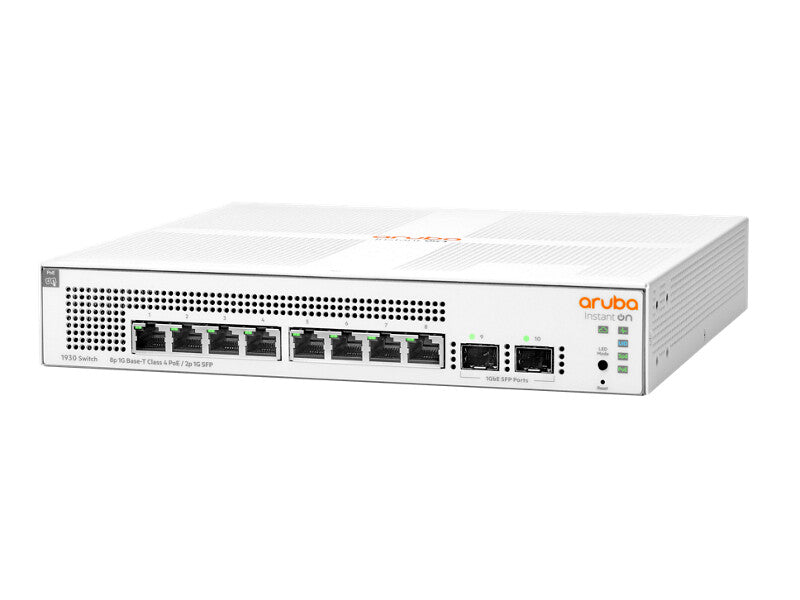

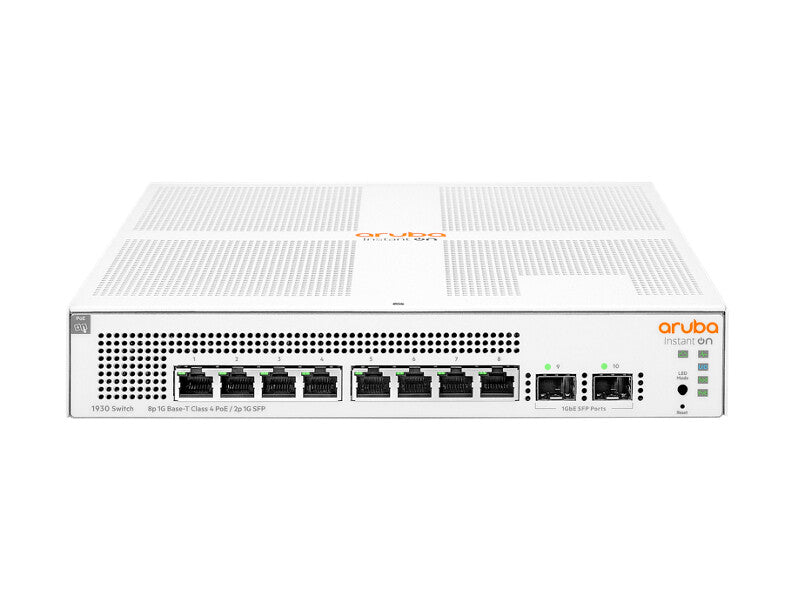

Aruba JL681A network switch Managed Gigabit Ethernet (10/100/1000) 1U White

Aruba JL681A network switch Managed Gigabit Ethernet (10/100/1000) 1U White

£289.56 GBP
£289.56 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

JL681A

50 in stock

  • Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity
  • Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility
  • 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity
  • Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely
  • Option to manage your switches through local web GUI
  • Limited Lifetime Warranty
Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch, ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer, 20 Gbps

DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 and 2 SFP 1GbE ports. Provides 124 W Class 4 PoE power.

Management features
System event log Yes
ARP inspection Yes
Cloud-managed Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch type Managed
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Number of VLANs 4093
VLAN support Yes
Auto-sensing Yes
Active link detection Yes
Rate limiting Yes
Flow control support Yes
Link aggregation Yes
Spanning tree protocol Yes
Routing entries 32
IP routing Yes
Full duplex Yes
Port mirroring Yes
10G support No
Data transmission
Throughput 14.88 Mpps
Switching capacity 20 Gbit/s
MAC address table 8000 entries
Security
BPDU filtering/protection Yes
SSH/SSL support Yes
Loop protection Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP snooping
Multicast features
Multicast support Yes
Design
Product colour White
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 256 MB
Internal memory 512 MB
Memory type SDRAM / Flash
Maximum SPAN sessions 800
Processor model ARM Cortex-A9
Built-in processor Yes
Power
Power consumption (max) 150.2 W
Input current 0.2 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Weight & dimensions
Weight 2.11 kg
Height 43.9 mm
Depth 254 mm
Width 254 mm
