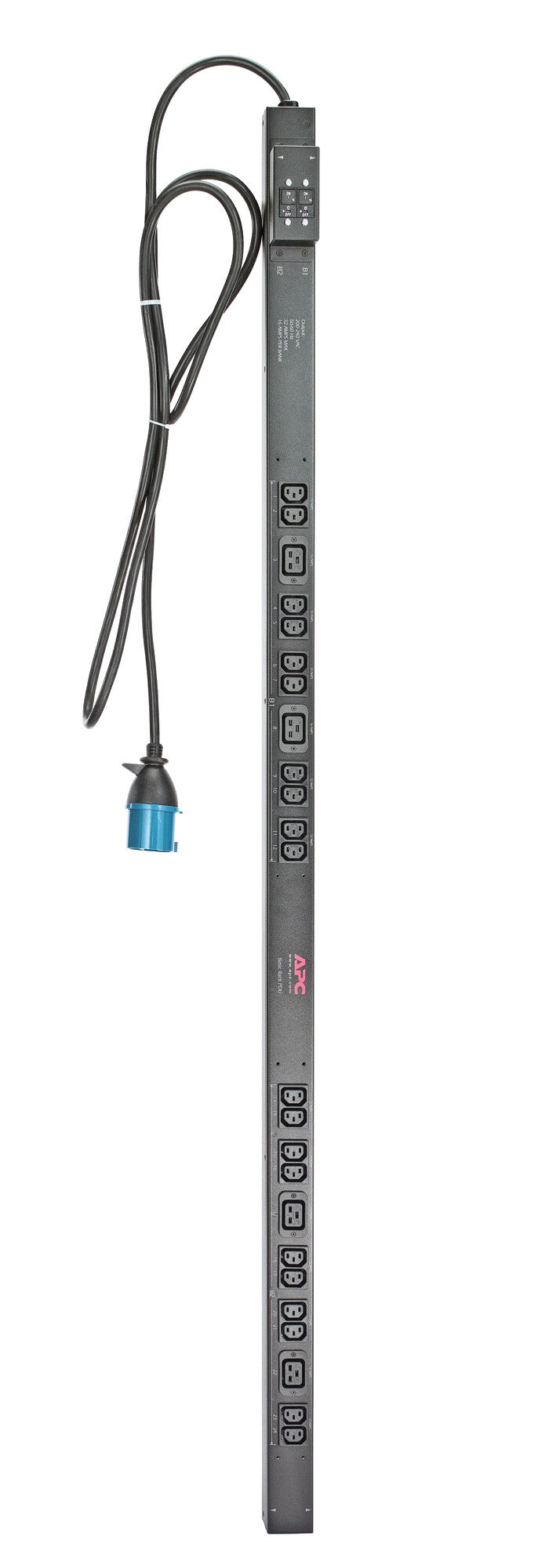

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black
APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Regular price
£386.84 GBP
Regular price
Sale price
£386.84 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:AP7553
12 in stock
- Single-phase Basic 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
| Design | |
|---|---|
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Single-phase |
| PDU types | Basic |
| Ports & interfaces | |
|---|---|
| I/O ports | (20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| Input connection type | IEC 309 32A |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| AC outlets quantity | 24 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3050 m |
| Power | |
|---|---|
| Maximum power | 7680 W |
| Maximum total current draw per phase | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7680 VA |
| Output voltage | 230 V |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Weight & dimensions | |
|---|---|
| Weight | 5.57 kg |
| Height | 1619 mm |
| Dimensions (WxDxH) | 56 x 44 x 1619 mm |
| Depth | 44 mm |
| Width | 56 mm |
| Packaging data | |
|---|---|
| Package height | 2134 mm |
| Package depth | 127 mm |
| Package width | 152 mm |
| Package dimensions (WxDxH) | 152 x 127 x 2134 mm |
| Package weight | 6.48 kg |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | 0 - 45 °C |
| Operating temperature (T-T) | -25 - 65 °C |
