APC

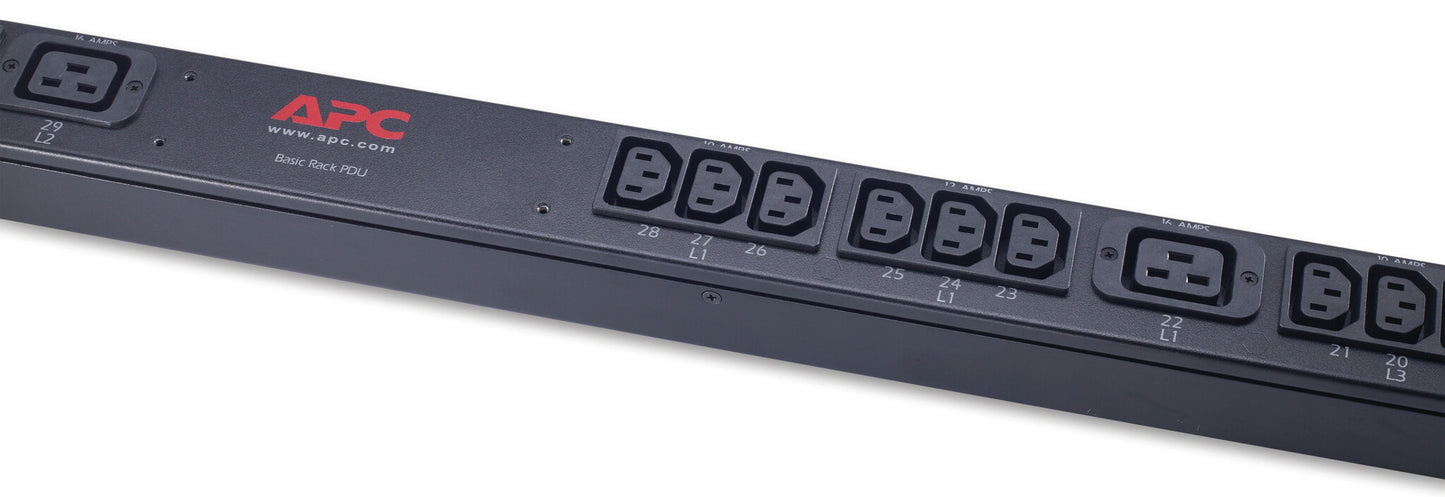

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU) 42 AC outlet(s) 0U Black

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU) 42 AC outlet(s) 0U Black

£991.66 GBP
£991.66 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AP7557

Low stock: 2 left

  • Basic 0U Black
  • 42 AC outlet(s) C13 coupler, C19 coupler
  • 11000 W
Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.

- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input.

Design
Product colour Black
Mounting Vertical
Rack capacity 0U
PDU types Basic
Ports & interfaces
Output connections (36) IEC 320 C13 (6) IEC 320 C19
Input connection type IEC 309 16A 3P+N+PE
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 42 AC outlet(s)
Features
Certification C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD
Cable length 0.91 m
Power
Maximum power 11000 W
Maximum total current draw per phase 16 A
Maximum input current per phase 16 A
Load capacity 11040 VA
Nominal output voltage 230 V
AC input frequency 47/63 Hz
Nominal input voltage 400 V
Weight & dimensions
Weight 5.45 kg
Height 1619 mm
Dimensions (WxDxH) 56 x 44 x 1619 mm
Depth 44 mm
Width 56 mm
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -25 - 65 °C
Operating temperature (T-T) -5 - 45 °C
